How the Embedding Layers in BERT Were Implemented

Introduction

In this article, I will explain the implementation details of the embedding layers in BERT, namely the Token Embeddings, Segment Embeddings, and the Position Embeddings.

Overview

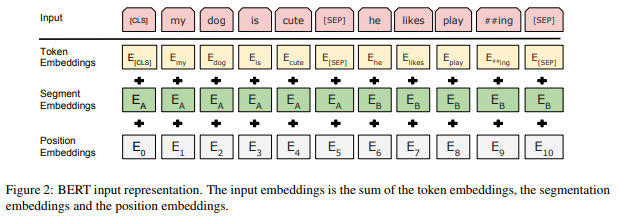

Here’s a diagram from the paper that aptly describes the function of each of the embedding layers in BERT:

Like most deep learning models aimed at solving NLP-related tasks, BERT passes each input token (the words in the input text) through a Token Embedding layer so that each token is transformed into a vector representation. Unlike other deep learning models, BERT has additional embedding layers in the form of Segment Embeddings and Position Embeddings. The reason for these additional embedding layers will become clear by the end of this article.

Token Embeddings

Purpose

As alluded to in the previous section, the role of the Token Embeddings layer is to transform words into vector representations of fixed dimension. In the case of BERT, each word is represented as a 768-dimensional vector.

Implementation

Suppose the input text is “I like strawberries”. Here’s a diagram describing the role of the Token Embeddings layer (there is a minor typo in this diagram, see this comment from Acha for details):

The input text is first tokenized before it gets passed to the Token Embeddings layer. Additionally, extra tokens are added at the start ([CLS]) and end ([SEP]) of the tokenized sentence. The purpose of these tokens are to serve as an input representation for classification tasks and to separate a pair of input texts respectively (more details in the next section).

The tokenization is done using a method called WordPiece tokenization. This is a data-driven tokenization method that aims to achieve a balance between vocabulary size and out-of-vocab words. This is way “strawberries” has been split into “straw” and “berries”. A detailed description of this method is beyond the scope of this article. The…
