Robot manipulators glide through free space, constrained only by their own kinematics. Placing sensors like cameras or haptic transducers at their end-effectors enables egocentric interaction, but introduces a data transmission problem. A simple approach researchers often opt for is to fix wiring along the external shell of the robot. In practice, however, as the horizon of a robot’s task increases, so does the probability of the robot ensnaring itself in a tangle of its own wires.

We want our manipulators to be free of tethers, while remaining flexible to adding and subtracting sensors as research needs rapidly change. Many manipulators on the current market lack internal channels for transmitting high-bandwidth data, and running wires too close to internal conduits can subject high-bandwidth signals to noise from electromagnetic interference (crosstalk).

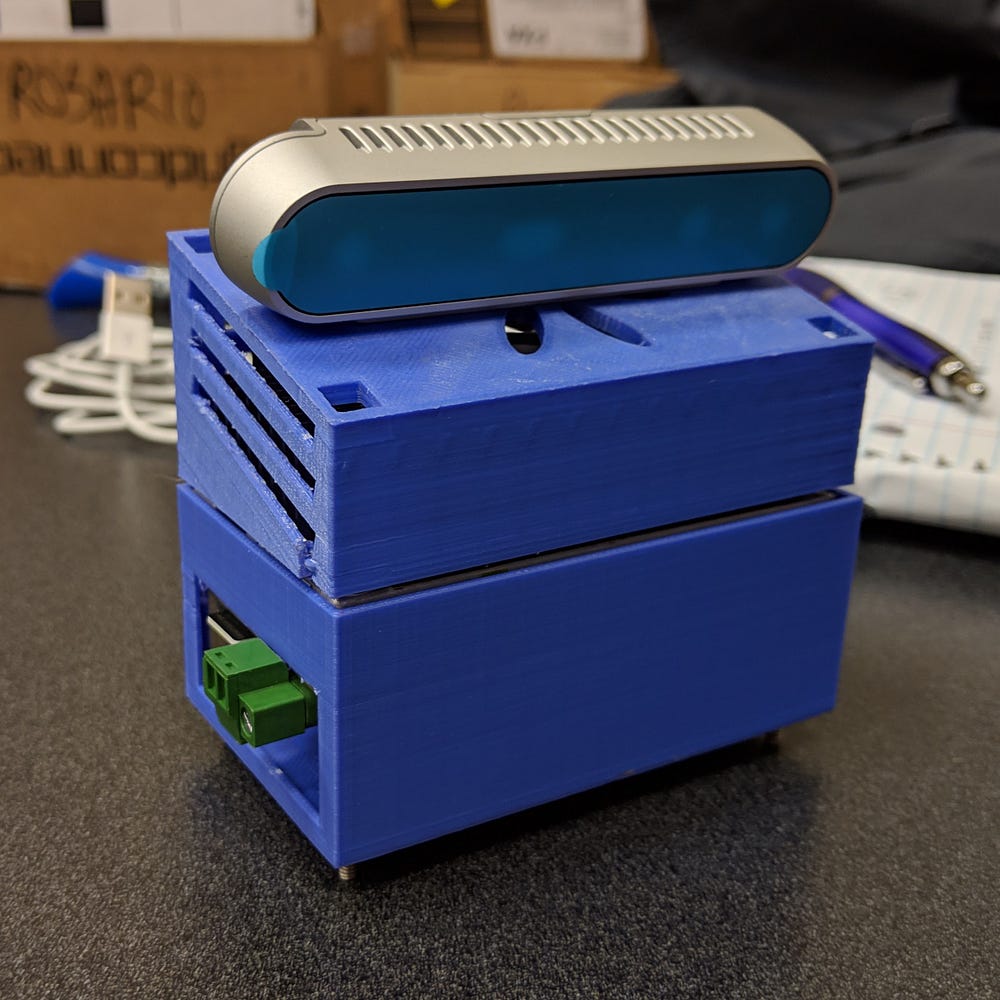

Our solution is a general-purpose module which interfaces sensors and wirelessly transmits high-bandwidth data over WiFi. We refer to it as the Wireless Perception Module (WPM), but are currently accepting name suggestions 😁.

https://www.kinovarobotics.com/sites/default/files/IG-002_KINOVA%20Gripper%20adapter%20kit-Installation%20Guide_EN_R03.pdf

Old n’ Busted ← — — — — — — — — — — — — — — — — — — — — —— — — — —— — — — — — — — — — — — — → New Hotness

[Above] On the left: an example of what a wired robot might look like after a long day of planning. On the right: Our wireless new-hotness.

[Below] An example of RGBD point cloud alignment using our system!

Software Architecture. The pipeline can be broken down into 5 major components. 1) Frame Acquisition: saving raw data from the sensor, 2) Encoding: using jpeg compression to reduce per frame file size and saving into packets, 3) WiFi: broadcasting packets on network, 4) Decoding: unpacking and decompressing the data, 5) Perception Tasks: completing a task using the data.

Challenges. Meeting this form factor’s requirements with mostly off-the-shelf components necessitated thoughtful design. As compute scaled, nominal power draw scaled. As nominal power draw scaled, thermal radiation scaled. As thermal radiation scaled, size of devices scaled due to cooling needs. Ultimately, we struck a nice balance with the Intel Joule and a Quarter-sized buck-converter. Along that vein, we had to be mindful of the amount of power our manipulator (in this case the Kinova Jaco 6DoF) was capable of sourcing. The Jaco can source up to 3A@24Vand the Joule needs roughly 1.5A@12V on bootup. Adding in sensors that draw power means we need to balance all three needs on the same bus: the manipulator’s motors, compute, and sensing.

Limitations. The current software stack achieves an average of 29 FPS for RGB + D data, unaligned. When reconstructing a point cloud with RGBD data, it is necessary to temporally align the two signals. This, unfortunately, leads to drops in framerate for the reconstructed point cloud. This does not have a significant bearing on our current applications, but could be a limitation for future tasks. There is a workaround which involves a custom compression wrapper, but it excludes ROS and is currently undergoing development. We are also not taking full advantage of hardware acceleration for data compression on the Joule version — we expect work on this to lead to improvements in overall latency.


Performance

Choice of Network Matters. Seems obvious in retrospect, but something to pay attention to! Use a network without much traffic on it if you expect high framerates! Here’s a plot with uncompressed data from early on in our testing.

Compression. Our best performing methods tested on the Joule platform have been a combination of Jpeg for RGB and Zlib for Depth data (intraframe). We’ve experimented with interframe methods, but performance was less stable. This is something we are excited to use moving forward.

Framerate. The current average performance hovers around 29 FPS, depending on the complexity of the signal.

Latency. With compression, we achieved <50 ms which was more than sufficient for our current use cases.

To see our system in action, check out the assistive food manipulation project!


Can I have one?

We’re glad you asked. The answer is an emphatic YES! We’ve compiled a tutorial for constructing one from scratch, including a bill of materials.


What’s next?

It’s a prototype, okay?

The next generation is nearing completion! We’ve switched the core computing to an NVidia Jetson TX2. Our focus was on reducing the footprint, enhancing compute [we can now efficiently run models requiring NN forward-passes directly at the end-effector], and expanding I/O to support more sensors. We’ll be sure to include the same tutorial and BoM format for researchers interested in jumping straight to the new design once we’ve finalized the design and finished testing!



❤️❗️

Most importantly, big 🆙 to Ramon Qu who has been instrumental in completing this project. It would not exist without him.
