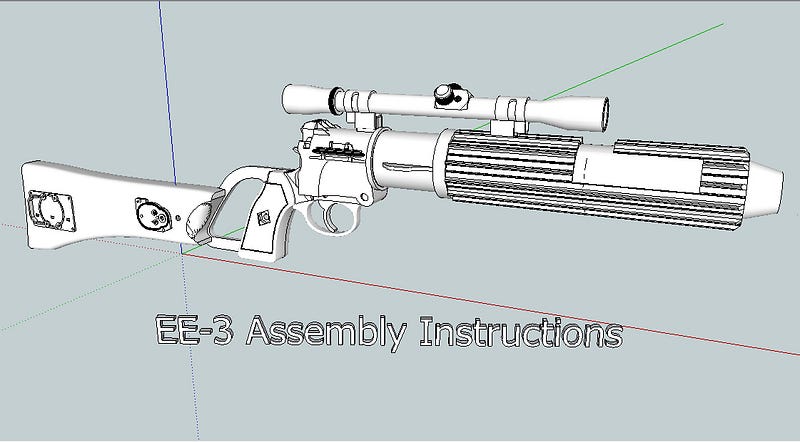

April Storm Props ROTJ EE-3 Blaster Assembly

For information on what glue to use and removing print lines please read the following: finishing-techniques-for-3d-printed-replica-props

This assembly guide assumes the prop parts have been printed in ABS plastic

Please note: 3D rendered photos include inline text which may require you to zoom into the picture depending on the device you are viewing this guide on

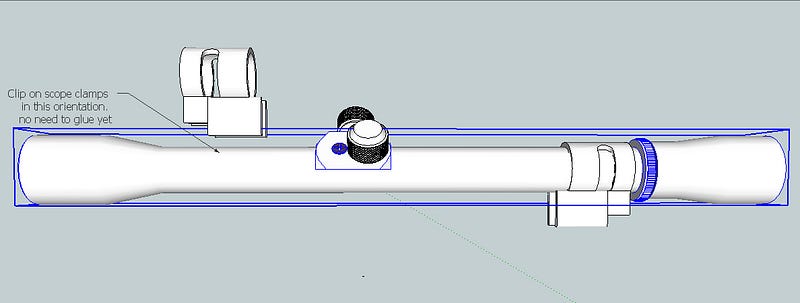

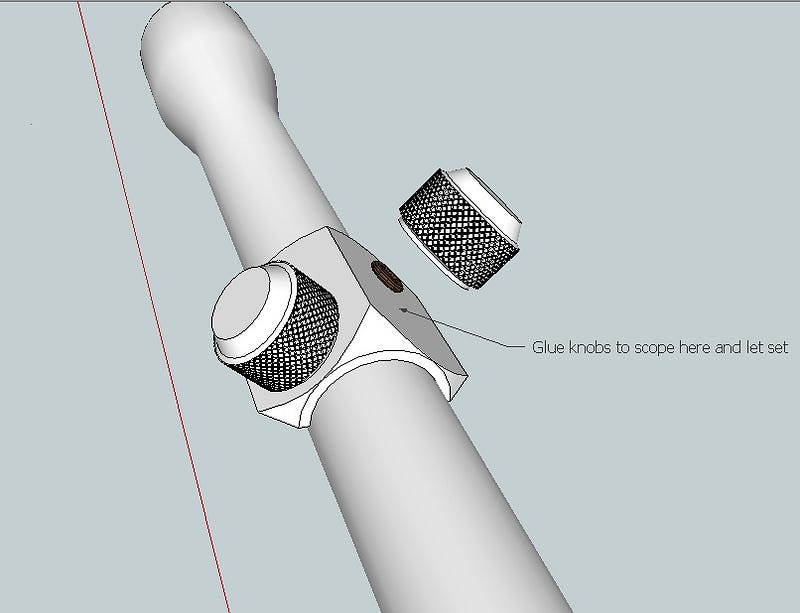

Scope Assembly

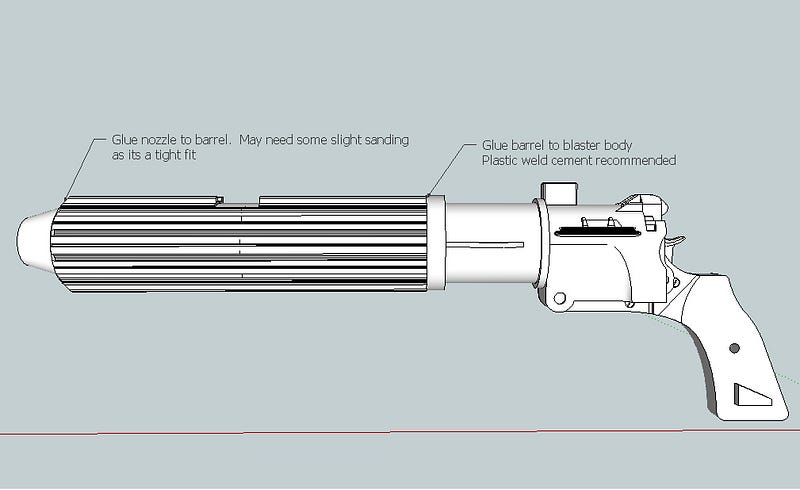

Attaching the Barrel

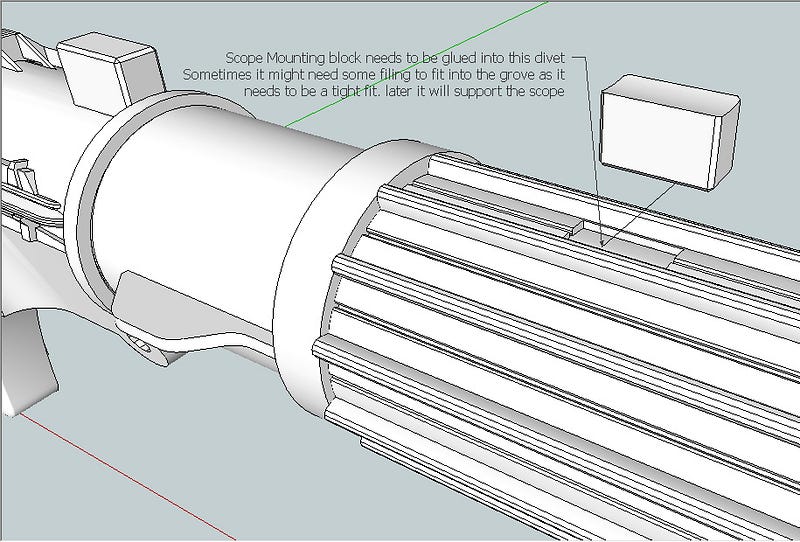

Attaching the scope mounting blocks

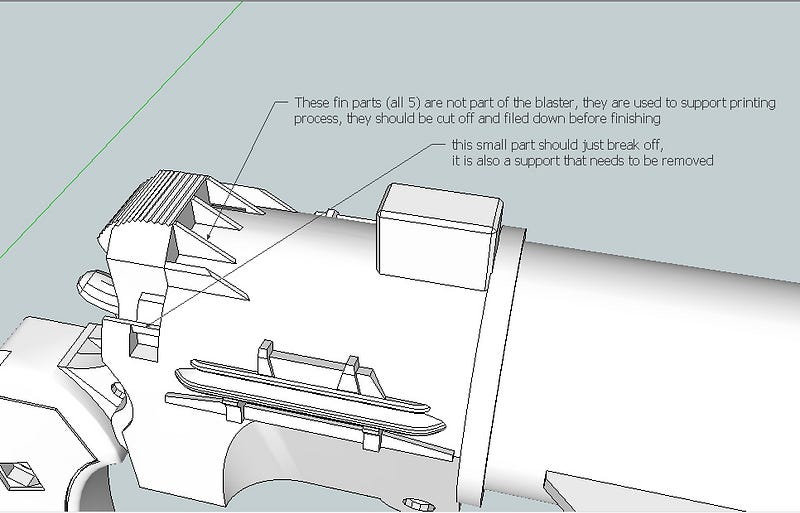

Removing the printing supports

Attaching the scope to the main blaster body

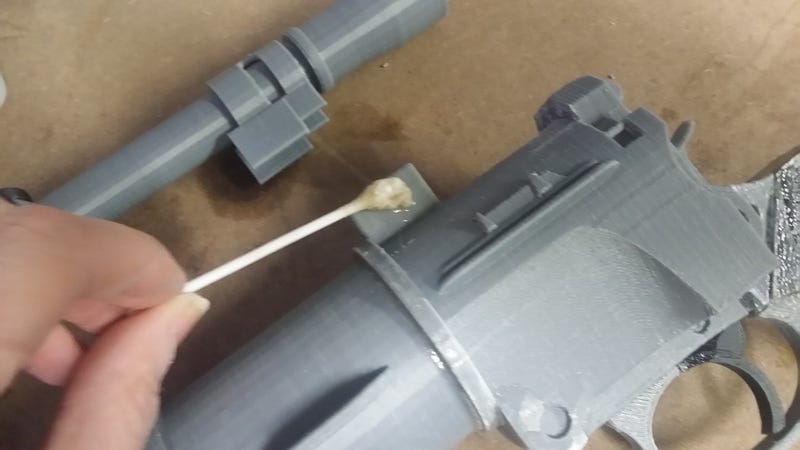

It’s a good idea to plastic weld these parts (scope clamps) for strength. You can use plastic cement, but I often just use a little acetone.

It’s important not to use too much acetone as it can melt your abs prop (it also assumes your ee3 was printed in ABS) so a cotton tip is usually a good applicator.

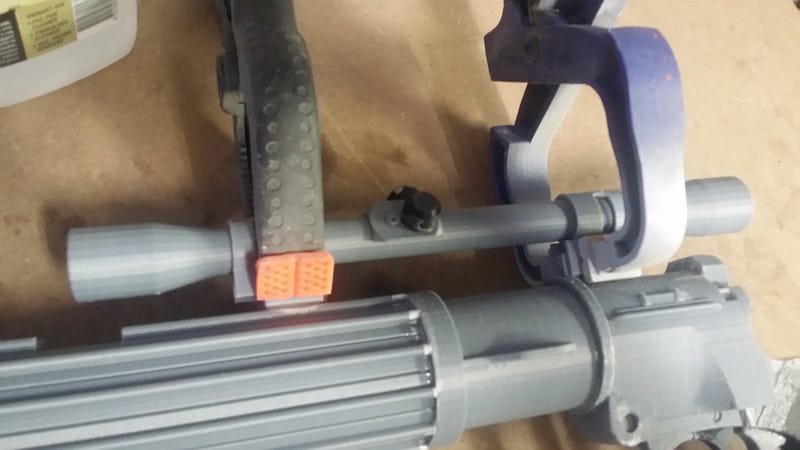

It’s also often necessary to clamp the scope clamps while the glue sets. This will ensure a strong bond.

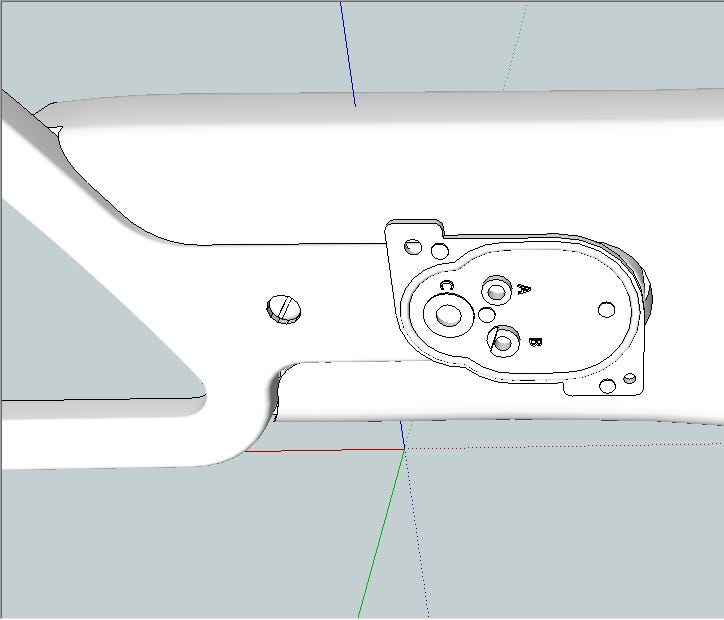

Working on the Stock

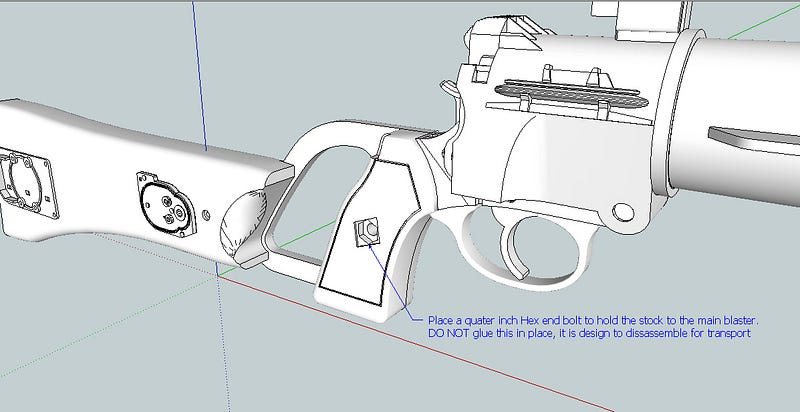

Attaching the stock to the body
