Iden3’s Circom Circuits & Snarks

CPerezz.eth
12 min readOct 30, 2018

--

What are ZKsnarks and how do they work?

ZKSnarks also known as: Zero Knowledge Succinct Non-interactive Arguments of Knowledge, are fast computational zero knowledge proofs that allow you to demonstrate things without giving any info and even without the need of interactions between the proofer and the verifier.

Let’s see an example.

  • Bob wants to demonstrate to Alex that he knows the answer to some problem.
  • Bob, will receive from a TEE (Trust execution environment) a value S and a CRS.
  • If Bob knows the solution to the problem that Alex is asking for, he will be able to demonstrate the divisibility between several polynomial functions.
  • If he has the correct solution, the output that the pairings subtraction operation realized by the verifier is 1, else 0.

It’s hard to summarize the Snark construction process, but it looks like this:

  • Whatever mathematical problem can be summarized on a circuit (compiled C code for example).
  • The circuit is transformed on a Quadratic Arithmetic Program(QAP) by extracting its polynomic functions.
  • Which at the same time, can be seen as a Computation Model.

With all of this, we are able to build Snarks that let us verify a proof without acquiring knowledge of the solution and without interaction between the proofer and the verifier.

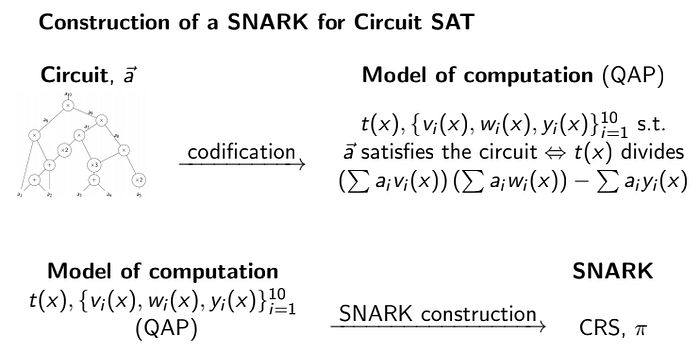

Here is a visual representation of the process and maths involved:

As We’ve seen, SNARKS are complex mathematical constructions which are hard to work with. Specially, what makes them hard (maths appart) is the complexity of building circuits. Circuits aren’t standarized on any way, and this makes difficult for developers to know how to build them. Circom appears to make our lives much easier by providing an easy CLI and a great compiler jaz to transform our circuits written on circom to a QAP .

Circom is what snarkjs needed to transform the output of the compiled circom circuits to ZKSNARKS.

This article and the following ones are a collection of notes and explanations that I’m taking while doing the tutorial of Circom and Snarkjs, projects developed by my countryman Jordi Baylina posted here.

The following are the tasks with which I’m contributing,

  • Circom basic tutorial.
  • Advanced Circuits and non mathematical problems prooving.
  • Solidity integration of the second part.

Required: Node.js >=8.12.0 but recommended: 10.12.0 (Big Intger native libraries included!!). snarkjs takes profit of it (if possible).

Installation:

$ npm install -g circom
$ npm install -g snarkjs

Circuit creation

We create a circuit directory factor. (Recommended to have a circuits folder with a git repo in it with its tests and codes.)

We create a new ciruit file: $ touch testcirc.circom with the content:

template Multiplier() {
    signal private input a;
    signal private input b;
    signal output c;    c <== a*b;
}component main = Multiplier();

This circuit forces the signal c to be the value a*b.
Note that we instantiated the Multiplier template with a component named main which must always exist.

Circuit compiling

To compile our circuit to a .json file (which snarkjs library understands and is able to use) we run the following:

$ circom testcirc.circom -o testcirc.json

That creates us the testcirc.json file that we will use later.

Snarkjs enters in action.

First we see that the file has the following format:

{
 "mainCode": "{\n}\n",
 "signalName2Idx": {
  "one": 0,
  "main.a": 2,
  "main.b": 3,
  "main.c": 1
 },
 "components": [
  {
   "name": "main",
   "params": {},
   "template": "Multiplier",
   "inputSignals": 2
  }
 ],
 "componentName2Idx": {
  "main": 0
 },
 "signals": [
  {
   "names": [
    "one"
   ],
   "triggerComponents": []
  },
  {
   "names": [
    "main.c"
   ],
   "triggerComponents": []
  },
  {
   "names": [
    "main.a"
   ],
   "triggerComponents": [
    0
   ]
  },
  {
   "names": [
    "main.b"
   ],
   "triggerComponents": [
    0
   ]
  }
 ],
 "constraints": [
  [
   {
    "2": "21888242871839275222246405745257275088548364400416034343698204186575808495616"
   },
   {
    "3": "1"
   },
   {
    "1": "21888242871839275222246405745257275088548364400416034343698204186575808495616"
   }
  ]
 ],
 "templates": {
     //Here we see the Multiplier template code on an snarkjs readable version.
  "Multiplier": "function(ctx) {\n    ctx.setSignal(\"c\", [], bigInt(ctx.getSignal(\"a\", [])).mul(bigInt(ctx.getSignal(\"b\", []))).mod(__P__));\n    ctx.assert(ctx.getSignal(\"c\", []), bigInt(ctx.getSignal(\"a\", [])).mul(bigInt(ctx.getSignal(\"b\", []))).mod(__P__));\n}\n"
 },
 "functions": {},
 "nPrvInputs": 2,
 "nPubInputs": 0,
 "nInputs": 2,
 "nOutputs": 1,
 "nVars": 4,
 "nConstants": 0,
 "nSignals": 4
}

Circuit info and details.

Now that we have a circuit we can do a few things with snarkjs library:

  • See our circuit constraints:
    To do it we execute: $ snarkjs printconstraints -c testcirc.json.
    Which gives us something that we were expecting: [ -1main.a ] * [ 1main.b ] - [ -1main.c ] = 0.
    This output makes sense if you think that it’s easy to see that the result of the product less c (which is also the result) must be zero.

We can also receive additional information of the circuit by executing: $ snarkjs info -c testcirc.json. This command returns the following code:

# Wires: 4
# Constraints: 1 //Conditions that the circuit must satisfy
# Private Inputs: 2
# Public Inputs: 0
# Outputs: 1

Setting up using Snarkjs

To run a setup for the circuit we execute: $ snarkjs setup -c <circuit_name.json>. By default snarkjs library uses circuit.json if no circuit is specified.

The output of the command consists on the following files: verification_key.json and proving_key.json. Which I guess are the mathematical implementation of the circuit.

Calculating a witness

Before creating any proof, we need to verify that all the signals of the circuit match (all) the constraints of the circuit. The set of signals is the witness.

The ZKPs prove that you know a set of signals that matches all the constraints but without revealing any info about the signals, except public inputs and outputs.

snarkjs does the set of signals calculations for you. This provides a file with the inputs and it executes the circuit and calculate all the intermediate signals and the output.

Example: Factorisation of a number.

Let’s supose you want to prove that you are able to factorize the number 33. This means you know two numbers a and b that, multiplied, produce 33.

We create a file with our input parameters named input.json

{
    "a": 3,
    "b": 11
}

To calculate the witness we run snarkjs calculatewitness -c testcirc.json. Note that a new json file was generated with the name: witness.json. Which looks like this:

[
 "1",
 "33",
 "3",
 "11"
]

In this lines we see all the different signals of the circuit.

Create the proof

With the witness generated, we can now generate the proof by doing: $ snarkjs proof. This command uses witness.json and prooving_key.json to generate:

proof.json and public.json.

  • proof file contains raw data of the proof that the snarkjs library uses to verify that we know a witness that satisfies the circuit. It looks like this:
{
 "pi_a": [
  "19826736229496222914042957678676594646487928122809399344451854669658145297527",
  "2634984150875680490731151134374359844165630383050972908781761501172097420735",
  "1"
 ],
 "pi_ap": [
  "92895479573012556600932969664308229653935804142413397702004120022414927204",
  "1779620150361906910110460988578972693900805781469708425011408762445221189889",
  "1"
 ],
 "pi_b": [
  [
   "16927077732489738233891595168559740939960496392019715626893332163184676355311",
   "11323284128121574977583259031278198532612576917629801620103447679888763676966"
  ],
  [
   "1654683027262619127077634345683777292633223698120493896092963716834333293945",
   "11108774617545981579109558837407852757944530472416298546150783461042753191779"
  ],
  [
   "1",
   "0"
  ]
 ],
 "pi_bp": [
  "17629721890932770908184259251377277252613687558548583022523210055981675534667",
  "2654588245480869614540863238811026589319881844578382976033182497030914965504",
  "1"
 ],
 "pi_c": [
  "10308179063836193125026826210094137749162110856935110857103252987353130364165",
  "2876977005527167505309245471352805528543203336543896748733677167100293373430",
  "1"
 ],
 "pi_cp": [
  "11950591033183336717348600982685397560783978128279198935562495439782845381324",
  "5235256809568608503991240154577700307157380271407597176658238302141362315306",
  "1"
 ],
 "pi_kp": [
  "3011776433475757372593584812166575852982468118275873400797719951885552613962",
  "5728131238303583563651227369764162877314910585841243338490732830382223457911",
  "1"
 ],
 "pi_h": [
  "13641719963056706197187435380951201677761584267380849353742989718407609585147",
  "14269233575643403945165960538299535584139779327185949730797498266996787509003",
  "1"
 ]
}
  • The public file contains all of the input signals of the circuit. In our example looks like this:
[
 "33" //Just the output of the product is public.
]

Now we’ve calculated the proof. This means that our inputs are going to be concealed by some methodology. Homomorphic hiding is a great example of that kind of hidings. Here you got an interesting short lecture about it on ZCash blog.

This allow us to verify the proof without revealing which were our inputs as we will see now:

Verifying the proof

To verify the proof we will run $ snarkjs verify which prints Ok if the verification is correct (the validation is satisfied as a result of the pairing operation that has been done), or INVALID otherwise.

The command uses verification_key.json and proof.json and public.json (but notice that won’t use any private signal that we used as input!!!). It uses our inputs hidden as large numbers which give no information about our witness!!

Generating a Solidity verifier

Now that we can verify proofs, the main threat is to do this proces on-chain. To do this We start by generating a verifier.sol file.

Run $ snarkjs generateverifier. We get a verifier.sol file as a result, with all the math requirements (ECDSA implementation (Starting from the Finite fields generators), Pairings integration on Solidity) to achieve the proof verification running only using solidity code.

The contract looks like this:

//
// Copyright 2017 Christian Reitwiessner
// Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
// The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
// THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
pragma solidity ^0.4.14;
library Pairing {
    struct G1Point {
        uint X;
        uint Y;
    }
    // Encoding of field elements is: X[0] * z + X[1]
    struct G2Point {
        uint[2] X;
        uint[2] Y;
    }
    /// @return the generator of G1
    function P1() pure internal returns (G1Point) {
        return G1Point(1, 2);
    }
    /// @return the generator of G2
    function P2() pure internal returns (G2Point) {
        // Original code point
        return G2Point(
            [11559732032986387107991004021392285783925812861821192530917403151452391805634,
             10857046999023057135944570762232829481370756359578518086990519993285655852781],
            [4082367875863433681332203403145435568316851327593401208105741076214120093531,
             8495653923123431417604973247489272438418190587263600148770280649306958101930]
        );/*
        // Changed by Jordi point
        return G2Point(
            [10857046999023057135944570762232829481370756359578518086990519993285655852781,
             11559732032986387107991004021392285783925812861821192530917403151452391805634],
            [8495653923123431417604973247489272438418190587263600148770280649306958101930,
             4082367875863433681332203403145435568316851327593401208105741076214120093531]
        );
*/
    }
    /// @return the negation of p, i.e. p.addition(p.negate()) should be zero.
    function negate(G1Point p) pure internal returns (G1Point) {
        // The prime q in the base field F_q for G1
        uint q = 21888242871839275222246405745257275088696311157297823662689037894645226208583;
        if (p.X == 0 && p.Y == 0)
            return G1Point(0, 0);
        return G1Point(p.X, q - (p.Y % q));
    }
    /// @return the sum of two points of G1
    function addition(G1Point p1, G1Point p2) view internal returns (G1Point r) {
        uint[4] memory input;
        input[0] = p1.X;
        input[1] = p1.Y;
        input[2] = p2.X;
        input[3] = p2.Y;
        bool success;
        assembly {
            success := staticcall(sub(gas, 2000), 6, input, 0xc0, r, 0x60)
            // Use "invalid" to make gas estimation work
            switch success case 0 { invalid() }
        }
        require(success);
    }
    /// @return the product of a point on G1 and a scalar, i.e.
    /// p == p.scalar_mul(1) and p.addition(p) == p.scalar_mul(2) for all points p.
    function scalar_mul(G1Point p, uint s) view internal returns (G1Point r) {
        uint[3] memory input;
        input[0] = p.X;
        input[1] = p.Y;
        input[2] = s;
        bool success;
        assembly {
            success := staticcall(sub(gas, 2000), 7, input, 0x80, r, 0x60)
            // Use "invalid" to make gas estimation work
            switch success case 0 { invalid() }
        }
        require (success);
    }
    /// @return the result of computing the pairing check
    /// e(p1[0], p2[0]) *  .... * e(p1[n], p2[n]) == 1
    /// For example pairing([P1(), P1().negate()], [P2(), P2()]) should
    /// return true.
    function pairing(G1Point[] p1, G2Point[] p2) view internal returns (bool) {
        require(p1.length == p2.length);
        uint elements = p1.length;
        uint inputSize = elements * 6;
        uint[] memory input = new uint[](inputSize);
        for (uint i = 0; i < elements; i++)
        {
            input[i * 6 + 0] = p1[i].X;
            input[i * 6 + 1] = p1[i].Y;
            input[i * 6 + 2] = p2[i].X[0];
            input[i * 6 + 3] = p2[i].X[1];
            input[i * 6 + 4] = p2[i].Y[0];
            input[i * 6 + 5] = p2[i].Y[1];
        }
        uint[1] memory out;
        bool success;
        assembly {
            success := staticcall(sub(gas, 2000), 8, add(input, 0x20), mul(inputSize, 0x20), out, 0x20)
            // Use "invalid" to make gas estimation work
            switch success case 0 { invalid() }
        }
        require(success);
        return out[0] != 0;
    }
    /// Convenience method for a pairing check for two pairs.
    function pairingProd2(G1Point a1, G2Point a2, G1Point b1, G2Point b2) view internal returns (bool) {
        G1Point[] memory p1 = new G1Point[](2);
        G2Point[] memory p2 = new G2Point[](2);
        p1[0] = a1;
        p1[1] = b1;
        p2[0] = a2;
        p2[1] = b2;
        return pairing(p1, p2);
    }
    /// Convenience method for a pairing check for three pairs.
    function pairingProd3(
            G1Point a1, G2Point a2,
            G1Point b1, G2Point b2,
            G1Point c1, G2Point c2
    ) view internal returns (bool) {
        G1Point[] memory p1 = new G1Point[](3);
        G2Point[] memory p2 = new G2Point[](3);
        p1[0] = a1;
        p1[1] = b1;
        p1[2] = c1;
        p2[0] = a2;
        p2[1] = b2;
        p2[2] = c2;
        return pairing(p1, p2);
    }
    /// Convenience method for a pairing check for four pairs.
    function pairingProd4(
            G1Point a1, G2Point a2,
            G1Point b1, G2Point b2,
            G1Point c1, G2Point c2,
            G1Point d1, G2Point d2
    ) view internal returns (bool) {
        G1Point[] memory p1 = new G1Point[](4);
        G2Point[] memory p2 = new G2Point[](4);
        p1[0] = a1;
        p1[1] = b1;
        p1[2] = c1;
        p1[3] = d1;
        p2[0] = a2;
        p2[1] = b2;
        p2[2] = c2;
        p2[3] = d2;
        return pairing(p1, p2);
    }
}
contract Verifier {
    using Pairing for *;
    struct VerifyingKey {
        Pairing.G2Point A;
        Pairing.G1Point B;
        Pairing.G2Point C;
        Pairing.G2Point gamma;
        Pairing.G1Point gammaBeta1;
        Pairing.G2Point gammaBeta2;
        Pairing.G2Point Z;
        Pairing.G1Point[] IC;
    }
    struct Proof {
        Pairing.G1Point A;
        Pairing.G1Point A_p;
        Pairing.G2Point B;
        Pairing.G1Point B_p;
        Pairing.G1Point C;
        Pairing.G1Point C_p;
        Pairing.G1Point K;
        Pairing.G1Point H;
    }
    function verifyingKey() pure internal returns (VerifyingKey vk) {
        vk.A = Pairing.G2Point([5532281056558036106255678173344179295920652269958682960957871454628416512972,10411498060575679769923504775586050525498200056812986338934849374272022274779], [21488499097666296663868390037499088809395779661820405221122053850058531732731,12572455853163705027429248203463324054648029865573171998494730725420526021169]);
        vk.B = Pairing.G1Point(19425079648490373375312886165806532347592567187862210486978769759663407702174,17414920549417306278774693485671073911213266585921030138156963972230146845925);
        vk.C = Pairing.G2Point([21650211314446716881038693063327713621054485913025016654891174718830382503557,8892278926044411392471106002749381041256123933177242461418108562469481473432], [4228134132323091167036805154928859913899970568850172648302687303185439128875,16505963817807084541674073771889870606460159226145197809640671338243272179549]);
        vk.gamma = Pairing.G2Point([10908277312711497904822412671300023952050081149828518650656015172439183467891,4468588423682801867940866501149064230735032403436877798957042119849255823933], [20096650009411433041348571059551783703917251559483402913787676465951465817787,18840171767261365426627542630901771911514607234064144424594493545084435964037]);
        vk.gammaBeta1 = Pairing.G1Point(4260572808250611024035155800950849907720222459007825421553825006806293706820,12166577651314726037856057410959763395953561241872965676490888927372548208948);
        vk.gammaBeta2 = Pairing.G2Point([2233710531193523302501392775014331506083935680060677860590366344758094332009,10648442187774304780596717718280127682214064507803658994155136610805673265293], [3112945447904896878263016101290725984364885544419203795515619002094736141542,7346201101221568385830817617456169715243934848407024000413614502058676992373]);
        vk.Z = Pairing.G2Point([19762629955607072687245684101309898449802236329755965527039087379607429843969,4463701001401227936313081136754638281090530510528159764727914298646799261241], [9954743696359184165273337385575294498048110871513373771298595253707446998041,13775261453374196526073458159454744231541436954605313348588374162639647627291]);
        vk.IC = new Pairing.G1Point[](2);
        vk.IC[0] = Pairing.G1Point(4297464036875307739554600242639379123297216512802130961340557995258056588542,11337040384827235166073050215777435443360101503712710421184364595276066550421);
        vk.IC[1] = Pairing.G1Point(14237922096242266636450415991812377963392883475988475187883289629291936048187,18915987043793562814827151220188367665669941896276990698227568966701728464676);    }
    function verify(uint[] input, Proof proof) view internal returns (uint) {
        VerifyingKey memory vk = verifyingKey();
        require(input.length + 1 == vk.IC.length);
        // Compute the linear combination vk_x
        Pairing.G1Point memory vk_x = Pairing.G1Point(0, 0);
        for (uint i = 0; i < input.length; i++)
            vk_x = Pairing.addition(vk_x, Pairing.scalar_mul(vk.IC[i + 1], input[i]));
        vk_x = Pairing.addition(vk_x, vk.IC[0]);
        if (!Pairing.pairingProd2(proof.A, vk.A, Pairing.negate(proof.A_p), Pairing.P2())) return 1;
        if (!Pairing.pairingProd2(vk.B, proof.B, Pairing.negate(proof.B_p), Pairing.P2())) return 2;
        if (!Pairing.pairingProd2(proof.C, vk.C, Pairing.negate(proof.C_p), Pairing.P2())) return 3;
        if (!Pairing.pairingProd3(
            proof.K, vk.gamma,
            Pairing.negate(Pairing.addition(vk_x, Pairing.addition(proof.A, proof.C))), vk.gammaBeta2,
            Pairing.negate(vk.gammaBeta1), proof.B
        )) return 4;
        if (!Pairing.pairingProd3(
                Pairing.addition(vk_x, proof.A), proof.B,
                Pairing.negate(proof.H), vk.Z,
                Pairing.negate(proof.C), Pairing.P2()
        )) return 5;
        return 0;
    }
    function verifyProof(
            uint[2] a,
            uint[2] a_p,
            uint[2][2] b,
            uint[2] b_p,
            uint[2] c,
            uint[2] c_p,
            uint[2] h,
            uint[2] k,
            uint[1] input
        ) view public returns (bool r) {
        Proof memory proof;
        proof.A = Pairing.G1Point(a[0], a[1]);
        proof.A_p = Pairing.G1Point(a_p[0], a_p[1]);
        proof.B = Pairing.G2Point([b[0][0], b[0][1]], [b[1][0], b[1][1]]);
        proof.B_p = Pairing.G1Point(b_p[0], b_p[1]);
        proof.C = Pairing.G1Point(c[0], c[1]);
        proof.C_p = Pairing.G1Point(c_p[0], c_p[1]);
        proof.H = Pairing.G1Point(h[0], h[1]);
        proof.K = Pairing.G1Point(k[0], k[1]);
        uint[] memory inputValues = new uint[](input.length);
        for(uint i = 0; i < input.length; i++){
            inputValues[i] = input[i];
        }
        if (verify(inputValues, proof) == 0) {
            return true;
        } else {
            return false;
        }
    }
}

So basically, we have implemented the Verifying procedure on a Solidity contract that uses a Pairing Library to be able to evaluate a Pairing operation that we must satisfy at the final of the Snark verification process.

Verifying the proof on-chain

The verifier contract we see up here has a view function called verifyProof that, without wasting gas (as is view and does not modify the state of the chain even seeing that runs code), lets us verify our proofs.
This function then returns true if the proof and the inputs are valid.

To get a shortcut to the call construction, snarkjs library provides us with the following feature: $ snarkjs generatecall wich give us an outpit like:

["0x2bd588f7b47dd844e7ffb8b2d40e247d324d26e8454a8e7ada1d3913413a1477", "0x05d3592231a4b4bcb657ff0aaec0e9eced383f6aa0c88b78eebd6eb5b27d0dbf"],["0x003493b4d78f75798fceec17feabf59732abb8c22027120768e5fe4f27da2564", "0x03ef3ab4137b10e43829e50095539102fe8f95912a0647835bb1a61b8dd9d901"],[["0x1908c06f5710a9dcc21d318b8be7b7def7a389c81c4fdce2bf274bfe34946926", "0x256c62f06299354a00d9e7d7381fc715b2457c94e1958b47f7bc18f9442cbcef"],["0x188f57f76148e679bb9f98bad51dfb53c0d753cf45cad2b3e34eaca42c813f63", "0x03a884749f219049dfd3aa99313aa8c181bc87899e7695549bef499a7b6ffd79"]],["0x26fa11a8ba41b4fea6003d7e105b7f9b40d5b115f27688a7dd66e81d4cc3594b", "0x05de71967a0fad7295fc17ed17f0156e803a2455a133f5a61063aedd90240000"],["0x16ca38fbdc1453188dd6c707858eaaad8198773bb74d808dbe909b1768dc6d05", "0x065c4fb00af9f42be11353e54c35d3f849d22b2278da3af8dbff1aa62f655df6"],["0x1a6bcb79a5764311dbbc307bd125c979eba64d0041fa1f8fafb95d607a007acc", "0x0b930ce395b582d93fcf4e2c5c5c1c8da9d18baa6b7994238b2dcd754f25a02a"],["0x1e28f09bede3893adfbeead564f1483c57aa2984c7bdbf40247821e118b40dfb", "0x1f8c199971979f0068f7bb968b51fa81750ed0582ed67becfc85dafdc665f70b"],["0x06a89ae4b726e1dd23aab88df18e5dc13a8a654369652d0b4027b051a7107a4a", "0x0caa01e435ea261451e4456ba3d811d9ec8eebdf02d317d1dca2fa1624b2fe77"],["0x0000000000000000000000000000000000000000000000000000000000000021"]

This is our proof, that comes from our witness as we can easily check:

  1. We edit the input.json file:
{
    "a": 1,
    "b": 33
}

We calculate the witness to be able to generate the proof.
$ snarkjs calculatewitness -c testcirc.json

  1. We generate the proof and verify it by excecuting:$ snarkjs proof and then $ snarkjs verify obtaining true because 1 and 33 factor 33 too!
    Note that the first command gives us a different proof than before because our witness (inputs) has changed.
  2. We generate the call and analyze the results with, for example, meld:

Now $ snarkjs generatecall gives us:

["0x0087207596fa50d37f2c1057720a5ce4029945b042b0cbd4c0da6e55f94115a5", "0x2c9a9c92306a5386997498013e891dddb52deb0b9337270c933bf7ce9a6bd72d"],["0x1422858151dc06f163c06fcc7085ce8dbca8bd3aec441d9f87700cb7e2b0fcc0", "0x08487c40b704f43f81b4fdc85f0e66dd8dbed18b1c7b3240f161234718311b82"],[["0x13b8742ee1c6d83a696e59586f264a9f621c5aaa109acdc9746bb5f7abe5f022", "0x247dcd3aca10af834365131b6e3a0e3cc7b791f2fc66807b344f4bed613fe741"],["0x21b94045e125576840394ba41c6936b58cdac75f8b5e8d0c20630815ae9b7153", "0x1a9086f3a732c76e95a8ce0a68e05ac852ae6ce19e588ff0a15af2215e47488c"]],["0x2196796403dd3f69f6485bcf944ea6ecd03e783ec33d992c580f3d44523354be", "0x148ee40dc32963a28353de972405e30ad782ec978099afc970a9a5e992372dc7"],["0x102e33fcdd9c8aaaa210abaf4a3e088b8fa82387d3196c6623e8adab90174f14", "0x145053859f39c7079c652d9d25204633a9ad722682fe659e239577fe9ac577a9"],["0x05ce2f6fa1d38f994fe13c728303de00603a8dc2df14e6390f62f998b28696a7", "0x2fe89559780fe60713194f57e9f5ff1a8297622f8746549397e55e33d582add0"],["0x0877803d4fb224c33a07f1b5cc672cf7e67c4d6c879d4ab839394951cbed3f60", "0x18290394536131098d4dd415f9c414c09fca1300b4c8ad8de2a90d9e2181f217"],["0x18ed5b6859972444763a45a3f6429cfd561dfdadeb8e876ee2a5809f8df81c67", "0x17e3ff85f31d9d8820aa28bf24098b0aa61214ffabc3ca0e500f59c34e006990"],["0x0000000000000000000000000000000000000000000000000000000000000021"]

Which means that our witness changes produced proof changes and then call changes were obviously produced too (as we expected) but both of the proofs were verified successfully!!

TODO NEXT: Advanced circuits with SmartContracts Integration.

Hope you enjoyed.

Special thanks to Jordi Baylina and all of its Iden3 teammates for the amazing tutorial.

Here you have the link to the original Iden3 tutorial: https://iden3.io/blog/circom-and-snarkjs-tutorial2.html
And a link to circom’s repository: https://github.com/iden3/circom

Carlos.

Zksnark
Ethereum
JavaScript
Programming
Tutorial Caelum

--

--

CPerezz.eth

Written by CPerezz.eth

36 Followers

SE/Applied Cryptographer @ Etherum PSE. Passionate about Blockchain, networking, cryptography, and meerkats.

Help

Status

About

Careers

Press

Blog

Privacy

Terms

Text to speech

Teams
