Sensor and Remote Control Switch Control Light in Long Range

Someone has a question about remote control system he is attempting to build. He has four sensors that give off about 5 volts when activated. When a sensor is activated he wants to transmit a signal to a light and turn on a light.

The basic design is:

Sensor → Transmitter –>(Wireless)–> Receiver → Light What he is asking is what transmitter could he use with the 4 Channel Receiver? Would he need 4 separate transmitters for each of the sensors?

We recommend the low current triggered transmitter (CB-2V) and the ac power direct output receiver (S1X-AC220).

The transmitter is triggered by DC power 5~28V input. If low current input triggers transmitter, the transmitter will send RF signal to receiver to indicate it to work. The receiver has 1 Channel AC 110V/220V Power Output terminal contact. He doesn’t have to supply addition power to controlled device because the device will get power from powered receiver.

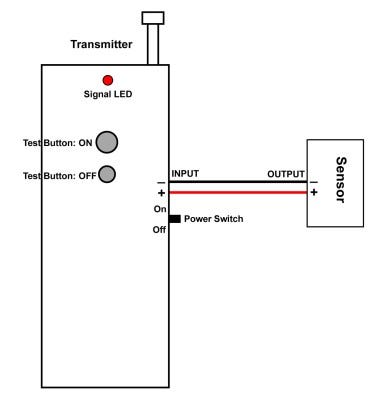

He can connect his sensor to the transmitter CB-2V, and connect his light to the receiver S1X-A220. Light is connected to L&N terminals of receiver and will get power when the receiver is connected to power supply.

When a sensor is activated, it can trigger a transmitter to transmit a signal to turn on a light. He needs a separate transmitter for each of sensors.
