GIS Blunts Winter’s Threat in Maryland

County Tracks Snow Operations in Real Time

By Matthew DeMeritt, Esri

Prince George’s County, Maryland, has enough traffic issues when it’s not being bludgeoned by Jack Frost. But when a blizzard blankets the county in snow, car accidents spike and traffic can grind to a halt. Snow plows need to be quickly dispatched to prevent cars careening onto sidewalks and into other vehicles. That’s where GIS comes in.

To speed up the process of coordinating where to send its slow fleet, the county’s Department of Public Works and Transportation (DPW&T) teamed with Esri and the consulting firm Whitney Bailey Cox & Magnani (WBCM) to set up a real-time, GIS-based snow operations monitoring system. The team implemented a system that uses ArcGIS Online, Collector for ArcGIS, and Operations Dashboard for ArcGIS to report observations from snow inspectors in real time and helps supervisors coordinate deployment of snow-clearing crews.

Real-time data about snow and road conditions is fed into Operations Dashboard for ArcGIS.

“[In the past], DPW&T snowplow inspectors would drive around their districts documenting snow conditions on a spreadsheet, which they would submit to the county’s Emergency Operations Center when they returned to their district offices,” said Patrick Callahan, GIS manager at the Prince George’s County Office of Information and Technology. “Now, they are able to capture real-time snow condition information in the field with just a couple of clicks on a tablet, even sending pictures that document issues. This information is sent immediately to the Emergency Operations Center to give decision makers a picture of the conditions so they can target areas with the most need.”

Real-Time Road Inspection

The county manages 2,000 miles of county roads, a network divided into five districts. When it snows, 25 inspectors (five per district) report the conditions along the entire road network so that snow operations managers can coordinate snow removal. A map of all five districts appears on the dashboard, giving snow operations managers the information and view they need to prioritize and direct snow removal.

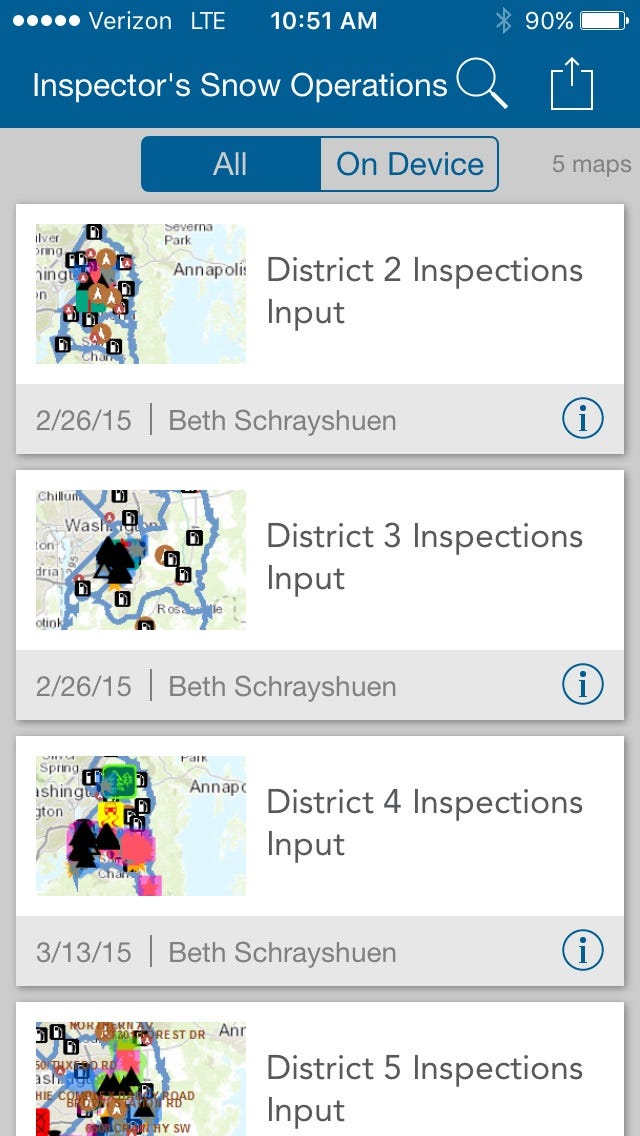

Inspectors in each district drive through their jurisdictions and report on snow conditions using Android tablets loaded with Collector for ArcGIS, a simple, form-based mapping app (Collector for ArcGIS is also available for iOS and Windows). They observe and report the road conditions before and after salting or plowing.

“After inspectors hit ‘send’ [in the app], those records instantly get translated into symbology in the spatial context of the route and district,” said Callahan. “If a road needed salt or plowing treatment, it would be marked with a solid triangle. Passable roads with one lane open would get marked with a pink square. A green circle indicates ‘all clear curb to curb.’”

True Common Operating Picture

Each district crew can only see its own road condition feature layer on the map in the dashboard, but all district crews can view emergencies in the emergency layer, such as downed power lines and traffic accidents, since those issues can affect neighboring districts. The dashboard’s map displays snowplow routes and color-coded symbols to denote closed, passable, and clear roads; accidents; and where trees and wires are down.

To avoid cluttering the map, data older than 12 hours is filtered out. The team that created the new system also added a widget on top of the dashboard that shows the newest data.

Instantly translating data from Collector for ArcGIS into map layers within the dashboard gave the county the ability to respond to snow emergencies faster than ever before. Snow operations managers can now see updated conditions on maps within clearly labeled, numbered routes. They can prioritize where to dispatch plows and keep the database updated entirely via the map. The new process gave the county a live common operating picture, hugely eclipsing the old analog method in efficiency and awareness of overall road conditions.

“Imagine seeing the map gradually change from a field of solid triangles to hollow triangles to, eventually, all green circles,” said Beth Schrayshuen, an engineer for WBCM and a project manager on the team. “The county couldn’t even come close to that before with the old system.”

Schrayshuen was impressed with what Esri technology brought to the new system.

“I’m not a GIS professional at all,” said Schrayshuen (who currently works for EA Engineering, Science, and Technology, Inc.) “I’m just an engineer by trade, but I really appreciate what ArcGIS Online does. Pairing a simple field app with a dashboard that displays live data from the inspectors at the scene is a great example of what it can do in any county or municipal operation.”

Adding extra sizzle to the system: the inspectors’ ability to snap pictures of road conditions, which display as clickable orange stars on the map. The pictures serve as empirical proof in case of a mistake in data entry within the app.

“Staff love the option of clicking the photograph to verify the road conditions,” Schrayshuen said.

Expanding the Use of Collector for ArcGIS

Collector for ArcGIS worked so well for snow removal operations that the county now uses the app in other departments. The fire department currently uses the app for a Fire Safety program to keep track of where it distributes free smoke alarms. Plans are also under way for field staff from the Department of Environmental Resources to use the app to inventory and assess the condition of storm water drainage channels throughout the county.


Acknowledgements

The Department of Public Works and Transportation acknowledges the following individuals as being key to the successful launch of the real-time snow monitoring system: Darrell Mobley, director of the Department of Public Works and Transportation; Liz Miller, chief of engineering for Department of Public Works; Muralidaran Karuppiah, Claude Hendje, Teddy Hailegeberel, and Patrick Callahan from the Office of Information and Technology; and Marla Johnson, GIS professional, formerly of WBCM.
