RCA Programmable Compact Disk Player

James Dietle
Jul 3, 2015 · 2 min read

While getting a haircut I found a RCA Programmable Compact Disk Player just sitting broken next to my car. So I did what anyone would do, I took it home to disassemble.

Image for post
Image for post

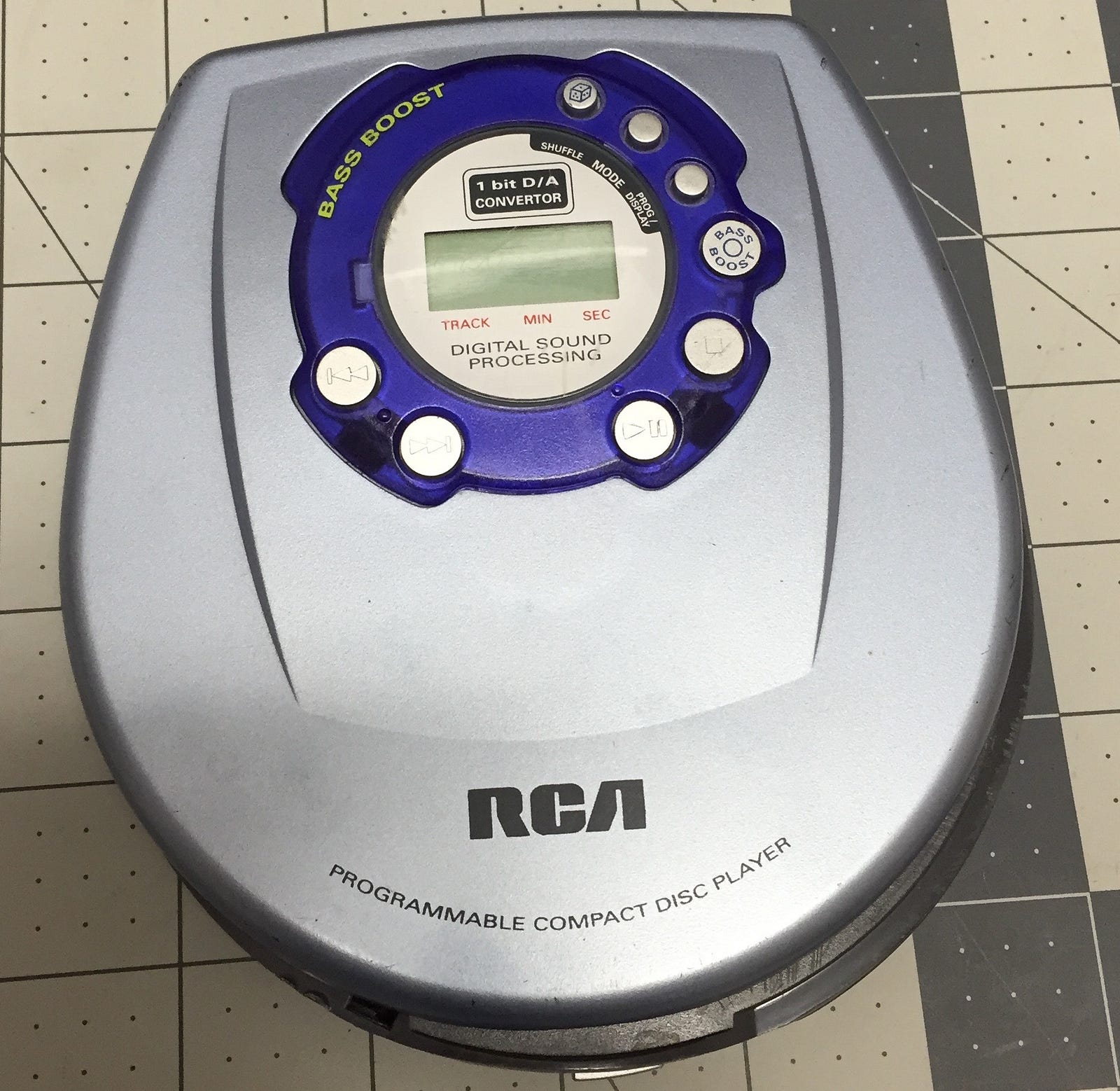

The front of the player.
Image for post
Image for post
The back

Luckily, the screws were easily removable.

Image for post
Image for post

The inside is everything to be expected.

· The lid switch can be seen at the 1' o clock above the battery.

· The headphone jack, and the power at the 5' o clock.

· The volume control is at the bottom 6' o clock.

· The thicker wires in the middle supply power to the laser and motors.

· The hold button is at the 9' o clock.

· Data for the laser is at the 10.

Image for post
Image for post
Everything all laid out.

Everything all laid out.

Image for post
Image for post

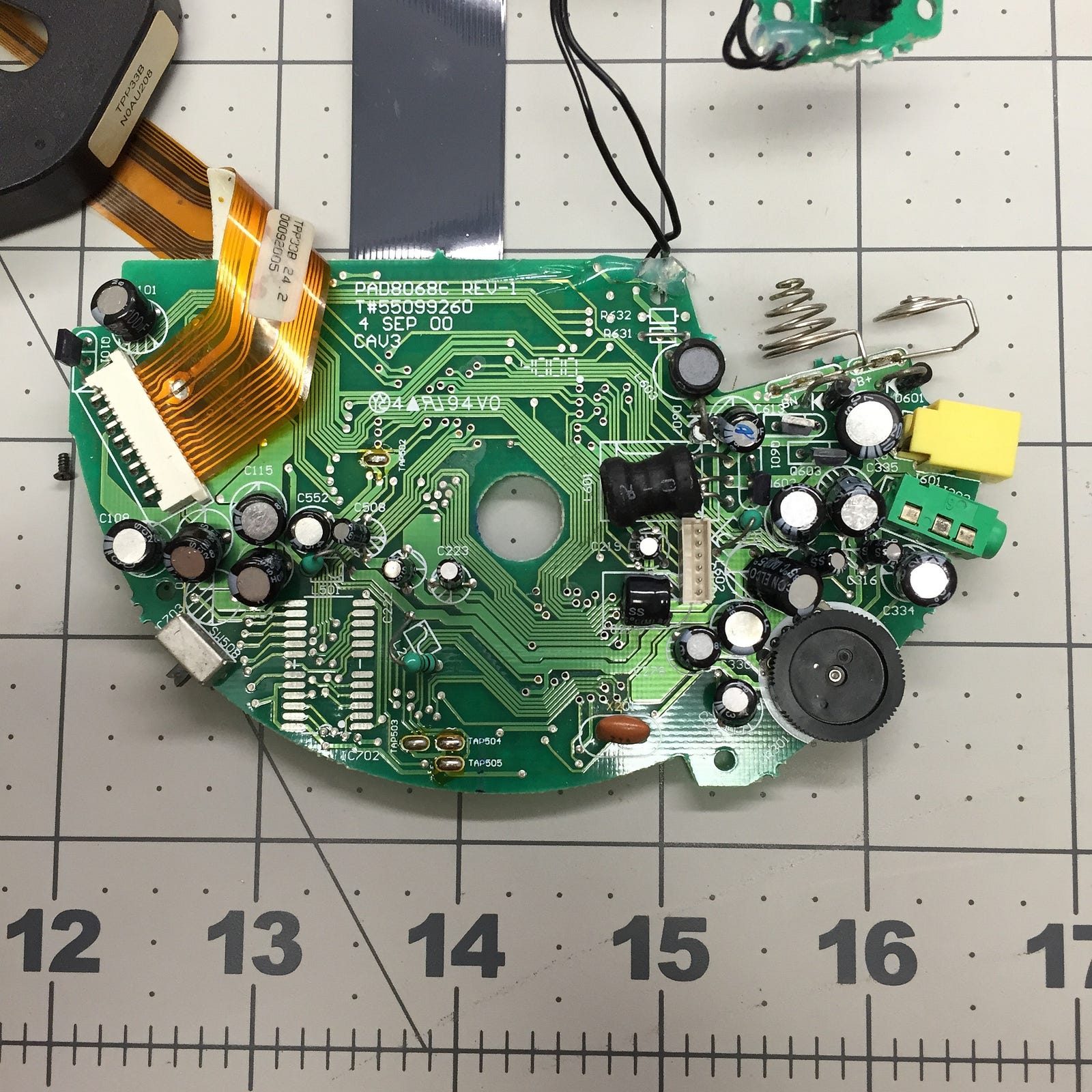

The front console.

Image for post
Image for post

A close up. The interesting part is the missing component at 7.

Image for post
Image for post

The back.

Image for post
Image for post
Power Controller
Image for post
Image for post
Microcontroller?
Image for post
Image for post
Amplifier for CD player Controls the servo and the main signal system with low power consumption.
Image for post
Image for post
BU9528KS
Image for post
Image for post

The most interesting part is this missing piece. Im not sure what is supposed to go in here. Maybe it’s a placeholder from an older model… or a new model.
