Playing with Akka Stream and chunks of bytes

I’m a very big fan of the electronics. So, a couple of months ago, I started a project in which I needed to develop a program that could process commands from an IO device.

After some time researching and playing with the device in question, I could describe the situation like this:

• The device uses a serial bus and sends me a sequence of commands.
• Because this is a low level device, the commands are packages of bytes of differents sizes.
• Like most of the low level IO devices, this has a buffer. The buffer holds the output bytes from the device and when it’s full it sends all the content to the computer.

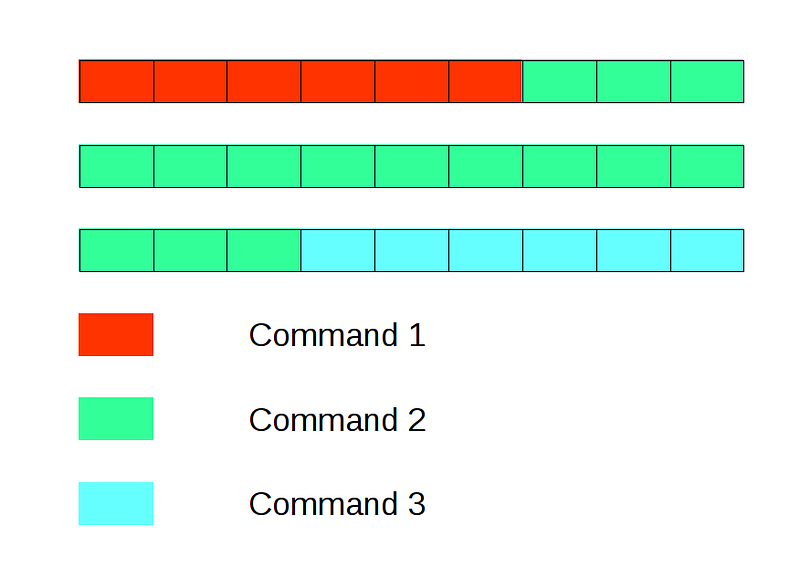

In the end I have a chunked stream of bytes that contains the sequence of commands, like this:

Each cell represents a byte and each row a chunk

After this introduction, here comes the interesting part. Since I’m a Scala developer, I took the challenge of writing my “commands processor” in Scala. For this purpose I chose to use flow, which is a Reactive serial communication library for Akka and Scala. I initially try to implement the reading of the commands by using play-iteratee. But after some coding I didn’t feel that it was the best tool for this. So, I searched for other options and I ended up looking at the Akka Stream library.

First, I needed an actor that could receive the states and data messages from flow and was able to be the source of the stream. To make this integration I only needed to make this actor inherit from the trait ActorPublisher. Like this:

class SerialSourceActor(port: String, settings: SerialSettings) extends ActorPublisher[ByteString] with ActorLogging with Stash {

 override def preStart {
    self ! Start
 }
 override def postStop {
   self ! Stop
 }
 def receive = {
   case Start =>
     IO(Serial) ! Serial.Open(port, settings)
     context.become(initializing())
   case _ => stash()
 }
 def initializing(startTime: Long = System.currentTimeMillis): Receive = {
   case Serial.CommandFailed(cmd: Serial.Open, reason) =>
    onError(new IOException(s”Connection failed, stopping terminal.    Reason: ${reason}”))
    context stop self
   case Serial.Opened(port) =>
     log.debug(s”””Serial port “$port” opened in ${System.currentTimeMillis — startTime}ms”””)
     context.become(initialized(sender))
     context watch sender
     unstashAll()
   case _ => stash()
 }
 def initialized(operator: ActorRef): Receive = {
   case Serial.Received(data) =>
     onNext(data)
   case Serial.Closed =>
     log.info(“Operator closed normally, exiting terminal.”)
     onComplete()
     context stop self
   case Stop =>
     onComplete()
     operator ! Serial.Close
   case Terminated(`operator`) =>
     onError(new IOException(s”Operator crashed unexpectedly.”))
     context stop self
   case other =>
     onError(new IOException(s”Unexpected:” + other))
     context stop self
   }
}
object SerialSourceActor {
 def props(port: String, settings: SerialSettings) = Props(new SerialSourceActor(port, settings))
 case object Start
 case object Stop
}

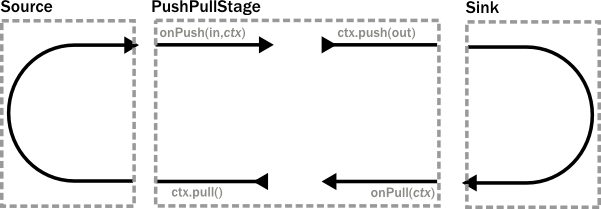

Now I need to define the logic to extract the commands from the chunk of bytes. Luckily, Akka Stream has PushPullStage, which is a type of stream transformation that works like this:

Long story short, with this I can control the flow in a way that I can accumulate the incoming data and decide when I want to push to the downstream. Here is what i did:

class CommandEmitter extends PushPullStage[ByteString, CommandResponse] {
  private var buffer = ByteString.empty
  override def onPush(elem: ByteString, ctx: Context[CommandResponse]): SyncDirective = {
    buffer ++= elem
    extractor(buffer) match {
      case (Some(cmd), remaining) =>
        buffer = remaining
        ctx.push(cmd)
      case (None, _) =>
        ctx.pull()
    }
  }
  override def onPull(ctx: Context[CommandResponse]): SyncDirective =
    ctx.pull()
  private def extractor(buffer: ByteString): (Option[CommandResponse], ByteString) = ...
}
object CommandEmitter {
  val flow = Flow[ByteString].transform(() => new CommandEmitter())
}

Now it’s time to put all together by simply defining the stream using the ActorFlowMaterializer to materialize the flow:

implicit val materializer = ActorFlowMaterializer()
Source.actorPublisher(SerialSourceActor.props(port, settings)).via(CommandEmitter.flow).runWith(Sink.foreach(println))

It’s a piece of cake. ☺
