Swift World: UIViewPropertyAnimator Exploration Part 1

Apple introduced UIViewPropertyAnimator in last year’s WWDC. It brings many advantages to make building interactive and interruptible animations more easily. We will look back at the old days first before exploring this powerful tool.

Simply, we categorize the animation APIs into two levels. The higher one is for UIView directly.

+ (void)animateWithDuration:(NSTimeInterval)duration
                 animations:(void (^)(void))animations
                 completion:(void (^)(BOOL finished))completion;

Here is an example to change background from white to red. You can copy the codes and paste in Playground.

import PlaygroundSupport
let view = UIView(frame: CGRect(x: 0, y: 0, width: 200, height: 200))
view.backgroundColor = UIColor.white
UIView.animate(withDuration: 2.0, delay: 0, options: [.repeat, .autoreverse, .curveEaseInOut], animations: {
    view.backgroundColor = UIColor.red
}, completion: nil)
PlaygroundPage.current.liveView = view

In iOS 7, Apple released UIDynamicAnimator which brought physics to UIView animation. The official document is a good reference.

The API in lower level is Core Animation for CALayer. We can define basic animation, keyframe animation, animation group and transition. The following is code snippet to accomplish the same effect as the previous example.

import PlaygroundSupport
let view = UIView(frame: CGRect(x: 0, y: 0, width: 200, height: 200))
view.backgroundColor = UIColor.red
let animation = CABasicAnimation(keyPath: "backgroundColor")
animation.duration = 2.0
animation.fromValue = UIColor.white.cgColor
animation.toValue = UIColor.red.cgColor
animation.repeatCount = 10
animation.autoreverses = true
animation.timingFunction = CAMediaTimingFunction(name: kCAMediaTimingFunctionEaseInEaseOut)
view.layer.add(animation, forKey: "BackgroundColorAnimation")
PlaygroundPage.current.liveView = view

The final effect is like:

Time goes by and UIViewPropertyAnimator came with iOS 10. We quote the definition from the official reference which says UIViewPropertyAnimator “Animates changes to views and allows the dynamic modification of those animations.” The first part is easy to understand because animation block for UIView does the same thing to “animate changes to views”. The following code snippet is to accomplish the same effect as the previous examples. The difference is we need to call startAnimation() unlike the previous solutions which start the animation automatically.

UIViewPropertyAnimator(duration: 2.0, curve: .easeInOut) {
        view.backgroundColor = UIColor.red
}.startAnimation()

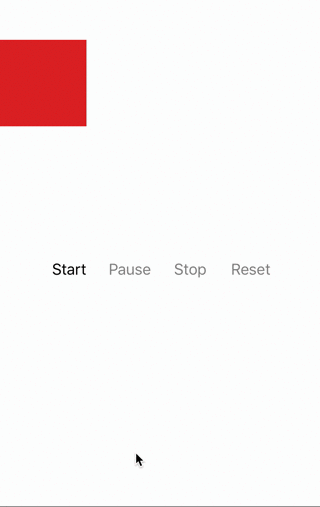

What does it mean with “dynamic modification”? The first point is we get the control to decide when to start, pause, resume and stop the animation. Let’s start a more complete example to explain it. The final effect is shown here.

The complete codebase can be found here . Let’s explain the main parts. We built animation to move a red rectangle.

let rect = UIView()
rect.frame = CGRect(x: 0, y: 50, width: 100, height: 100)
rect.backgroundColor = UIColor.red
...
let propertyAnimator: UIViewPropertyAnimator = UIViewPropertyAnimator(duration: 5.0, curve: UIViewAnimationCurve.easeInOut)
propertyAnimator.addAnimations {
    self.rect.center.x = 300
}

Start it by

propertyAnimator.startAnimation()

Pause it by

propertyAnimator.pauseAnimation()

Stop it by

propertyAnimator.stopAnimation(false)

It means the animation is interruptible and we can start, pause and stop it whenever we want to.

In next article, we will talk about other dynamic advantages UIViewPropertyAnimator give us including adding animations flexibly, reversing the animation, modify properties like timing curve while running, etc.
