ODF Patch Panel & Fiber Optic Box from Greentelftth

ODF Patch Panel are designed to provide a high density 19" rack-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing and management. Green Telecom ODF patch panel offers superior optical performance, high stability and high reliability, meet various application requirements in FTTx construction , ODN construction, LAN, Metro network and CATV.

Among those famous odf patch panel p2 series manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized odf patch panel p2 series made in China. Our factory is waiting for your contact.

Description

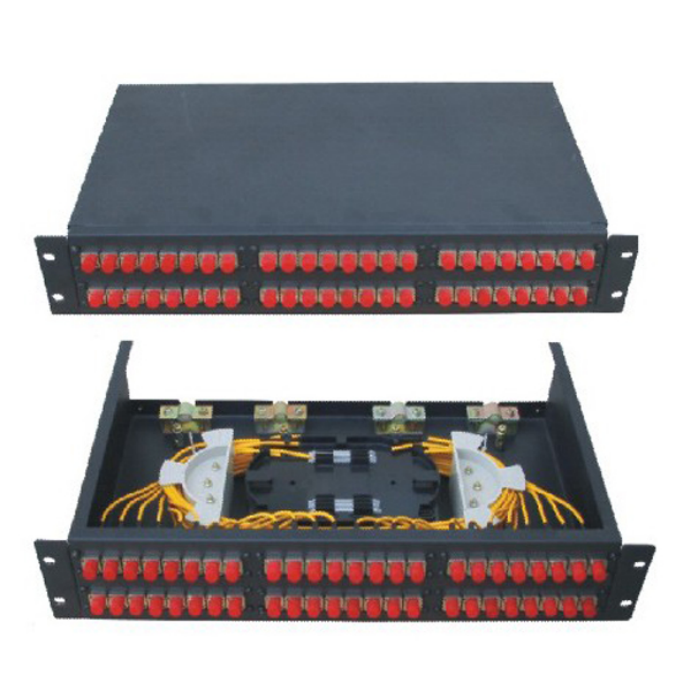

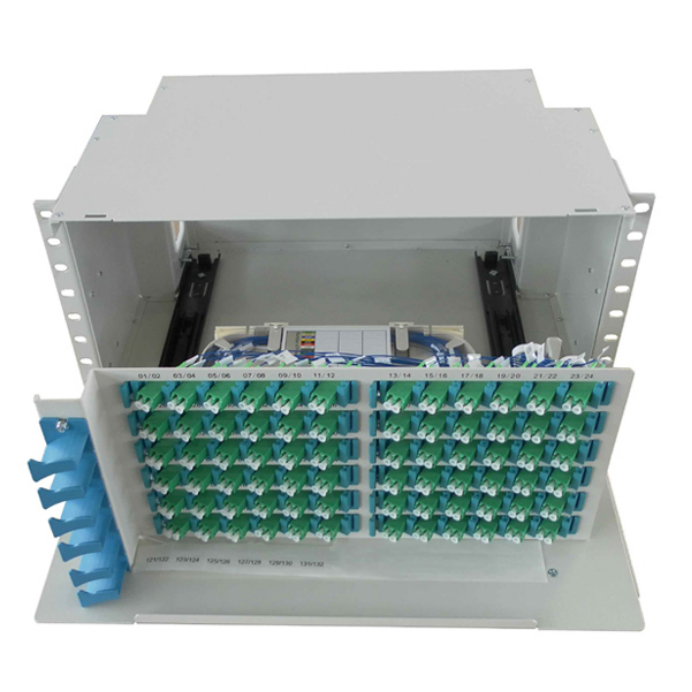

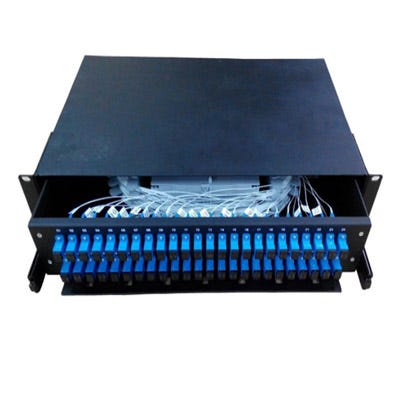

 ODF patch panels are designed to provide a high density 19" rack-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing and management.
 Green Telecom ODF patch panel offers superior optical performance, high stability and high reliability, meet various application requirements in FTTx construction , ODN construction, LAN, Metro network and CATV.

Features
 ● Standard 19" fixed bolt installation rack-mounted design
 ● Integrated with splice cassette and cable management elements
 ● Manages large quantities of fiber with high density design
 ● Easy to maintain and extend fibers in the future
 ● Fiber bend radius control more than 40mm
 ● Suitable for the splice of ribbon and bunchy cables
 ● Maximum capacity up to 144 ports
 ● Efficient space for cable management
 ● Cable led out from left or right side of patch panel rear part
 ● Fully comply with Telcordia GR1209/1221 qualifications

Specification

ODF Patch Panel P2 Parameter

Adaptor Type

SC,FC,ST,Duplex SC,Duplex LC

Capacity

12,24,48,72,96,144 fibers

Body Material

Cold rolled steel or stainless steel

Surface Treatment

Powder coating black or white color

Installation Method

Standard 19 inch rack mount

Size Dimension(mm)

485(W) x300(D)x46(H)(19"1U) for 12/24F

485(W) x300(D)x92(H)(19"2U) for 48F

485(W) x300(D)x140(H)(19"3U) for 72F

485(W) x300(D)x185(H)(19"4U) for 96F

485(W) x300(D)x200(H)(19"4.5U) for 144F

Strengthen Member Fixation

Yes

Bending Radius(mm)

>40

Customization Event
 ①Body Material
 ②Body Color
 ③Fiber Capacity
 ④Pigtail Type
 ⑤Adaptor Type
 ⑥Branding Logo Print

http://www.greentelftth.com/odf-patch-panel-p2-series.html

Ordering Information
 ODF-P2-XX -XX- XX — XX- XX — XX
 1–2–3–4–5–6

1 Body Material

2 3 Adaptor

4 Capacity

5 Pigtail

6 Body Color

01:Cold Rolled Steel

Nil:No Adaptor

12:12F

09B:0.9mm Bunchy

WT:White

02:Stainless Steel

SU:SU/UPC

24:24F

09S:0.9mm Single

BK:Black

SA:SA/UPC

48:48F

09R:0.9mm Ribbon

GY:Grey

FU:FC/UPC

72:72F

20S:2.0mm Single

FA:FC/APC

96:96F

30S:3.0mm Single

LU:LC/UPC

144:144F

LA:LC/APC
