GunDB, a Graph Database in JavaScript

Exploring the basics

Recently I’ve been playing around with GunDB and I wanted to share with you what I’ve learned so far. GunDB, a.k.a Gun, a.k.a Gun.js, is more than just a graph database. It’s a group of projects that aims to simplify scaling, improve data security, save costs, and empower application developers.

In this article however, I’ll explore Gun exclusively as a database. By focusing only on the database aspect I can keep the article less overwhelming and explore other aspects in the upcoming articles as I make progress and learn more.

All the code examples for this article are available on Gitlab

Introduction

Generally speaking, a database is a piece of software that you install on your computer or on a remote server to store data. The data can either be stored on disk or in memory. Databases come in different flavors: relational, document-oriented, key-value, or graph based. Here are some examples:

  • Relational: MySql, PostgreSQL, SQL Server
  • Document-oriented: MongoDB, CouchDB
  • Key-value: Redis, LevelDB
  • Graph based: Neo4j, OrientDB

Gun, unlike other databases, doesn’t have a binary to install. Gun is written in JavaScript, which means you can use it anywhere that JavaScript runs. Getting started with Gun is as easy as downloading a JavaScrip file.

Getting Started

The simplest way to get started with Gun is by downloading it as a single JavaScript file. You can download the latest minified version from the following url:

https://rawgit.com/amark/gun/master/gun.min.js

Then you can load it in an Html file:

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<script src="gun.min.js"></script> <!-- import Gun -->
<title>Gun Basics</title>
</head>
<body>
</body>
</html>

You can then open the Html file in the browser and use the console to interact with Gun. In most browsers you can right click on the page and choose “Inspect Element” to open the console. Below is an example than you can use to create a Car record and print its make:

const db = window.Gun();
const car = db.get("123").put({
make: "Toyota",
model: "Camry",
});
car.once(v => console.log(v.make)); // --> Toyota

In the snippet above, first, we create an instance of Gun. Then, we reference an empty node using the get method with the 123 key. Next, we add some data using the put method and a plain JavaScript object. And finally, we use the same key to get hold of the record (node) and using the once method we read the value out. Note that the plain object is automatically converted to a Gun node. I'll explain each method in more detail later in the "Basics" section. Below is a digram to help you better understand what's going on:

Creating a Car record

Now let’s experiment with Gun using Node. First, create a directory and install Gun using npm:

If you don’t have Node and npm installed, you can take a look at Appendix 1 for instructions.
cd ~/Desktop && mkdir gun-demo && cd $_
npm init -y
npm i gun -S

Next create a file and name it main.js and add the following (very similar to above):

main.js

const db = require('gun')();
const car = db.get("123").put({
make: "Toyota",
model: "Camry",
});
car.once(v => console.log(v.make)); // --> Toyota

Then execute the file by node main and you should be able to see Toyota logged in the console. Alternatively, you can use Gun in Node's REPL by first calling node in the terminal and then running the following:

const db = require('gun')();

Then you you can interact with Gun using the db object. To close the REPL use ctrl + c twice.

Gun Basics

In the following sections I’m going to show you the basics of Gun and explore its fundamental methods for creating, reading, updating, and deleting records. I will also show you how to create sets and relationships. I will also briefly mention the different methods available for subscribing to records for updates. Please note that I will use the term record and node interchangeably since Gun is a graph database and records are represented as nodes.

CRUD

  • Create

To create a record, you can use the get method combined with put:

const entry = db.get('8899').put({
uuid: '8899',
some_prop: 'some value',
});

In the snippet above, we use the get method to create a reference to a node using the 8899 key. Then, we use put to add data to the node using a plain JavaScript object. The plain object is automatically converted to a Gun node. Note that if the given key already exist, the data added might override existing data. I'll cover updates in more detail in the "Update" section. The diagram below demonstrates how the given key in the database points to a node:

Creating a node

Quick note about keys: you should always use unique keys. You may want to use uuids for generic nodes, and hashed strings combined with readable strings for indexing purposes. Namespacing is very important when working with Gun, because all data exist in the global space. You may want to look at this extension to help you namespace your keys.

  • Read

We can use the get method to lookup a node given a key. We can then subscribe to it using on or once. Using on you can get updates as they happen, but once only emits the current value once:

const node = db.get("1122").once(v => console.log(v));

You can keep chaining get calls. If the references don't exist, they are created. Otherwise, the value at the given path is returned. Let's take a look at an example. Below we are creating a node called node1 with some properties:

const node1 = db.get("3344").put({
name: "node1"
});
node1.get("doc1").put({
name: "doc1",
});
node1.get("doc1").get("sub_doc").put({
name: 'sub_doc',
});

For example, to access the value of node1.doc1.sub_doc we can use a get chain and read the value using once:

node1.get('doc1').get('sub_doc').once(v => console.log(v));

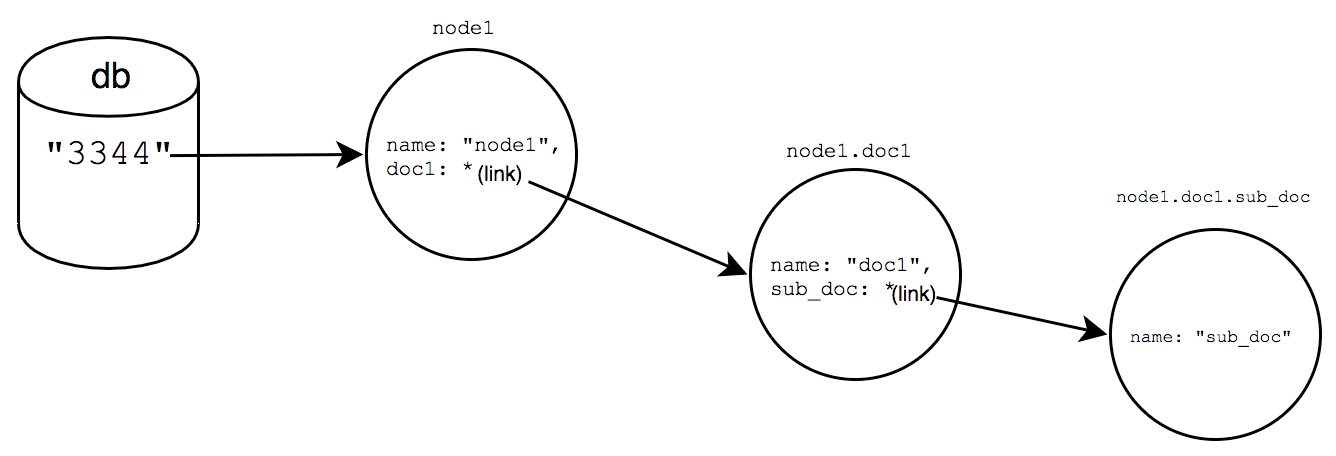

The diagram below shows how the nodes and the relationships look like:

Relationship between three nodes

A few notes about the snippets above:

  • When you use put, if the key is not explicitly specified, a key (also known as a soul) is automatically generated. In addition, the db object will save a reference to that key as well. For example, when we did node1.get("doc1").put, a new node with a unique key was generated behind the scenes. We can see that if we log the value of node1.doc1 and look at the internal _ property:
Internal value showing the auto-generated key

Now if you know this unique key (soul) of the node, you can directly access the node it’s pointing to from the db object:

db.get('unique_key')...
  • The same is also true for node1.doc1.sub_doc:
Internal value showing the auto-generated key
  • Also note that, node1.doc1 has a property called sub_doc that only holds a reference to the sub_doc node:
Holding a reference to another node

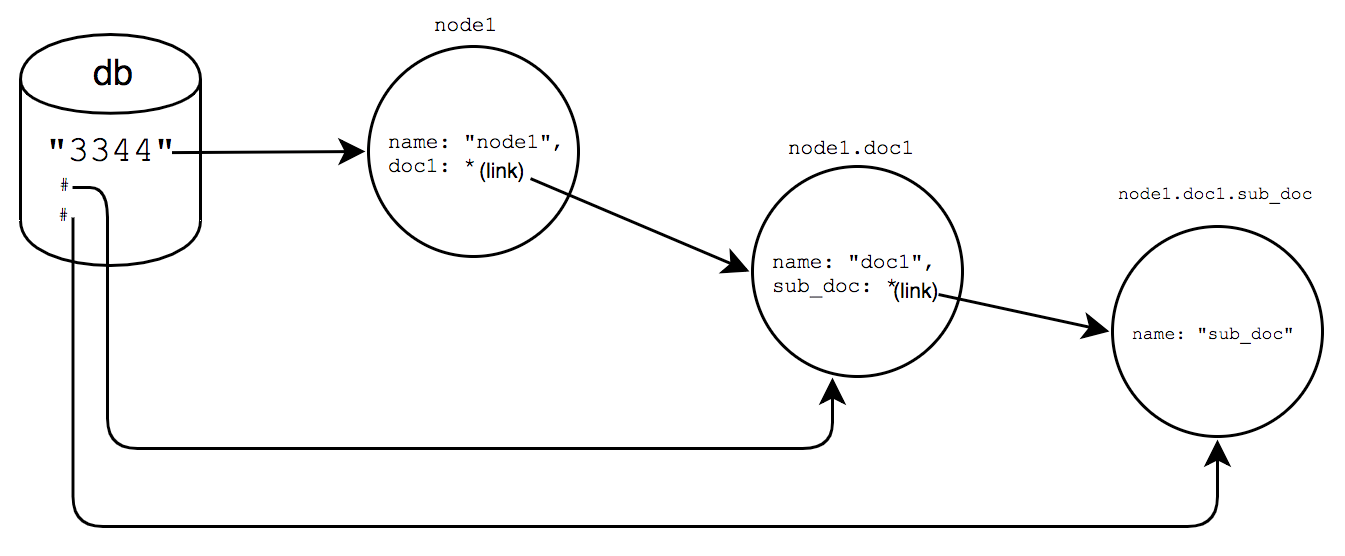

Considering the explanations above, below is a more accurate picture of the nodes and their relationships:

Nodes and relations

Note how the other two auto generated unique keys (souls) point to the newly created nodes directly from db.

  • Update

To update a record, you can use the put method:

db.get('9871').put({
name: 'Tom',
});

Note that all the updates are partial updates. In the snippet above, only the name field is updated. As long as you have a reference to the node, you can simply use put to update values. Let's take a look at another example. Below is the setup:

const n1 = db.get('5416')
.put({
name: 'n1',
prop: '...',
doc1: {
prop: '...',
},
});

const n2 = db.get('8899')
.put({
name: 'n2',
doc2: {
prop: '...',
}
});

n1.get('related_to').put(n2);

In the snippet above we create two nodes: n1 and n2. The n1 node has some properties name, prop, and doc1. The doc1 property defines a sub document that is automatically turned into a node and referenced by an auto-generated key.

Then we create the n2 node that has two properties name, and doc2 similar to n1. And finally we create a property on n1 called related_to that points to n2. The diagram below demonstrates the relationships:

Relationship setup for update demonstration

Now let’s see how we can perform the following updates:

  • Update n1.doc1.prop to another value:
n1.get('doc1').put({
prop: 'other value'
});
  • Update what n1 is related to
n1.get('related_to').put(db.get('9185').put({ new_prop: 'some value', }));

In the snippet above we completely change what n1 is pointing to by creating a new node. Note that n2 didn't change, we just updated the related_to pointer.

  • Add new properties to n2, first by referencing from n1:
n1.get('related_to').put({
new_stuff: 'some value',
other_stuff: 'some value',
})

In the snippet above, new_stuff and other_stuff will be added to what is already existing on n2. If a property already exists, it will be overwritten, otherwise new properties will be created.

  • Delete

Deleting works a little bit differently in Gun. Instead of eliminating a record, we can make it non-discoverable by setting a pointer to null:

db.get('8809').put(null);

In the snippet above we use get to find a reference by the 8809 key. Then, we set it to null. As long as you have a reference to a node or property, you can use put to set them to null. You can read more about deleting using the following links:

Here is a brief explanation take directly from the StackOverflow answer:

Deletes in GUN work like Mac OSX or Windows or Linux. The nulling tells every machine to “Put this data in the trash/recycle bin”. The reason this is useful is because it lets you change your mind about deleting something, so you can recover it later if you want. (Recovering deleted content/files happens a LOT, but it something most people don’t think about).

Sets

Gun allows you to group multiple records and add them to a set. A Gun’s set, is a mathematical set with unique unordered items. Let’s say we have two nodes, and we want to create a group for them. First, we create the group node (a set) and then we use the set method to add other nodes or plain objects to it. Note that the plain objects, just like update operations, will be converted to Gun nodes automatically:

const group = db.get('8871'); // create a group node
group.set(n1);
group.set(n2);

Now group has two record, n1 and n2. You can also add plain objects to a set:

const group = db.get('8871');
group.set({
title: 'hello'
});
group.set({
title: 'world'
});

In this case Gun will automatically create nodes from the plain objects. The diagram below shows the set and the nodes that it’s pointing to:

Visualizing a set with two records

Relationships

Modeling the real-world is all about identifying relationships and implementing them in a database. Graph databases are naturally good at expressing relationships. In this section I’m going to show you how to create relationships between nodes.

The simplest way for creating a relationship, as we have seen before, is using the following pattern:

node1.get('related_to').put(node2)

or explicitly creating a relationship while making a node:

const node1 = db.get('8891').put({
uuid: '8891',
name: 'node1',
related_to: {
uuid: '9911',
name: 'node2',
},
});

In the snippet above, related_to is turned into a node by Gun automatically and the reference is stored in node1. You can then access the linked node with node.get('related_to').

Now, if you want to add properties to a relationship, you can create an intermediate node and add the properties of the relationship and the link inside the intermediate node:

node1.get('related_to').put({
property: "value",
property2: "value",
});
node1.get('related_to').get('node').put(node2);

The diagram below demonstrates the relationships:

Creating a relationship using a property node

As you can see in the diagram above, the related_to node points to node2 through the node property of the intermediate node. You can then access node2 with node1.get('relate_to').get('node').

Subscribing

Gun nodes behave like observables, which means that they emit values over time. You can subscribe to Gun nodes using on or once. Using on you can get updates as they happen unless you cancel your subscription. The once method only retrieves the current value and doesn't subscribe for future updates.

Iterating Through Records

Given a set of records, you can iterate through them using map:

myset.map().once(v => console.log(v));

The snippet above will log each record in myset once. It will also get the records added over time, but only once.

Here are more patterns that you can use (take directly from the documentation):

  • myset.map().on(cb): subscribes to changes on every record and to myset as more records are added in the future.
  • myset.map().once(cb): gets each record once, including ones that are added over time.
  • myset.once().map().on(cb): gets the record list once, but subscribes to changes on each of those myset, but not the records added later.
  • myset.once().map().once(cb): gets the record list once, gets each record in myset only once, and not the ones added later.

Conclusion

GunDB is changing the way that we think about databases and is slowly transitioning us to a new paradigm. Gun, and its related projects, have a lot of aspects that are very different from the classical centralized models. You may find it challenging to learn Gun if you are just getting started. Firstly, because Gun is a young project and you should expect the APIs to change. And secondly, you may find it difficult to wrap your head around the documentation.

I’m hoping that these series of articles can help you (and me) to understand GunDB better and serve as complementary guides to the pre-existing ones. You can access all the official documentations and guides at https://gun.eco/docs

Appendix 1

The easiest and the most consistent way of installing Node is through a version manager like NVM. First, install NVM using the following:

curl -o- https://raw.githubusercontent.com/creationix/nvm/v0.33.11/install.sh | bash

Then check your “profile” file to see if the following entries have been added:

export NVM_DIR="$HOME/.nvm"
[ -s "$NVM_DIR/nvm.sh" ] && \. "$NVM_DIR/nvm.sh" # This loads nvm
[ -s "$NVM_DIR/bash_completion" ] && \. "$NVM_DIR/bash_completion" # This loads nvm bash_completion

Then restart your terminal and make sure that you can get an output for nvm --version. After that simply run nvm install 8 to install the latest Node 8. Afterwards, run node -v and npm -v to verify that both Node and Npm are available.
