An automated process of Maya batch render with Redshift

Figure 1: Image from https://www.fxguide.com/fxfeatured/the-art-of-digital-faces-at-ict-from-digital-emily-to-digital-ira/?utm_source=twitterfeed&utm_medium=twitter
Figure 2: Building a perfect accurate lighting condition in Maya to validate the software process. Red dots represent spotlights in the light cage and green ones are cameras in real position.
Figure 3: In reality, we get specular image by subtracting diffuse information from a normal lighting result. Diffuse lighting is taken by a cross-polarization way.

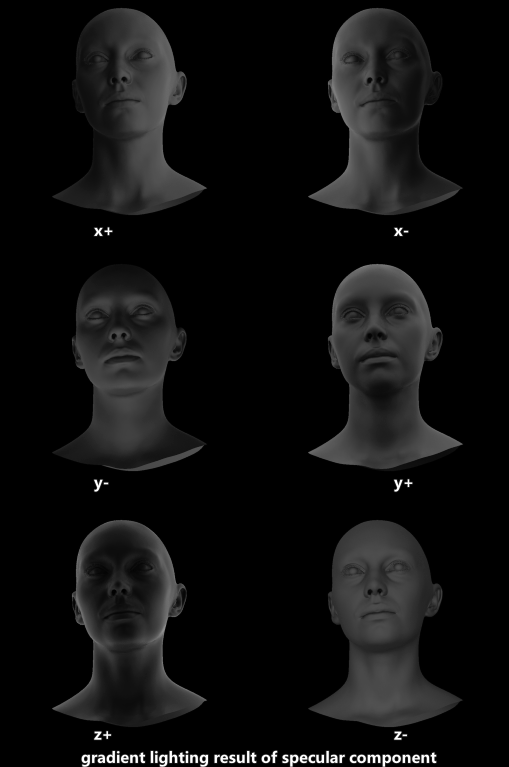

Figure 4: Specular result from gradient lighting under x+, x-, y+, y-, z+, z- direction.
Figure 5: World space normal rebuilt from 6 gradient light illumination. (Courtesy of SIGGRAPH 2009 Course Notes: The Digital Emily Project)
  1. Redshift renderer can only set one camera as renderable in Render Setting.
FIgure 6: Using the render layer override
for c in cams:
c.rnd.set(0)
targetCam.rnd.set(1)

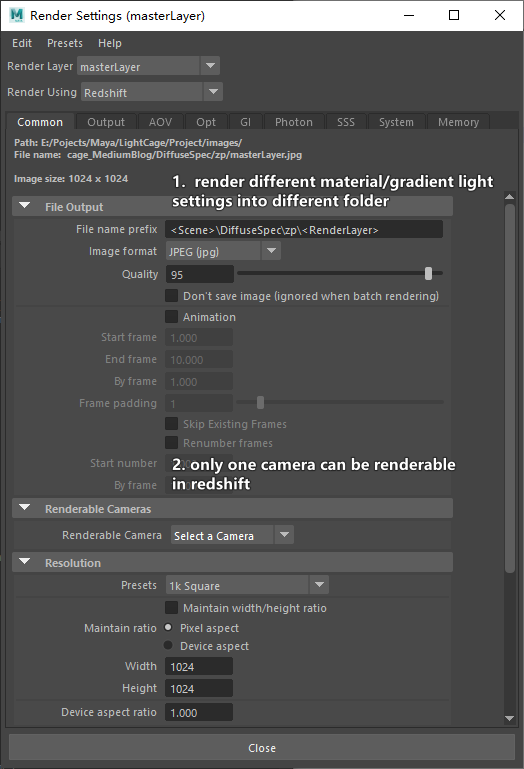

Figure 7: we need to override ‘File name prefix’ and ‘Renderable Camera’ per layer to automate the process.
pm.PyNode("defaultRenderGlobals").imageFilePrefix.set(path)

pm.editRenderLayerAdjustment("defaultRenderGlobals.imageFilePrefix", layer = layerName)

pm.editRenderLayerAdjustment(q=1,alg=1)
renderlayerNode = pm.PyNode(renderLayerName)
renderLayerID = renderlayerNode.rlid.get()
pm.PyNode(‘renderLayerManager.crl’).set(renderLayerID)
‘sets -e -forceElement yourMaterialSG;’
cmd = ‘sets -e -forceElement initialShadingGroup;’
pm.mel.eval(cmd)
#end of walk around
cmd = ‘sets -e -forceElement {};’.format(mat)
Figure 8: example of layers of material/Gradient lighting permutation.
Figure 9: Result of batch rendering.
Figure 10: World space normal reconstructed by images we batch rendered.

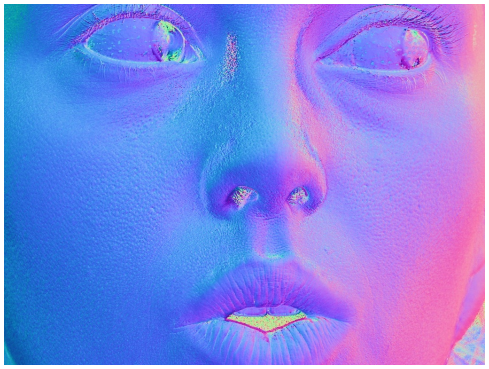

Figure 11: A final result: a tangent space normal from reconstructed mesh and world space normal maps.

--

--

--
