BMW E90 LCI Tail light retrofit coding guide

For 2009–2010 models with FRM3 module, add +MUH2 to your Vo and code the FRM

For pre 2009 cars:

These are the values to change: it’s different depending if the car has FRM or NFRM module.

Software for coding: Ncs expert

Module: FRM

Warm test Brake
WARMUEBERWACHUNG_BL_MI -> nicht_aktiv

Cold Test Brake
KALTUEBERWACHUNG_BL_MI -> nicht_aktiv

Warm test turn
WARMUEBERWACHUNG_BLK_HI -> nicht_aktiv

Cold test turn
KALTUEBERWACHUNG_BLK_HI -> nicht_aktiv

cold rear turn signal…
KALTUEBERWACHUNG_BLK_H -> nicht_aktiv

cold brake light…..
KALTUEBERWACHUNG_BL -> nicht_aktiv

warm rear turn signal…
WARMUEBERWACHUNG_BLK_H -> nicht_aktiv

warm brake light..
WARMUEBERWACHUNG_BL -> nicht_aktiv

Brake force display
CC_MELD_BFD_BL -> nicht_aktiv
FEHLERMELDUNG_CC_BFD_L -> nicht_aktiv
FEHLERMELDUNG_CC_BFD_R -> nicht_aktiv

— — — — — — — — — — — — — — — — — — — — — — — — — — — -

NFRM

KALTUEBERWACHUNG_BLK_H -> nicht_aktiv

[[Cold Test Brake Light]]
KALTUEBERWACHUNG_BL -> nicht_aktiv

[[Warm Test Blinker Rear]]
WARMUEBERWACHUNG_BLK_H -> nicht_aktiv

[[Warm Test Brake Light]]
WARMUEBERWACHUNG_BL -> nicht_aktiv

[[Cold Test Brake Force Display]]
KALTUEBERWACHUNG_BFD ←Cold BFD test

[[Warm Test Brake Force Display]]
WARMUEBERWACHUNG_BFD ←Warm BFD test

If you need the instruction to change VO, check here:

Here is the instruction on change BMW VO (Vehicle Order) by using BMW Ncs expert coding software.

Instruction:

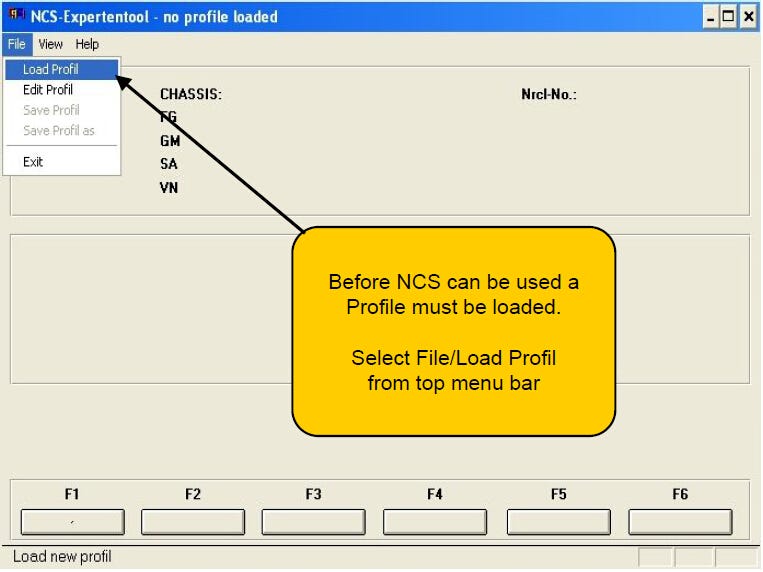

Before NCS Expert can be used a Profile must be loaded.

Select File/Load Profile from top menu bar

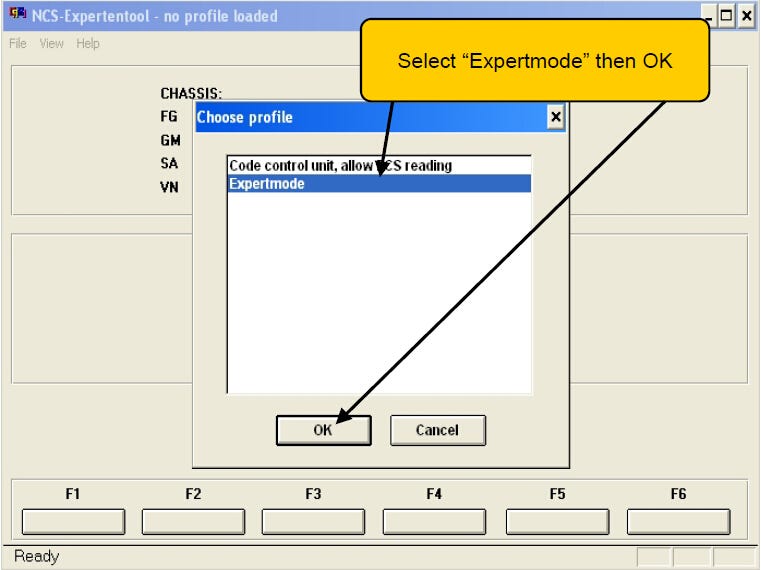

Select Expert Mode, then press OK

One a profile is loaded, the bottom buttons become selectable.

Select F1 to read vehicle data first

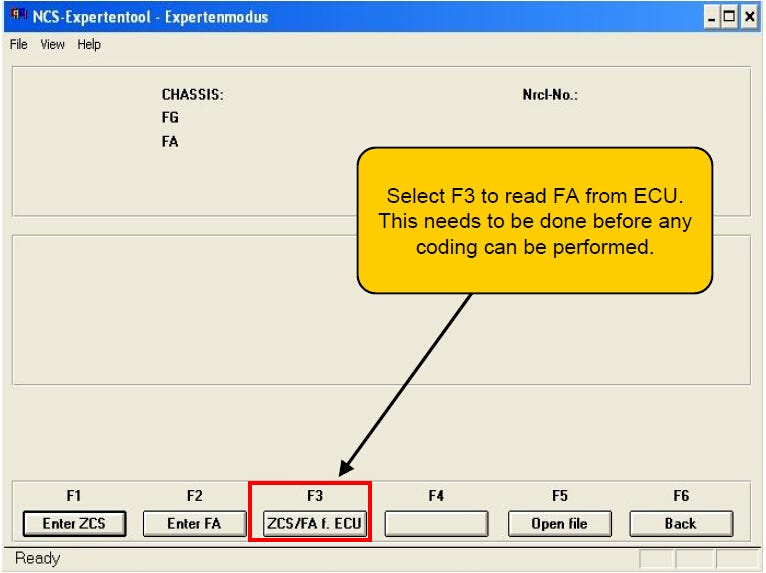

Select F3 to read FA from ECU.

This needs to be done before any coding can be performed.

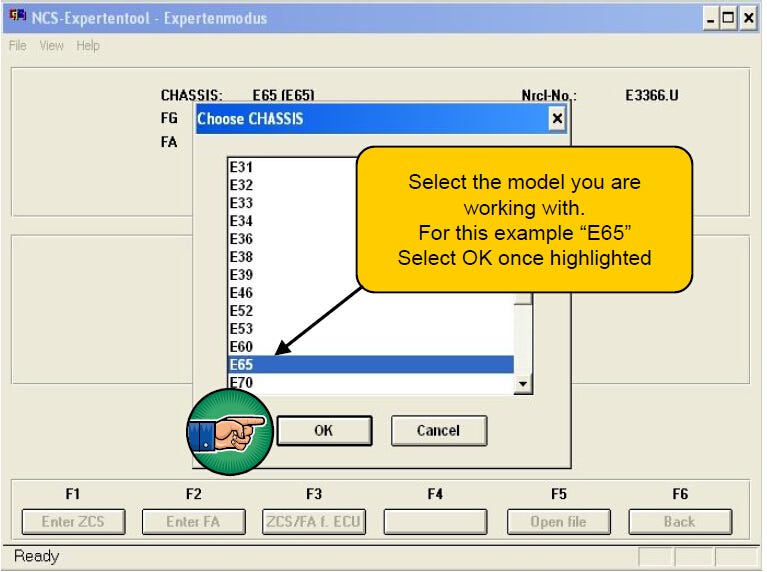

Select the model you are working with.

For this example “E65″

Select OK once highlighted

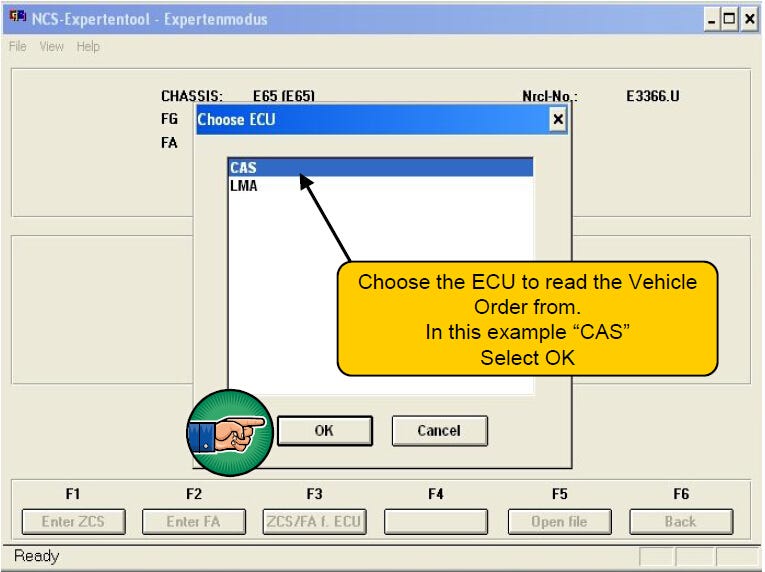

Choose the ECU to read the Vehicle Order from. In this example “CAS”

Select OK

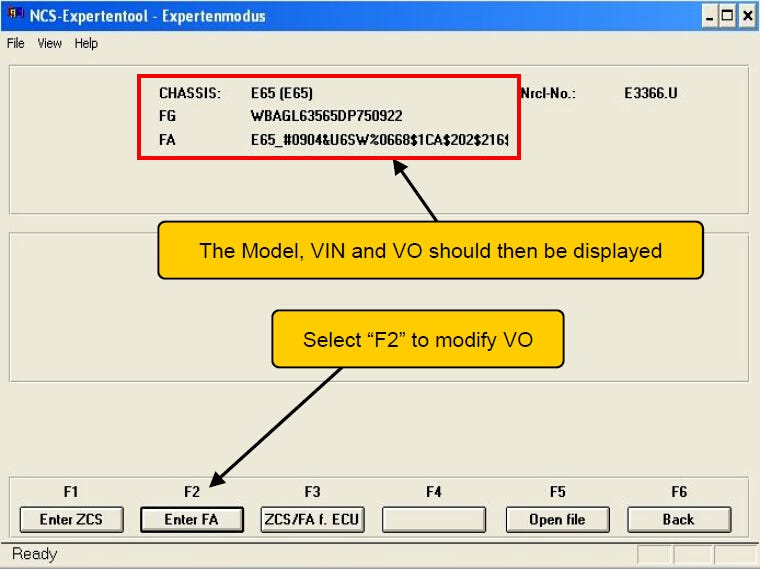

The Model,VIN and VO should then be displayed

Select F2 to modify VO

Select the mode you are working with, i.e “E65″

Select OK once highlighted

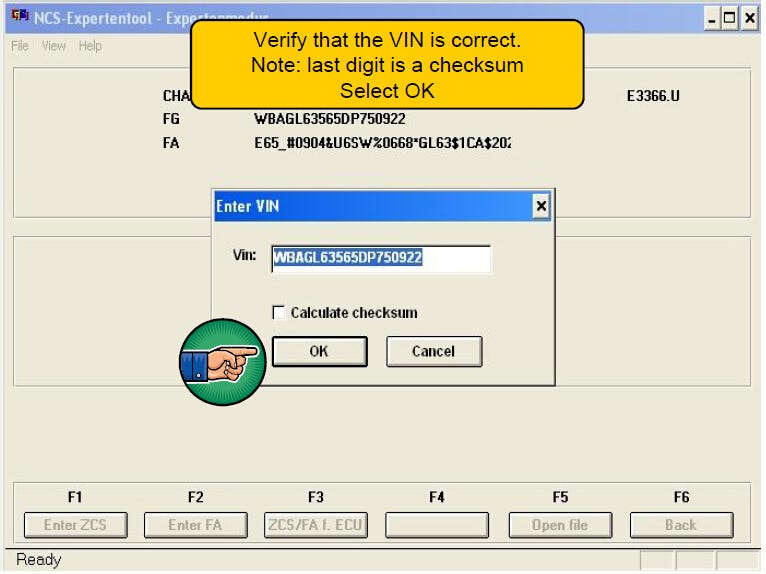

Verify that the VIN is correct

Note:latest digit is a checksum

Select OK

Enter SA or Service code,then select Add

Enter FA SA codes must begin with $

Service codes must begin with +

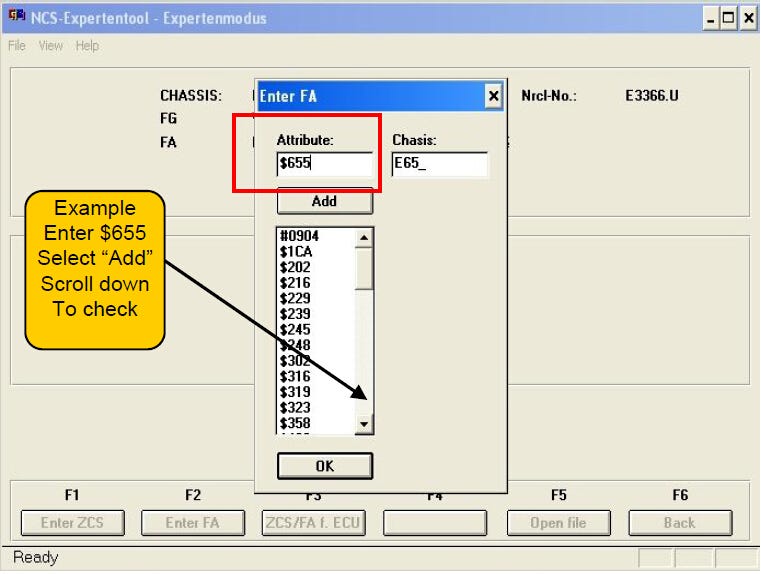

Example: Enter$655

Select “Add”

Scroll down to check

Example: Enter +EVER

Select “Add”

Scroll down to check

Select OK

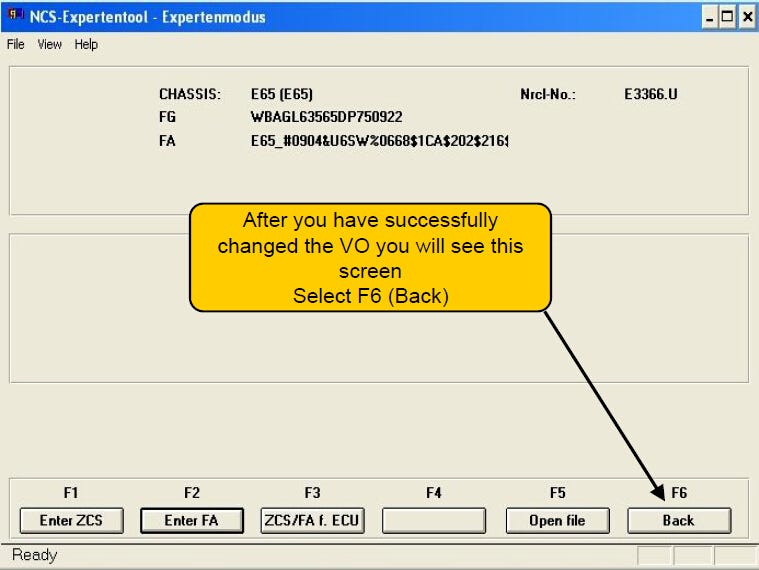

After you have successfully changed the VO you will see this screen

Select F6 (Back)

Select F4 Process ECU

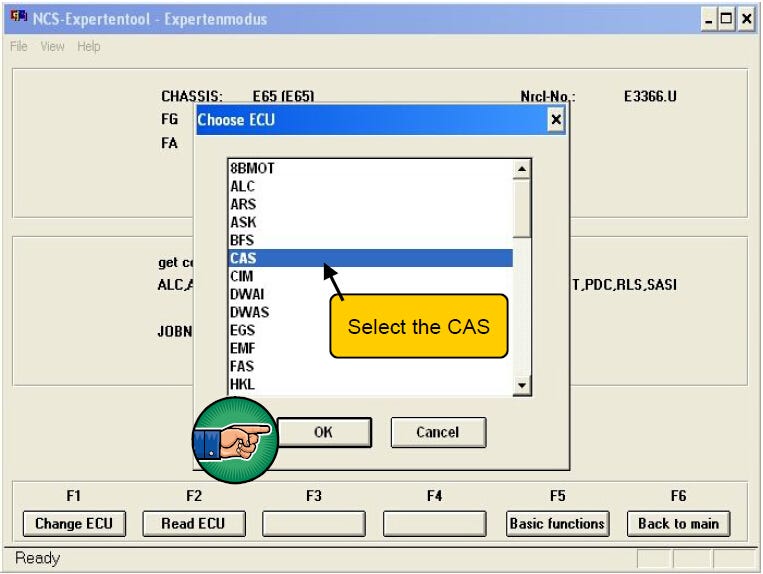

Select the CAS

Select F2 Change Job

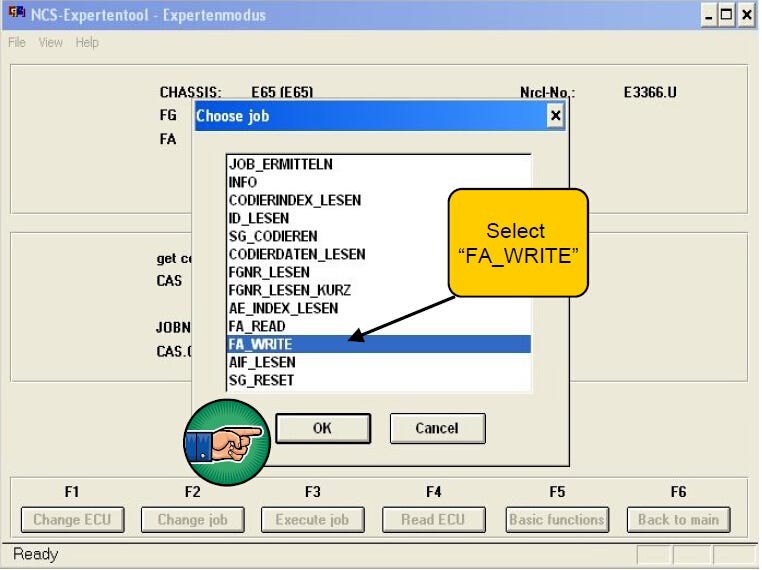

Select “FA_WRITE”

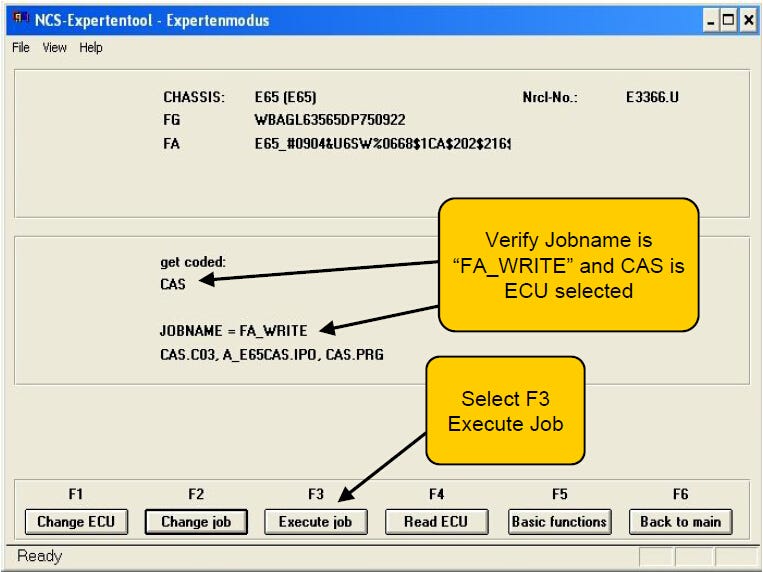

Vehicle jobname is “FA_WRITE” and CAS is ECU selected

Select F3 Execute Job

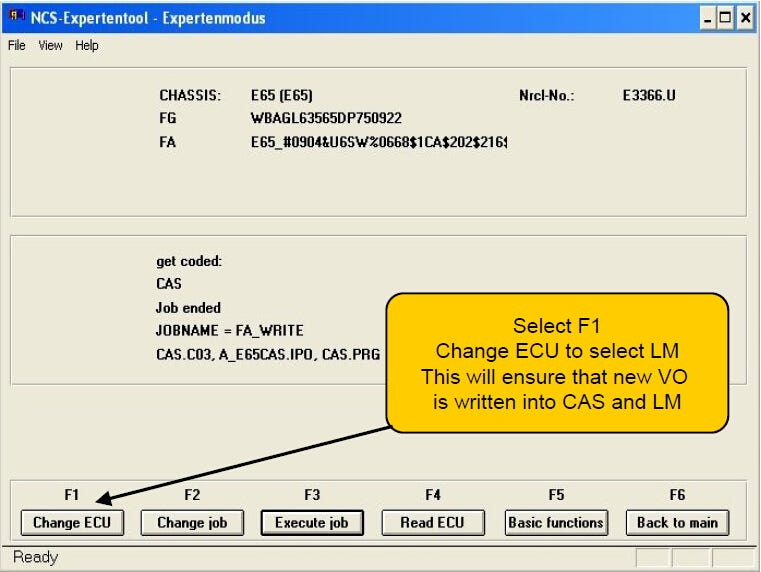

Select F1 Change ECU to select LM

This will ensure that new VO is written into CAS and LM

Select “LMA”

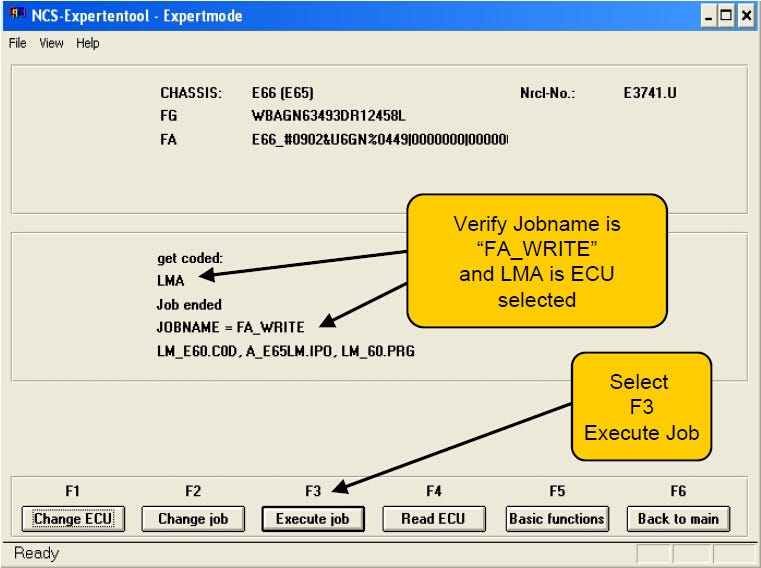

Verify Jobname is “FA-WRITE” and LMA is ECU selected

Select F3 Execute Job

Done.
