How to monitor your Kubernetes cluster with Prometheus and Grafana (The short story)

Monitoring a cluster is absolutely vital.

Prometheus and Grafana make it extremely easy to monitor just about any metric in your Kubernetes cluster.

In this article I will show how to add monitoring for all the nodes in your cluster.

TL;DR https://github.com/chris-cmsoft/kubernetes-bootstrapper

Need a deeper dive ? Here is the long version


You need a few things.

  1. An existing Kubernetes Cluster.
  2. kubectl & helm binaries locally installed

Install Tiller (Helm server) on your cluster

Installing Tiller is a bit more in-depth as you need to secure it in production clusters. For the purposes of keeping it simple and playing around, we will install it with normal cluster-admin roles.

If you need to secure it for a production cluster: https://docs.helm.sh/using_helm/#tiller-and-role-based-access-control

Create the Tiller Service Account

Create a folder called helm. Here we will create all Kubernetes resources for tiller. Create a file called helm/service-account.yml and add the following content:

apiVersion: v1
kind: ServiceAccount
metadata:
name: tiller
namespace: kube-system

Then apply and test that the service account exists in the cluster.

$ kubectl apply -f helm/service-account.yml
$
kubectl get serviceaccounts -n kube-system
NAME SECRETS AGE
[...]
tiller 1 30h

Create the service account role binding

For demo purpose we will create a role binding to cluster-admin.

DO NOT DO THIS IN PRODUCTION !!

See here for more information: https://docs.helm.sh/using_helm/#understanding-the-security-context-of-your-cluster

Create a file called helm/role-binding.yml in the helm folder with the content:

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: tiller
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: tiller
namespace: kube-system

Apply and test that the role binding exists on the cluster

$ kubectl apply -f helm/role-binding.yml
$ kubectl get clusterrolebindings.rbac.authorization.k8s.io
NAME AGE
[...]
tiller 30h

Deploy Tiller

$ helm init --service-account tiller --wait

The --wait flag makes sure that tiller is finished before we apply the next few commands to start deploying Prometheus and Grafana.

Apply and test tiller is deployed and running

$ kubectl get pods -n kube-system
NAME READY STATUS AGE
[...]
tiller-deploy-dbb85cb99-st8lt 1/1 Running 30h

Done ! Tiller is deployed and now the real fun starts !

Photo by Katya Austin on Unsplash

Install Prometheus

We will separate our monitoring resources into a separate namespace to keep them together.

Create a folder called monitoring. Here we will create all our monitoring resources.

Create a file called monitoring/namespace.yml with the content.

kind: Namespace
apiVersion: v1
metadata:
name: monitoring

Apply & Test the namespace exists.

$ kubectl get namespaces
NAME STATUS AGE
[...]
monitoring Active 105m

Deploy Prometheus

Here is where the power of Helm steps in and makes life much easier.

First we need to update our local helm chart repo.

$ helm repo update

Next, deploy Prometheus into the monitoring namespace

$ helm install stable/prometheus \
--namespace monitoring \
--name prometheus

This will deploy Prometheus into your cluster in the monitoring namespace and mark the release with the name prometheus.

Prometheus is now scraping the cluster together with the node-exporter and collecting metrics from the nodes.

We can confirm by checking that the pods are running:

$ kubectl get pods -n monitoring
NAME READY STATUS
prometheus-alertmanager-5c5958dcb7-bq2fw 2/2 Running
prometheus-kube-state-metrics-76d649cdf9-v5qg5 1/1 Running
prometheus-node-exporter-j74zq 1/1 Running
prometheus-node-exporter-x5xnq 1/1 Running
prometheus-pushgateway-6744d69d4-27dxb 1/1 Running
prometheus-server-669b987bcd-swcxh 2/2 Running

Install Grafana

When deploying grafana, we need to configure it to read metrics from the right data sources.

Defining the grafana data sources.

Grafana takes data sources through yaml configs when it get provisioned.
For more information see here: http://docs.grafana.org/administration/provisioning/#datasources

Kubernetes has nothing to do with importing the data. Kubernetes merely orchestrates the injection of these yaml files.

When the Grafana Helm chart gets deployed, it will search for any config maps that contain a grafana_datasource label.

Create a Prometheus data source config map

In the monitoring folder, create a sub-folder called grafana .

Here is where we will store our configs for the grafana deployment.

Create a file called monitoring/grafana/config.yml with the content:

apiVersion: v1
kind: ConfigMap
metadata:
name: prometheus-grafana-datasource
namespace: monitoring
labels:
grafana_datasource: '1'
data:
datasource.yaml: |-
apiVersion: 1
datasources:
- name: Prometheus
type: prometheus
access: proxy
orgId: 1
url: http://prometheus-server.monitoring.svc.cluster.local

Here is where we add the grafana_datasource label which will tell the grafana provisioner that this is a datasource it should inject.

labels:
grafana_datasource: '1'

Apply & test the config

$ kubectl apply -f monitoring/grafana/config.yml
$ kubectl get configmaps -n monitoring
NAME DATA AGE
[...]
grafana 1 131m

Override Grafana value

When Grafana gets deployed and the provisioner runs, the data source provisioner is deactivated. We need to activate it so it searches for our config maps.

We need to create our own values.yml file to override the datasources search value, so when Grafana is deployed it will search our datasource.yml definition and inject it.

Create a file called monitoring/grafana/values.yml with the content:

sidecar:
image: xuxinkun/k8s-sidecar:0.0.7
imagePullPolicy: IfNotPresent
datasources:
enabled: true
label: grafana_datasource

This will inject a sidecar which will load all the data sources into Grafana when it gets provisioned.

Now we can deploy Grafana with the overridden values.yml file and our datasource will be imported.

$ helm install stable/grafana \
-f monitoring/grafana/values.yml \
--namespace monitoring \
--name grafana

Check that it is running:

$ kubectl get pods -n monitoring
NAME READY STATUS RESTARTS AGE
[...]
grafana-5f4d8bcb94-ppsjq 1/1 Running

Get the Grafana Password

Grafana is deployed with a password. This is good news. But whats the password ?

$ kubectl get secret \
--namespace monitoring grafana \
-o jsonpath="{.data.admin-password}" \
| base64 --decode ; echo

This will spit out the password to your Grafana dashboard.
The username is admin

Port Forward the Grafana dashboard to see whats happening:

$ export POD_NAME=$(kubectl get pods --namespace monitoring -l "app=grafana,release=grafana" -o jsonpath="{.items[0].metadata.name}")
$ kubectl --namespace monitoring port-forward $POD_NAME 3000

Go to http://localhost:3000 in your browser. You should see the Grafana login screen:

Smashing login screen

Login with the username and password you have from the previous command.

Add a dashboard

Grafana has a long list of prebuilt dashboard here:
https://grafana.com/dashboards

Here you will find many many dashboards to use. We will use this one as it is quite comprehensive in everything it tracks.

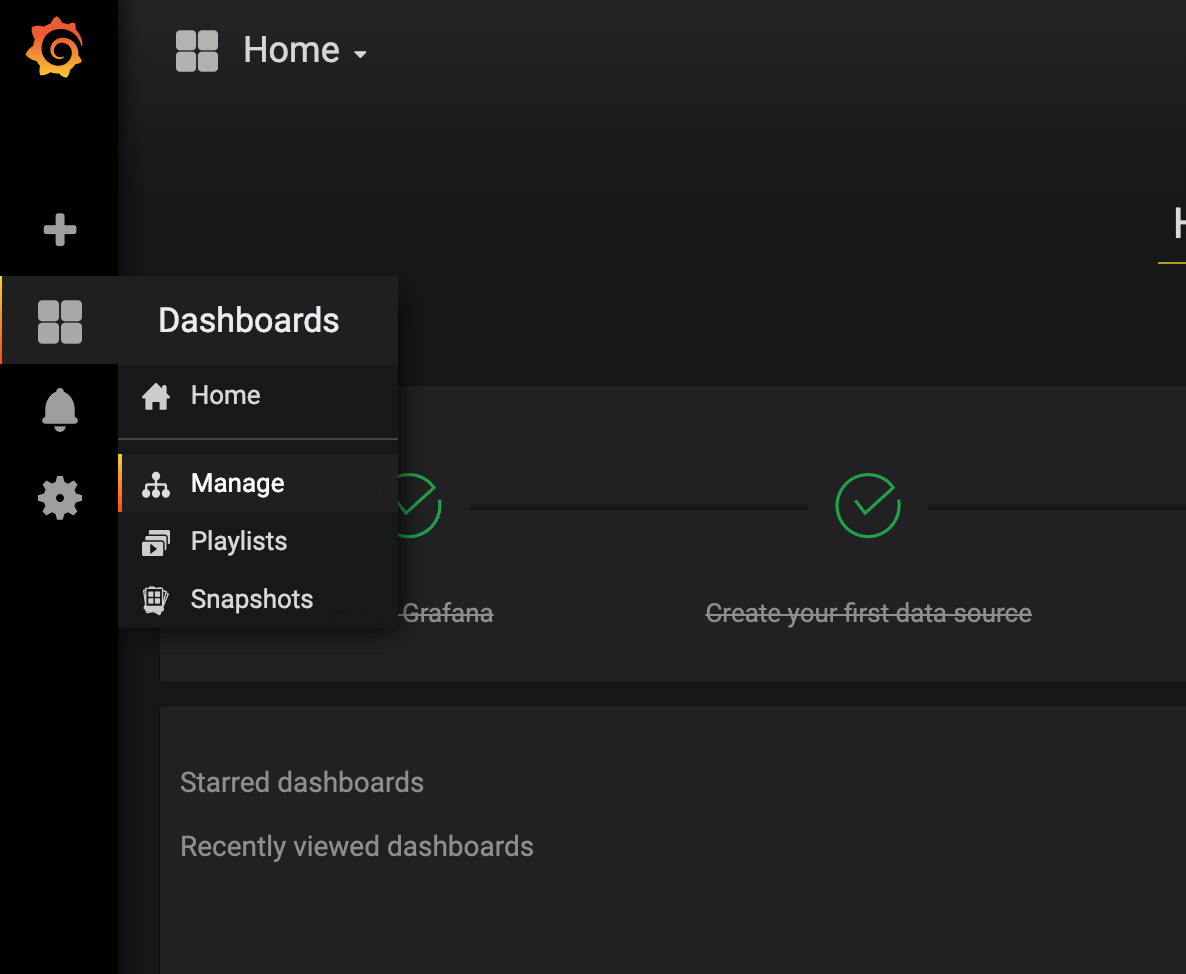

In the left hand menu, choose Dashboards > Manage > + Import

In the Grafana.com dashboard input, add the dashboard ID we want to use: 1860 and click Load

On the next screen select a name for your dashboard and select Prometheus as the datasource for it and click Import.

You’ve got metrics !

The list of metrics is extensive. Go over them and see what is useful, copy their structures and panels and create your own dashboards for the big screens in the office !

To make the process even easier, I have saved all of this in a github repo for everyone to use ! https://github.com/chris-cmsoft/kubernetes-bootstrapper

Enjoy !
