Designing brackets for cLeg cosmetic fairings

Colten Jackson
Nov 29, 2015 · 3 min read
Image for post
Image for post

A continuation of: Blending and Bending Prosthetic Leg Fairings

I wanted to design a 3D printable file that would allow me to clamp my acrylic fairings to the cLeg. Luckily Kay and Gabe created a pretty solid model of the cLeg itself so I could use its contours in my design. Again, I had to cut the model down manually in Blender because netfabb does an awful job of exporting STL (hadn’t yet investigated if this is an actual or a free-demo-imposed limitation of the software).

I also used Blender to multiply the scale by 1,000 before importing into Tinkercad.

I like Tinkercad because it makes it super easy to perform boolean functions on complex stuff like our leg here. If you’re a tinkercadder, try ungrouping the model so you can see how I made a cross section of the leg: Tinker This

Image for post
Image for post

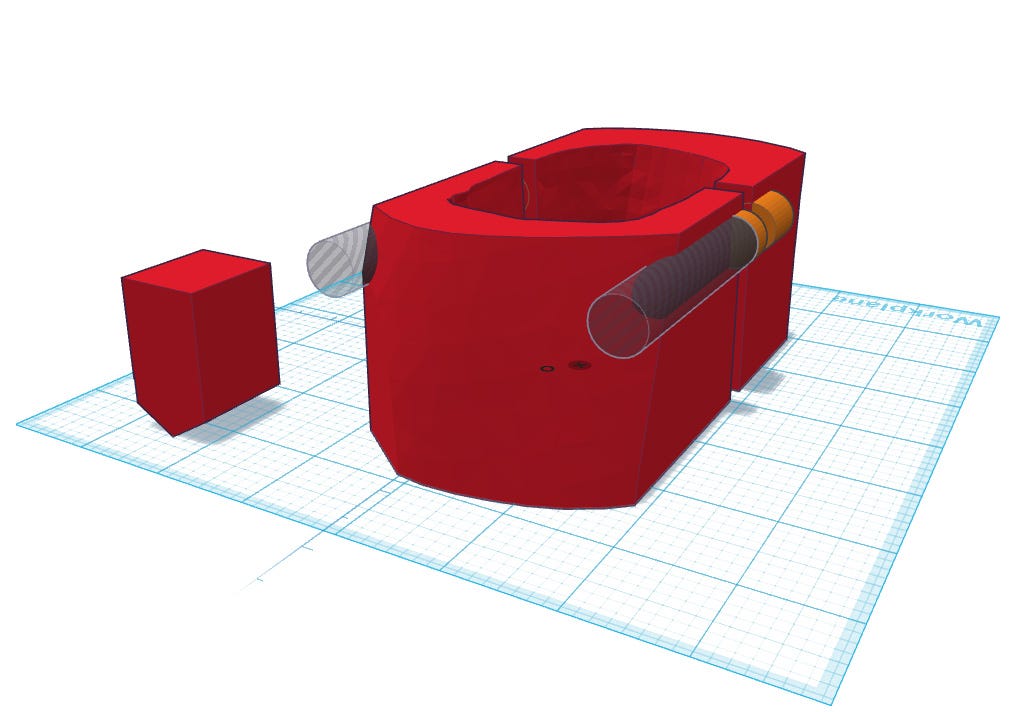

And I went on to improvise a way to screw two parts together — this is very much a test fit, to see if the idea makes any sense, to see if screwing two plastic pieces on with pressure is enough to keep it from falling off.

Image for post
Image for post

I went back and forth about 3D printing holes for nuts and bolts, but decided I would drill it out of the finished plastic — “machining” is way more accurate than printing for this kind of thing.

OK, the original Kinect scan was not very dimensionally accurate…I guess I could have compared measurements of the model with measurements of the object, that’s what I get for trusting technology -.- I can still use the blocks of plastic for practice fitting, though. They don’t clamp around the c-Leg, but I tested screwing the pieces together and drilling into the plastic to insert a brass threaded insert, and with a few taps of a hammer that turned our really nice.

Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post

Of course, the chunky tinkercad design isn’t so fashionable, but it served its purpose to confirm that I need to press the shape of the leg more accurately (the front fairing doesn’t sit flush with the printed model at all) and that countersunk M5 screws will do a nice job of securing the fairing to the bracket, though I’ll have to play with melting a countersink so the head of the screw doesn’t stick out the back.

Continued here:
