System monitoring with Grafana, InfluxDB et Collectd

Cristian Perez
Aug 15, 2018 · 4 min read

This story has been first published in my blog

System monitoring is important to understand the global performance of a machine. For instance, unix systems provide command lines tools like top, free or df. Which gives simple and accurate functionalities but it lacks of a global vision, like the one that that we can have in a dashboard.

This article will explains the components of a responsive dashboard system and how to easily deploy it using docker technology.

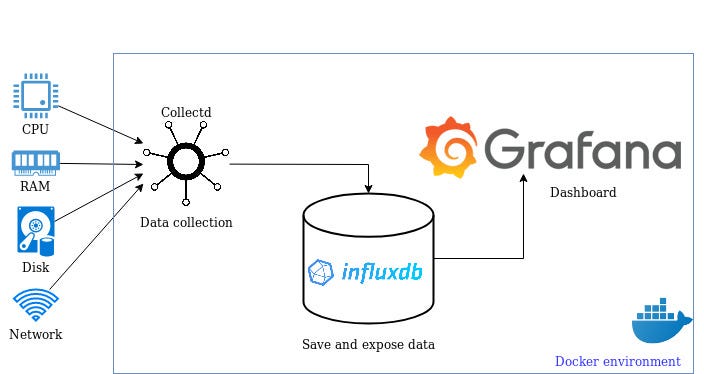

Let’s start with the presentation of the components of the stack.

Collectd is a daemon process that runs on the system and collects information like CPU, memory, disk usage, network data, etc. It can send these data to some data store.

The data store that we have chosen is Influxdb. The main reason is because influxdb is a time series database designed to store and analyse time-series data, likes the one we can get from our system.

The final part is Grafana, which is a data query and presenting tool, that let you build beautiful graph chart based on your defined data source. And of course InfluxDB is on the officially supported data source.

Each component of the stack is saved as a docker instance using a dockerfile image and they are build and launched using docker-compose program.

Data collection

There is no official dockerfile image available for collectd. The closest available comes from fr3nd. Collectd daemon collects system information from the unix /proc folder, so we need to access this folder from inside our docker container. For that reason, we have to give elevated privileges to the container in order to read the folder /proc and also include an option to access network information from the host machine and not the docker virtual machine itself.

image: fr3nd/collectd
privileged: true
network_mode: host
- /proc:/mnt/proc:ro
- ./docker/collectd/collectd.conf:/etc/collectd/collectd.conf

We can use the default configuration file from collectd and add the following lines in order to communicate to our data saving service.

LoadPlugin network<Plugin network>
Server "" "25826"

This line uses a collectd plugin to send data to the address, where we have to listen to save the data.

Saving the data

Influxdb has an official dockerfile image. We use the version 1.4, which includes performance improvements and also they remove the default visual administration interface from port 8083.

When running our docker, influxdb read data from port 25826/udp that comes from collectd and then save it in the folder /var/lib/influxdb, which we mapped to an external docker folder influxdb-data in order to have data persistence. Finally it exposes this data using port 8086.

image: influxdb:1.4
- "8086:8086"
- "25826:25826/udp"
- ./influxdb-data:/var/lib/influxdb
- ./docker/influxdb/influxdb.conf:/etc/influxdb/influxdb.conf
- ./docker/influxdb/types.db:/usr/share/collectd/types.db:ro

The connection with collectd is done inside the configuration file influxdb.conf in the following lines:

enabled = true
bind-address = ":25826"
database = "collectd"
retention-policy = ""
batch-size = 5000
batch-pending = 10
batch-timeout = "10s"
read-buffer = 0
typesdb = "/usr/share/collectd/types.db"

The types.db file defines the collectd data source specification, which influxdb needs this file to understand collectd’s data.

Dashboard monitoring

We use the grafana docker image 5.1 which comes with the possibility to include data sources and predefined dashboards as yaml files, which makes easier the deployment task. The influxdb data source is declared in the datasource.yaml file and a simple dashboard configuration is included in the file Dashboard.json.

image: grafana/grafana:5.1.1
user: "root"
- "3000:3000"
- ./grafana-storage:/var/lib/grafana
- ./docker/grafana/datasource.yaml:/etc/grafana/provisioning/datasources/datasource.yaml
- ./docker/grafana/dashboard.yaml:/etc/grafana/provisioning/dashboards/dashboard.yaml
- ./docker/grafana/Dashboard.json:/var/lib/grafana/dashboards/Dashboard.json

Grafana is specially designed to monitor data sources, it has the following advantages:

  • Community provides many dashboards layouts in the website.
  • Several input data sources
  • Monitor alerts, which can send notification through email, slack, APIs.

The grafana interface can be reached at port 3000. The default username is admin and the password is admin.

Grafana has many ways to be customized and also an explicit documentation.


The main motivation of this project was to monitor AWS instances. Which can be easily done using our code source that is available in github and easily deployed with the only command docker-compose up -d --build.

However, the scope of this project can be wider using the several plugins that can be used with collectd. For example it is possible to calculate more detailed information such the state of mongodb database, the number of rabbitmq queued messages or the memory consumption of docker services.

Thanks to Han Xiao for initial work.
