Quickly implement backdrop with flutter

I recently got introduced to flutter and its implementation of material design. After going through some sample implementation on the internet I discovered the Backdrop component from material design guidelines. I found it to be a very useful UI element with many use-cases. Sadly, there isn’t a backdrop widget in the official material package.

1. Backlayer 2. Frontlayer 3. Subheader

Hence, I decided to implement this component and published it as a package with supporting widgets. This post demonstrates how to use the package and its widgets to implement a basic backdrop component with flutter.

BackdropScaffold

Anyone familiar with flutter will be aware of the magical Scaffold widget which builds the basic app structure for you. Similarly BackdropScaffold widget of the backdrop package builds the layout for you with a given body and backlayer.

Basic Backdrop Implementation

Add backdrop as dependecy

Add this to your package’s pubspec.yaml file:

dependencies:
backdrop: ">=0.0.0 <0.1.0"

Install package from command line:

$ flutter packages get

Import backdrop in your Dart code:

import 'package:backdrop/backdrop.dart';

Implementation example

First, lets see what arguments can be passed to theBackdropScaffold widget within the backdrop package.

  • title - (default=null) title for appbar
  • backpanel- (default=null) widget to be displayed in backlayer
  • body- (default=null) widget to be displayed in frontlayer
  • actions- (default=null) list of widgets for appbar
  • headerHeight- (default=32.0) height of frontlayer to be visible when backlayer is active
  • controller- (default=initialised internally) AnimationController object can be optionally passed from outside the widget

Finally, lets write down basic example for the backdrop using this widget.

import 'package:backdrop/backdrop.dart';
import 'package:flutter/material.dart';

void main() => runApp(new MyApp());

class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return new MaterialApp(
title: 'Backdrop Demo',
home: BackdropScaffold(
title: Text("Backdrop Example"),
backpanel: Center(
child: Text("Backpanel"),
),
body: Center(
child: Text("Body"),
),

),
);
}
}

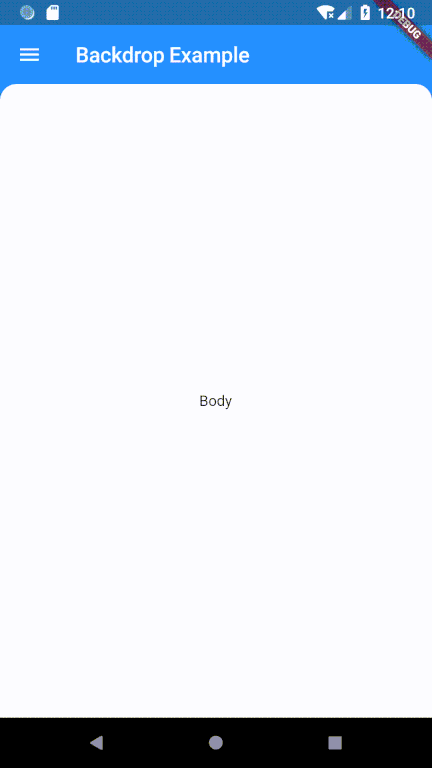

That’s it!! BackdropScaffold makes it really easy for you.

Contribute

If you found this interesting. I request you to go through the git repo for contributing, giving feedback or just to play around. The package is still under active development and a lot of new features are to be implemented.
