SOAP Web Services

What is SOAP?

Derya Cortuk
Nov 4 · 3 min read

SOAP, means Simple Object Access Protocol, is an XML(Extensible Markup Language) based industry standard protocol for designing and developing web services. That is to say, SOAP is a definition of how web services talk to each other or talk to client applications that invoke them.

Advantages of SOAP

  • WSDL, stands for Web Service Description Language, provides contact and technical details of the web services for client applications without exposing the underlying implementation technologies.
  • SOAP is designed to be platform independent, and moreover SOAP protocol can work any programming language based applications on both platform Windows and Linux.
  • It works on the HTTP protocol, which is the default protocol used by all web applications.
  • Security is first class citizen, with built-in security features to protect messages from being corrupted.
  • And ACID-compliant Transactions.

Disadvantages of SOAP

  • Lacks Flexibility: Only XML can be used, JSON(JavaScript Object Notation) and other lightweight formats are not supported.
  • Resource consuming: A SOAP API requires a larger bandwidth on account of the larger size of an XML-file and a payload created by the massive structure of a message.
  • SOAP is based on the contract, so there is a tight coupling between client and server applications.

SOAP Message Structure

A SOAP message is an XML document that consists of four elements with specific functions for each one.

  • Envelope is the root element XML document representing the message. It defines the framework for how the message should be handled and by whom.
  • Header(optional) determines the specifics, extra requirements for the message, e.g. authentication.
  • Body includes the request or response.
  • Fault(optional) shows all data about any errors that could emerge throughout the API request and response.

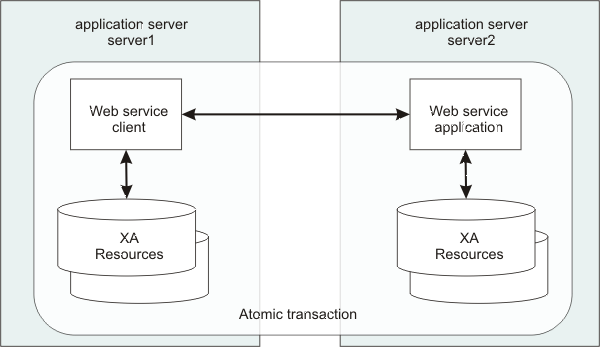

WS-AtomicTransaction

ACID,stands for Atomicity, Consistency, Isolation, Durability ,is a set of properties of database transactions intended to guarantee validity even in the event of errors, failures etc. The ACID properties are designed as principles of transaction-oriented database recovery.

ACID compliance means that transactions meet the following requirements:

Atomicity : Multiple connected transactions either work as a single unit or don’t work at all.

Consistency : This ensures that you guarantee that all data will be consistent.

Isolation : Transactions are independent of each other.

Durability : Once a transaction is committed, it will remain in the system, even if there’s a system crash immediately following the transaction.
