# How I built the SiriWaveJS library: a look at the math and the code

It was 4 years ago when I had the idea to replicate the **Apple® Siri** **wave-form** (introduced with the iPhone 4S) in the browser using pure Javascript.

During the last month, I updated this library by doing a lot of refactoring using ES6 features and reviewed the build process using **RollupJS.** Now I’ve decided to share what I've learned during this process and the math behind this library.

To get an idea what the output will be, visit the **live example****; **the whole codebase is **here**.

Additionally, you can download all plots drawn in this article in GCX (OSX Grapher format): **default.gcx** and **ios9.gcx****.**

**The classic wave style**

Initially, this library only had the classic wave-form style that all of you remember using in iOS 7 and iOS 8.

It’s no hard task to replicate this simple wave-form, only a bit of math and basic concepts of the Canvas API.

You’re probably thinking that the wave-form is a modification of the **Sine** math equation, and you're right…well, almost right.

Before starting to code, we’ve got to find our linear equation that will be simply applied afterwards. My favourite plot editor is **Grapher;** you can find it in any OSX installation under *Applications > Utilities > Grapher.app.*

We start by drawing the well known:

Perfecto! Now, let’s add some parameters (Amplitude **[A]**, Time coordinate**[t] **and Spatial frequency **[k]**) that will be useful later (Read more here: https://en.wikipedia.org/wiki/Wave).

Now we have to “attenuate” this function on plot boundaries, so that for **|x| > 2**, the **y **values tends to 0. Let’s draw separately an equation **g(x) **that has these characteristics.

This seems to be a good equation to start with. Let’s add some parameters here too to smooth the curve for our purposes:

Now, by multiplying our **f(x, …) **and **g(x, …) , **and by setting precise parameters to the other static values, we obtain something like this.

**A = 0.9**set the amplitude of the wave to max Y = A**k = 8**set the spatial frequency and we obtain “more peaks” in the range [-2, 2]**t = -π/2**set the phase translation so that**f(0, …) = 1****K = 4**set the factor for the “attenuation equation” so that the final equation is y = 0 when**|x| ≥ 2**

It looks good! 😍

Now, if you notice on the original wave we have other sub-waves that will give a lower value for the amplitude. Let’s draw them for **A = {0.8, 0.6, 0.4, 0.2, -0.2, -0.4, -0.6, -0.8}**

In the final canvas composition the sub-waves will be drawn with a decreasing opacity tending to 0.

## Basic code concepts

What do we do now with this equation?

We use the equation to obtain the **Y value** for an **input X**.

Basically, by using a simple **for loop** from **-2 to 2, **(the *plot boundaries in this case)*, we have to draw **point by point** the equation on the canvas using the **beginPath**** **and** ****lineTo**** **API.

const ctx = canvas.getContext('2d');ctx.beginPath();

ctx.strokeStyle = 'white';for (let i = -2; i <= 2; i += 0.01) {

const x = _xpos(i);

const y = _ypos(i);

ctx.lineTo(x, y);

}ctx.stroke();

Probably this pseudo-code will clear up these ideas. We still have to implement our **_xpos **and** _ypos **functions.

But… hey, what is **0.01⁉️ **That value represents **how many pixels** you move forward in each iteration before reaching the right plot boundary… but what is the correct value?

If you use a really small value (**<0.01)**, you’ll get an insanely precise rendering of the graph but your performance will decrease because you’ll get too many iterations.

Instead, if you use a really big value (**> 0.1) **your graph will lose precision and you’ll notice this instantly.

You can see that the final code is actually similar to the pseudo-code: https://github.com/kopiro/siriwave/blob/master/src/curve.js#L25

## Implement _xpos(i)

You may argue that if we’re drawing the plot by incrementing the ** x**, then

*_xpos**may simply return the input argument.*

This is almost correct, but our plot is always drawn from **-B **to** B ***(B = Boundary = 2).*

So, to draw on the canvas via **pixel coordinates**, we must translate **-B to 0, **and **B to 1 **(simple transposition of [-B, B] to [0,1]); then multiply [0,1] and the **canvas width (w).**

_xpos(i) = w * [ (i + B) / 2B ]

https://github.com/kopiro/siriwave/blob/master/src/curve.js#L19

**Implement _ypos**

To implement **_ypos**, we should simply write our equation obtained before (closely).

const K = 4;

const FREQ = 6;function _attFn(x) {

return Math.pow(K / (K + Math.pow(x, K)), K);

}function _ypos(i) {

return Math.sin(FREQ * i - phase) *

_attFn(i) *

canvasHeight *

globalAmplitude *

(1 / attenuation);

}

Let’s clarify some parameters.

**canvasHeight**is Canvas height expressed in PX**i**is our input value (the**x**)**phase**is the most important parameter, let’s discuss it later**globalAmplitude**is a static parameter that represents the amplitude of the total wave (composed by sub-waves)**attenuation**is a static parameter that changes for each line and represents the amplitude of a wave

https://github.com/kopiro/siriwave/blob/master/src/curve.js#L24

**Phase**

Now let’s discuss about the **phase variable: **it is the **first changing variable** over time, because it simulates the wave movement.

What does it mean? It means that **for each animation frame, **our base controller should

**increment**this value. But to avoid this value throwing a buffer overflow, let’s modulo it with 2π (since

**Math.sin**dominio is already modulo 2π).

`phase = (phase + (Math.PI / 2) * speed) % (2 * Math.PI);`

We multiply **speed **and **Math.PI** so that with **speed = 1** we have the maximum speed (why? because **sin(0) = 0, sin(π/2) = 1, sin(π) = 0, … 🤪)**

## Finalizing

Now that we have all code to draw a single line, we define a configuration array to draw all sub-waves, and then cycle over them.

return [

{ attenuation: -2, lineWidth: 1.0, opacity: 0.1 },

{ attenuation: -6, lineWidth: 1.0, opacity: 0.2 },

{ attenuation: 4, lineWidth: 1.0, opacity: 0.4 },

{ attenuation: 2, lineWidth: 1.0, opacity: 0.6}, // basic line

{ attenuation: 1, lineWidth: 1.5, opacity: 1.0},

];

https://github.com/kopiro/siriwave/blob/master/src/siriwave.js#L190

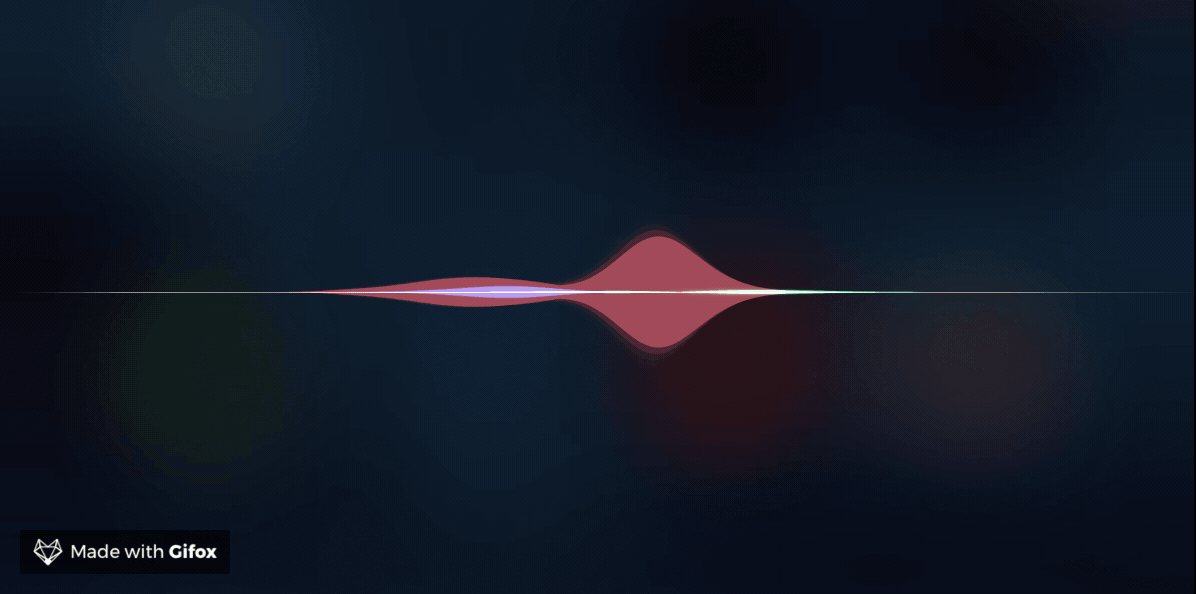

# The iOS 9+ style

Now things start to get complicated. The style introduced with iOS 9 is really complex and the reverse engineering to simulate it** it’s not easy at all**! I’m not fully satisfied of the final result, but I’ll continue to improve it until I get the desired result.

As previously done, let’s start to obtain the linear equations of the waves.

As you can notice:

- we have three
**different specular equations**with different colours (**green, blue, red**) - a single wave seems to be a
**sum of sine equations**with**different parameters** - all other colours are a
**composition**of these three base colours - there is a
**straight line**at the plot boundaries

By picking again our previous equations, let’s define a more complex equation that **involves translation. **We start by defining again our attenuation equation:

Now, define **h(x, A, k, t)** function, that is the **sine function **multiplied for **attenuation function,** in its absolute value:

We now have a powerful tool.

With **h(x)**, we can now create the final wave-form by summing different **h(x)** with different parameters involving different amplitudes, frequency and translations. For example, let’s define the **red curve **by putting random values.

If we do the same with a **green** and **blue** curve, this is the result:

This is not quite perfect, but it could work.

To obtain the specular version, just multiply everything by **-1.**

In the coding side, the approach is the same, we have only a more complex equation for **_ypos.**

const K = 4;

const NO_OF_CURVES = 3;// This parameters should be generated randomly

const widths = [ 0.4, 0.6, 0.3 ];

const offsets = [ 1, 4, -3 ];

const amplitudes = [ 0.5, 0.7, 0.2 ];

const phases = [ 0, 0, 0 ];function _globalAttFn(x) {

return Math.pow(K / (K + Math.pow(x, 2)), K);

}function _ypos(i) {

let y = 0;

for (let ci = 0; ci < NO_OF_CURVES; ci++) {

const t = offsets[ci];

const k = 1 / widths[ci];

const x = (i * k) - t;

y += Math.abs(

amplitudes[ci] *

Math.sin(x - phases[ci]) *

_globalAttFn(x)

);

} y = y / NO_OF_CURVES;

return canvasHeightMax * globalAmplitude * y;

}

There’s nothing complex here. The only thing that changed is that we cycle **NO_OF_CURVES** times over all pseudo-random parameters and we **sum** all **y values.**

Before multiplying it for **canvasHeightMax **and** globalAmplitude **that give us the absolute PX coordinate of the canvas, we divide it for NO_OF_CURVES so that **y is always ≤ 1.**

https://github.com/kopiro/siriwave/blob/master/src/ios9curve.js#L103

**Composite operation**

One thing that actually matters here is the **globalCompositeOperation **mode to set in the Canvas. If you notice, in the original controller, when there’s a overlap of 2+ colors, they’re actually mixed in a standard way.

The default is set to **source-over**, but the result is poor, even with an opacity set.

You can see all examples of vary **globalCompositeOperation **here: https://developer.mozilla.org/en-US/docs/Web/API/CanvasRenderingContext2D/globalCompositeOperation

By setting **globalCompositeOperation** to** “ligther”**, you notice that the intersection of the colours is nearest to the original.

# Build with RollupJS

Before refactoring everything, I wasn’t satisfied at all with the codebase: old prototype-like classes, a single Javascript file for everything, no uglify/minify and **no build at all.**

Using the new ES6 feature like **native classes, spread operators **and** lambda functions**, I was able to clean everything, split files, and decrease lines of unnecessary code.

Furthermore, I used RollupJS to create a transpiled and minified build in various formats.

Since this is a browser-only library, I decided to create two builds: an **UMD (Universal Module Definition) **build that you can use directly by importing the script or by using CDN, and another one as an **ESM module.**

The UMD module is built with this configuration:

`{`

input: 'src/siriwave.js',

output: {

file: pkg.unpkg,

name: pkg.amdName,

format: 'umd'

},

plugins: [

resolve(),

commonjs(),

babel({ exclude: 'node_modules/**' }),

]

}

An additional **minified UMD module **is built with this configuration:

`{`

input: 'src/siriwave.js',

output: {

file: pkg.unpkg**.replace('.js', '.min.js')**,

name: pkg.amdName,

format: 'umd'

},

plugins: [

resolve(),

commonjs(),

babel({ exclude: 'node_modules/**' }),

**uglify()**

]

}

Benefiting of UnPKG service, you can find the final build on this URL served by a CDN: https://unpkg.com/siriwave/dist/siriwave.min.js

This is the “old style Javascript way” — you can just import your script and then refer in your code by using **SiriWave** global object.

To provide a more elegant and modern way, I also built an ESM module with this configuration:

`{ `

input: ‘src/siriwave.js’,

output: {

file: pkg.module,

format: ‘esm’

},

plugins: [

babel({ exclude: ‘node_modules/**’ })

]

}

We clearly don’t want the **resolve **or** commonjs **RollupJS plugins because the developer transplier will resolve dependencies for us.

You can find the final RollupJS configuration here: https://github.com/kopiro/siriwave/blob/master/rollup.config.js

**Watch and Hot code reload**

Using RollupJS, you can also take advantage of **rollup-plugin-livereload **and** rollup-plugin-serve **plugins to provide a better way to work on scripts.

Basically, you just add these plugins when you’re in “developer” mode:

import livereload from 'rollup-plugin-livereload';

import serve from 'rollup-plugin-serve';if (process.env.NODE_ENV !== 'production') {

additional_plugins.push(

serve({

open: true,

contentBase: '.'

})

);

additional_plugins.push(

livereload({

watch: 'dist'

})

);

}

We finish by adding these lines into the **package.json:**

`"module": "dist/siriwave.m.js",`

"jsnext:main": "dist/siriwave.m.js",

"unpkg": "dist/siriwave.js",

"amdName": "SiriWave",

"scripts": {

"build": "**NODE_ENV=production rollup -c**",

"dev": "**rollup -c -w**"

},

Let’s clarify some parameters:

**module / jsnext:main:**path of dist ESM module**unpkg:**path of dist UMD module**amdName:**name of the global object in UMD module

Thanks a lot **RollupJS!**

Hope that you find this article interesting, see you soon! 😎
