Online Payment Processing Software Architecture Evolution

How to architect Online Payment Processing System for an online store?

Hi there!

So if you’ve decided to develop an On-line Payments system for your e-commerce I really advise you to read this short article.

What aspects should I consider before building Payment Processing System?

  1. PCI DSS for Credit Card (CC) Processing, which stands for Payment Card Industry Data Security Standard that has 12 rules that enforce some level of security to protect Credit Card information, but can be applied for any Personal Identifiable Information. In order to process credit cards you may be subjected to PCI DSS Audit and certification, which may imply big costs or personal liabilities.
  2. Security and Encryption. This aspect is closely related to PCI DSS, which is enforces multiple processes into your software development process. However, you don’t have to process credit cards to worry about security, but security should be of a high stake for your team and every team member, because it is very hard to gain trust and super easy to get it lost.
  3. Geography. This is very important subject on which will depend the list of methods of payment you should accept, which localisations and cultures should be supported, where your servers should be and how fast they should perform.
  4. Traffic and Scalability. Software Requirements, as well as Payments Processing, differs depending on the scale of your system. If you do a few sales per day you can 100% outsource Payment Processing to a Payment Service Provider (aka Stripe), but if you must process millions or billions per year than your system architecture and amount of partners will differ, as a result, complexity will skyrocket comparably to the basic case.
  5. MCC codes Or the Industry you are in. Depending on the industry your business is in effect on your architecture can be dramatic, system design and legal implications. If you do Poker, Gambling or Adult (18+) payment processing you will see pretty big difference and risks comparably to a e-commerce shop, as well as required knowledge and legal restrictions and regulations.
  6. Backup payment processors. If you need to handle retries and backup Payment Service Providers you may be forced to have different architecture and security restrictions.
  7. Operations and customer support. Thinking about Payment architecture you should not forget about your Customer Happiness team as well as Fraud and Business analysts who need to consume and reconfigure system “during the flight”.
  8. Business acquisition and merges. If your business has parent-child relationships with other companies and they have built a payment processing platform that can be reused you can save a lot of time and money. From another side, if you a CTO of an umbrella company you may need to work on a processing system that may be a Gateway to other companies in the group.
  9. Cloud vs On-Premise. This point comes more like “To be or not to be” in the current days and before saying that cloud is not security or reliable I would advise to check this page. And reliability mostly depends on the Engineering that rules the system.
  10. Analytics. If you want to be profitable and improve over time you will have to have analytics that can influence system architecture dramatically to help your team answer many questions. Another important point here is the duration of your waiting period before you need your answers (minutes vs days) which may have difference between OLAP or Data Streaming approaches.
  11. Fraud (External or Internal). Yes, the fraud can be internal as well, so developing payment processing system you always need to think about internal and external breaches, data trading or similar issues. Here you can employ already standard rule-base systems and extend them with machine learning systems and manual ad-hoc reviews.
  12. Mobile. Whether you need to support Native Mobile Application or not, mobile may have addition architectural and deployment implications. For example, you have a native App, but you cannot control when the user will update it, so you may be forced to support a huge set of versions and API, but knowing this upfront may help you a lot. And don’t forget that in the AppStores you cannot use your Payment system to pay for In-App purchases (and you may not want this) which has 30% revenue share, but if you sell good or services which are consumed outside of an App you may willingly go for off-App Payment Processing, which brings additional complexity.

There are may be more aspects that you need to consider while architecting payment processing system, but I believe I covered the most important ones.

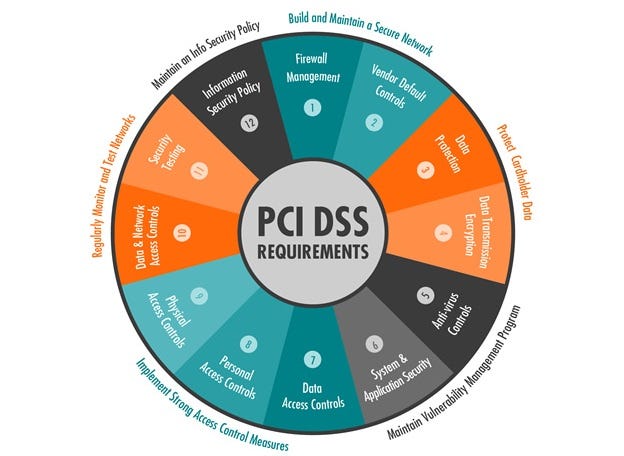

PCI DSS requirements scope

Let me continue with Payment Processing architecture evolution (one of the possible branches and I would be happy to hear in comments more versions).

Architectural Evolution of Payment Processing Systems.

It is wise to begin with the most simple pragmatic solution, but always have future scalability and growth in mind (develop isolated in-proc services which can be further be decoupled/extracted).

Don’t do it at all or outsource as much as possible.
  1. Don’t do it at all or outsource as much as possible. I would go for this solution if it satisfies business and technical requirements. Why? Because Payments domain is complex and regulated to some extend, which can be very time consuming and not always rewarding. Outsourcing can be as simple as just redirecting a user to your payment partner to make a transaction where your customer will see branded payment method selection page that returns to your side after the transaction has been completed or cancelled. In this case you need to handle redirection and a bit of Payment State to not allow duplicates and receive notifications properly. Examples here can be Stripe, Adyen, GlobalCollect etc, however, normally Payment Processing companies charge you additional fees only for that branded page on top of processing and other fees. So if you just start your business 100% Payment Processing outsourcing is the best option OR I would say is the ONLY liable option.
  2. Process everything yourself, but outsource Credit Cards. When you grow you may need/want/desire more control over payment processing, but you still don’t want or are not ready to bother with PCI DSS certification (even Level 3–4 for merchants), so you may choose to make your payment method selection page and store all Payment Accounts/PII (Personal Identifiable Information), but outsource Credit Card entry forms and processing. For this end previous solutions, you probably will begin with monolith system and store payment accounts in your local database, which is part of your main database. So you will face high coupling, but ease of deployment and, to some extend, development. However, even having system deployed as a monolith I would recommend start thinking about decoupling, testability, scalability from the very beginning, because it is just plain easier to do this when you start.
  3. SOA and employ batching. This case this is natural evolution from the previous step where you see some parts of your system needed to be scaled/secured independently. For instance, you want to pay more attention to security of Payment Accounts and user data, so you extract Payment Account and User Account services where you may encrypt data and stored in separated databases OR put a HAProxy for those services separately and deploy them in a separated backend farm behind DMZ. Additional benefit can be employing of background processing in batches (or not) to offload front-end a bit, however, here you can have another issues which you might not have faced before — asynchronous payment processing and it’s complexity. But if you can please start with Asynchronous Payment Processing, it does imply that your checkout process is asynchronous, but it gives you huge benefits. For instance, Amazon and PokerStars do this, so they have time to deal with scalability and other issues.
  4. Utilize queues to make your system more reliable and resistant to change and load. As part of this step you can create software design where all communication, or most of it, between components done via queues (where async is permitted). For example, you may have queues for internal Fraud scoring, external Fraud scoring (aka MaxMind or ThreadMetrics), storage, notifications of other systems, a queue for every Payment Processor and many more moving pieces.
  5. Microservices and related parts. This is very trendy now, but it has a lot of benefits, as well as disadvantages, especially for Payments. If it is done well it can be very beneficial and cost efficient, however, to do it well you need to consider all aspects of the system, such as: deployment, monitoring, service discovery, reliability, security, administration, automation etc (I don’t say that all systems above should forget about these aspects, but when it was internal communication within those architectures here it may be out-of-proc communication and networks issues). This article is not about Mircoservices, but they can be used and make sense only at a big scale Merchants or Payment Service Providers. Contrary, even at a medium size business if the software development team has expertise managing Mircoservices.
  6. Multi Availability Zone (AZ) deployments. When you process payments across Globe you need to think better about latency and reliability which can be reached with Multi AZ installations. I put this as a separated point only to highlight the complexity, but most probably it will be employed from the monolith architecture already to have higher up-time and improve deployment (Red-Green-Blue). There are many issues come from multiple AZ, such as replication, split-brain and synchronisation, data gathering and analysis, traffic routing and monitoring, and of course security.
Microservices will work perfectly for Payments domain, but add a lot of additional complexity.

In relation to other aspects of your system, like mobile, you will need to consider mobile clients like another UI for your system, however, there is a difference that you don’t control client versions and lifecycle, so you may need to support multiple versions of your Payments API.

In summary, consider Online-Payment Processing System as a software system that has higher security and reliability requirements, because literally every call has direct financial impact on the bottom line of your business.

Thank you for reading and I look forward to reading your feedback.

Leo
