Bringing the Periodic Table of the Elements app to HoloLens 2 with MRTK v2

Sharing the story of updating HoloLens app made with HoloToolkit(HTK) to use new Mixed Reality Toolkit v2(MRTK) which supports HoloLens 2’s articulated hand tracking and eye tracking input

We published Mixed Reality Design Lab’s Periodic Table of the Elements app for HoloLens and immersive headset back in 2015 to demonstrate how to create an end-to-end experience using HoloToolkit’s building blocks. To fully leverage new articulated hand tracking and eye tracking input on HoloLens 2, we need to update HoloToolkit(HTK) to newly released Mixed Reality Toolkit(MRTK) v2.

The original version for HoloLens 1st gen and immersive headset
Microsoft HoloLens 2

What is MRTK v2?

MRTK is a Microsoft driven open source project. MRTK-Unity provides a set of foundational components and features to accelerate mixed reality app development in Unity. The latest Release of MRTK v2 supports HoloLens/HoloLens 2, Windows Mixed Reality, and OpenVR platforms.

Since MRTK v2 is completely redesigned from the ground up, foundational components such as input system are not compatible with HoloToolkit. Because of this, you need to put some effort to upgrade HoloToolkit to MRTK. In this story, I’ll show you how I updated HoloToolkit to MRTK and evolved the design to fully leverage hand tracking and eye tracking input.

Required tools

You can find the latest information about the tools needed for HoloLens 2 development on this page:

Getting new MRTK release packages

From MRTK GitHub repository, you can download MRTK release packages under ‘Release’ menu. You can also clone the repository. The branch name for the MRTK v2 is mrtk_release. If you want to get the latest features and components under active development, you can use the mrtk_development branch. However, please keep in mind that development branch could be unstable and something might be broken.

Release packages on MRTK GitHub
MRTK release packages download links

There are two types of release packages. Foundation and Examples. Foundation package has core features and input system of MRTK. Optional Examples package contains example scenes and scripts that demonstrate the use of core features in the Foundation package. In the example scenes, you will be able to play with various types of new interaction building blocks and UI components. Below is one of the example scenes you can find in the Examples package.

HandInteractionExamples.unity scene demonstrates various types of spatial UI and interactions for the hand tracking input.

MRTK’s HandInteractionExamples scene
Hand Interaction Examples scene in MRTK Examples package

Replacing the HoloToolkit with MRTK

The original Periodic Table app project had HoloTookit folder with MRDL_PeriodicTable folder. Since the app specific scripts and contents are in MRDL_PeriodicTable folder, we can simply delete HoloToolkit folder.

Original project structure with HoloToolkit

After deleting HoloToolkit folder, let’s import new MRTK packages through Assets > Import Package > Custom Package… menu.

Importing new MRTK v2 package

When you import new MRTK, a lot of things will look broken because the location of the shaders, materials, fonts have been changed. Also, you will see many error messages from the scripts.

Contents are displayed in pink color with missing shader/material
A lot of error messages

Resolving Script Errors

Namespace issues

When you look at the script errors, you will find that most of them are about the namespace changes. Old HoloToolkit.Unity namespace lines could be easily cleaned up by using Visual Studio’s ‘Remove and Sort Usings’ menu.

Remove and Sort Usings menu

For missing classes and interfaces, you can use ‘Show potential fixes’ menu to add/update the proper reference. Below example shows adding Microsoft.MixedReality.Toolkit.UI for the InteractionReceiver

‘Show potential fixes’ menu
Adding proper namespace
Now the reference to InteractionReceiver is fixed

You can find detailed info on HoloToolkit to MixedRealityToolkit API/Component mapping table on this page: Porting Guide Upgrading from the HoloToolkit (HTK)

HTK-MRTK Mapping Table: Interface and event

Renamed/Replaced/Deleted Class and Feature issues

Most of the core features and building blocks have been either ported or upgraded for MRTK v2. You can find the mapping table for the UX controls and Utilities in the Porting Guide page.

HTK-MRTK Mapping Table: UX controls

HTK-MRTK Mapping Table: Utilities

Resolving Prefab/Material/Shader errors

The first thing we can easily clean up is the material/shader errors. Because of the location change, you need to re-assign font texture/materials. Periodic Table app uses the font Selawik series which is one of the Microsoft’s open-source fonts. The new location of the font files and textures in MRTK v2 is:


The materials in this folder for Selawik font support proper occlusion.

Missing Font materials
Re-assigned proper Font material for the Selawik font.
Assigning proper font and material

You will also find some of the materials using old HoloToolkit’s shader broken, showing Hidden/InternalErrorShader. You can simply re-assign Mixed Reality Toolkit > Standard from the Shader drop-down menu.

Re-assigning missing MRTK/Standard shader

Building blocks used in the Periodic Table app

Foundational Scene Components: Camera, InputManager, Cursor

In the Scene Hierarchy, HoloToolkit had three basic components: MixedRealityCamera, InputManager, and Cursor. In MRTK, they are replaced with MixedRealityToolkit and MixedRealityPlayspace.

Default scene setup component for HoloToolkit vs MRTK v2

To upgrade these basic scene components, simply delete old ones and use the menu Mixed Reality Toolkit > Add to Scene and Configure…

Sometimes, MixedRealityPlayspace might not be added through this menu. In this case, you can create a new scene, add components using the menu, then drag and drop these components into your existing scene. (You can drag and drop other scene files into the opened scene)

Drag and Drop MixedRealityPlayspace from the other scene

Running the app in Unity Editor with input simulation

MRTK v2 supports in-editor input simulation. Using the keyboard and mouse, you can test your app for the hand tracking and eye tracking input. Space bar gives you the right hand and the left shift key gives you the left hand. T and Y key make them persistent. By dragging with the mouse right button, you can control the camera. Using W, A, S, D keys, you can move.

See MRTK’s Input Simulation Service documentation for more details.


Compound Button script series was used in Element and surface type buttons to provide visual feedback for different types of interaction states and trigger actions. In MRTK v2, Compound Button has been replaced with Interactable. With Interactable, you can easily add visual feedback to the different input states such as default, focus and pressed. You can also use input events to trigger actions.

ElementContainer is the cube-shaped prefab which contains the template for the element model, information layout and open/close animations. The entire box acts as a button. In the Element object under ElementContainer, I have removed old ElementButton script and added Interactable.

ElementContainer prefab and Element object

Interactable handles visual states and event trigger for the far interaction inputs such as Gaze + Air-tap, Hand ray, and motion controller pointer. Since we want to keep the far interaction model for the element targeting and selection, we will use Interactable.

See Interactable object design guideline for more details.

A simple example of using Interactable to add visual feedback to an object

In the Interactable, I have created a new profile ‘ElementBoxTheme’ with the Theme Property ‘ScaleOffsetColorTheme’ and Target object ‘Box’ (which is the outer shell of the element object). With this, we can easily define color, scale, and offset values for the different input states — Default, Focus, Pressed, and Disabled.

Removing old ElementButton script Adding Interactable
Created two themes to add visual feedback to the Box and PanelFront object

In the Interactable, you can also easily add actions for the various types of events. The Open() method in the Element.cs script triggers the animation, opens the element box, and shows the 3D model with information on the panels. SetActiveElement() is used together to specify currently opened element.

public void SetActiveElement()
Element element = gameObject.GetComponent<Element>();
ActiveElement = element;
public void Open()
if (present.Presenting)

Under the Events section of the Interactable, I have added two method calls by dragging and dropping the Element script and using the drop-down.

Assigning method calls under the Events section

Surface type buttons were made with HolographicButton prefab in HoloToolkit. The HolographicButton prefab has been updated as well, from CompoundButton to Interactable. Additionally, new PressableButton and PressableButtonPlated prefab have been added which supports direct manipulation with articulated hand tracking input. With PressableButton, you can press the button with your fingertip. PressableButton also uses Interactable.

PressableButtonPlated prefab which supports direct hand interaction
Old Surface type buttons based on Compound Button series

To use direct hand interaction, I have removed the old surface type buttons and added new PressableButtonPlated prefabs.

These buttons will update the layout style by changing the Grid Object Collection’s Surface Type. (Explained in the next section below)

Grid Object Collection is also useful when you want to layout multiple buttons. Instead of manually calculating the button size and putting the coordinates, use Grid Object Collection and adjust Rows and Cell Width/Height.

Buttons in a grid layout with Grid Object Collection

Object Collection

Object Collection is a script which helps you lay out an array of objects in various types of shapes. In MRTK v2, you can find the scripts with updated names: GridObjectCollection.cs

Object Collection Types

Dynamically generated element objects are located under the TableParent.In the TableParent object, I have replaced old ObjecCollection script with new GridObjectCollection script. To change various properties of the GridObjectCollection through the buttons, I have added a new script LayoutStyleChanger. It simply changes the properties then update the collection.

GridObjectCollection script
Changing various options of the GridObjectCollection

Using the Interactable component in the PressableButtonPlated, we can easily trigger action using the OnClick() event under the Events section. For each surface type button, I have assigned LayoutStyleChanger script’s ChangeLayoutStyleXXX() method.

Assigning the method to the PressableButtonPlated
Surface type selection made with PressableButtonPlated + GridObjectCollection

Interaction Receiver

In MRTK v2, you can find the same InteractionReceiver class at this location:


InteractionReceiver in MRTK v2 supports additional events related to hand tracking interactions such as TouchStarted and TouchCompleted.

Running in the Unity editor

After resolving the scripts and prefab errors, I was able to run the app in the editor. MRTK v2 supports in-editor input simulation including articulated hand tracking. You can easily test HoloLens input using the keyboard and mouse. For more information on the in-editor input simulation, please refer to this page: Input Simulation Service.

Fixed Font material issue

Once you update the app to MRTK v2, the new input system automatically supports available input types. For example, in HoloLens, you can use Gaze and Air-tap gesture to target and select. In HoloLens 2, hand ray will be automatically visualized when a hand is detected. Because of this, now Periodic Table supports both HoloLens 1st gen and HoloLens 2.

Running in the editor with hand ray using MRTK’s input simulation

Adjusting the element view position for the near interactions, adding PressableButton for the ‘Close’ action

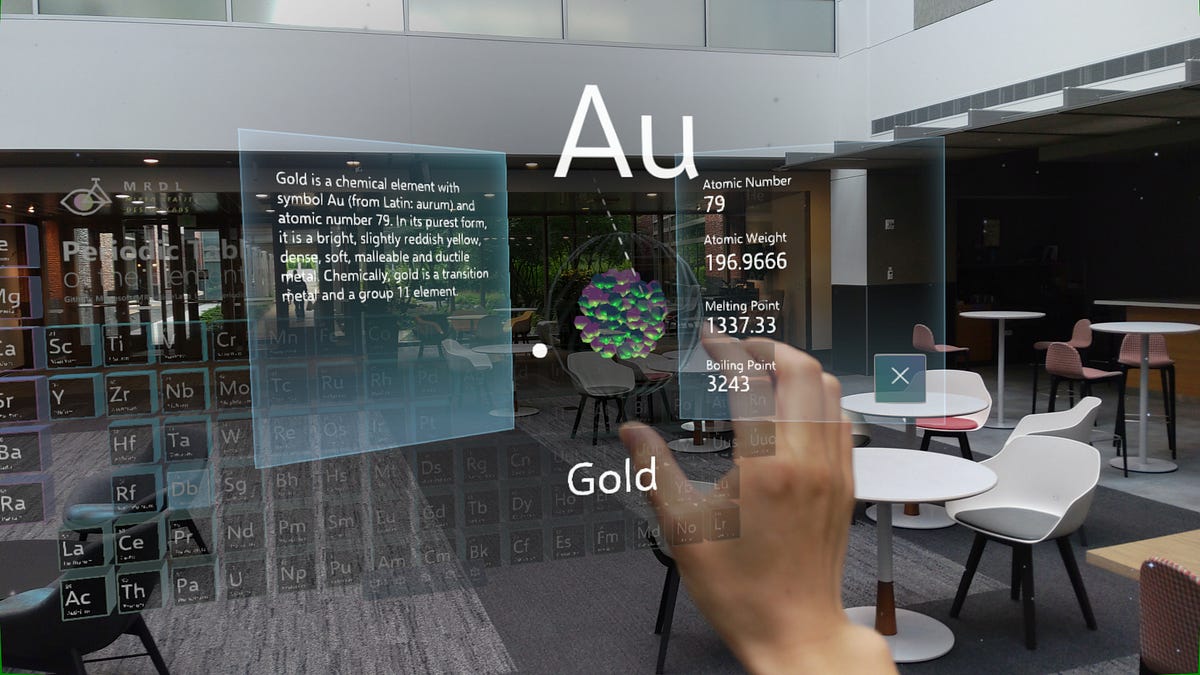

Once an element is focused and selected, the box flies to the user and opens up a 3D model and information panels. Since the original version was designed for the gaze and air-tap, the element was still far from the user. To leverage HoloLens 2’s direct hand input interaction, I have adjusted the element position to the near interaction range which is about 45cm from the user. Please see the Instinctual Interaction page on Mixed Reality Dev Center for more details.

The original version had an implicit button around the 3D model for closing the element box with air-tap. Since the information panel and the element object are within the distance for the near interactions, we can use a pressable button for the ‘Close’ action.

Adding a PressableButtonPlated for the Close action
Close button in action with hand tracking input simulation
Updated icon material’s texture and the label text

Adding HoloLens 2’s articulated hand interaction

One of the most exciting features in HoloLens 2 is articulated hand tracking input. Using this, we can achieve more instinctual interactions by directly interacting with holographic objects.

In the Periodic Table app, the hero content object is the 3D element model. By adding direct manipulation interactions, the user can observe and inspect the model by grabbing it and bringing it closer or by scaling it and rotating it.

Adding direct manipulation is very easy in MRTK v2. The ManipulationHander script handles both one-handed and two-handed manipulation. It also supports both near and far interactions. You can use this for Gaze-based interactions or Hand ray-based interactions too. By simply assigning ManipulationHandler script, you can make any object manipulatable — Grab, Move, Rotate, Scale.

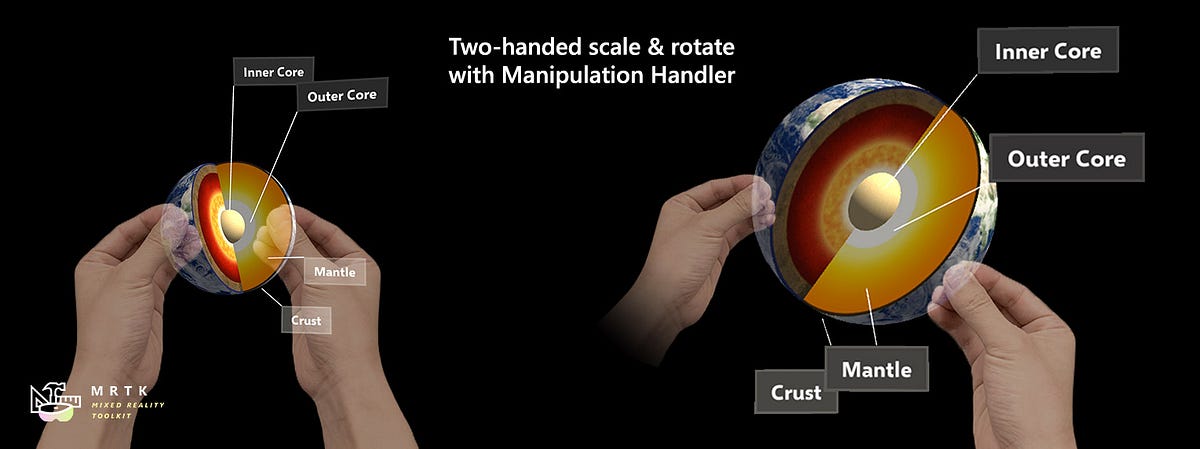

Manipulation Handler supports both one and two-handed manipulation
Added Manipulation Handler script to MoleculeObject
Manipulating the element object using hand input simulation

Enabling the Voice Command

The Interactable script which we used in the Element box provides the voice command functionality. To use this voice command feature, you need to:

  1. Add the keyword to the Voice Command field under the Interactable.
  2. Add the keyword to the MixedRealitySpeechCommandsProfile. You can see this profile by selecting MixedRealityToolkit in the Hierarchy panel, then in the Inspector panel, click through MixedRealityInputSystemProfile > MixedRealitySpeechCommandsProfile
    *To add your keyword to the MixedRealitySpeechCommandsProfile, you need to clone profile using the ‘Clone’ button.
Adding a voice command keyword to the Interactable
Adding a new keyword to MixedRealitySpeechCommandsProfile

Once you have added keywords, you can test it in the editor’s game mode using the PC’s microphone.

Adding HoloLens 2’s eye tracking input for the automatic text scrolling

Eye tracking is one of the most exciting features in HoloLens 2. You can learn about various types of eye tracking interactions through the MRTK’s eye tracking examples. You can find these examples in the Microsoft.MixedReality.Toolkit.Unity.Examples-VERSION.unitypackage. The folder is MixedRealityToolkit.Examples/Demos/EyeTracking.

Eye Tracking example scene

Eye Tracking: Basic Setup
Eye Tracking: Examples Overview
Eye Tracking: Target Selection
Eye Tracking: Navigation
Eye Tracking: Target Positioning
Eye Tracking: Visualizer(heat map)

For the Periodic Table of the Elements app, we will use eye tracking’s auto-scrolling feature on the left information panel.

Enabling the Eye Tracking input

To enable eye tracking input in HoloLens 2, you need to add EyeGazeDataProvider to the MRTK’s Data Providers under InputSystemProfile. For more details, please refer to this page: Getting started with Eye Tracking

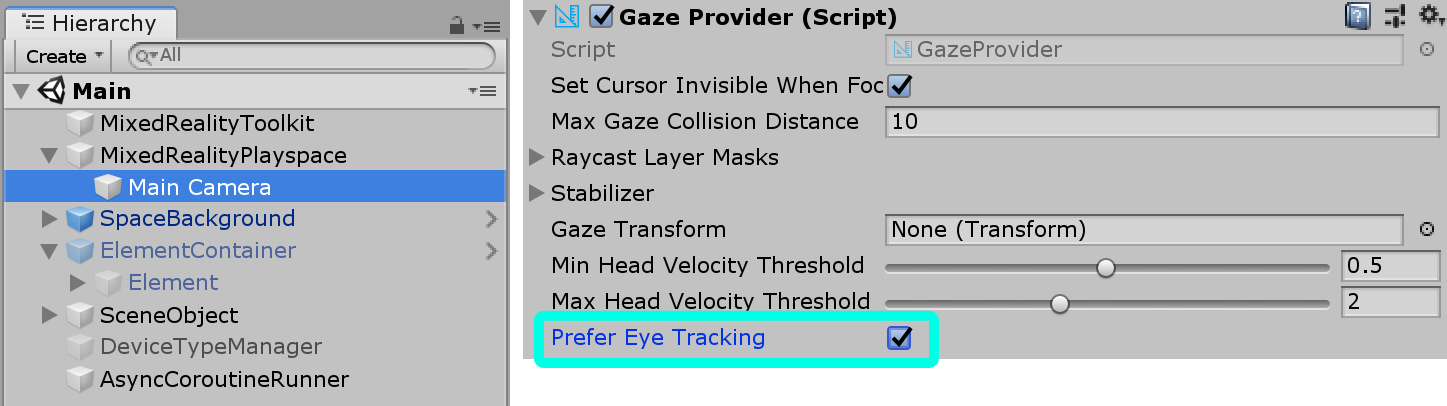

One additional step to enable eye tracking input is the checkbox Prefer Eye Tracking in the Gaze Provider. You can find the Gaze Provider under MixedRealityPlayspace > Main Camera

To simulate the eye tracking in the Unity editor, you need to check Simulate Eye Position in the MixedRealityInputSimulationProfile.

Auto scroll with Eye Tracking input

You can find the script and example of making Unity’s TextMesh Pro auto scroll with eye tracking in the EyeTrackingDemo-03-Navigation.unity scene.

EyeTrackingDemo-03-Navigation scene

You can find the Scroll View component under Eye-based-Scroll > Eye Scroll > Canvas.

The ActiveEyeGazeRegion object has the scripts EyeTrackingTarget and ScrollRectTransf. You can see the script provides various options.

From MixedRealityToolkit.Examples package, I brought EyeTracking example folder(MixedRealityToolkit.Examples/Demos/EyeTracking) into the Periodic Table app project. Since some of the scripts require the reference to other MRTK folders, I placed in under MixedRealityToolkit.SDK folder.

Copied EyeTracking folder to MixedRealityToolkit.SDK

Since the original Periodic Table app used TextMesh for the text display, I have updated the code to use TextMesh Pro.

Brought the auto scroll canvas example into the Element Container
Replaced old TextMesh with new TextMesh Pro

When you run the app in the editor, you can see the text automatically scroll based on your eye gaze position. On the device, you can feel more natural scrolling when you just continue reading the text.

Text on the left information panel automatically scrolls with eye tracking

Project source code repository

You can find the Periodic Table of the Elements app in the Mixed Reality Design Lab’s GitHub. The branch name is ‘master’.Tested with Unity 2018.3.13f1


You can find some of the foundational building blocks on MRTK GitHub’s landing page.

Microsoft Build 2019 session video: Building Apps for HoloLens 2 using Unity and Mixed Reality Toolkit

Microsoft HoloLens & Mixed Reality Meetup: HoloLens 2 Design & Development Overview
