Pie Menus: A 30 Year Retrospective

By Don Hopkins, Ground Up Software, May 15, 2018.

Don Hopkins
May 11, 2018 · 45 min read

Take a Look and Feel Free!

Presenting Pie Menus at CHI’88. Photo by Ben Shneiderman.

Today (May 15, 2018) is the 30 year anniversary of CHI’88 (May 15–19, 1988), where Jack Callahan, Ben Shneiderman, Mark Weiser and I (Don Hopkins) presented our paper “An Empirical Comparison of Pie vs. Linear Menus”. We found pie menus to be about 15% faster and with a significantly lower error rate than linear menus!

This article will discuss the history of what’s happened with pie menus over the last 30 years (and more), present both good and bad examples, including ideas half baked, experiments performed, problems discovered, solutions attempted, alternatives explored, progress made, software freed, products shipped, as well as setbacks and impediments to their widespread adoption.

Mark Weiser, father of Ubiquitous Computing. July 23, 1952 — April 27, 1999

“The most profound technologies are those that disappear. They weave themselves into the fabric of everyday life until they are indistinguishable from it.”

-Mark Weiser

My Goals for Pie Menus

Don Hopkins Demonstrating Pie Menus at CHI’88. Photo by Ben Shneiderman.

My goals are to enable developers, designers, and users to easily create and edit their own pie menus, and provide free software, tested designs, smart editors, automatic layout, support and guidance to help people come up with fun, easily used, memorable, Fitts-friendly designs. And also to dispel some of the myths, prejudices, and FUD that some people have spread by exploiting their well funded high profile corporate platforms and teams of patent lawyers and marketing representatives, to tangibly stifle progress and hold back the widespread adoption of pie menus.

Ben Shneiderman

Leonardo Da Vinci combined art and science and aesthetics and engineering, that kind of unity is needed once again.”

-Ben Shneiderman

Pie Menus on Wikipedia

In computer interface design, a pie menu (also known as a radial menu) is a circular context menu where selection depends on direction. It is a graphical control element. A pie menu is made of several “pie slices” around an inactive center and works best with stylus input, and well with a mouse. Pie slices are drawn with a hole in the middle for an easy way to exit the menu.

Fitts’s Law

Fitts’s Law has deeply inspired my work with pie menus and gestural direct manipulation user interfaces over the years. In a nutshell: the bigger and nearer by the target, the faster and more accurately you can hit it. Pie menus maximize the target size, and minimize the target distance!

Fitts’s law (often cited as Fitts’ law) is a predictive model of human movement primarily used in human–computer interaction and ergonomics. This scientific law predicts that the time required to rapidly move to a target area is a function of the ratio between the distance to the target and the width of the target. Fitts’s law is used to model the act of pointing, either by physically touching an object with a hand or finger, or virtually, by pointing to an object on a computer monitor using a pointing device.

History of Pie Menus

The classic 1969 “PIXIE” paper by Neil Wiseman, Lemke, and Hiles had the first mention of circular menus, which was referenced in Newman and Sproull’s 1979 seminal book “Principles of Interactive Computer Graphics”. The “lightbuttons” were apparently target area based (selected “by pointing at one of them”), unlike pie menus which are based purely on the direction of the gesture, resulting in a large wedge shaped target area extending to the screen edge, not just the small rectangular area of the “lightbutton” label:

PIXIE: A New Approach to Graphical Man-Machine Communication

Wiseman, N.E., Lemke, H.U. & Hiles, J.O. (1969) PIXIE: A New Approach to Graphical Man-Machine Communication, Proceedings of 1969 CAD Conference Southampton, IEEE Conference Publication 51, 463–471.

Contents of Page 466–467

Neil Wiseman, May 19, 1934 – June 13, 1995

The control lightbuttons which are used frequently within a mode to carry out a sequence of operations. These buttons are displayed around the tracking cross and move about with it so that the user’s hand is always close to these buttons when he needs them. To avoid clustering a large number of control buttons around the tracking cross, it is arranged that only buttons for those actions which are legal at any given time are displayed and also that the user may select different sets of legal buttons by pointing at one of them (which acts as a sort of rotating switch for the rest).

Wiseman’s Notes on Radial Menus in PIXIE

Free-hand Copy of a Figure Accompanying the Notes

Control lightbuttons:

These vary according to the command mode currently selected. In drawing mode they are:

S: Start to draw under horizontal-vertical constraints from the + position

L: Start to draw rubber band line at current + position

F: Finish drawing at the current + position

W, X, Y…: Select a symbol from the catalogue of defined symbols and attach to the drawing at the current + Position

Principles of Interactive Computer Graphics

William M. Newman, Robert F. Sproull. McGraw-Hill, 1979.

Figure 12–35 Moveable menu displayed close to the cursor.

An interesting idea, proposed by Wiseman [520], is the use of a moveable menu displayed close to the cursor (Figure 12–35). The user can make selections from such a menu with the minimum of hand movement. Moveable menus should be displayed only when the user needs to make a menu selection; otherwise they tend to obliterate important parts of the displayed image.

How to Choose with Pie Menus

NeWS Window Management Pie Menu

Selecting commands from menus is an easy, straightforward way to operate a computer. You can use a pointing device called a “mouse” to indicate the selection you desire, from a list of choices show on the screen. Pie menus (Figure 1) differ from traditional “linear” menus (Figure 2) in the way that their choices are laid out, and the shape of their selection target areas on the screen.

An Empirical Comparison of Pie vs. Linear Menus

Jack Callahan, Don Hopkins, Mark Weiser, Ben Shneiderman. Computer Science Department University of Maryland College Park. ACM CHI ’88 Conference.

A crude pie menu

Menus are largely formatted in a linear fashion listing items from the top to bottom of the screen or window. Pull down menus are a common example of this format. Bitmapped computer displays, however, allow greater freedom in the placement, font, and general presentation of menus. A pie menu is a format where the items are placed along the circumference of a circle at equal radial distances from the center. Pie menus gain over traditional linear menus by reducing target seek time, lowering error rates by fixing the distance factor and increasing the target size in Fitts’s Law, minimizing the drift distance after target selection, and are, in general, subjectively equivalent to the linear style.

CHI’88 Trip Report

by Jakob Nielsen on June 1, 1988

Steve Jobs Thought Pie Menus Sucked

“That sucks! That sucks! Wow, that’s neat! That sucks!”

Steve Jobs Thought Pie Menus Sucked

On October 25, 1988, I gave Steve Jobs a demo of pie menus, NeWS, UniPress Emacs and HyperTIES at the Educom conference in Washington DC. His reaction was to jump up and down, point at the screen, and yell “That sucks! That sucks! Wow, that’s neat! That sucks!”

I tried explaining how we’d performed an experiment proving pie menus were faster than linear menus, but he insisted the liner menus in NeXT Step were the best possible menus ever.

But who was I to rain on his parade, two weeks after the first release of NeXT Step 0.8? (Up to that time, it was the most hyped piece of vaporware ever, and doubters were wearing t-shirts saying “NeVR Step”!) Even after he went back to Apple, Steve Jobs never took a bite of Apple Pie Menus, the forbidden fruit. There’s no accounting for taste!

Good Example: HCIL Demo — HyperTIES Authoring with UniPress Emacs on NeWS

HyperTIES browser and Gosling Emacs authoring tool with pie menus on the NeWS window system

Demo of UniPress Emacs based HyperTIES authoring tool, by Don Hopkins, at the University of Maryland Human Computer Interaction Lab. Shows tabbed windows in Gosling’s UniPress Emacs with pie menus for editing HyperTIES hypermedia databases.

HCIL Demo — HyperTIES Authoring with UniPress Emacs on NeWS

Good Examples: Just the Pie Menus from All the Widgets

Pie menu demo excerpts from “All The Widgets” CHI’90 Special Issue #57 ACM SIGGRAPH Video Review. Tape produced by and narrated by Brad Meyers. Research performed under the direction of Mark Weiser and Ben Shneiderman. Pie menus developed and demonstrated by Don Hopkins.

Just the Pie Menus from All the Widgets

Good Example: PSIBER Space Deck Demo

PSIBER Outline and PseudoScientific Visualization of the ARPANET

The PSIBER Space Deck is an interactive visual user interface to a graphical programming environment, the NeWS window system. It lets you display, manipulate, and navigate the data structures, programs, and processes living in the virtual memory space of NeWS. It is useful as a debugging tool, and as a hands on way to learn about programming in PostScript and NeWS.

PSIBER Space Deck Demo

Empowered Pie Menu Performance at CHI’90, and Other Weird Stuff

Don Hopkins performing with pie menus at CHI’90 Empowered

A live performance of pie menus, the PSIBER Space Deck and the Pseudo Scientific Visualizer at the CHI’90 Empowered show. And other weird stuff inspired by Craig Hubley’s sound advice and vision that it’s possible to empower every user to play around and be an artist with their computer.

“By pushing the pie-menu interface to the limit you get a *gesture interface* that ties the tools so tightly and personally to their user that they effectively become one cooperative entity.”

Good Example: Pie Menus and Tab Windows for NeWS

Demo of the Pie Menu Tab Window Manager for The NeWS Toolkit 2.0. Developed and demonstrated by Don Hopkins. Shows mouse-ahead display pre-emption.

NeWS Tab Window Demo Showing Mouse Ahead Display Pre-Emption

The Design and Implementation of Pie Menus

Don Hopkins. Dr. Dobb’s Journal, Dec 1991.

Color Wheel Pie Menu

This article describes an alternative user-interface technique I call “pie” menus, which is two-dimensional, circular, and in many ways easier to use and faster than conventional linear menus. Pie menus also work well with alternative pointing devices such as those found in stylus or pen-based systems. I developed pie menus at the University of Maryland in 1986 and have been studying and improving them over the last five years.

BAYCHI October Meeting Report: Natural Selection: The Evolution of Pie Menus, October 13, 1998

BayCHI ’98 Talk at Xerox PARC

Pie menus appealed to Hopkins because they conform to the rule that the user’s attention should not be squandered. […] Hopkins uses pie menus because they take advantage of Fitts’ Law, which relates fast selection speed and low error rate to the pie menus’ large target size and small distance between selections.

Useful Technique: Mouse Ahead Display Preemption

The first step in learning a pie menu, using it in “novice” mode, is rehearsal for using it in “expert” mode. So if you remember that you want to move the mouse down, you can press and move the mouse, then you wait, and it pops up only after you stop moving.

Pie menus should support an important technique called “Mouse Ahead Display Preemption”. Pie menus either lead, follow, or get out of the way. When you don’t know them, they lead you. When you are familiar with them, they follow. And when you’re really familiar with them, they get out of the way, you don’t see them. Unless you stop. And in which case, it then pops up the whole tree.

Fun Example: X11 SimCity Demo

X11 SimCity on a Sun Workstation

Demo of Pie Menus in SimCity for X11. Ported to Unix and demonstrated by Don Hopkins. Shows mouse ahead display suppression, and pie menus saving the day by preventing a train from crashing into a fountain just in the nick of time at 3:30.

X11 SimCity Demo, Showing Pie Menus Saving the Day by Preventing a Train from Crashing Into a Fountain Just in the Nick of Time at 3:30
X11 SimCity Zone Menu

The first step in learning a pie menu is remembering the direction, pressing, moving, waiting to see the feedback, recognizing that you’re right. then releasing.

But experts will then get enough confidence to just press, move and release, like that, and it pops up the next one.

And you can cascade these: press, press and press, oh let’s wait to see that we’re sure, ok good, now release. Or press, press and press, and I’ll be there at that time, whatever it is.

Obviously what’s important for feedback when you’re using mouse-ahead is that the application will show you in real-time what the effects of the menu are, so that it’s not necessary to see the menu.

Difficult Problem: Designing, Creating and Editing Pie Menus

When editing a scrolling list or tree of items, it’s difficult to visualize the directions, which change when you add or remove items. As the antithesis of direct manipulation, it takes far too much pointing and clicking to indirectly edit a pie menu via a scrolling list or tree control.

Entering an indented outline into a text editor is an easy way to quickly define and edit a tree of pie menus and submenus, but it doesn’t give you a good way to edit properties of each item. Of course describing menus in XML is great if you’re a web server, but not fun for human beings.

I tried to combine these different techniques of editing pie menus in a tabbed dialog, with a scrolling list and controls for editing items, a tree of nested items and a graphical preview, a text editor for entering nested items as an outline, loading and saving XML.

But the result was a horribly unwieldy Frankinterface’s Monster, difficult for a professional UI designer to use, and impossible for end users to use.

Terrible Example: ActiveX Pie Menus

ActiveX Pie Menus

Microsoft has developed OLE (aka ActiveX) to solve the problem of creating dynamically loaded plug-in user interface components. It allows components written in any language to be loaded dynamically at run time and integrated with any other language, and it allows programmers as well as more casual interface designers to plug components together and configure them with property sheets.

I implemented an ActiveX pie menu control, so that pie menus can be used on web pages and in other Windows applications. The source code as well as the binary is freely available. Now it is quite easy for other people to integrate ActiveX pie menus into their own applications and configure them to their liking.

Emulating Alias Marketing Menus

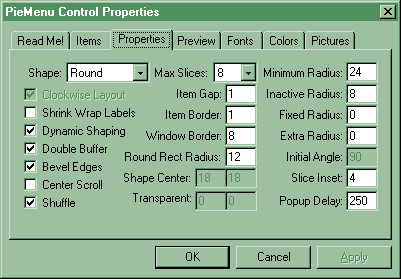

I’ve used ActiveX pie menus as a vehicle to experiment with all kinds of different layout and interaction styles. They’ve got lots of property sheets to set all the various modes and attributes, and you can type in a nested submenu tree as an indented text outline.

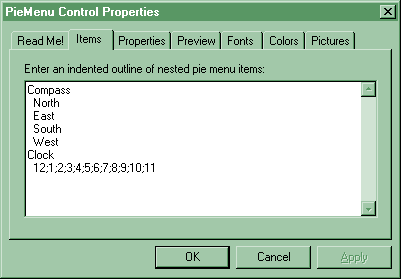

Editing a Customized ActiveX Pie Menu as a Text Outline, Configuring the Image, and Previewing it in an Outline

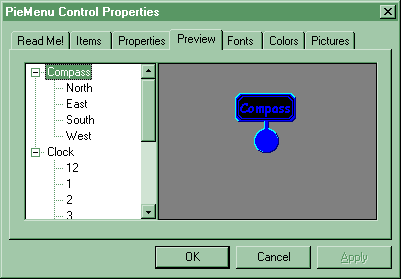

Browsing the Customized ActiveX Pie Menu

I implemented graphical menu items, but I still want them to be animated. A while ago I started adding the ability to read and write nested pie menu specifications as xml.

I wanted to add all kinds of other features, but there needed to be an easy concise way to read, write and configure them all. I finally realized that I had hit a brick wall with ActiveX, in the face of all the complexity and things I wanted to be able to do with pie menus, compared to what could be done on a web page with dynamic html.

Example Spoke, Speech, Thought, Blob, Punched and Image Shaped ActiveX Pie Menus

Better Example: Dynamic HTML JavaScript Pie Menus with ActiveX HTML Behaviors

XSLT to Generate Punkemon Pie Menus from XML Punkemon Database

I want each menu item to be any dynamic html object, like a movie, or a java applet, or an ActiveX control. And I want the graphics and interactive feedback to exploit the full capabilities of dynamic html, like making the point size of the label grow continuously larger as you move the cursor into the slice. That way you can integrate JavaScript, HTML, CSS, XML, XSTL and many other technologies to make pie menus!

XML Punkemon Database

It was impossible to play keep-up with the capabilities of a web browser by adding feature after feature to my little ActiveX control, so what I really needed was for pie menus to be specified in XML or JSON, and implemented inside the web browser using dynamic HTML on the web page itself, instead of using a shrink wrapped plug-in control that opens and draws its own windows, but can’t interact with the rest of the web page.

HTML Punkemon Pie Menus Generated from XML via XSLT

So I’ve shelved the ActiveX pie menu, and decided to rewrite pie menus in JavaScript and dynamic HTML. I’ve done that a few times, and it works very well, and keeps getting better each time as the platform evolves! The first was for Internet Explorer ActiveX HTML Behaviors, then for a gesture tracking library called hammer.js, and also for jQuery. I hope to inspire others to develop more and better implementations of pie menus on other user interface frameworks!)

JavaScript Pie Menus

Scientific American Article: Taking Computers to Task: 7/97

“It’s time to get angry about the quality of user interfaces,” exclaims Ben Shneiderman, head of the Human-Computer Interaction Laboratory at the University of Maryland.

“The public doesn’t understand what they could have had by now,” agrees Bruce Tognazzini, a designer who helped to develop the original Macintosh interface.

They and others argue that applying human-factors research to existing software technology could make workplace computer systems dramatically more productive, easier to use and cheaper to support.

Useful Technique: Interactive Tracking Callbacks for Immediate Feedback and In-World Previewing

Pie menus should provide a complete set of callback events during tracking, so applications can provide real-time dynamic feedback, both providing feedback and help text within the pie menu itself (like a font size or color menu showing a live sample in the middle of the menu), or temporarily previewing the effect of the menu selection within the application or world.

Ideally, you see exactly the results you’ll get as you’re moving around the menu, and when you click to select, the world will just stay the same since it’s already previewing: what you see is what you get!

You can also provide all kinds of cool spinning, zooming and flying animations as feedback, but try to keep it practical, to focus and inform instead of dazzle and distract. One thing that’s helpful is to smoothly animate the selected item growing and moving towards the cursor (because that’s where your eyes are usually looking), while shrinking and pulling the other items back in, and popping up some text to describe the selected menu item in more detail.

The Selected Sim’s Head Looks at the Current Pie Menu Item

The Sims pie menus show the currently selected Sim’s head in the menu center, looking straight at you if nothing’s selected, and turning to look at the selected item, like the Brady Bunch intro. That helps you identify which character the menu will affect, and focus on which item is selected.

When I implemented this effect, I actually wanted to make the Sim’s heads nod or shake according to how much they wanted to perform the selected item (so she’d look delighted about “Tickle”, or shy about “Kiss”). But that would have been a burden to produce and program for every menu item, and we had to stop thinking of cool stuff to do and just ship the damned game.

Good Example: Unity3D Pie Menus

This Unity3D implementation of pie menus has support for creating and configuring pie menus from within the Unity editor, both through traditional editor control panels, and direct manipulation of 3D objects. And it has a complete set of callback events that can provide all kinds of interesting feedback within Unity, like mapping your face from webcam video onto a 3D head in the middle of the menu that looks around at the selected slice!

Unity3D Pie Menu Demo

Good Idea: Pies Contain Slices. Slices Contain Items.

Earlier implementations of pie menus used the Pie/Item model, in which the pie menu contains one or more items, which are positioned around the menu center in an evenly spaced circle. There was is no way to specify an empty slice, and no way to put more than one item in a slice. And the directions of most of the items would change every time you added or removed an item, so it was very hard to control or visualize which direction each item ended up.

The Pie/Slice/Item model enables designers to first specify the number of slices a menu contains (which has a major effect on usability, with 4 and 8 being ideal numbers of slices), and then independently populate each slice with zero or more items.

So the directions of the slices remain stable during construction and editing, because you can start by creating an 8 slice menu, and then incrementally drop any number of items into it each slice, or none at all.

This stability makes it much easier to provide good defaults (like four and eight slice menus), and for users to easily create and edit their own menus with drag-and-drop direct manipulation interfaces.

Great Example: jQuery Pie Menus

These jQuery pie menus use the Pie/Slice/Item model, with a more evolved, web friendly design, but I haven’t made an editor for them yet. Here’s the documentation and free open source code.

jQuery Pie Menus Documentation

One change is that I’m de-emphasizing the idea of “menus”, and just calling them “pies”, because I believe that framing pies as menus has too much historical baggage, does not emphasize their gestural, direct manipulative qualities, and precludes thinking of them more like a directed graph or geographical map, instead of a hierarchical tree.

jQuery Pie Menus Source Code

Pie menus for jQuery, by Don Hopkins.

Hard Problem: Designing Memorable Pie Menus

SimCity has a tool pallet of various building and editing tools, which are related to each other in various ways, and have different costs, functions and properties. I tried to arrange them into a set of submenus that made those relationships and differences more obvious and easier to learn. I also arranged the static tool palette on the screen to reflect the layout of the pie menus and submenus, to serve as a kind of map to the pie menus (which foreshadowed the spatial map design I explored with Method of Loci, described in another article).

Good Example: SimCity Pie Menus and Tool Palette

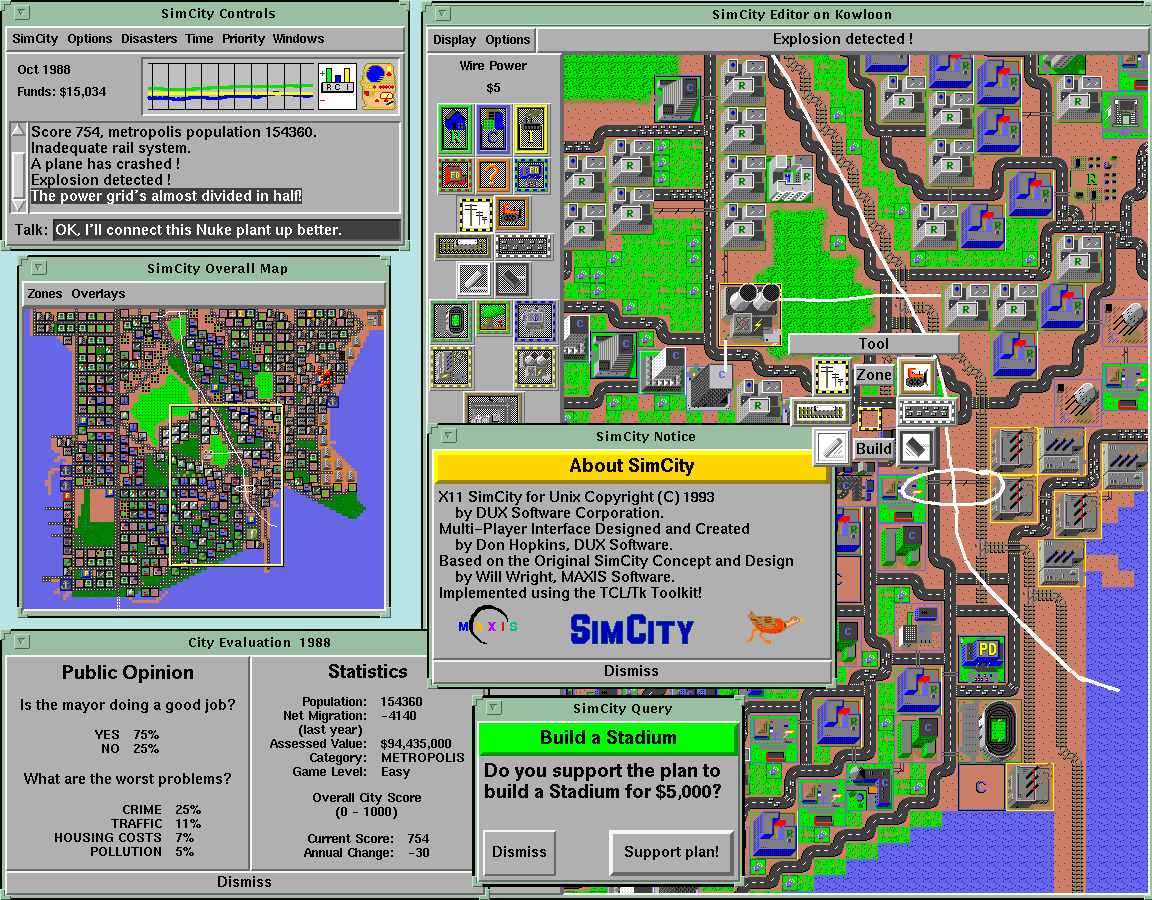

This is the multi player version of SimCity running on a Sun workstation on TCL/Tk/X11, showing the tool palette on the left side of the map, and the “Tool” pie menu popped up over the map:

Multi Player SimCity on X11
SimCity “Tools” Pie Menu

The top level “Tools” menu includes: magic marker and eraser (for drawing on the map), roads and rails, power lines and a bulldozer, and submenus for common zones and bigger buildings. The zone submenu includes residential, commercial and industrial zones, police and fire stations, and a query tool. The building submenu includes a stadium, park and seaport, coal and nuclear power plants, and an airport.

As you can see, the layout and design of the Tool Palette reflects the layout and design of the menus, so they reinforce each other.

SimCity Tool Palette

The size of each icon reflects the cost of the tool. The borders of the icons are color coded to reflect the cursor you see on the map that shows where the tool will affect.

That was useful for multi player mode, so you could see which tools the other players had selected, as the tool palette served as a legend for the cursors on the screen.

The tool palette looks kind of like a totem pole, which is vertically asymmetrical, differentiating different kinds of tools and making them look unique, and horizontally symmetrical, reflecting pairs of similar tools and making it look aesthetically pleasing and more memorable than a regular grid.

If all the tools were the same sized squares arranged in a regular grid, it would be much harder to differentiate them and quickly select the one you want. Instead, they’re arranged more like a bouquet of unique flowers that each have their own special features that make them easily recognizable and memorable, while telling you something about themselves.

Designing user interfaces this way is a artistic balancing act, highly dependent on the set of commands, and requiring a lot of iteration, testing and measurement, as well as willingness to explore and experiment with many different alternatives.

It is not easy, and there is never a best solution, or even always a good one. It’s not something you can expect end-users to be able to easily do with their own custom built menus. But it’s worth the effort to try, and I think it’s also worth the effort to train designers and even users to promote a literacy in Fitts’ Law and interface design.

Deep Example: The Sims Pie Menus

This is a video and illustrated transcript of a demonstration of the pie menus, architectural editing tools, and Edith visual programming tools that Don Hopkins developed for The Sims with Will Wright at Maxis and Electronic Arts.

The Sims, Pie Menus, Edith Editing, and SimAntics Visual Programming Demo

Challenging Problem: Enabling and Educating Users to Design Great Personal Interfaces For Themselves

I think an important goal is to not only give users the tools to create their own pie menus, but design tools that support and motivate user to intuitively understand Fitts’s law, and how to design good pie menus for themselves.

In tools like Alias or games like World of Warcraft, each artist or user has a very particular set of commands they want to use at any particular time (because characters play different roles and have different abilities, spells and items, which changes over time and with different activities), so it’s desirable to support user-defined interfaces constructed by dragging and dropping command icons around to create your own custom toolbars and pie menus.

Crazy Example: PieCraft

A Slice of PieCraft

One idea I’ve had is to develop a game called “PieCraft”, that has user-editable pie menus that are first-order in-game player craftable artifacts.

World of Warcraft and its rich ecosystem of user interface extensions supports a wide range of player customizable user interfaces, because there are so many different commands, spells, buffs, weapons, armor, etc, and each role of each character of each player requires a totally different set of them in different situations.

The more casual MMPORG “Glitch” had bags that users could arrange in hierarchies and put their items inside, which were surfaced on the user interface as buttons they could press and objects they could drag in and out of the world and other bags. How well you arrange your items in WoW and Glitch had a significant effect on gameplay.

PieCraft could take this further, to train players in user interface design literacy (much like “Code Hero” aims to train players in computer programming).

You could find empty or pre-populated pie menus in the world, pick them up and make them your own, and edit them by moving items around, putting them inside of other menus, and modifying them as you leveled up and earned more powerful menu editing skills and resources.

The capacity and layout and allowed contents of some menus could be restricted, to constrain the ways you used them, forcing you to figure out which were your most important items, and giving them front row seats so they were easiest to select.

To put further pressure on players to design efficient menus, your menus could be vulnerable to attack from warriors or theft from pickpockets while they were popped up, and only be able to take a limited amount of damage (depending on if they were crafted from wood or diamond).

When hit hard enough, items could break loose and fall on the ground, or a whole slice or menu could break open like a piñata and spill all its items into the world. Then you (and your enemies) would have to scramble to pick up all the pieces!

The sense of urgency and vulnerability while the menu was popped up would compel you to “mouse ahead” to get through the menus quickly, and arrange your most important items so you could find and select them as quickly as possible.

It would reward you for successfully “mousing ahead” swiftly during combat, by avoiding damage from attack and loss from thieves, and awarding power-up points and experience.

Awesome Example: Monster Hunter: World — Radial Menu Guide

Monster Hunter: World is a wonderful example of a game that enables and motivates players to create their own pie menus, that shows how important customizable user defined pie menus are in games and tools.

Want access to all your items, ammo and gestures at your fingertips? Here’s a quick guide on the Radial Menu.

Monster Hunter: World — Radial Menu Guide, Showing the Importance of Customizable User Defined Pie Menus

Excellent Example: An Empirical Evaluation of Some Articulatory and Cognitive Aspects of Marking Menus

This otherwise excellent paper, published in 1993, makes the mistake that pie menus don’t support what I call “mouse ahead display suppression”, which enables users to select from menus without popping them up on the screen. Both pie menus and marking menus ease the transition from novice to expert user.

Marking menus are also unique in that they ease the transition from novice to expert user. Novices can “pop-up” a menu and make a selection, whereas experts can simply make the corresponding mark without waiting for the menu to appear.

An Empirical Evaluation of Some Articulatory and Cognitive Aspects of Marking Menus

English Translation: Physical and Mental Effects of Pie Menu Design

I’ll try to explain some of the practical results of the paper “An Empirical Evaluation of Some Articulatory and Cognitive Aspects of Marking Menus” in everyday language you don’t need a PhD in TLAs to understand, and I’ll summarize some useful design techniques and rules of thumb that may or may not be obvious at first glance, but have been discovered and proven by experimentation and measurement.

Even if you have incredible dexterity, photographic memory and lots of free time, you have better things to spend it on than menus.

With 2 or 4 slices, Fitts’s Law has an overwhelming effect, because each slice’s target area is enormous (1/2 or 1/4 of the entire screen area), and adjacent to the cursor which starts in the center of the menu. (Maximizing the area, minimizing the distance).

The physical (articulatory) effects of Fitts’s Law diminish as you add more slices (the target area decreases, but the distance remains a small fixed constant), but there are other important mental (cognitive) effects that come into play: the mental effort of remember the directions, and the mental framework you use to think, learn and recall.

There are many conflicting trade-offs and opportunities: How can you design pie menus that are easy to physically use and mentally remember? How many slices are there, and what are their relationships and structures? Are you ordering food from restaurant menu, managing windows, picking tools, issuing commands, hunting monsters, or wandering around a Memory Palace? What kind of mental framework can you use to organize the slices around?

Tip: Even Symmetrical Common Patterns Are Good

With 7 slices, there is no common English word or concept for all but one of the directions. But with 8 slices, you benefit from the compass framework, opposite pairs, orthogonal axis, vertical, horizontal or diagonal patterns to use as a framework for arranging the slices. And with 12 slices, you benefit from the clock dial framework, as well as pairs, orthogonal and diagonal patterns, etc.

Bottleneck: The Magical Number Seven, Plus or Minus Two

“The Magical Number Seven, Plus or Minus Two: Some Limits on Our Capacity for Processing Information” is one of the most highly cited papers in psychology. It was published in 1956 in Psychological Review by the cognitive psychologist George A. Miller of Princeton University’s Department of Psychology. It is often interpreted to argue that the number of objects an average human can hold in working memory is 7 ± 2. This is frequently referred to as Miller’s law.

This is a mental bottleneck, more than a physical limitation, but not a hard and fast rule. 10 and 12 slices are past the “seven, plus or minus two” sweet spot. So I’d recommend sticking with 8 slices at most, unless your slices semantically fit into that number of directions, like a 10 decimal dial, the 12 hours of the day, 12 months of the year, 12 signs of the Zodiac, etc.

Don’t Be So Odd: Seven is Surprisingly (or not) Worse Than Eight

Kurtenbach and Buxton expected that the selection time would be monotonically increasing as you added more slices, but were surprised to find that 8 slices were faster than 7, and it kind of plateaued between 11 and 12.

Figure 1: Eight Days a Week Pie Menu

If you have 7 slices, it actually helps to add a dummy (or useful) slice to even the menu out! The “8 Days a Week” menu (described in the Design and Implementation article) adds “Today” to the top of a 7 weekday menu, splitting Sunday and Saturday!

Good Non-Hierarchal Example: MediaGraph Music Map Gestural Navigation and Editing

In the jQuery pie menu documentation, I explained:

One change is that I’m de-emphasizing the idea of “menus”, and just calling them “pies”, because I believe that framing pies as menus has too much historical baggage, does not emphasize their gestural, direct manipulative qualities, and precludes thinking of them more like a directed graph or geographical map, instead of a hierarchical tree.

In this MediaGraph demo, you can see two different approaches to pies working together.

1) Traditional hierarchical pop-up pie menus, supporting sub-menus, mouse ahead gestures, real time feedback, and pull-out slices that use the distance as a parameter to the selection. (0:36 in video) Not editable by the user, but used to edit the other kind of pie.

2) Non-hierarchical free-form navigational pie maps, for arranging a map of songs connected with roads into a bidirectionally navigable graph, which enables users to easily hop around the network with quick flicking gestures (3:20 in video), and even create, edit and navigate their own pie maps via direct manipulation (4:07 in video). Editable and navigable by the user. Seamlessly integrated with panning and zooming gestures.

For this demo and more examples, here’s a youtube playlist with some of my pie menu demos, in reverse-chronological order, which shows the evolution of designs over time.

YouTube Pie Menu Play List

Questions and Answers: Hacker News Discussion

DonHopkins on Mar 6, 2016 [-]

All very true! Pie menus aren’t good for dynamically generated lists, or very many items.

To handle those inevitable cases, the jQuery pie menus (and other implementations like the OLPC Sugar pie menus) can support a hybrid mixture of directional pie items and traditional linear items, by simply adding multiple items to the same slice.

Example: OLPC Sugar Pie Menu Discussion

That would be cool! Note that the Python pie menus also support linear layout as well as hybrid pie/linear layout, and the application developer can control which items go into the pie and linear parts, and what directions they’re laid out in.

Good Example: Pull-out Font Pie Menu

Multiple items in the same slice are just laid out vertically (or horizontally, or even diagonally) in the slice direction, or it could display only the selected item in the slice, and switch between them as you pull out. The items can track based on entering/exiting rectangular label targets just like a linear menu, or by the distance (like a pull-out font size menu, etc).

Pull-out Font Pie Menu

Interesting Problem: Other Techniques for Handling Many Items

One straightforward technique is to put items into nested submenus. It takes thought and care to decide how to break up the items into submenus and how deep to arrange them. But first let’s see what happens if you have too many items!

Bad Example: The Most Gigantic Pie Menus In The World

Here’s a demo that shows some of the Most Gigantic Pie Menus in the World, the largest with 360 items. The first has a huge 24 item menu with 15 items each, and the second has a gargantuan 360 item menu that’s much bigger than the screen, and is thought to hold the world record for the Most Gigantic Pie Menu In The World.

Early pie menu demo by Don Hopkins, on NeWS 1.0, running on a Sun 3 workstation. Shows the Most Gigantic Pie Menus In The World at 2:54.

How To Choose with Pie Menus, Showing Shows the Most Gigantic Pie Menus In The World at 2:54

Good Example: Scrolling NeWS Pie Menus

I’ve also tried various forms of spiral scrolling, paging, and weird springy precision pie menu things. And also limiting the maximum number of pie items, so the first eight “most important” items are assigned to different directions, and subsequent items are laid out below or above the menu as linear items.

Scrolling NeWS Pie Menus

Weird Example: Springy Precision Pie Menu

Weird Springy Precision Pie Menu

Good Example: Method of Loci

Some people remember things spatially, and other people don’t. The Greeks invented a spatial memorization technique called the Method of Loci.

I developed an iPhone app that’s like a mind mapping application based on the Method of Loci, that let users easily construct their own navigable touch-screen pie menu maps.

iPhone app iLoci by Don Hopkins @ Mobile Dev Camp

Good Example: Micropolis (SimCity) Web Demo

Demo of Micropolis (SimCity) running on a Python web server back-end, with an OpenLaszlo/Flash client, including pie menus, and PacMan robots who eat traffic.

Micropolis Online (SimCity) Web Demo

Constructionist Educational Open Source SimCity

Don Hopkins Demonstrating SimCity on OLPC XO-1

The OLPC project is focused on “Constructionist Education”, which is about children learning — anyone learning, by building things. And SimCity is pretty much the quintessential constructionist education game.

Open Sourcing SimCity, from Chaim Gingold’s “Play Design” PhD Thesis

Pie menus play a critical role in The Sim’s user interface design, dovetailing perfectly with the object and AI architecture. Objects advertise verbs to character AI, so it is natural for the verbs to be arranged in a radial menu about objects. I can’t imagine an alternate design that would have had the same widespread usability, and therefore appeal, without them. It is difficult to imagine The Sims without pie menus. -Chaim Gingold, Play Design PhD Thesis, Open Sourcing SimCity

Spectacular Example: Simon Schneegans’ Gnome-Pie, the slick application launcher for Linux

I can’t understate how much I like Simon Schneegans’ Gnome-Pie, as well as his bachelor thesis work on the Coral-Menu and the Trace-Menu. Not only is it all slick, beautiful, and elegantly animated, but it’s properly well designed in all the important ways that make it Fitts’s Law Friendly and easy to use, and totally deeply customizable by normal users! It’s a spectacularly useful tour-de-force that Linux desktop users can personalize to their heart’s content.

Simon Schneegans’ Gnome-Pie

Gnome-Pie is a slick application launcher which I’m creating for Linux. It’s eye candy and pretty fun to work with. It offers multiple ways to improve your desktop experience.

Check out the project’s homepage and demo:

Simon Schneegans’ Gnome-Pie

Simon Schneegans’ Bachelor Thesis

For the same reason they are effective. But by far the most remarkable advantage is their continuous learning curve. Users may become extremely fast just by using the menu. Every time they make a selection, they get faster and more accurate. At some point it is not necessary to read the labels anymore, because the user remembers the direction of an entry. With “normal” linear menus that is not possible. The maximum selection speed with a mouse is very limited and soon obtained.

The Coral-Menu

Simon Schneegans’ Coral-Menu
Cursor movement of users of the Coral-Menu. Green dots visualize mouse clicks.

The Trace-Menu

Simon Schneegans’ Trace-Menu
Cursor movement of users of the Trace-Menu. Green dots visualize mouse clicks.

4.2. Test results

Simon Schneegans’ Thesis:
Performance Comparison of Trace-Menu, Coral-Menu and Liner Menu.

Free Source Code

The Fabrik Programming Environment

Frank Ludolph, Yu-Ying Chow, Dan Ingalls, Scott Wallace, Ken Doyle. Apple Computer.

Fabrik uses simple directional gestures to increase the number of commands associated with the mouse button.

Unfortunately, no known videos and not many screenshots remain of Fabrik, but the paper describes the directional gesture menus in detail:

Abstract

Fabrik Gesture Menus

Directional Gestures

Fabrik: A Visual Programming Environment. Dan Ingalls et al., 1988
Built on Smalltalk (Mac)
Fabrik: A Visual Programming Environment.
Demonstrating the rotational logic.
All display and mouse-tracking operations are properly scaled and rotated.
Fabrik: A Visual Programming Environment.
The left three panels have been selected as the “user frame”,
and a menu command lets one “enter” that frame.
The Fabrik Programming Environment

Matthias Schreck on Pie Menus / Radial Menus

Excellent presentation about pie menus by Matthias Schreck, Design Manager, including a description of Krystian Samp’s work.

I held a 15 minute presentation in front of the IxDA (Sydney Chapter) in August 2012 about pie / radial menus. I spent a little bit of time talking about their history, and about various classifications of this menu type, and then went into detail about the academic research that has been done in that field. I summarized about 10 articles in this field, but the main body of the academic part is based on an excellent research thesis by Krystian Samp.

Globalmoxie: Touch Means a New Chance for Radial Menus

The radial menu is seeing a renaissance in touch interfaces, and that’s a good thing.

User Learning and Performance with Marking Menus

Gordon Kurtenbach, William Buxton, 1994. Proceedings of CHI ’94, p. 258–264.

A marking menu is designed to allow a user to perform a menu selection by either popping-up a radial (or pie) menu, or by making a straight mark in the direction of the desired menu item without popping-up the menu. Previous evaluations in laboratory settings have shown the potential of marking menus. This paper reports on a case study of user behavior with marking menus in a real work situation.

The study demonstrates the following: First, marking menus are used as designed. When users become expert with the menus, marks are used extensively. However, the transition to using marks is not one way. Expert users still switch back to menus to refresh their memory of menu layout. Second, marking is an extremely efficient interaction technique. Using a mark on average was 3.5 times faster than selection using the menu. Finally, design principles can be followed that make menu item/mark associations easier to learn, and interaction efficient.

User Learning and Performance with Marking Menus

Recommendation Letter for Krystian Samp’s Thesis: The Design and Evaluation of Graphical Radial Menus

I am writing this letter to enthusiastically recommend that you consider Krystian Samp’s thesis, “The Design and Evaluation of Graphical Radial Menus”, for the ACM Doctoral Dissertation Award.

An example of a selection from a Compact Radial Layout menu

I believe Krystian Samp’s dissertation is a significant contribution to basic computing research that focuses on user interface design, because it clearly presents a carefully planned, controlled study of a thoughtfully justified and practically executed design, which valuably advances the state of the art. Recognition for Samp’s work from ACM would dramatically raise visibility of research excellence that contributes to theory and practice.The evaluation shows that designing with performance in mind can result in faster graphical menus compared to traditional menus. The proposed Compact Radial Layout menu is approximately 20–30% faster in a variety of conditions, reduces navigation errors, induces users to faster movements and decreases screen consumption. The evaluation also shows that, with a consistent pattern of organizing items in radial menus, search and navigation performance can be further improved. At the same time, the results indicate that the improved navigation performance in radial menus comes at the cost of slower visual search.

The Design and Evaluation of Graphical Radial Menus

Krystian Samp. National University of Ireland, Galway.

The Design and Evaluation of Graphical Radial Menus

Visual Search in Radial Menus

Krystian Samp, Stefan Decker. INTERACT 2011, Part IV, LNCS 6949, p. 248–255.

Menu research has focused predominantly on linear menus (e.g., cascading menus). Little is known about user behavior with radial menus, which have been around for some time. The paper investigates the order in which users find items in radial menus. We analyze data collected in a controlled experiment and define serial position for items laid out in a circular fashion. For the first level (ring), the serial positions start at 12 o’clock position and alternate between both sides of the ring. For subsequent levels, the serial positions follow distance from a parent item. The defined search pattern yields strong fit and has substantial effect on search performance. We discuss the results in the context of radial menu design.

Visual Search in Radial Menus

Obsessed With Pie!

And now a final word from Weebl and Bob: “PIE!!!”

Obsessed with Pie! | Weebl And Bob

The Email that Started My Amazing Journey

Dedicated to Mark Weiser

Mark Weiser, July 23, 1952 — April 27, 1999.
Photo courtesy of (and with) Corinne Iloreta and Nicole Reich-Weiser.

“For thirty years most interface design, and most comptuer design, has been headed down the path of the “dramatic” machine. Its highest idea is to make a computer so exciting, so wonderful, so interesting, that we never want to be without it. A less-traveled path I call the “invisible”; its highest idea is to make a computer so imbedded, so fitting, so natural, that we use it without even thinking about it.” -Mark Weiser

The Philosopher of Palo Alto

The Computer for the 21st Century

Vol. 265, №3, SPECIAL ISSUE: Communications, Computers and Networks: How to Work, Play and Thrive in Cyberspace (SEPTEMBER 1991), pp. 94–105

“The most profound technologies are those that disappear. They weave themselves into the fabric of everyday life until they are indistinguishable from it.” -Mark Weiser

A time lapse doodle summarizing Mark Weiser’s seminal article
The Computer for the 21st Century,
published in 1991 in Scientific American.
The Computer for the 21st Century presentation by Trevor Dennison
The Computer for the 21st Century, by Mark Weiser. Scientific American.

Designing Calm Technology

Designing Calm Technology, by Mark Weiser, Xerox PARC.

Welcome to a place where words matter. On Medium, smart voices and original ideas take center stage - with no ads in sight. Watch
Follow all the topics you care about, and we’ll deliver the best stories for you to your homepage and inbox. Explore
Get unlimited access to the best stories on Medium — and support writers while you’re at it. Just $5/month. Upgrade

Get the Medium app

A button that says 'Download on the App Store', and if clicked it will lead you to the iOS App store
A button that says 'Get it on, Google Play', and if clicked it will lead you to the Google Play store
