Vm is a Vim-like text editor that was built from scratch in C++ by me and Mohammed Nafees. We were on a tight schedule of 3 weeks, where we spent 1 week on design (UMLs oh God…) and planning. The final 2 weeks were lots of fun coding and stressing out!
In this article, one of many, we will talk about the overall design of our program, and the object-oriented programming concepts and design patterns we learned as we built this project.
A Brief History on Vim
Vi was the original screen oriented text editor created for the Unix operating system, written by Bill Joy in 1976.
Vim (Vi IMproved) is a greatly improved clone of Vi written by Bram Moolenaar released in 1991. It has since then become one of the world’s most popular text editors, coming in at the top 4 for most popular development environments in 2017’s Stack Overflow developer survey.
The following article is broken down into:
- Software Design
- Design Patterns
- Data Structures For Text
The Stuff We Learned Building Vm

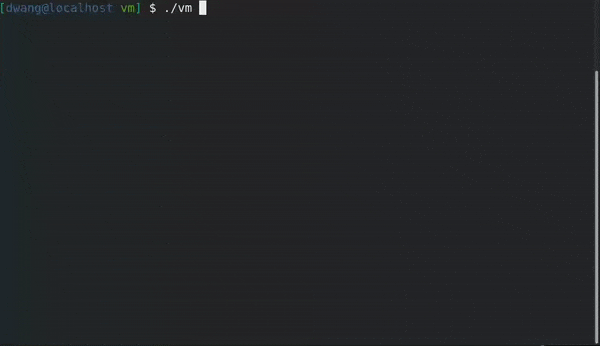

Here we present your first look at Vm! Isn’t it pretty?
The term SOLID is a mnemonic acronym for five design principles intended to make software designs more understandable, flexible and maintainable.
Single Responsibility: All of our classes have single responsibility of doing one task except for
Controller. If you can’t easily say a class does x, then think about breaking it up into smaller parts.
Open/Closed Principle: Software should be open for extension, but closed for modification. Does a change in the project specification result in you changing much of the interface of your class, or does it just mean you need to extend your existing class?
View class is open for extension and closed for modification. We wanted to create an additional view that would display certain values, cursor positions, and the command stack, so instead of adding that optional functionality in
View, we created a subclass
DebugView that contained the functionality we wanted. All member variables of all classes are private to that class and we have getters and setters only when needed.
Liskov Substitution: Is your code still correct if you replace an object of type A with and object of type B, if B is a subclass of A? Does substituting for a higher level (more general/abstract) of class break anything? It shouldn’t. And you use that fact to your advantage to write great code.
We used Liskov substitution mainly in two parts: Commands and Views. For any subtype of command, replacing one with another will not cause the program to crash or produce undefined behaviour (other than the fact that the command is executing a different series of actions). It can be safely assumed that calling
undo on any subtype of
Command will work.
Interface Segregation: Many small interfaces is better than one large interface. If a class has many functionalities, each client of the class should only see the functionality it needs.
Most interfaces only needed to serve a single client in our project, so there was no need to make a more specific interface for each client. But this is a good general rule!
Dependency Inversion: High level modules should not depend on low-level modules. Both should depend on abstraction. Abstract classes should never depend on concrete classes.
All fully abstract classes we had (Command.h) did not inherit from or depend on a concrete class. All classes interacted and depended on other classes of the same level of abstraction. For example, the
View class depends/interacts on other high-level classes like
Cursor, rather than their lower level subclasses or underlying data structures such as
As part of the single responsibility principle, we created three classes that each handle a single aspect of Vm with respect to an application that interacts with a user.
Model: Application.h Application.cc
The Application class is responsible for storing the state of the current instance through MODEs and directs the controller to act accordingly.
View: View.h View.cc
View class is responsible for outputting the buffer contents or any output to the screen and syntax highlighting (if it is a C++ file).
Controller: Controller.h Controller.cc
Controller class handles each input depending on the current
MODE of the editor and makes changes to the
View via the
ViewCursor and/or the
The general principles of SOLID paid off well, since we didn’t run into many situations where we didn’t know what type of design path we should take. We didn’t use many design patterns as we thought, and I don’t think that is a bad thing. You should never be trying to fit in a neat design pattern for the sake of using it. One pattern that actually saved our butts was the Command pattern, which seems pretty intuitive actually.
We used the Command Pattern to handle the undo function. Vm commands were encapsulated in many command classes (concrete subclass) that include 2 major methods (
undo). These were then stored in a
Command (abstract superclass) stack. When the undo command is executed, it calls the
undo method of the top element of the command stack, and then it is popped off. Calling
execute would actually do a command. The downside of this pattern is that you need to build a lot of subclasses for each individual function, which doesn’t feel like good object-oriented programming. But it will make your undo function as easy as
Data Structures For Text
A lot of thought went into deciding which data structure we should use to hold and manipulate the text of our files. Which ones would prove to be the fastest, the most memory efficient, the clearest to code? These were all really fun to consider. Unfortunately, we had another constraint breathing down our backs, a 3 week deadline. SO, we ended up using a vector of strings.
This is our
Buffer class that operates on the text of the file.
If we could go back and rewrite our Buffer, we would probably have used a Gap Buffer. A Gap Buffer takes advantage of the fact that edits to the text are localized, near the cursor. Text is stored in two large segments with a large gap in between for inserting new text.
The disadvantage of the Gap Buffer is that when the gap is filled, or the cursor changes location, the text needs to be redistributed to two new segments, which is an expensive copying of text, especially in large files. However these are much rarer and the assumption is that the cost is balanced with the fast common operations. Emacs uses the Gap Buffer as its underlying text data structure!
The Piece Table is the industrial-grade data structure for text. It has been used in Microsoft Word, Atom, Visual Studio Code, and many more high quality text editors. But it is much beyond the scope of this project.
Building your own text editor will teach you so much about writing good software, however I feel like it’s an inefficient use of time and energy if everyone just repeated this exercise for the sake of it. If you’re bored and want to flex your coding muscles, why not contribute to one of these lovely open source text editors:
Third Party Software and Libraries Used:
That’s a wrap on part 1 of a mini-series of posts about our project Vm. It was super fun writing this and I hope to write more in the future!
We Aren’t Done Yet…
Up in the writing pipeline with Mohammed Nafees:
- Syntax Highlighting & Search In Vm
- How To Write Software That Is Resilient To Change
- How We Used Git Effectively (And Terribly)
Download for Linux systems: http://s000.tinyupload.com/index.php?file_id=14499969885562543639
Due to Academic Integrity rules by the University of Waterloo we can’t share all the code from our project, but we wanted to talk about software design, certain patterns we used to overcome hurdles, and show off some features.
