How to Understand and Interpret Box Plots

Visualizations play a crucial role in understanding and interpreting complex datasets in data analytics and statistics. Among these visual tools, the box plot, also known as a box-and-whisker plot, stands out for its simplicity and depth. This article aims to demystify box plots, guiding you through their structure, interpretation, and practical applications in data analysis.

What is a Box Plot?

A box plot is a standardized way of displaying the distribution of a dataset based on a five-number summary: minimum, first quartile (Q1), median, third quartile (Q3), and maximum. It provides a visual summary of the data's central tendency, dispersion, and skewness.

Structure of a Box Plot

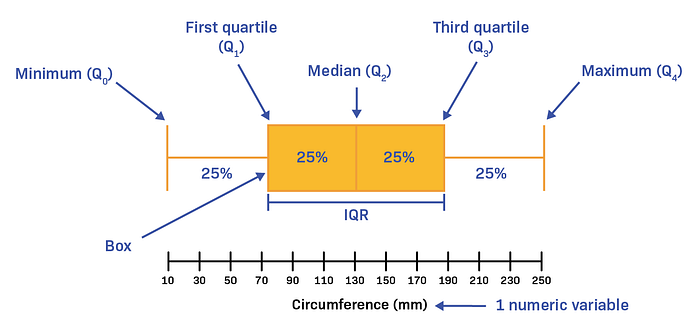

The example we’ve provided is a standard box plot, which is a graphical representation of the distribution of a dataset. Here’s how to interpret it:

1. Minimum (Q0): The leftmost line represents the minimum value in the data set that is not an outlier.
2. First Quartile (Q1): The left edge of the box marks the first quartile, indicating that 25% of the data falls below this value.
3. Median (Q2): The line in the middle of the box shows the median of the dataset, which is the middle value when the data is ordered from least to most excellent.
4. Third Quartile (Q3): The right edge of the box indicates the third quartile, showing that 75% of the data is below this value and 25% is above.
5. Maximum (Q4): The rightmost line indicates the maximum value in the data set that is not an outlier.
6. Box: The box spans the interquartile range (IQR), which is the distance between the first and third quartiles. This represents the middle 50% of the data.
7. Whiskers: These lines extend from the box to the maximum and minimum values and represent the spread of the rest of the data.
