# Day 92 — Simple GAN for MNIST

## 今日主題：使用原版生成對抗網路模擬MNIST圖像資料

#### 筆記

• 初始化
`def __init__(self):    self.img_rows = 28    self.img_cols = 28    self.channels = 1    self.img_shape = (self.img_rows, self.img_cols, self.channels)    self.latent_dim = 100    optimizer = Adam(0.0002, 0.5)`
`    # Build and compile the discriminator    self.discriminator = self.build_discriminator()    self.discriminator.compile(loss='binary_crossentropy',                                 optimizer=optimizer,                               metrics=['accuracy'])`
`    # Build the generator    self.generator = self.build_generator()`
`    # The generator takes noise as input and generates imgs    z = Input(shape=(self.latent_dim,))    img = self.generator(z)`
`    # For the combined model we will only train the generator    self.discriminator.trainable = False`
`    # The discriminator takes generated images as input and       determines validity    validity = self.discriminator(img)`
`    # The combined model  (stacked generator and discriminator)    # Trains the generator to fool the discriminator    self.combined = Model(z, validity)    self.combined.compile(loss='binary_crossentropy',                          optimizer=optimizer)`

`Adam(lr=0.001, beta_1=0.9, beta_2=0.999, epsilon=None, decay=0.0, amsgrad=False)`

`__init__()` 中引用了兩個同一個 Class 的 method： `build_discriminator``build_generator` 。這兩個 method中定義了Discriminator以及Generator的模型。

• Generator
`def build_generator(self):`
`    model = Sequential()`
`    model.add(Dense(256, input_dim=self.latent_dim))    model.add(LeakyReLU(alpha=0.2))    model.add(BatchNormalization(momentum=0.8))    model.add(Dense(512))    model.add(LeakyReLU(alpha=0.2))    model.add(BatchNormalization(momentum=0.8))    model.add(Dense(1024))    model.add(LeakyReLU(alpha=0.2))    model.add(BatchNormalization(momentum=0.8))    model.add(Dense(np.prod(self.img_shape), activation='tanh'))    model.add(Reshape(self.img_shape))`
`    model.summary()`
`    noise = Input(shape=(self.latent_dim,))    img = model(noise)`
`    return Model(noise, img)`

• Discriminator
`def build_discriminator(self):        model = Sequential()    model.add(Flatten(input_shape=self.img_shape))    model.add(Dense(512))    model.add(LeakyReLU(alpha=0.2))    model.add(Dense(256))    model.add(LeakyReLU(alpha=0.2))    model.add(Dense(1, activation='sigmoid'))    model.summary()`
`    img = Input(shape=self.img_shape)    validity = model(img)`
`    return Model(img, validity)`

• 訓練流程
`def train(self, epochs, batch_size=128, sample_interval=50):    # Load the dataset    (X_train, _), (_, _) = mnist.load_data()`
`    # Rescale -1 to 1    X_train = X_train / 127.5 - 1.    X_train = np.expand_dims(X_train, axis=3)`
`    # Adversarial ground truths    valid = np.ones((batch_size, 1))    fake = np.zeros((batch_size, 1))`
`    for epoch in range(epochs):        #  Train Discriminator        # Select a random batch of images        idx = np.random.randint(0, X_train.shape[0], batch_size)        imgs = X_train[idx]`
`        noise = np.random.normal(0, 1,                                  (batch_size, self.latent_dim))`
`        # Generate a batch of new images        gen_imgs = self.generator.predict(noise)`
`        # Train the discriminator        d_loss_real = self.discriminator.train_on_batch(imgs, valid)        d_loss_fake = self.discriminator.train_on_batch(gen_imgs,                                                        fake)        d_loss = 0.5 * np.add(d_loss_real, d_loss_fake)`
`        #  Train Generator        noise = np.random.normal(0, 1, (batch_size,                                         self.latent_dim))        # Train the generator (to have the discriminator label           samples as valid)        g_loss = self.combined.train_on_batch(noise, valid)`
`        # If at save interval => save progress and generated image           samples        if epoch % sample_interval == 0:            print ("%d [D loss: %f, acc.: %.2f%%] [G loss: %f]"                     % (epoch, d_loss[0], 100*d_loss[1], g_loss))            self.sample_images(epoch)`

1. 讀入真實MNIST資料
2. 將真實的MNIST資料標記為 `valid`
3. 使用（當下epoch的）Generator，給入一個雜訊產生假的MNIST資料
4. 將假的MNIST資料標記為 `fake`
5. 損失函數 `d_loss` 設定為真實資料的 loss `d_loss_real` 與假資料的loss `d_loss_fake` 的平均。

1. 產生雜訊
2. `combined` 是完整的G-D 模型，這時候餵給它雜訊，要求期望的輸出是 `valid` （這代表G產生的圖片騙過D了）。
3. Discriminator設計為會回傳一個 `validity` 參數，也就是D認為輸入的圖片有多大機率是假的，這個值會被用來當作G的損失函數 `g_loss` （代表還有多大的機率沒騙過D）。

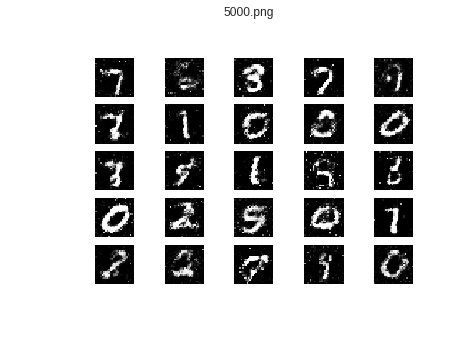

• 隨機看結果的Helper Function
`def sample_images(self, epoch):    r, c = 5, 5    noise = np.random.normal(0, 1, (r * c, self.latent_dim))    gen_imgs = self.generator.predict(noise)`
`    # Rescale images 0 - 1    gen_imgs = 0.5 * gen_imgs + 0.5`
`    fig, axs = plt.subplots(r, c)    cnt = 0    for i in range(r):       for j in range(c):           axs[i,j].imshow(gen_imgs[cnt, :,:,0], cmap='gray')           axs[i,j].axis('off')           cnt += 1    fig.savefig("images/%d.png" % epoch)    plt.close()`
