# Linear Algebra with JavaScript: Vectors

This is part of the course “Linear Algebra with JavaScript”.

**Vectors** are the precise way to describe directions in space. They are built from numbers, which form the **components** of the vector. In the picture below, you can see the vector in two-dimensional space that consists of two components. In the case of three-dimensional space vector will consists of three components.

We can write class for vector in 2D and call it *Vector2D* and then write one for 3D space and call it *Vector3D*, but what if we face a problem where vectors represent not a direction in the physical space. For example, we may need to represent color(RGBA) as a vector, that will have four components — red, green, blue and alpha channel. Or, let’s say we have vector that gives fractions of proportions out of *n* choices, for example, the vector that describes the probability of each out five horses winning the race. So we make a class that not bound to dimensions and use it like this:

# Vector Operations

Consider two vectors, and assume that *α ∈ R* is an arbitrary constant. The following operations are defined for these vectors:

Visualizations of all of this operations, except of cross product you can find here. In GitHub repository alongside with library lives React project, where library we are building used to create visualizations. If you are interested in learning how these two-dimensional visualizations made with React and SVG, check out this story.

## Addition and Subtraction

Just like numbers, you can add vectors and subtract them. Performing arithmetic calculations on vectors simply requires carrying out arithmetic operations on their components.

Methods for addition receives other vector and return new vectors build from sums of corresponding components. In subtraction, we are doing the same but replace plus on minus.

# Scaling

We can also scale a vector by any number *α ∈ R*, where each component is multiplied by the scaling factor *α*. If *α > 1* the vector will get longer, and if *0 ≤ α < 1* then the vector will become shorter. If α is a negative number, the scaled vector will point in the opposite direction.

In *scaleBy* method, we return a new vector with all components multiplied by a number passed as a parameter.

# Length

A vector length is obtained from Pythagoras’ theorem.

Length method is very simple since Math already have a function we need.

# Dot Product

The dot product tells us how similar two vectors are to each other. It takes two vectors as input and produces a single number as an output. The dot product between two vectors is the sum of the products of corresponding components.

In the *dotProduct* method we receive another vector as a parameter and via reduce method obtain the sum of the products of corresponding components.

Before we look at how vectors directions relate to each other, we implement the method that will return a vector with length equal to one. Such vectors are useful in many contexts. When we want to specify a direction in space, we use a normalized vector in that direction.

If we take the dot product of two normalized vectors and the result is equal to one it means that they have the same direction. To compare two float numbers, we will use the *areEqual* function.

If we take the dot product of two normalized vectors and the result is equal to minus one it means that they have exact opposite direction.

If we take the dot product of two normalized vectors and the result is zero, it means that they are perpendicular.

# Cross Product

The cross product is only defined for three-dimensional vectors and produces a vector that is perpendicular to both input vectors.

In our implementation of the cross product we assume that method used only for vectors in three-dimensional space.

# Other useful methods

In real-life applications those methods will not be enough, for example, we may want to find an angle between two vectors, negate vector, or project one to another.

Before we proceed with those methods, we need to write two functions to convert an angle from radians to degrees and back.

## Angle Between

## Negate

To make a vector directing to the negative direction we need to scale it by minus one.

# Project On

## With Length

Often we may need to make our vector a specific length.

## Equal To

To check if two vectors are equal we will use *areEqual* function for all components.

# Unit Vector and Basis

We can think of a vector as a command to “go a distance *vx* in the x-direction, a distance *vy* in the y-direction and *vz* in z-direction.” To write this set of commands more explicitly, we can use multiples of the vectors* ̂i, ̂j,* and* ̂k*. These are the** unit vectors** pointing in the *x*, *y*, and *z* directions, respectively:

Any number multiplied by* ̂i *corresponds to a vectors with that number in the first coordinate. For example:

One of the most important concepts in the study of vectors is the concept of a **basis**. Consider the space of three-dimensional vectors *ℝ³*. A basis for *ℝ³* is a set of vectors *{ê₁, ê₂ , ê₃}* which can be used as a coordinate system for *ℝ³*. If the set of vectors *{ê₁, ê₂, ê₃}* is a basis then we can represent any vector *v⃗∈ℝ³ *as coefficients *(v₁, v₂, v₃)* with respect to that basis:

The vector *v⃗* is obtained by measuring out a distance *v₁* in the *ê₁*

direction, a distance *v₂* in the *ê₂* direction, and a distance *v₃* in the*ê₃* direction.

A triplet of coefficients by itself does not mean anything unless we know the basis being used. A basis is required to convert mathematical object like the triplet* (a, b, c)* into real-world ideas like colors, probabilities or locations.

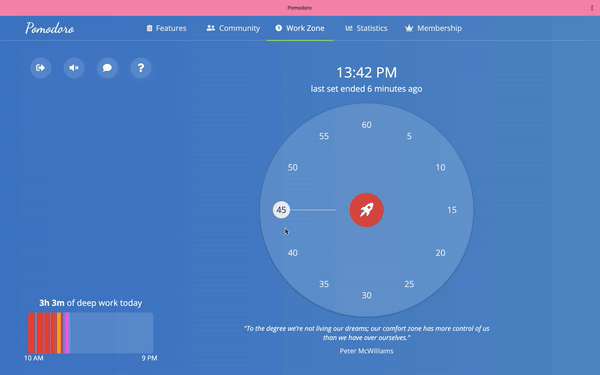

Check out modern Pomodoro timer at pomodoro.increaser.org that provides a clean and functional productivity tool aims to help you be more productive so that you can find time for things that matter.
