Understanding Feature Pyramid Networks for object detection (FPN)

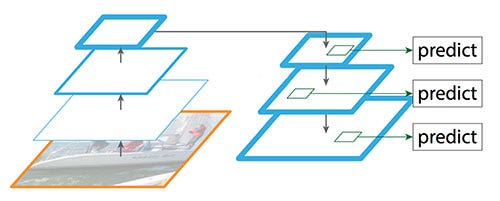

Detecting objects in different scales is challenging in particular for small objects. We can use a pyramid of the same image at different scale to detect objects (the left diagram below). However, processing multiple scale images is time consuming and the memory demand is too high to be trained end-to-end simultaneously. Hence, we may only use it in inference to push accuracy as high as possible, in particular for competitions, when speed is not a concern. Alternatively, we create a pyramid of feature and use them for object detection (the right diagram). However, feature maps closer to the image layer composed of low-level structures that are not effective for accurate object detection.

Source

Feature Pyramid Network (FPN) is a feature extractor designed for such pyramid concept with accuracy and speed in mind. It replaces the feature extractor of detectors like Faster R-CNN and generates multiple feature map layers (multi-scale feature maps) with better quality information than the regular feature pyramid for object detection.

Data Flow

FPN (Source)

FPN composes of a bottom-up and a top-down pathway. The bottom-up pathway is the usual convolutional network for feature extraction. As we go up, the spatial resolution decreases. With more high-level structures detected, the semantic value for each layer increases.

Feature extraction in FPN (Modified from source)

SSD makes detection from multiple feature maps. However, the bottom layers are not selected for object detection. They are in high resolution but the semantic value is not high enough to justify its use as the speed slow-down is significant. So SSD only uses upper layers for detection and therefore performs much worse for small objects.

Modified from source

FPN provides a top-down pathway to construct higher resolution layers from a semantic rich layer.

Reconstruct spatial resolution in the top-down pathway. (Modified from source)

While the reconstructed layers are semantic strong but the locations of objects are not precise after all the downsampling and upsampling. We add lateral connections between reconstructed layers and the corresponding feature maps to help the detector to predict the location betters. It also acts as skip connections to make training easier (similar to what ResNet does).

Add skip connections (Source)

Bottom-up pathway

The bottom-up pathway uses ResNet to construct the bottom-up pathway. It composes of many convolution modules (convi for i equals 1 to 5) each has many convolution layers. As we move up, the spatial dimension is reduced by 1/2 (i.e. double the stride). The output of each convolution module is labeled as Ci and later used in the top-down pathway.

Top-down pathway

We apply a 1 × 1 convolution filter to reduce C5 channel depth to 256-d to create M5. This becomes the first feature map layer used for object prediction.

As we go down the top-down path, we upsample the previous layer by 2 using nearest neighbors upsampling. We again apply a 1 × 1 convolution to the corresponding feature maps in the bottom-up pathway. Then we add them element-wise. We apply a 3 × 3 convolution to all merged layers. This filter reduces the aliasing effect when merged with the upsampled layer.

We repeat the same process for P3 and P2. However, we stop at P2 because the spatial dimension of C1 is too large. Otherwise, it will slow down the process too much. Because we share the same classifier and box regressor of every output feature maps, all pyramid feature maps (P5, P4, P3 and P2) have 256-d output channels.

FPN with RPN

FPN is not an object detector by itself. It is a feature detector that works with object detectors. For example, we extract multiple feature map layers with FPN and feed them into an RPN (an object detector using convolutions and anchors) in detecting objects. RPN applies 3 × 3 convolutions over the feature maps followed by separate 1 × 1 convolution for class predictions and boundary box regression. These 3 × 3 and 1 × 1 convolutional layers are called the RPN head. The same head is applied to all feature maps.

FPN with Fast R-CNN or Faster R-CNN

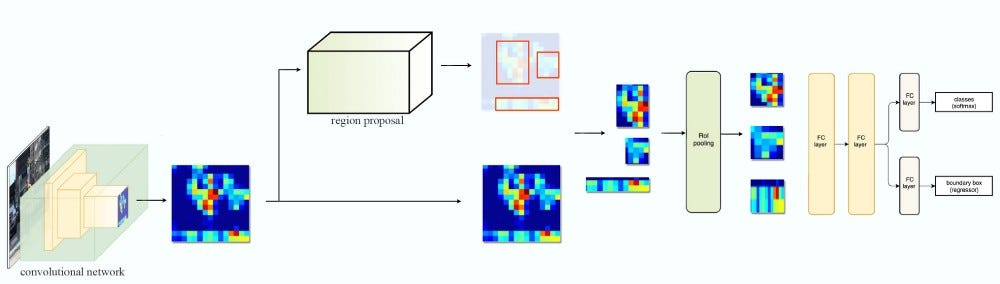

Let’s take a quick look at the Fast R-CNN and Faster R-CNN data flow below. It works with one feature map layer to create ROIs. We use the ROIs and the feature map layer to create feature patches to be fed into the ROI pooling.

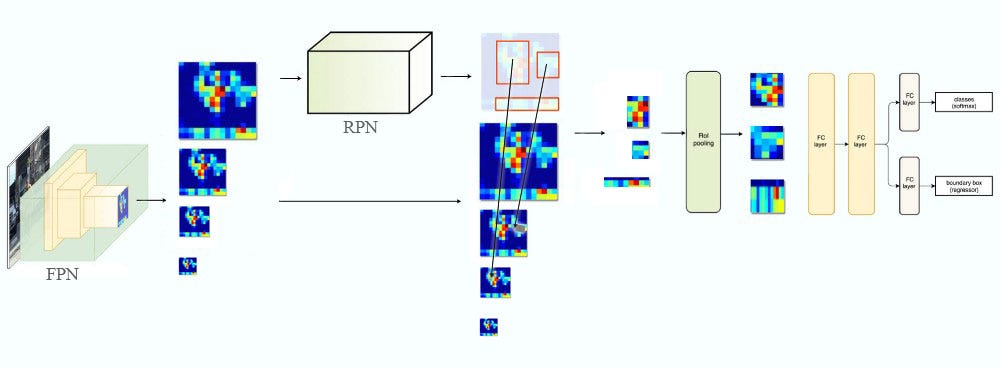

In FPN, we generate a pyramid of feature maps. We apply the RPN (described in the previous section) to generate ROIs. Based on the size of the ROI, we select the feature map layer in the most proper scale to extract the feature patches.

The formula to pick the feature maps is based on the width w and height h of the ROI.

So if k = 3, we select P3 as our feature maps. We apply the ROI pooling and feed the result to the Fast R-CNN head (Fast R-CNN and Faster R-CNN have the same head) to finish the prediction.

Segmentation

Just like Mask R-CNN, FPN is also good at extracting masks for image segmentation. 5 × 5 windows are slide over the feature maps to generate 14 × 14 segments. Later, we merge masks at a different scale to form our final mask predictions.

Source

Results

Placing FPN in RPN improves AR (average recall: the ability to capture objects) to 56.3, an 8.0 points improvement over the RPN baseline. The performance on small objects is increased by a large margin of 12.9 points.

The FPN based Faster R-CNN achieves an inference time of 0.148 second per image on a single NVIDIA M40 GPU for ResNet-50 while the single-scale ResNet-50 baseline runs at 0.32 seconds. Here is the baseline comparison for FPN using Faster R-CNN. (FPN introduces a small extra cost for those extra layers in the FPN, but has a lighter weight head in the FPN implementation.)

FPN is very competitive with state-of-the-art detectors. In fact, it beats the winners for the COCO 2016 and 2015 challenge.

Lessons learned

Here are some lessons learned from the experimental data.

  • Adding more anchors on a single high-resolution feature map layer is not sufficient to improve accuracy.
  • Top-down pathway restores resolution with rich semantic information.
  • But we need lateral connections to add more precise object spatial information back.
  • Top-down pathway plus lateral connections improve accuracy by 8 points on COCO dataset. For small objects, it improves 12.9 points.
