Writing Modular JavaScript — Pt 2

This is part 2 in a series on writing modular JavaScript applications. Part 1 explained why modularity is desirable and presented a simple modular application design structure. In this part we will actually build an application using those principles. In part 3 we will use Gulp, the Node task runner, to prepare our application for deployment.

Update — our greeting module now makes its displayMessage() method public. This change allows our random quote module to call it, rendering both features simultaneously.

Introduction

In this installment we will write a simple application applying the modular design concepts discussed in part 1 of the series. Our application will have multiple features, each controlled by its own module and written as a separate file.

Remember that modular code helps satisfy the design goals we set in part 1: encourage code reuse (modules “plug-in” to projects), enhance code legibility (smaller, more-focused code is easier to make sense of), and facilitate collaboration (modules reveal a standard API for easy interconnection).

The demo application will be simple by design — our goal is to understand the modular design concepts by putting them into practice, not to explore in-depth any features of the JavaScript language. You should have some familiarity with client-side / front-end JavaScript and jQuery. We use jQuery because it simplifies AJAX and DOM manipulation. We will use a few promises and es6 template literals, but nothing too abstract or complex.

Application Features

We are going to build a random quote application. If you’ve worked through Free Code Camp’s front-end curriculum, you have probably already built one. We’ll add a few extra features to ours for additional practice writing and wiring up modules.

Our application will consist of:

  1. a greeting feature that displays a different message based on the time of day
  2. a random background image feature that asynchronously gets an image from a remote service and displays it as our background
  3. a random quote feature that makes an AJAX request to a remote API, processes the response and displays the quote in our view.

Application Structure

We start with a simplified version of the by type structure described in part 1 of this series. We don’t need a /dist folder or anything related to Node just yet — we’ll add those in part 3. Begin by creating a project directory that contains the following files and sub-folders:

|— /src
| |
| |— /css
| |
| |— /js
|
| index.html

Initial Boilerplate

Our index.html will load our separate application and module files and define some "containers" for our feature modules to hook into. For now, we need a basic html5 document with links to a font, our main stylesheet and jQuery, and <div>s for our features.

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
  <title>Modular Random Quote Machine</title>
  <!-- ==================== fonts ===================== -->
<link rel="stylesheet" href="https://fonts.googleapis.com/css?family=Roboto+Condensed">
  <!-- ===================== css ====================== -->
<link rel="stylesheet" href="/src/css/app.css">
</head>
<body>
  <div id="background"></div>
  <div class="container">
<div id="greeting"></div>
<div id="quote"></div>
</div>
  <!-- =============== vendor javascript ================ -->
<script src="https://code.jquery.com/jquery-3.1.1.js"></script>
  <!-- ================ our javascript ================== -->
</body>
</html>

Let’s create our application’s main stylesheet now too. Create a new file app.css in your /src/css/ folder:

/* /src/css/app.css */
html,
body {
margin: 0;
padding: 0;
}
body {
background-color: #222;
color: #fff;
font-family: 'Roboto Condensed', sans-serif;
}
.container {
display: flex;
height: 100vh;
flex-direction: column;
align-items: center;
justify-content: center;
}

Now we can start writing our feature modules.

Random Background Feature

Our application consists of three features, but what about those features — what do they need? You can easily structure your modules by answering that question.

For example, our backgrounds module needs to:

  1. cache DOM elements
  2. asynchronously get an image
  3. assemble an element
  4. render that to the DOM
  5. provide us a way to initialize it

You can convert and use that list of requirement as pseudo code in your module — instant function documentation! Let’s write the module — create a new file background.js in your /src/js/ folder:

/* /src/js/background.js */
var Background = (function() {
  'use strict';
  // placeholder for cached DOM elements
var DOM = {};
  /* =================== private methods ================= */
  // cache DOM elements
function cacheDom() {
DOM.$background = $('#background');
}

  // coordinate async assembly of image element and rendering
function loadImage() {
    var baseUrl = 'https://source.unsplash.com/category',
cat = 'nature',
size = '1920x1080';
    buildElement(`${baseUrl}/${cat}/${size}`)
.then(render);
}

// assemble the image element
function buildElement(source) {
    var deferred = $.Deferred(function (task) {
      var image = new Image();
      image.onload = function () {
task.resolve(image);
};
      image.onerror = function () {
task.reject();
};
      image.src = source;
    });
    return deferred.promise();
}

// render DOM
function render(image) {
    DOM.$background
.append(image)
.css('opacity', 1);
}

  /* =================== public methods ================== */
  // main init method
function init() {
cacheDom();
loadImage();
}

  /* =============== export public methods =============== */
return {
init: init
};
}());

This module appends an <img> to our target <div> once it receives an image from unsplash. There's a bit of promise voodoo going on in there, because getting the image is asynchronous — we can't set an image’s src attribute until we actually have a image! So we have to wait; promises happen to excel at waiting. We'll see them again in the random quote feature.

Now that we have a module, we should load it with a <script> tag in index.html. But our app still won't do anything because we haven't written our app.js. You can manually call Background.init() in your browser’s console, but that’s … um, not the best user experience. Remember: app.js bootstraps our modules. Let's instruct it to do so — create a new file app.js in your /src/js/ folder:

/* /src/js/app.js */
$(document).ready(function () {
  Background.init();
});

That’s it for now — we’ll add more as we complete additional modules. Recap: our app.js has only one job — to call our modules’ public methods once the document has finished loading. At this point, you can launch index.html in your browser and it will fetch and display a random image. Yay — it works! Also boo — it looks like crap! Let's fix that with a bit of CSS.

Just like we are writing separate JavaScript files for each module, we will write separate stylesheets for each feature. This makes it even easier to reuse a whole module —JjavaScript and CSS — in another application. Just copy both files. Don’t forget to <link> to the separate stylesheet(s) in the <head> of your index.html.

Create a new file background.css in your /src/css/ folder:

/* /src/css/background.css */
#background {
position: fixed;
left: 0;
top: 0;
height: 100vh;
width: 100%;
  background-attachment: fixed;
background-position: bottom center;
background-repeat: no-repeat;
background-size: cover;
  opacity: 0;
transition: opacity 0.75s linear;
  z-index: -1;
}
#background > img {
height: 100vh;
width: 100vw;
object-fit: cover;
}

The above CSS positions, sizes and anchors the image on the page, and sets the opacity of the containing <div> to 0 — meaning it will be invisible. The <div> begins life invisible so that our module's render() function can fade-in the background feature using a CSS opacity transition.

It’s a good idea to namespace each selector in your module stylesheets. Otherwise you may accidentally override some other stylesheet’s rules. For example, above we always include our feature’s selector when referring to any child elements: #backgrounds > img. We might have other modules with images, and we wouldn't want our background feature’s rules to affect them.

That wraps up the random background feature — not too bad, right? The other modules follow a similar pattern.

Greeting Feature

Define the module’s requirements — this module needs to:

  1. cache DOM elements
  2. determine the time of day
  3. craft a greeting based on the time of day
  4. render the greeting to our view
  5. provide us some way to initialize it

We’ll add a random name picker for fun. Create new file greeting.js in your /src/js/ folder:

/* /src/js/greeting.js */
var Greeting = (function() {
  var DOM = {},
names = [
'handsome',
'smarty pants',
'good looking',
'classy',
'ace',
'Mr Roboto'
],
dummy = selectName();

  /* =================== private methods ================= */
  // cache DOM elements
function cacheDom() {
DOM.$greeting = $('#greeting');
}

  // pick a name from names array
function selectName() {
var ind = Math.floor(Math.random() * names.length);
    return names[ind];
}

  // assemble time-based greeting message
function makeMessage() {
var timeOfDay,
theDate = new Date(),
theHour = theDate.getHours();
    if (theHour < 12) {
timeOfDay = "morning";
} else if (theHour >= 12 && theHour < 17) {
timeOfDay = "afternoon";
} else {
timeOfDay = "evening";
}
    return `Good ${timeOfDay}, ${dummy}.`;  // :D
}

  // render DOM
function displayMessage() {
DOM.$greeting
.text(makeMessage());
}

  /* =================== public methods ================== */
  // main init method
function init() {
cacheDom();
}

/* =============== export public methods =============== */
return {
init: init,
displayMessage: displayMessage
};
}());

This module crafts a custom greeting using a name from the names array and a specific message that depends on the current time. Our init() method just caches our DOM element. And we export two public methods: init and displayMessage. In a previous version of this article, we called displayMessage within init(). We now publish displayMessage separately because our quotes module needs to call it. This is explained in the Random Quote Feature section below.

Add a <script> tag to index.html for our new module, and include a call to its public init() method in app.js:

/* /src/js/app.js */
$(document).ready(function () {
  Background.init();
Greeting.init();
});

Let’s quickly style our greeting. Add a new file greeting.css to our /src/css/ folder:

/* /src/css/greeting.css */
#greeting {
font-size: 4em;
font-weight: bold;
text-align: center;
text-shadow: 0 0 30px #000;
}

Reload thy browser and be greeted! On to our final feature…

Random Quote Feature

Like we did with our previous modules, begin by defining what this module needs to do:

  1. cache DOM elements
  2. fetch a random quote from a remote API
  3. process the JSON response
  4. call our greeting module’s public Greeting.displayMessage() method
  5. render the quote to the DOM
  6. provide us some way to initialize it
Note: you may have difficulty getting the API to respond if you are not serving your application from a proper server. Both Chrome and Firefox threw up CORS errors when I loaded the static files directly in those browsers. Brackets’ Live Preview works fine. Hosting anywhere (GitHub pages, for example) would also work.

Create a new file quote.js in your /src/js/ folder:

/* /src/js/quote.js */
var Quote = (function () {
  'use strict';
  var DOM = {};

  /* =================== private methods ================= */
  // cache DOM elements
function cacheDom() {
DOM.$quoteFeature = $('#quote');
DOM.$quoteLink = $(document.createElement('a'));
DOM.$author = $(document.createElement('p'));
}

  // get random quote
function getQuote() {
    var api = {
endpoint: 'https://quotesondesign.com/wp-json/posts',
params: {
'filter[orderby]' : 'rand',
'filter[posts_per_page]': 1,
'cachingHack' : (new Date()).getTime()
}
};
    $.getJSON(api.endpoint, api.params)
.then(renderQuote)
.catch(handleError);
}

  // handle errors
function handleError(err) {
console.log(err);
}

  // render
function renderQuote(response) {
    // call Greeting module's public displayMessage() method
Greeting.displayMessage();
    DOM.$quoteLink
.attr('target', '_blank')
.attr('href', response[0].link)
.html(response[0].content);
    DOM.$author
.html(response[0].title);
    DOM.$quoteFeature
.css('background-color', 'rgba(0, 0, 0, .2)')
.attr('href', response[0].link)
.attr('target', '_blank')
.html(DOM.$quoteLink)
.append(DOM.$author);
}
  /* =================== public methods ================== */
function init() {
cacheDom();
getQuote();
}

  /* =============== export public methods =============== */
return {
init: init
};
}());

We use promise syntax again to coordinate the timing of the .getJSON() AJAX response with subsequent function calls. In this case, once the request has successfully resolved, we .render() the quote (wrapped in an anchor tag) and author's name.

In a previous version of this article, our greeting module’s init() method called its own renderer (displayMessage()). Although that works, it results in a diminished user experience: the greeting renders immediately, and then the quote renders after a short delay. This is because the quote module can't render until it receives a quote from the API. We can do better.

Our modular structure makes it easy to improve upon the previous version. We refactored the greeting module above to export its displayMessage() method instead of calling it internally. That allows our quote module (or any other module) to call it. We added that call to renderQuote() so that both features render at the same time.

Special thanks to Chris Coyier for granting permission to use his Quotes on Design API. In addition to curating all those quotes, Chris founded CSS-Tricks and co-founded Codepen.

Add a <script> link for our random quote module to index.html and call the module’s public method in app.js:

$(document).ready(function () {
  Background.init();
Greeting.init();
Quote.init();
});

Almost done — we have one last file to write: the quote module’s stylesheet. Create a new file quote.css in your /src/css/ folder:

/* /src/css/quote.css */
#quote {
font-size: 1.5em;
padding: .5em 1em;
width: 80%;
max-width: 720px;
border-radius: 8px;
text-shadow: 0 0 40px #000;
}
#quote > a {
color: #fff;
text-align: justify;
text-decoration: none;
}
#quote > a:hover {
color: #f33;
}
#quote p {
padding: .25em 0;
margin: 0;
}
#quote > p {
font-style: italic;
text-align: right
}

Add a link to the stylesheet in index.html and we are done. Our final index.html is a well-organized, logical foundation for our application:

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
  <title>Modular Random Quote Machine</title>

<!-- ==================== fonts ===================== -->
<link rel="stylesheet" href="https://fonts.googleapis.com/css?family=Roboto+Condensed">
  <!-- ===================== css ====================== -->
<link rel="stylesheet" href="src/css/background.css">
<link rel="stylesheet" href="src/css/greeting.css">
<link rel="stylesheet" href="src/css/quote.css">
<link rel="stylesheet" href="src/css/app.css">
</head>
<body>
  <div id="background"></div>

<div class="container">
<div id="greeting"></div>
<div id="quote"></div>
</div>
  <!-- =============== vendor javascript ================ -->
<script src="https://code.jquery.com/jquery-3.1.1.js"></script>
  <!-- ================ our javascript ================== -->
<script src="src/js/background.js"></script>
<script src="src/js/greeting.js"></script>
<script src="src/js/quote.js"></script>
<script src="src/js/app.js"></script>

</body>
</html>

Summarizing

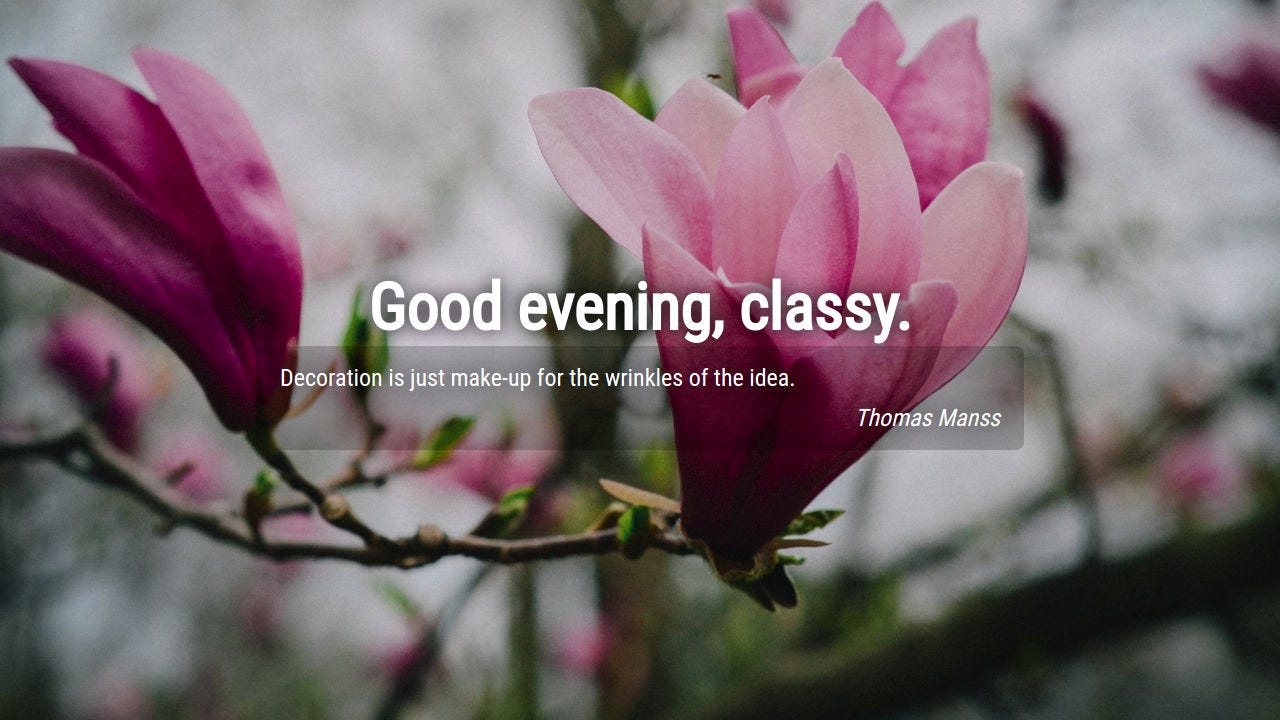

If all went well, your browser should show you something like this:

We wrote a simple web application based on the modular design principles outlined previously. Each feature’s application logic and CSS is contained in separate files, loaded by index.html and bootstrapped by our app.js. We used a systematic requirements-based approach to build each module. Our modules’ public methods are namespaced to avoid collisions in the global scope. Their CSS selectors are similarly namespaced to avoid colliding with any generic selectors.

A live demo of this application is hosted here. The code and markdown versions of the article can be found at the GitHub repo.

At this point our application structure looks like this:

|-- /src
| |
| |-- /css
| | |
| | |-- app.css
| | |-- background.css
| | |-- greeting.css
| | |-- quote.css
| |
| |-- /js
| |
| |-- app.js
| |-- background.js
| |-- greeting.js
| |-- quote.js
|
| index.html

Looking good! Time to collect on all those promised mint juleps.

Up Next: Preparing for Deployment

Our application, modules and stylesheets are working together. But the browser has to make a separate request for each of those eight separate files. While the files themselves are not large, the cumulative latency of all those requests delays application load time. In Part 3 we will prepare our application for deployment using Gulp to concatenate, transpile, and minify our files.
