Ubuntu 19.04 on Lenovo ThinkPad E485

💻 Stop Ubuntu from hanging itself on boot

TLDR: add the parameters:
ivrs_ioapic[32]=00:14.0 spec_store_bypass_disable=prctl
to the Linux kernel command in Grub on the Install Ubuntu option during installation. Ubuntu 19.04 automatically persists these settings in GRUB 🎉

New to Ubuntu? Follow the more thorough steps below!

Lenovo ThinkPad E485

To launch from a Ubuntu Bootable USB, press Enter when the Lenovo logo appears, then choose to select a device to boot from with F12, then select your Bootable USB device to launch.

Installing Ubuntu

The following applies to either launching into a USB Live session of Ubuntu, Try Ubuntu, or running the Install Ubuntu command.

Running either of these commands in their current state will cause the machine to silently error and hang.

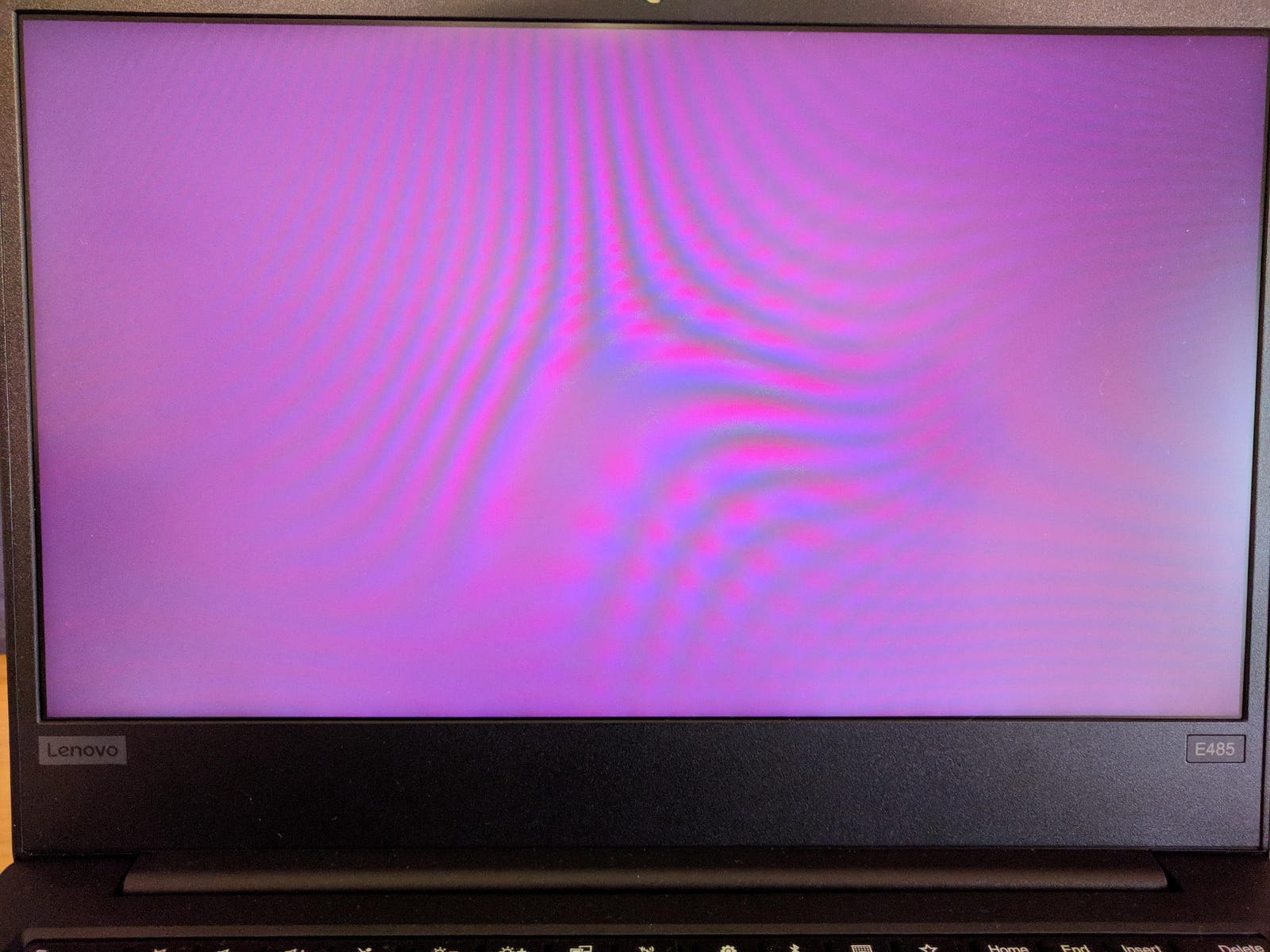

A screen full of Ubuntu aubergine

To fix the issue we must edit the command executed by Grub (Try Ubuntu or Install Ubuntu) Pressing e with the menu item selected will open the command and allow you to edit it.

Add these two parameters at the end of the Linux command:

ivrs_ioapic[32]=00:14.0 spec_store_bypass_disable=prctl

like so:

no screen capture available in the BIOS 😿

You should now be able to install or run the Live session as expected 😄

Unlike 18.04 or 18.10, 19.04 should automatically apply these changes to your GRUB command on the installed OS 🎉 but if you run into issues, try following the Making the changes Permanent section of the Ubuntu 18.04 LTS on Lenovo ThinkPad E485 guide.

Conclusion

As always there are a few hurdles with getting Ubuntu up and running on a mobile device, but it keeps improving with each iteration, kudos to all involved!

Thanks to the work of EvilAzrael over at https://evilazrael.de/ who investigated getting 18.04 working originally.
