FOMO Survival Kit — Case Study

Lara Defayes
Oct 12, 2016 · 4 min read

Project info

FOMO is a new word in our dictionary. But, what does it mean? FOMO stands for “fear of missing out,” a compulsive concern that one might miss something, like an opportunity or satisfying event, which is often aroused by our close relationships with social media websites.

Imagine yourself alone in the wild city, going through a well-deserved digital detox, but you hunger for new social interactions. How can you find the way to the next event planned in your calendar?

The FOMO Survival Kit offers you an urban survival kit that takes you to all the events you intend to go.

Image for post
Image for post

This kit was developed by Lara Defayes at ECAL. It aims to emphasise and make people more aware of this intense, sometimes addicting, relationship that our social life maintains with our social medias.

Case Study

— FOMO Survival Flashlight

Image for post
Image for post

The Flashlight will give you a time countdown. The flashlight will vibrate, flash the number of remaining hours, vibrate a second time, then flash the number of remaining minutes.

How it works

  1. 3D Printed Case
  2. Laser cut plexiglas
  3. 9 LEDs and support, collected from a small flashlight
  4. Haptic Motor Controller
    DRV2605L
  5. PowerBoost 1000 Basic
    5V USB Boost
  6. Lipoly Battery
    400mAh
  7. Transistor
  8. Vibrating Mini Motor Disc
  9. Adafruit Feather 32u4 Bluefruit Low Energy
  10. Small Switch Button
Image for post
Image for post

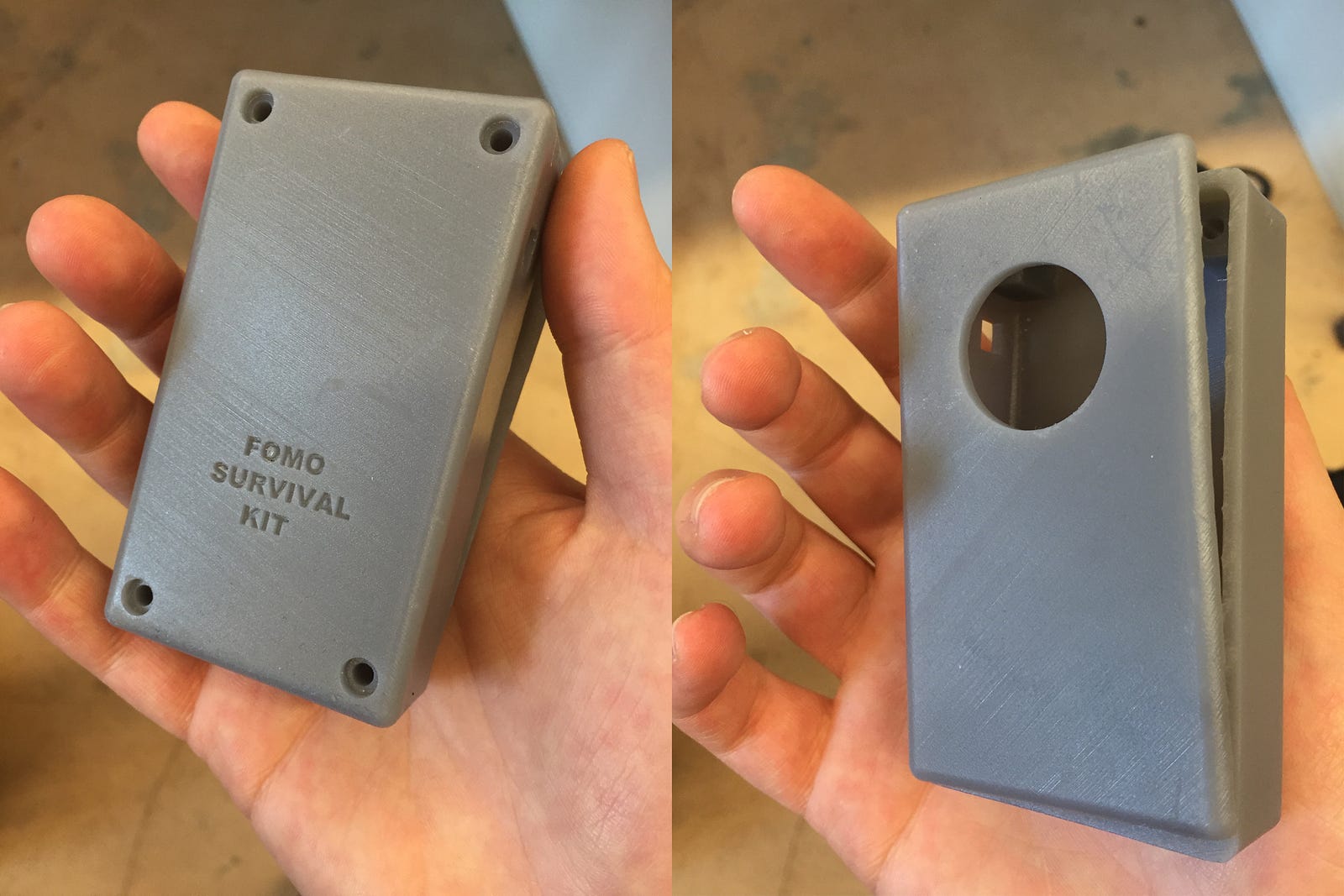

3D printed tests
Image for post
Image for post
flashlight’s electronics without the battery

— FOMO Survival Whistle

Image for post
Image for post

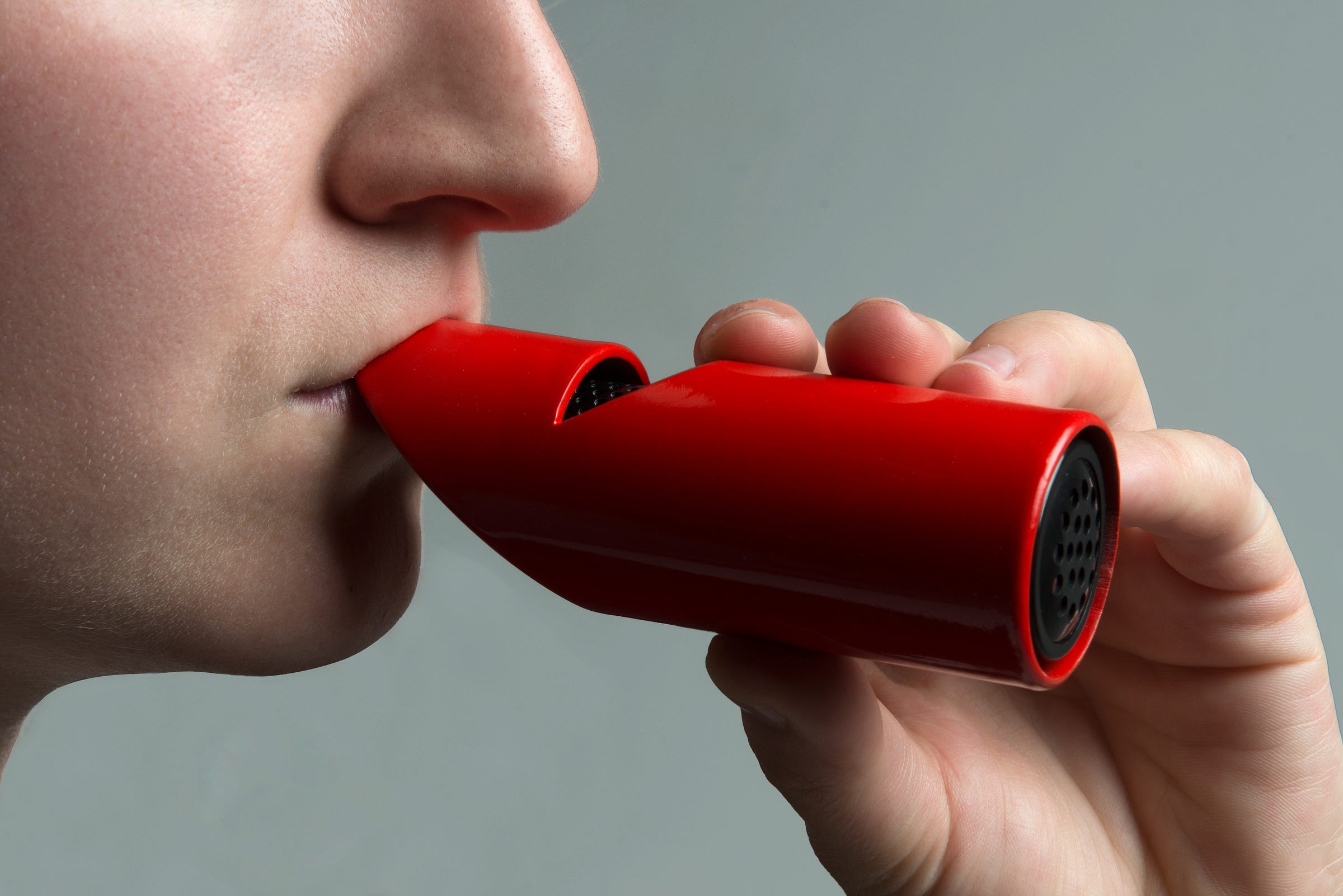

The whistle will give you a list of confirmed guests names. Blowing the whistle (think of it as a desperate call for help) and it will reel off the guest list right out of the whistle.

Image for post
Image for post
FOMO Survival Whistle Components

How it works

  1. 3D Printed Case
  2. Bended aluminium grid to hide inner electronics
  3. Pressure sensor
  4. Adafruit Feather 32u4 Bluefruit Low Energy
  5. Lipoly Battery 400mAh
  6. Emic 2 Text-to-Speech Module
  7. Speaker, PCB Mount
Image for post
Image for post
Shape research with electronics components
Image for post
Image for post

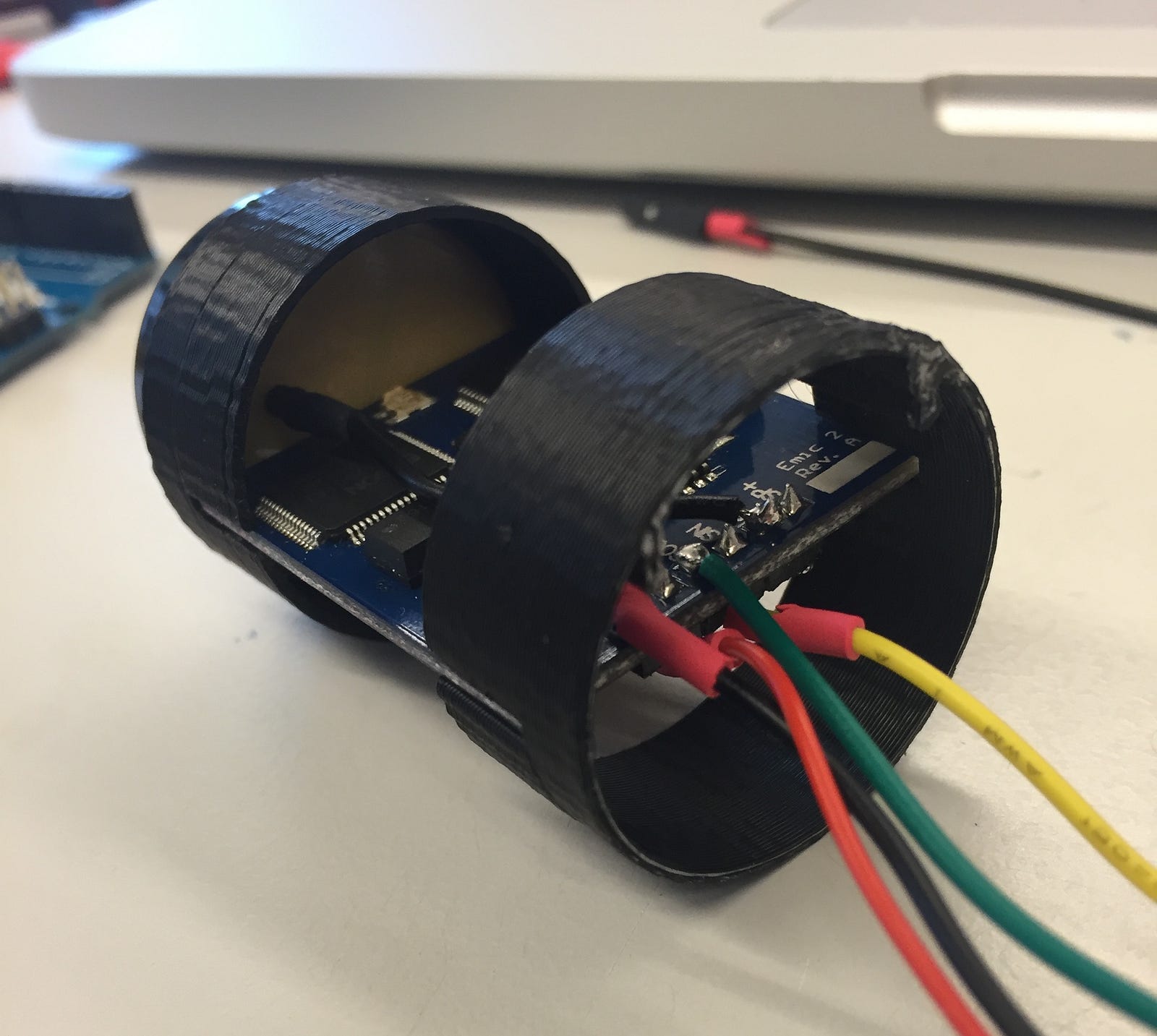

Interior of 3D-printed structure that holds the electronics together

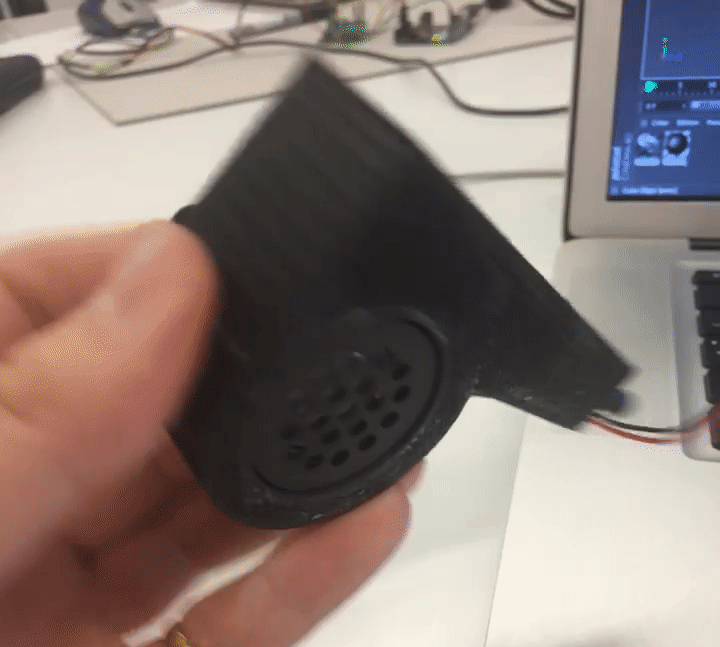

Text-to-speech module testing

— FOMO Survival Compass

Image for post
Image for post

The compass will give you directions. No need to ask a stranger for it, just follow the red arrow which points you to the place of your next planned event.

How it works

  1. 3D Printed Case and arrow
  2. Laser cut plexiglas
  3. Two screws
  4. Small stepper motor
  5. Triple-axis
    Magnetometer Board
  6. Adafruit Feather 32u4 Bluefruit Low Energy
  7. PowerBoost 1000 Basic
    5V USB Boost
  8. L293D
  9. Small Switch Button
  10. Lipoly Battery 400mAh

!! Your Magnetometer needs to be as far as possible from the stepper motor. If it’s too close, it will not work due to magnetic interferences. !!

Image for post
Image for post

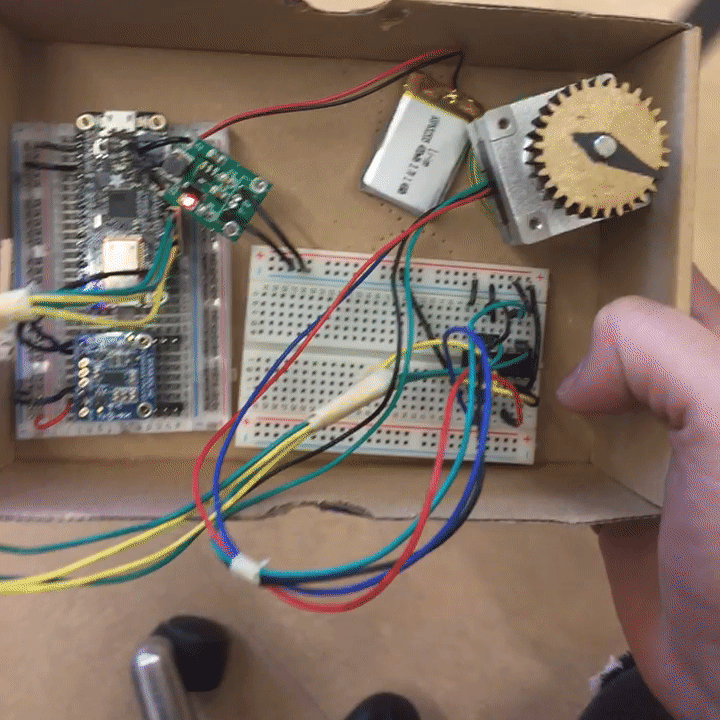

Compass debugging
Image for post
Image for post
Compass assembling

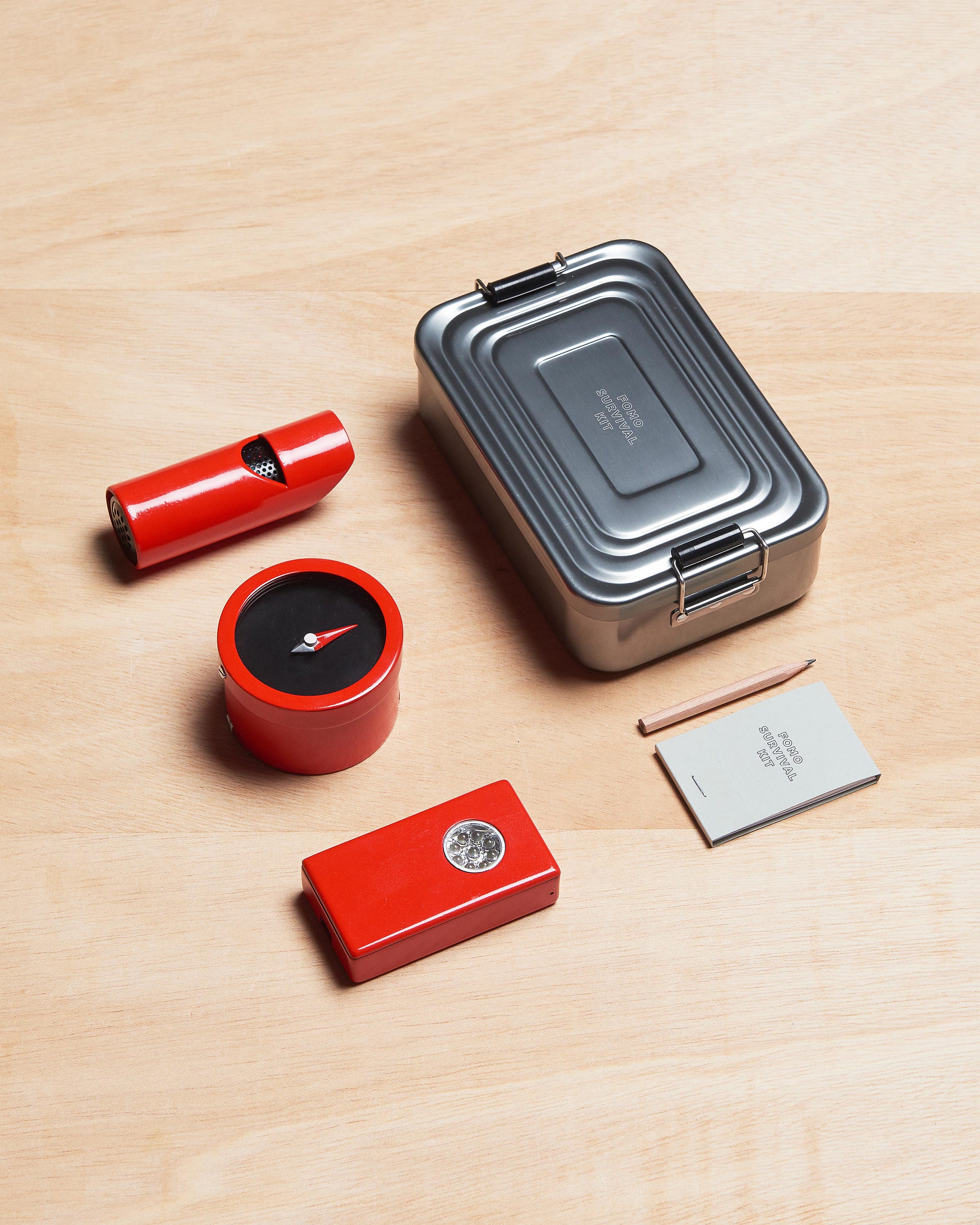

The FOMO Survival box

Image for post
Image for post
You can buy the aluminium box on amazon and laser-graved it afterwards

You can now survive your FOMO peacefully, without missing any social highlights in your life.
