The following page is the instructions for the Light My Bricks Volkswagen Beetle (10252) LED light kit.
To ensure a trouble-free installation of your light kit, please read and follow each step carefully.
If you run into any issues, please refer to the online troubleshooting guide.
To download this instructions guide in PDF format please click here.
Please note: This page lists instructions for the LED light kit only. If you are wishing to purchase the Light My Bricks LEGO Volkswagen Beetle (10252) LED light kit , please click here to view the product page
- 4x White 30cm Bit Lights
- 2x White 15cm Bit Lights
- 1x 8-port Expansion Board
- 1x Flat Battery Pack (2x CR2032 Batteries Required)
- 2x LEGO Trans Red 1x1 plates
Important things to note:
Laying cables in between and underneath bricks
Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing they are laid correctly between the LEGO® studs. Do NOT forcefully join LEGO® together around cables; instead ensure they are laying comfortably in between each stud.
CAUTION: Forcing LEGO® to connect over a cable can result in damaging the cable and light.
Connecting cable connectors to Expansion Boards
Take extra care when inserting connectors to ports of Expansion Boards. Connectors can be inserted only one way. With the expansion board facing up, look for the soldered “=” symbol on the left side of the port. The connector side with the wires exposed should be facing toward the soldered “=” symbol as you insert into the port. If a plug won’t fit easily into a port connector, do not force it.
Incorrectly inserting the connector can can result in bent pins inside the port or possible overheating of the expansion board when connected.
Connecting cable connectors to Strip Lights
Take extra care when inserting connectors to ports on the Strip Lights. Connectors can be inserted only one way. With the Strip Light facing up, ensure the side of the connector with the wires exposed is facing down. If a plug won’t fit easily into a port connector, don’t force it. Doing so will damage the plug and the connector.
Installing Bit Lights under LEGO® bricks and plates.
When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO® studs or in between.
OK, Let’s Begin!
Instructions for installing this kit
1.) We will start with installation of the headlights.

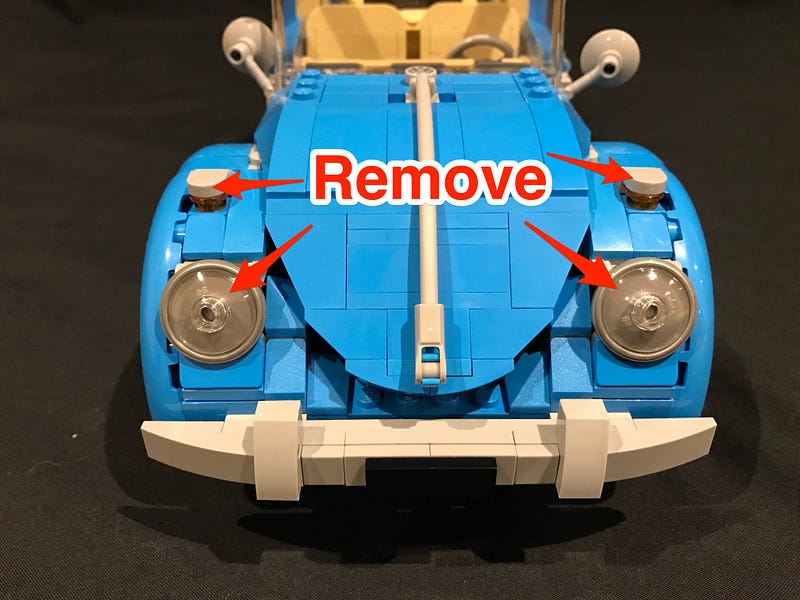

First remove the headlight sections as well as the indicator light sections and then disassemble these sections as per below.

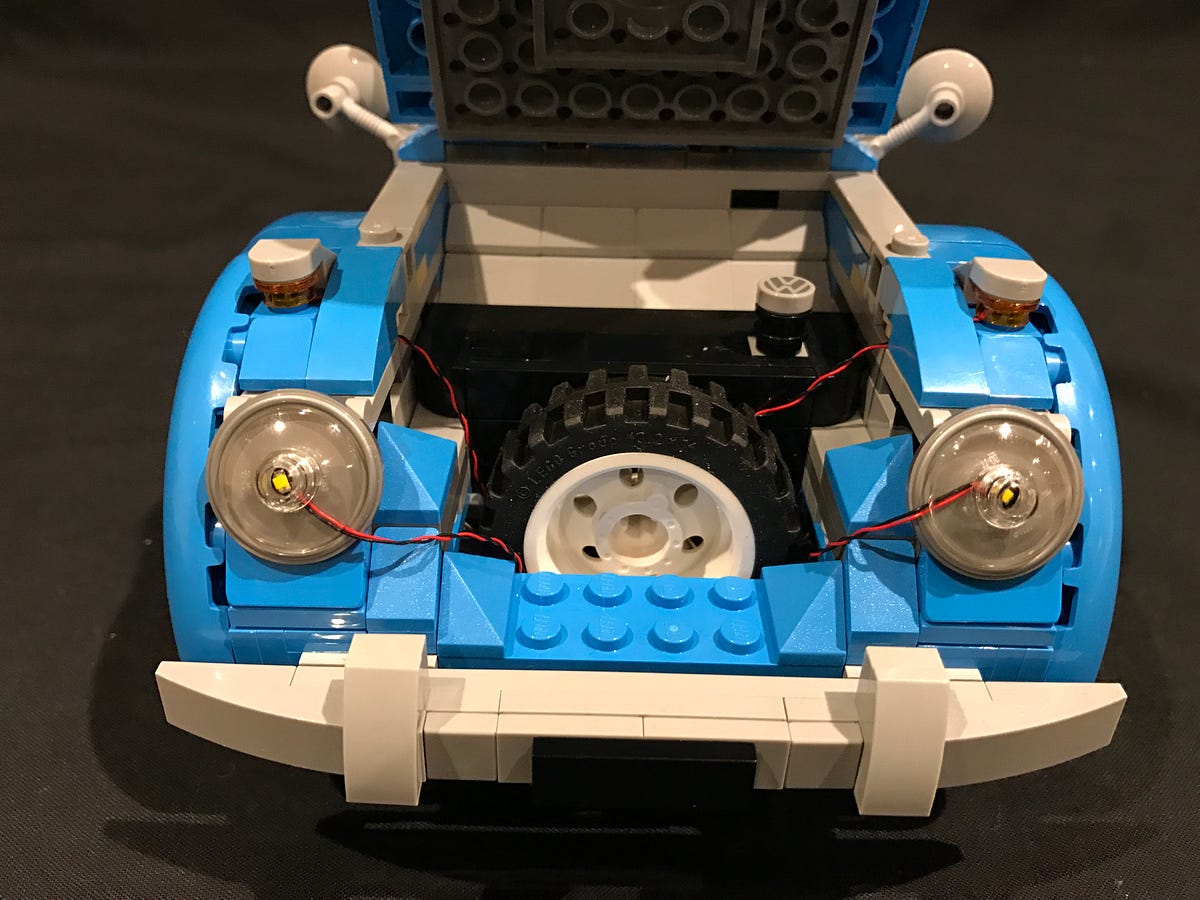

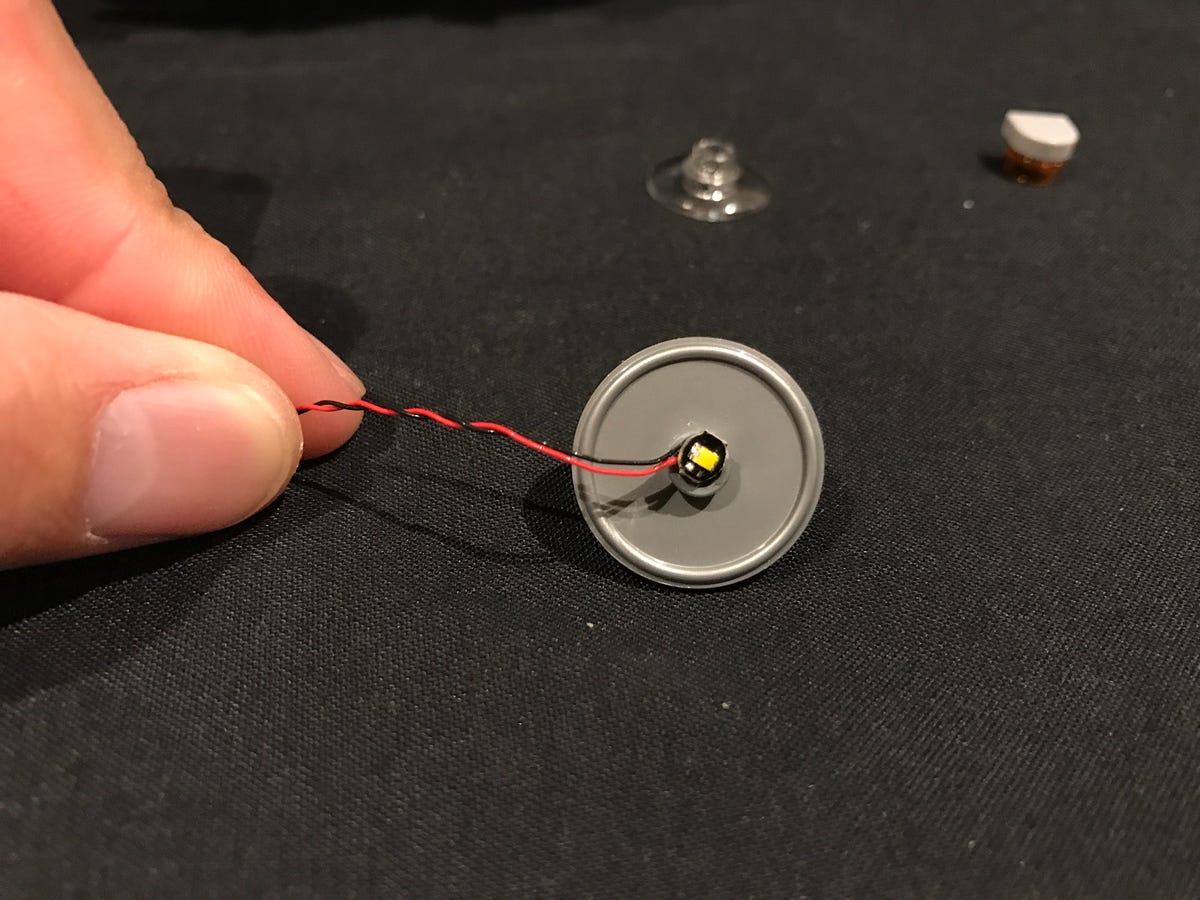

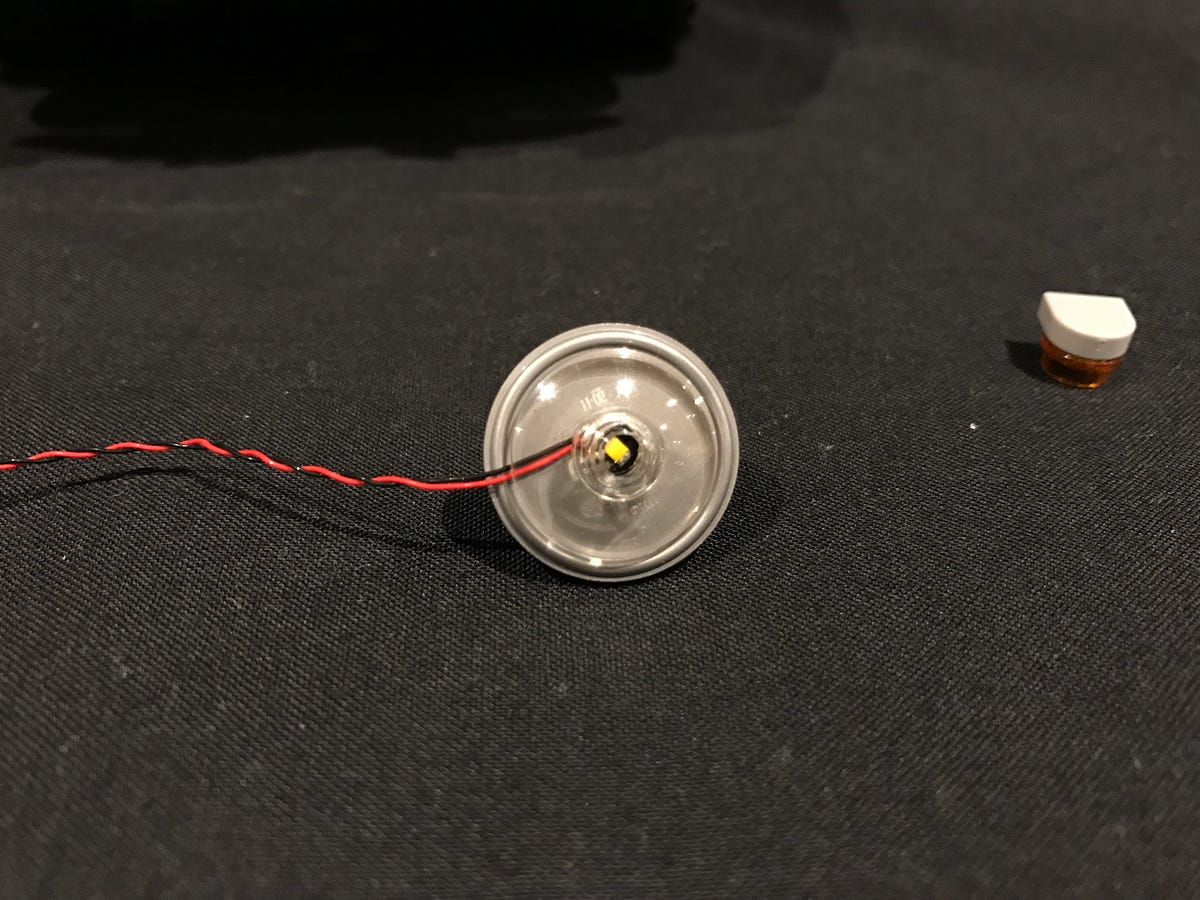

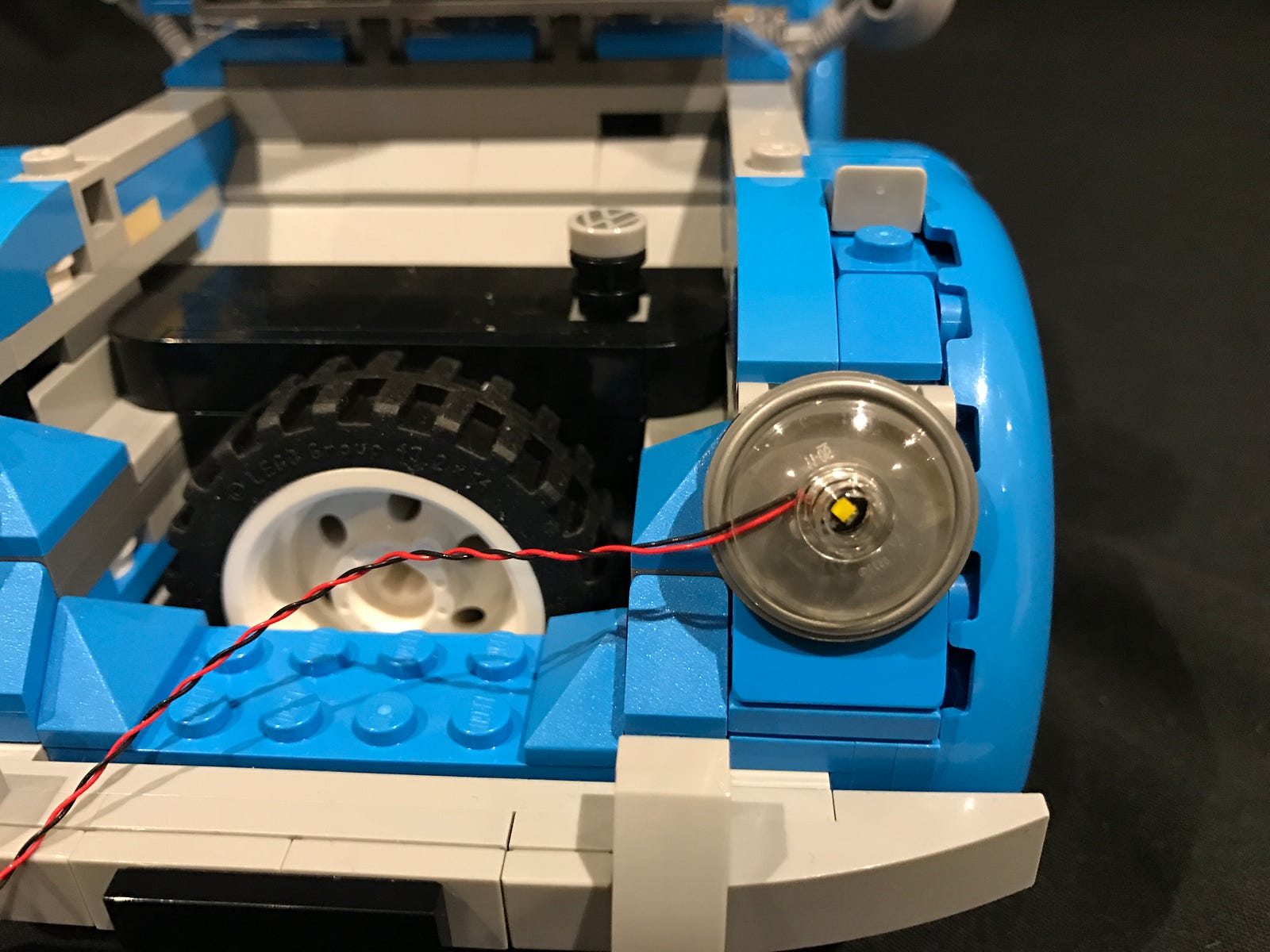

2.) Take one of the bit lights with 30 cm cable and place the LED component part directly over the stud of the headlight. Ensure it is facing the correct way up and then secure it in place by reconnecting the trans dish piece over the top.
Reconnect this section back to the car ensuring the cable is facing inside of the bonnet.
3.) Remove the blue piece next to where the indicator light was and then take another bit light with 30cm cable and place it directly over the blue stud as per below.
Secure the bit light in place by reconnecting the indicator light piece directly over the top, ensuring the cable is facing toward the inside of the bonnet. Reconnect the blue piece we removed earlier ensuring the cable underneath is laid in between studs.
4.) Remove the spare tyre from the inside and then thread the 2 cables down underneath the car. Lift the car up and then using one cable at a time, thread the cable through holes of the LEGO pieces down towards the back of the car.
6.) Repeat the above process to install another 2 bit lights with 30cm cables to the left section of the front of the car.
7.) Place the tyre back inside and then close the bonnet.

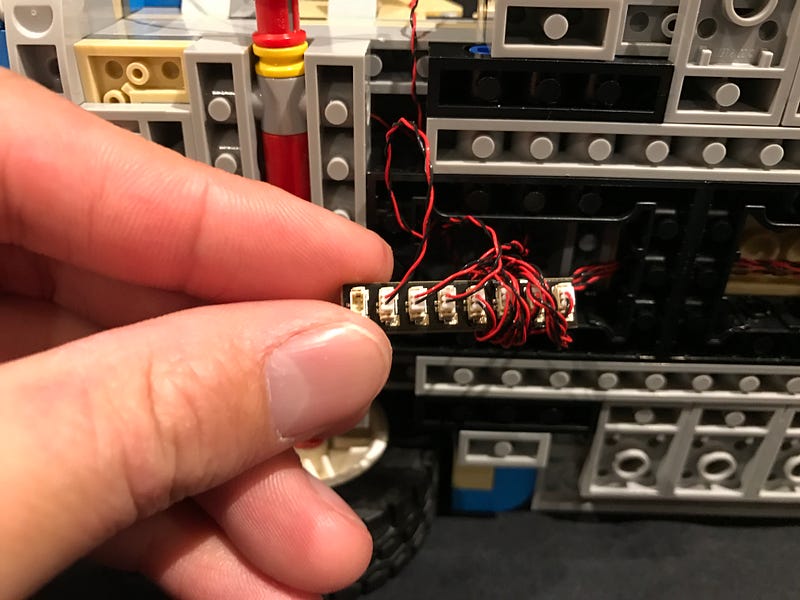

8.) Take all 4 cables from underneath of the car and then connect them to the ports on the 8-port expansion board. To eliminate excess cables, wind the cables around the expansion board.
9.) We will now install the tail lights.

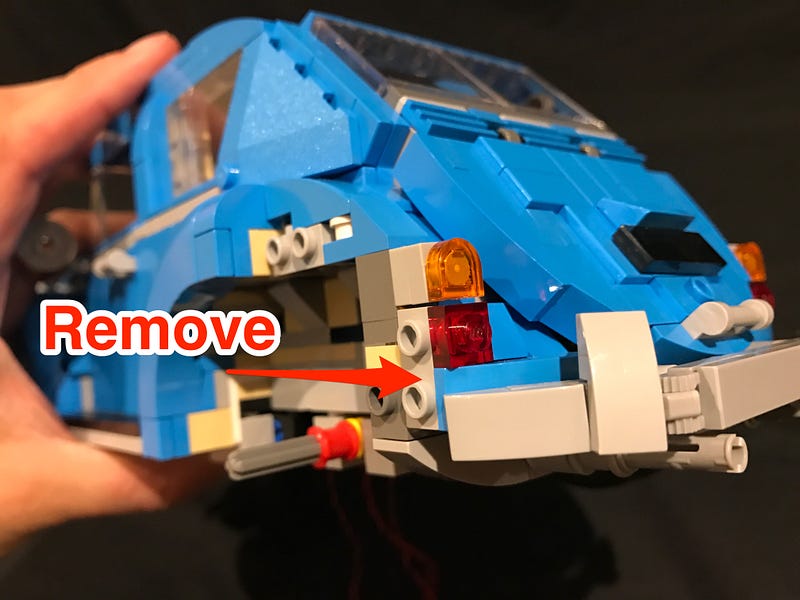

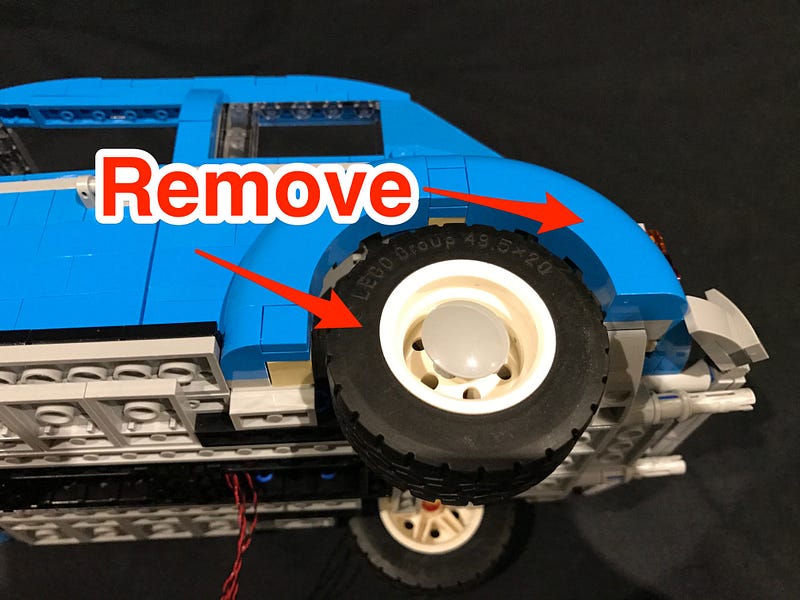

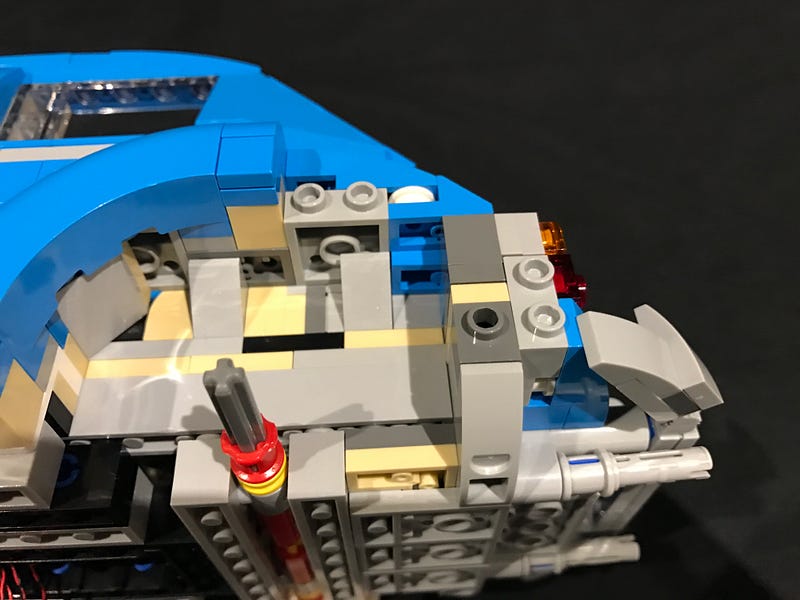

Start by removing the wheel, the blue LEGO piece on the right of the wheel, followed by the tail light section as per below.
10.) Remove the original trans red tile and discard. We are unable to install a bit light underneath this particular tile as it is flat.

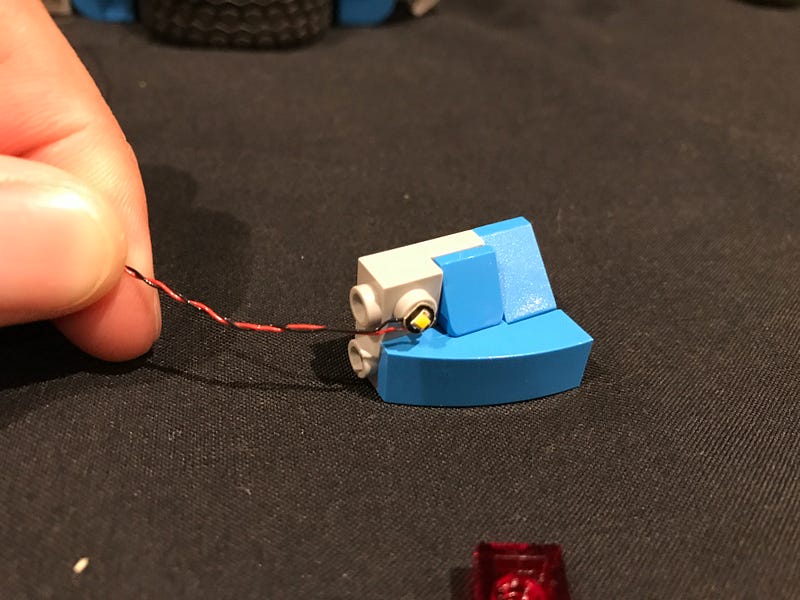

Take one bit light with 15cm cable and place the LED component directly over the top of the grey stud. Ensure the LED component is facing the correct way up and then secure it in place by connecting the trans red 1x1 plate (provided in this kit) directly over the top. Ensure the cable is facing toward the left, as pictured below.

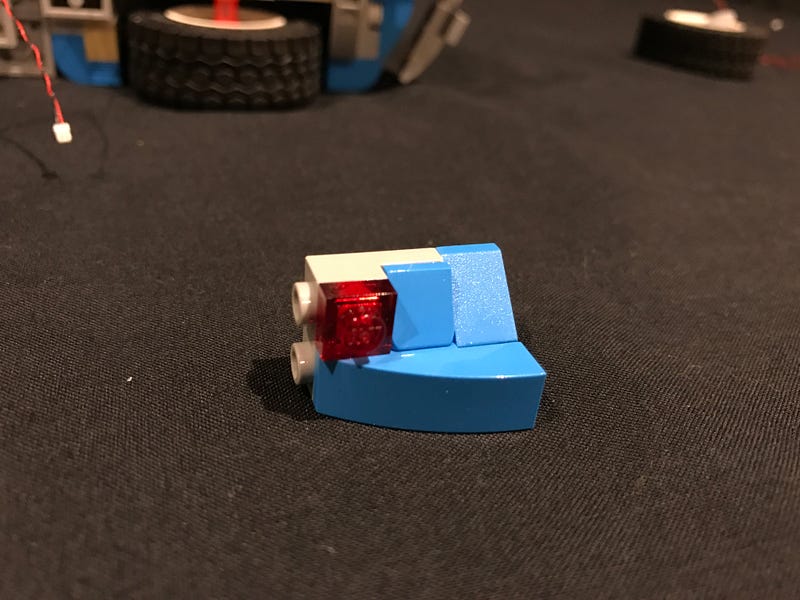

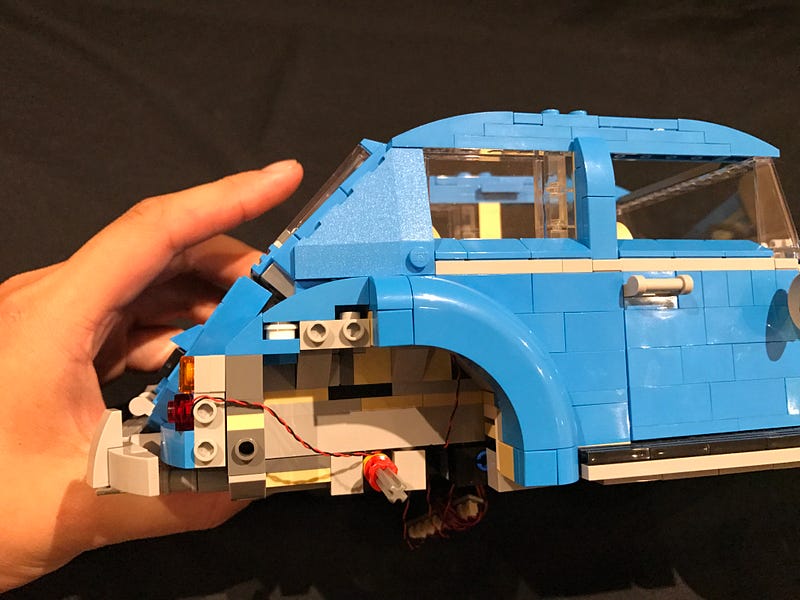

11.) Reconnect this tail light section with bit light installed back to the Beetle.

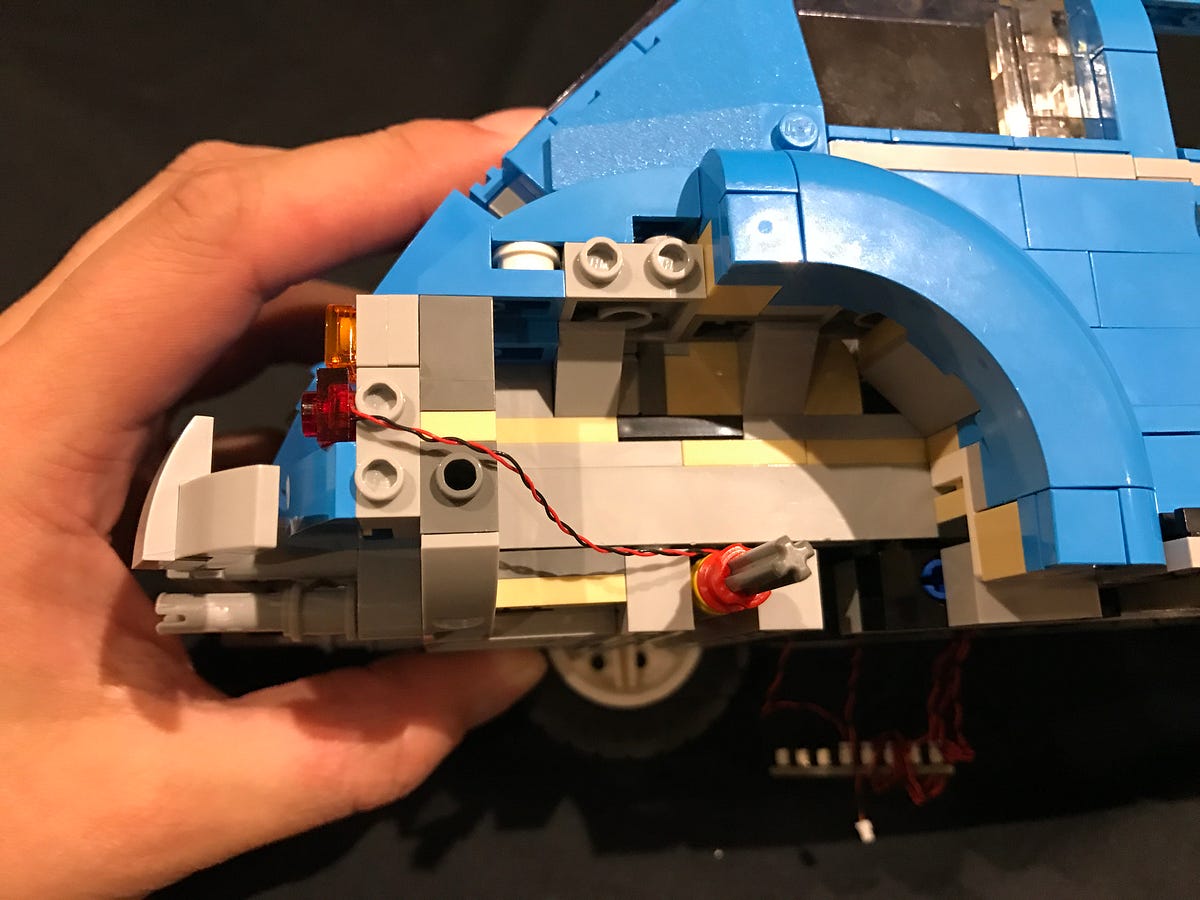

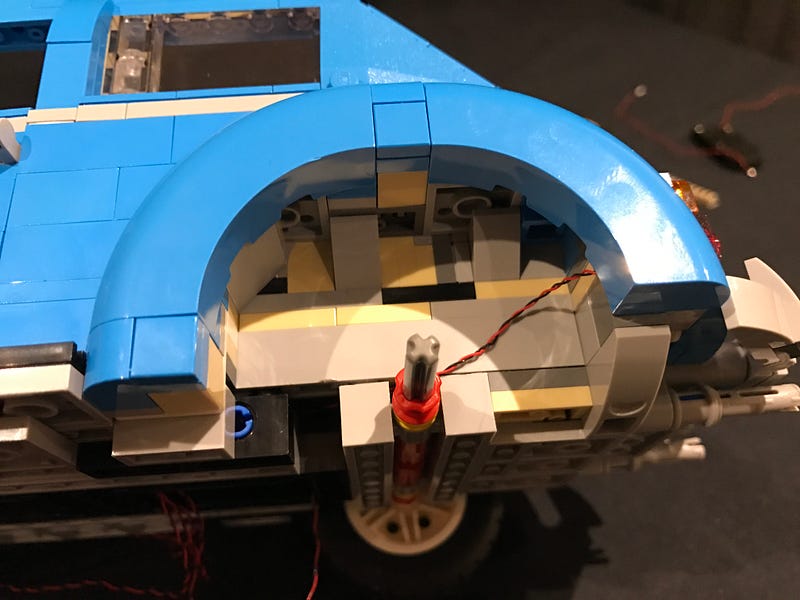

12.) Thread the cable across and then inside the spacing between the black and grey bricks. Lift the grey bricks where the wheel axle is and then secure the cable in place by reconnecting the grey bricks back over the top.
13.) Ensure the cable is laid between studs before then reconnecting the wheel and blue piece on the right of the wheel.

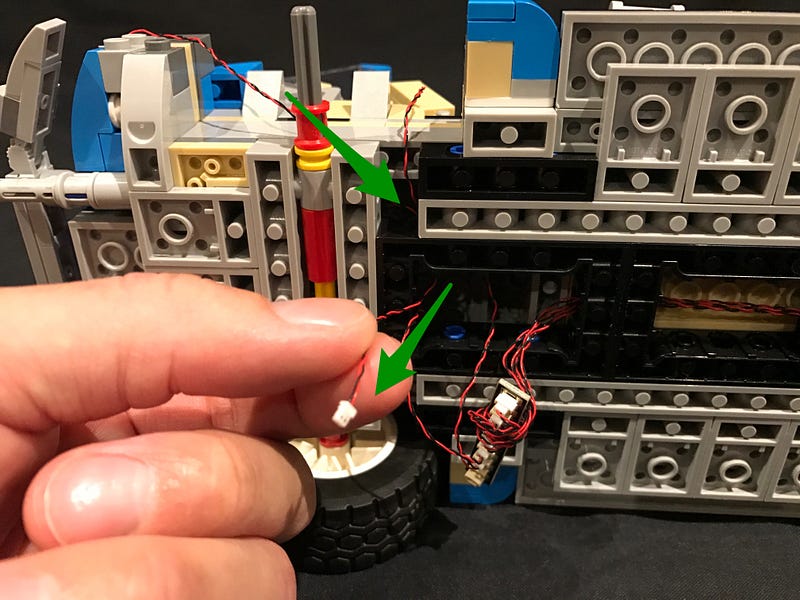

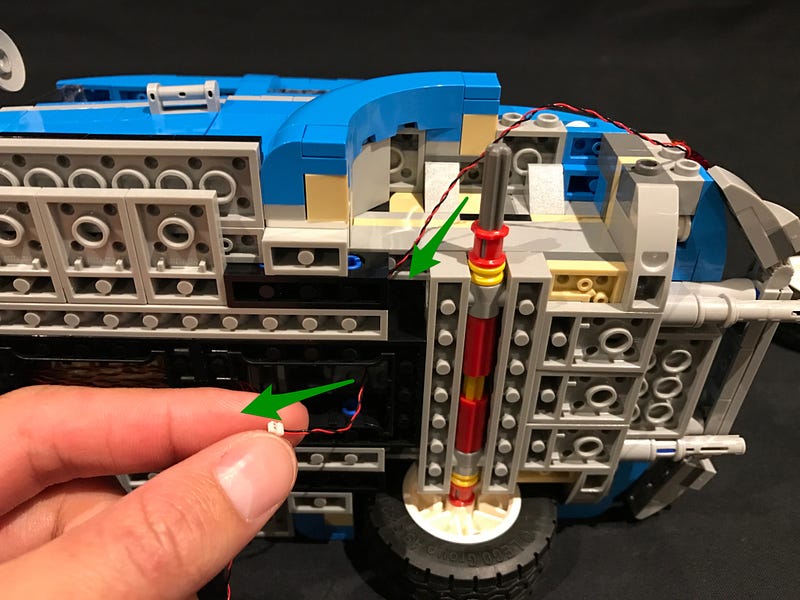

14.) Pull the cable from the tail light down from underneath the car and then connect this to the next available port on the expansion board.
15.) Turn the car over and then follow the previous steps to install another bit light to the right tail light.
16.) Thread the cable underneath the wheel axle like we did for the tail light on the other side, and then connect the cable into the next available port on the expansion board.
17.) Before we reconnect the wheel, remove the following pieces which make up the right back door.

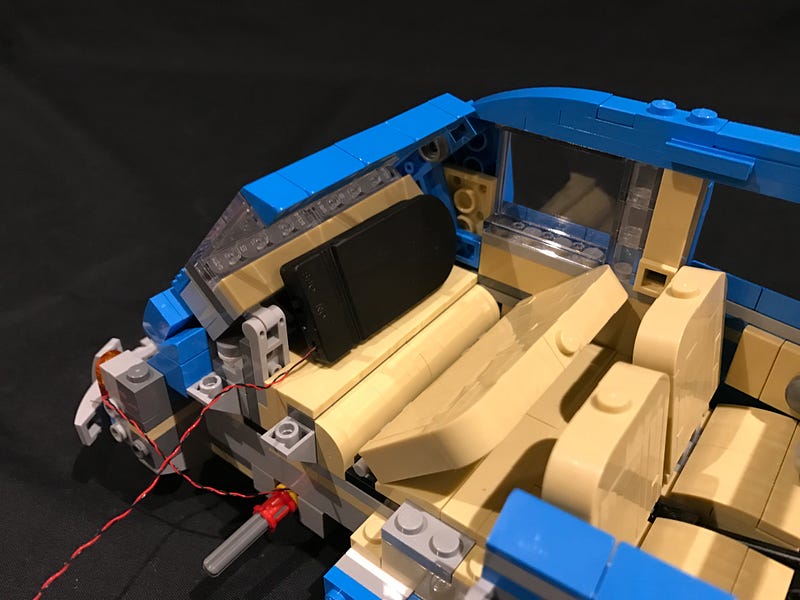

18.) Take the flat battery pack and insert 2x CR2032 batteries to it. Place it behind the back seat in the following position, with the cable facing the same way.
19.) Thread the cable down the side and then underneath the car through the same spacing where we threaded the tail light. Connect the cable to the next available port on the expansion board.
20.) Reconnect the pieces we removed which make up the right back door and then reconnect the wheel and surrounding pieces.
21.) Wind any remaining excess cables around the expansion board and then tuck everything in underneath the car in the following space.

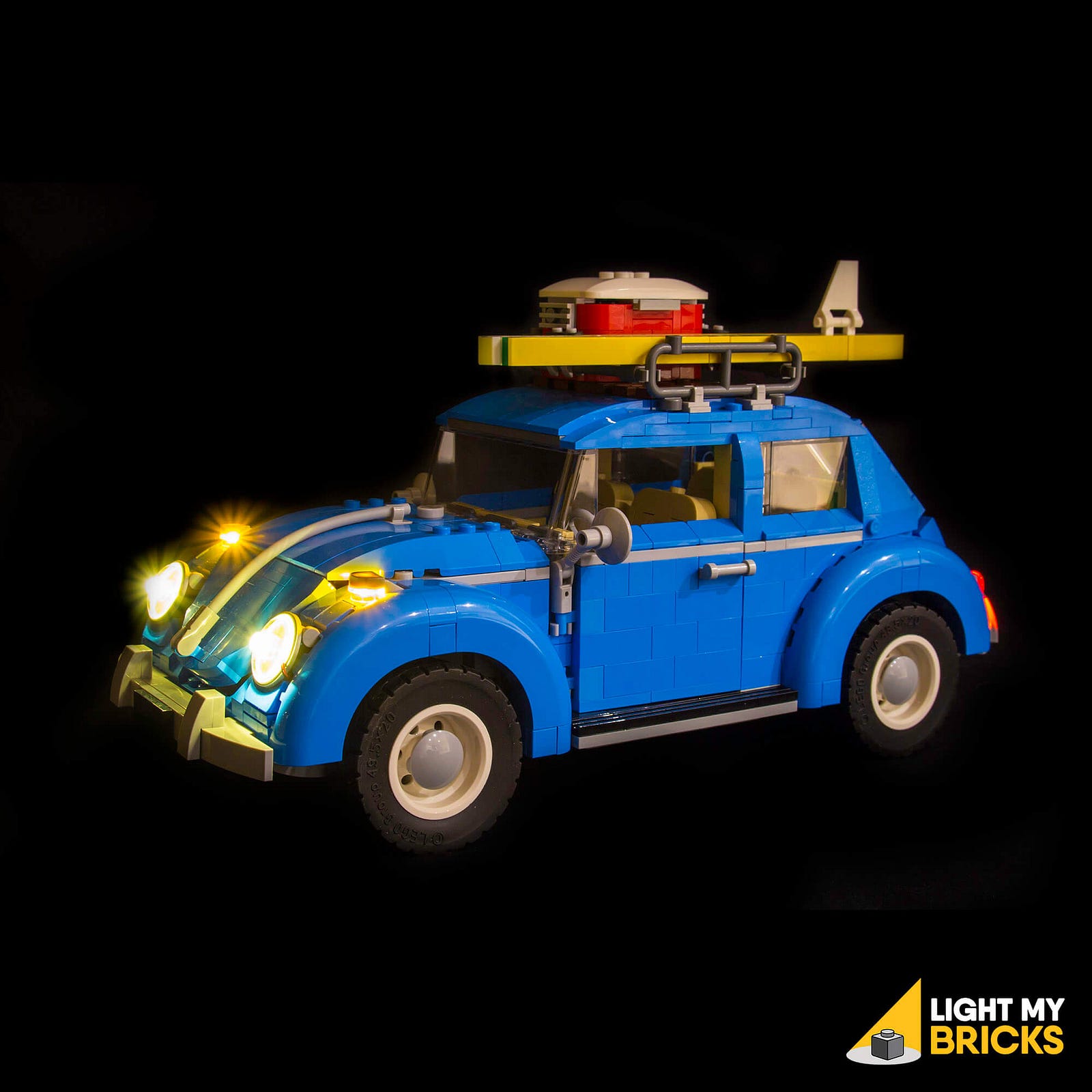

This finally completes installation of the VW Beetle Light Kit. We hope you enjoy your light kit.
