# Conway’s Game of Life in python

*A simple implementation of Conway’s Game of Life in python, with an emphasis on intuitive code and ease rather than efficiency.*

# Cellular automata

A cellular automaton (pl. automata) consists of a grid of **cells**; each cell has a state — either alive or dead.** **I will refer to this grid as the **universe**, though this is non-standard terminology. The automaton then iterates forward in time, with the new state of each cell being decided by a set of rules.

One of the most widely-studied cellular automata is the Game of Life, sometimes just called ‘Life’, which was discovered (or ‘invented’ if you prefer) by John Conway. It is so named because its rules can be interpreted as a very simplistic model of living cells.

Firstly, let us define the the eight grid squares around a cell as its **neighbours.** The rules of Life are then as follows:

- A living cell will survive into the next generation by default, unless:

- it has fewer than two live neighbours (
*underpopulation*). - it has more than three live neighbours (
*overpopulation*).

2. A dead cell will spring to life if it has exactly three live neighbours (*reproduction*).

Clearly, no cells can come to life unless there are already some living cells in the universe (Aquinas’ *primum movens*?). Thus, we have to provide the universe with a **seed**, i.e a set of initial living cells. The massive variety and complexity of the results, often starting from simple seeds, is what makes cellular automata so interesting.

# A python implementation

This is a rough overview of our plan of attack:

- Initialise an empty universe
- Set the seed in the universe
- Determine if a given cell survives to the next iteration, based on its neighbours
- Iterate this survival function over all the cells in the universe
- Iterate steps 3–4 for the desired number of generations

## 1. The universe

I am using numpy arrays to represent the universe, as they are easy to initialise and manipulate. Let us start with a small universe consisting of a six-by-six grid. In our universe, each cell will either be a 1 (alive) or 0 (dead). For now, they are all dead, so we initialise with `np.zeros`

importnumpyasnpuniverse = np.zeros((6, 6))

## 2. The seed

We must now decide on the seed. I will choose a simple oscillator, known as the *beacon*,* *which evolves as follows:

In python, we will set the seed like so:

beacon = [[1, 1, 0, 0], [1, 1, 0, 0], [0, 0, 1, 1], [0, 0, 1, 1]]universe[1:5, 1:5] = beacon

It is worth discussing at this point how we plan on visualising our universe. The easiest solution I have come across is to use matplotlib’s `imshow`

, which outputs a grid of colours corresponding to the value of every entry in an array. Using the `binary`

colourmap, we have:

importmatplotlib.pyplotaspltplt.imshow(universe, cmap='binary') plt.show()

## 3. Survival

We need a function which will do the following:

- Take as arguments the
*x*and*y*coordinates of a cell - Examine the neighbours of this cell
- Decide whether the cell survives
- Write this into a new universe

The last point is rather subtle — we cannot update the cell in place, because this will affect the surrounding cells *in the same iteration*. Instead, we need to compute the survival of every cell based on a snapshot of the current universe, then simultaneously write all of these new cells into our universe. A cheap shortcut is to write the new values into a copy of the universe called `new_universe`

, while leaving `universe`

as a read-only. Then, later on, we can set `universe`

to be equal to `new_universe`

.

I know that the if-else statements can be simplified drastically, like such:

**if **universe[x, y] **and not **2 <= num_neighbours <= 3:
new_universe[x, y] = 0*
***elif **num_neighbours == 3:
new_universe[x, y] = 1

But it is much more intuitive to keep the logic in its ‘expanded’ form, wherein one can clearly see the rules of Life.

**4. Compute one full generation**

This is a simple matter of applying our survival function to every cell in the universe, then setting universe to be equal to new_universe.

## 5. Iterate and animate

There is no point iterating unless we can visualise the changes. To do so, we can simply use matplotlib’s `animation`

module (see some examples here).

Putting it all together, the output is:

# Where to go from here

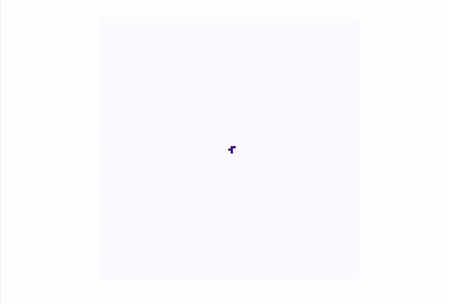

In principle, we are done. Now it is up to you to experiment with different seeds! But I can’t resist one more demonstration, using the *R-pentomino *seed*. *Perhaps you’d expect its behaviour to be vaguely similar to that of the beacon. But the wonderful thing about Life is that the behaviour is unpredictable and intricate.

See for yourself.

*Check out my PyGameofLife repository on **GitHub**, which includes a slightly more professional refactoring with a number of built-in seeds allowing a user to generate gifs from the command line. The R-pentomino animation above can be created very easily:*

`python life.py -seed r_pentomino -n 500 -interval 50`

*You can choose from a number of built in seeds, and change all sorts of parameters (like the colour). Feel free to submit a pull request if you’d like to add more seeds or functionality.*
