Design phase 4

In this design phase is to address the problems from previous phases. One of those problems was the tedious process of selecting each elements. I have eliminates this problems by selecting the selected category instead each elements. The problems still with this process is that the user will still requires to access the dynamo script to select the clash category.

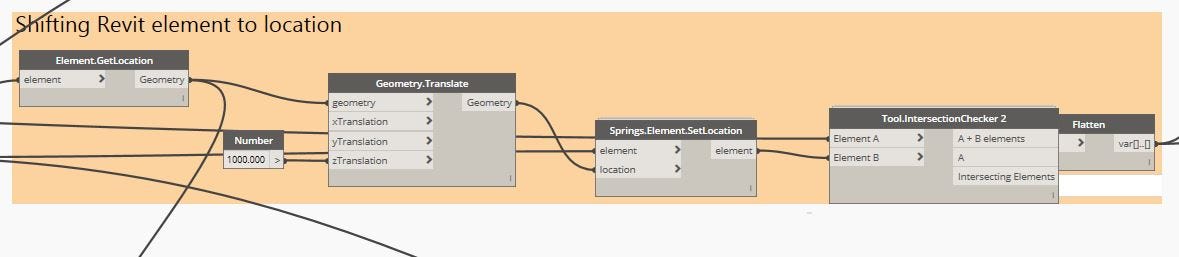

In the previous phase we counter the problem of moving the element in the Revit space without removing its original properties. The Springs.Element.SetLocation nodes allow me to solve those issues.

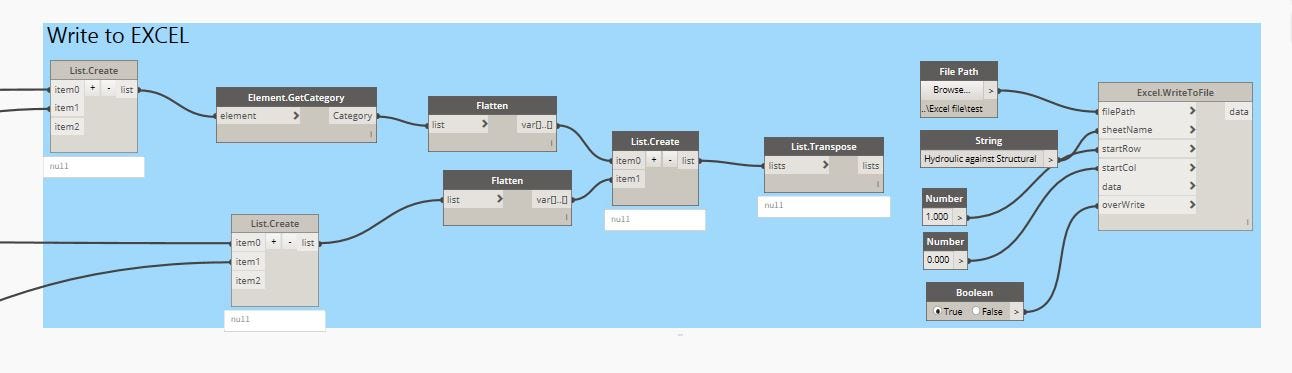

At this stage we are now able to extract the data in to the excel format and flagging the clash elements to prompt the user visually.
