Creating basic underwater effects in Unity

Mukul Khanna
Dec 24, 2017 · 4 min read

CONSTRUCTING THE POOL

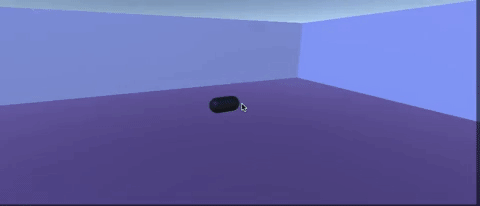

Making a pool with cuboids-1
Making a pool with cuboids-2

ADDING WATER PREFAB

WaterProDaytime prefab for pool water

FOGGY EFFECT

 using UnityEngine;
using System.Collections;

public class Underwater: MonoBehaviour {
public float waterHeight;

private bool isUnderwater;
private Color normalColor;
private Color underwaterColor;

// Use this for initialization
void Start () {
normalColor = new Color (0.5f, 0.5f, 0.5f, 0.5f);
underwaterColor = new Color (0.22f, 0.65f, 0.77f, 0.5f);
}

// Update is called once per frame
void Update () {
if ((transform.position.y < waterHeight) != isUnderwater) {
isUnderwater = transform.position.y < waterHeight;
if (isUnderwater) SetUnderwater ();
if (!isUnderwater) SetNormal ();
}
}

void SetNormal () {
RenderSettings.fogColor = normalColor;
RenderSettings.fogDensity = 0.01f;

}

void SetUnderwater () {
RenderSettings.fogColor = underwaterColor;
RenderSettings.fogDensity = 0.1f;

}
}

GENERATING CAUSTICS

 using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class WaterEffect: MonoBehaviour {

public float fps=30.0f; //footage fps
public Texture2D[] frames; //caustics images

private int frameIndex;
private Projector projector; //Projector GameObject

void Start(){
projector = GetComponent<Projector> ();
NextFrame();
InvokeRepeating (“NextFrame”, 1 / fps, 1 / fps);
}

void NextFrame(){
projector.material.SetTexture (“_ShadowTex”, frames [frameIndex]);
frameIndex = (frameIndex + 1) % frames.Length;
}

}
Loading images into the array

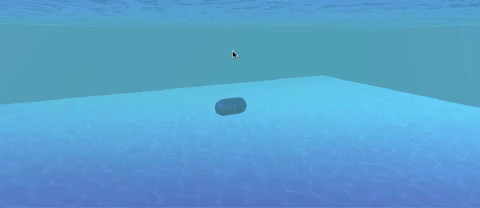

Final underwater appearance
