Using Nerves with Rpi3, wifi and Picam.

Disclaimer: This is a copy/paste of the ReadMe here: https://github.com/pdgonzalez872/nerves_rpi3_wifi_picam. Working code is there if needed, but I suggest you code along and go through the steps.

Introduction:

A friend of mine asked me about a remote device to monitor a physical machine in a production line. We discussed about it being able to gather some data about the performance of the machine, usage and such. I’ve been thinking about this problem off and on for a while and eventually wanted to learn more about Nerves. Maybe this could in fact become a the project my friend and I were talking and we tackle it professionally. The tools do seem to be there and it seems like a great learning experience for me.

This guide is somewhat guided towards beginners in the electronics world. I compiled some notes after looking at Nerves last weekend and during this week. It’s a good exercise to put them together and hopefully someone can benefit from this.

Overall idea:

Use Nerves to set up a local server (avaliable on your network) that streams something you’d like to watch (such as outside traffic, your pets or whatever you’d like) via wifi.

Hardware needed:

Note: You can find the above anywhere, get it where you think is optimal. Try to support Microcenter though! :)

Software needed:

I’m using a Mac, Erlang 20 and Elixir 1.6 Your miles may vary depending on your setup.

Look at the below, do it and come back when you are done:

Important Note:

I’m going to be using the exact commands as I'm using it on my machine. I'll only omit keys/passwords. I find this to be one of the biggest pain points in starting out something you don't know about. Namespace clashes, a typo somewhere, ommitting things that are assumed to be known by everyone. For changes, I will show the output of git diff as I think that's a great way to see what actually was done. I'm not sure that's the best way of displaying differences, but I like it and I'm going to try it here.

Steps and tools:

We are going to use Nerves and incrementally add features to our device. In order:

  • Setup a new project with Nerves
  • Add and configure a basics package that saves us a lot of time by allowing remote updates to the Raspberry Pi (Rpi from now on) and configures the networking (wifi included) on the Rpi. This is the nerves_init_gadget package.
  • Deploy the app and connect to it’s BEAM node through another node (one on our machine). This doesn’t really set us toward our main goal, but I think it is a good way to learn more about OTP.
  • Add and configure Picam. We will first take a picture and make sure things are working correctly.
  • Add a server layer with Plug. We will leverage the example and add it to our project.

Step — Setting up project

Go to a folder of choice in your machine and run:

mix nerves.new nerves_rpi3_wifi_picam
cd nerves_rpi3_wifi_picam

Type y when prompted to fetch dependencies.

Step — nerves_init_gadget

One thing that I had already setup before but can see how it may trip some folks up is generating an authorized key to make it more secure to talk to our Rpi over the network. So if you have not set that up yet, do it. This is what I used to have mine setup: https://help.github.com/articles/generating-a-new-ssh-key-and-adding-it-to-the-ssh-agent/

Then, follow the installation steps from the readme. :nerves_network is a dependency here and we set both up below. Here are the files changes and their diffs:

## mix.exs
diff --git a/mix.exs b/mix.exs
defp deps(target) do
[
- {:nerves_runtime, "~> 0.4"}
+ {:nerves_runtime, "~> 0.4"},
+ {:nerves_init_gadget, "~> 0.3"}
] ++ system(target)
end
## config/config.exs
diff --git a/config/config.exs b/config/config.exs
config :shoehorn,
- init: [:nerves_runtime],
+ init: [:nerves_runtime, :nerves_init_gadget],
app: Mix.Project.config()[:app]
+config :logger, backends: [RingLogger]
+
+config :nerves_firmware_ssh,
+ authorized_keys: [
+ File.read!(Path.join(System.user_home!, ".ssh/id_rsa.pub"))
+ ]
+
+config :logger, backends: [RingLogger]
+
+config :nerves_rpi3_wifi_picam, interface: :wlan0, port: 4001
+
+config :nerves_init_gadget,
+ node_name: :target01,
+ mdns_domain: "nerves.local",
+ address_method: :dhcp,
+ ifname: "wlan0"
+
+key_mgmt = System.get_env("NERVES_NETWORK_KEY_MGMT") || "WPA-PSK"
+
+config :nerves_network, :default,
+ wlan0: [
+ ssid: System.get_env("NERVES_NETWORK_SSID"),
+ psk: System.get_env("NERVES_NETWORK_PSK"),
+ key_mgmt: String.to_atom(key_mgmt)
+ ],
+ eth0: [
+ ipv4_address_method: :dhcp
+ ]

We are about ready to burn the firmware on the mini SD card (SD card from now on). Before doing so, flash the SD card. On my Mac, I went to Disk Utility, selected the SD card on the left and clicked "Erase". Here are more details on that: https://www.youtube.com/watch?v=UmIanMx1HDM

Get the SD card and (its converter) and insert it in the computer.

Now, we can run these commands in succession:

export NERVES_NETWORK_SSID=ButlerKasey
export NERVES_NETWORK_PSK=your_network_password
export MIX_TARGET=rpi3
mix deps.get
mix firmware

Note:

  • the NERVES_NETWORK_SSID is your wifi network name. In my case, ButlerKasey, my cat and dog. :)
  • Make sure to replace the your_network_password with your password.

If success, run:

mix firmware.burn

It will ask you to confirm the SD card it found, type y and then my machine also prompted me for my login password.

Once burned, eject the SD card, place it in the device and wait a couple of minutes.

Now, we should be in a great spot, because we should be able to push changes to the device remotely. No more physically burning the SD card. I personally find this mind blowing, I hope you do too.

When we set up nerves_init_gadget, we also set a couple of options that are going to be useful now: node_name and mdns_domain. These combined are used for setting up the device on the network. Instead of using its ip, you can use its name -> target01@nerves.local

Making sure things are connected with OTP:

Open up the project and see which cookie it created for this specific project. It will be in rel/vm.args. It will be different for your project.

# in the rel/vm.args file:
-setcookie 1N1T5csB6k6gHtX47aQX4eZL07xEDknMK0JmOi42q67rhMyxMguQsV02ST/lsjoj

Use that cookie and run the below in a separate terminal instance in your computer. This will create a named node in the VM network and pass it the cookie we need to connect to our target node.

iex --name host@0.0.0.0 --cookie "1N1T5csB6k6gHtX47aQX4eZL07xEDknMK0JmOi42q67rhMyxMguQsV02ST/lsjoj"

You will get an IEx shell and you are in Elixir land. Now, we connect the nodes by running the below inside the IEx shell:

Interactive Elixir (1.6.0) - press Ctrl+C to exit (type h() ENTER for help)
iex(host@0.0.0.0)1> Node.connect(:"target01@nerves.local")
true
iex(host@0.0.0.0)2> Node.list
[:"target01@nerves.local"]
iex(host@0.0.0.0)3> :rpc.call(:"target01@nerves.local", NervesRpi3WifiPicam, :hello, [])
:world

Please note that the rpc function call was made on the host but it was computed in the target! We can be sure of that because our IEx session on the host is a simple one, meaning it doesn't know about the NervesRpi3WifiPicam project at all.

If you have an HDMI cable and a keyboard/mouse setup, do the connection exercise above when connected to a monitor/tv. You will see that when you connect to the target, you can do Node.list on the target and it will list the hostnode. This is pretty awesome.

Push changes to the device remotely:

Now that our target is online, we can push changes to the device remotely. Try it. Edit the NervesRpi3WifiPicam.hello/0function in nerves_rpi3_wifi_picam/lib/nerves_rpi3_wifi_picam.ex to return "not world" and run the below:

export NERVES_NETWORK_SSID=ButlerKasey && export NERVES_NETWORK_PSK=your_network_password && export MIX_TARGET=rpi3 && mix firmware && mix firmware.push nerves.local

The gotcha for me here was the argument of mix firmware.push, which in our case is nerves.local. Not the full name.

Wait a little bit, go back to the connected IEx session and try Node.connect(:"target01@nerves.local"). It will return true when you are connected. To confirm your changes, and call

:rpc.call(:"target01@nerves.local", NervesRpi3WifiPicam, :hello, [])

We should get “not world”. Try it.

Use ssh to connect to the device:

We can also SSH into the device. Folks are working on doing this in a simpler way on the Nerves side, but here we see an alternative: link

We can run:

ssh -p 8989 target01@nerves.local

If prompted about authenticity, type yes. We have access to the Erlang shell. In order to get the Elixir shell, run:

'Elixir.IEx':start().

One thing I found was to disconned the session I closed my terminal instance. If I did not, I had issues pushing changes to the target as @ConnorRigby mentioned I would.

So, this is a neat feature, but not quite necessary for my needs yet.

Step — Picam

Now that we can push changes, lets integrate Picam using a library in Elixir. The changes to our project are:

# mix.exs
diff --git a/mix.exs b/mix.exs
defp deps(target) do
[
{:nerves_runtime, "~> 0.4"},
- {:nerves_init_gadget, "~> 0.3"}
+ {:nerves_init_gadget, "~> 0.3"},
+ {:picam, "~> 0.2.0"}
] ++ system(target)
end
# lib/nerves_rpi3_wifi_picam.ex
+  def take_and_read_picture() do
+ Picam.Camera.start_link
+
+ Picam.next_frame
+ |> Base.encode64()
+ |> IO.puts()
+ end

My goal here was to make sure Picam was working correctly. So, I wanted to take a picture and see that it worked. Turns out that the best way of doing that is a hack Connor Rigby told me about: We can take a picture with Picam, create a base 64 string from it and and pipe that to IO.puts(). We can access that through ssh, take the string and convert it to an image with https://codebeautify.org/base64-to-image-converter#

Haha!

To make this work, do: Push new changes to the device, assert that the device is up, ssh into it, start an IEx process and call the function we created:

# Here is the flow
~ :> ssh -p 8989 target01@nerves.local
Eshell V9.3 (abort with ^G)
(target01@nerves.local)1> 'Elixir.IEx':start().
<0.501.0>
Interactive Elixir (1.6.0) - press Ctrl+C to exit (type h() ENTER for help)
iex(target01@nerves.local)1> NervesRpi3WifiPicam.take_and_read_picture()
.
. long string here, copy it to your clipboard
.

We now have a picture. Now that our camera works, we will start to work on getting the camera to stream and displaying that on a browser. There is an example on the Picam repo that shows exactly what to do. We will integrate those changes to our project. As usual, we will go step by step, starting with integration a web layer to our project.

Step — Server layer using Cowboy and Plug

We will use Cowboy to create an HTTP server and use Plug to connect and interact with Cowboy. There was a great article about Plug this last week: https://www.pompecki.com/post/plugs-demystified/. To add Plug and Cowboy to our system, do:

# mix.exs
diff --git a/mix.exs b/mix.exs
- {:picam, "~> 0.2.0"}
+ {:picam, "~> 0.2.0"},
+ {:cowboy, "~> 1.0.0"},
+ {:plug, "~> 1.0"}
] ++ system(target)
# edit lib/nerves_rpi3_wifi_picam/application.ex
def children(_target) do
[
- # Starts a worker by calling: NervesRpi3WifiPicam.Worker.start_link(arg)
- # {NervesRpi3WifiPicam.Worker, arg},
+ Plug.Adapters.Cowboy.child_spec(scheme: :http, plug: NervesRpi3WifiPicam.Router, options: [port: 4001])
]
end
end
# create lib/router.ex
+defmodule NervesRpi3WifiPicam.Router do
+ use Plug.Router
+
+ plug :match
+ plug :dispatch
+
+ get "/" do
+ markup = """
+ <html>
+ <head>
+ <title>Picam Video Stream</title>
+ </head>
+ <body>
+ <p>Hi!</>
+ </body>
+ </html>
+ """
+ conn
+ |> put_resp_header("Content-Type", "text/html")
+ |> send_resp(200, markup)
+ end
+end

Deploy the changes to the device, make sure it is up and visit: http://nerves.local:4001/. We should see Hi rendered back to us.

Step — Picam streamer

Now that we have a working server, let’s finish the exercise by adding the streaming feature with Picam. Again, we go back to the existing example in the Picam repo (see above for link) and create the Streamer exactly as the example has:

# edit lib/nerves_rpi3_wifi_picam/application.ex
# to start the Picam process
+    Picam.Camera.start_link
opts = [strategy: :one_for_one, name: NervesRpi3WifiPicam.Supervisor]
Supervisor.start_link(children(@target), opts)
end
# edit lib/router.ex
# to forward requests to the streamer
     |> put_resp_header("Content-Type", "text/html")
|> send_resp(200, markup)
end
+
+ forward "/video.mjpg", to: NervesRpi3WifiPicam.Streamer
end
# create streamer.ex
+defmodule NervesRpi3WifiPicam.Streamer do
+ @moduledoc """
+ Plug for streaming an image
+ """
+ import Plug.Conn
+
+ @behaviour Plug
+ @boundary "w58EW1cEpjzydSCq"
+
+ def init(opts), do: opts
+
+ def call(conn, _opts) do
+ conn
+ |> put_resp_header("Age", "0")
+ |> put_resp_header("Cache-Control", "no-cache, private")
+ |> put_resp_header("Pragma", "no-cache")
+ |> put_resp_header("Content-Type", "multipart/x-mixed-replace; boundary=#{@boundary}")
+ |> send_chunked(200)
+ |> send_pictures
+ end
+
+ defp send_pictures(conn) do
+ send_picture(conn)
+ send_pictures(conn)
+ end
+
+ defp send_picture(conn) do
+ jpg = Picam.next_frame
+ size = byte_size(jpg)
+ header = "------#{@boundary}\r\nContent-Type: image/jpeg\r\nContent-length: #{size}\r\n\r\n"
+ footer = "\r\n"
+ with {:ok, conn} <- chunk(conn, header),
+ {:ok, conn} <- chunk(conn, jpg),
+ {:ok, conn} <- chunk(conn, footer),
+ do: conn
+ end
+end
# edit lib/router.exs
# to put it all together, display the video
<body>
- <p>Hi!</>
+ <img src="video.mjpg" />
</body>

Cool! Deploy… and verify the url! Neat right?

Here are some pictures:

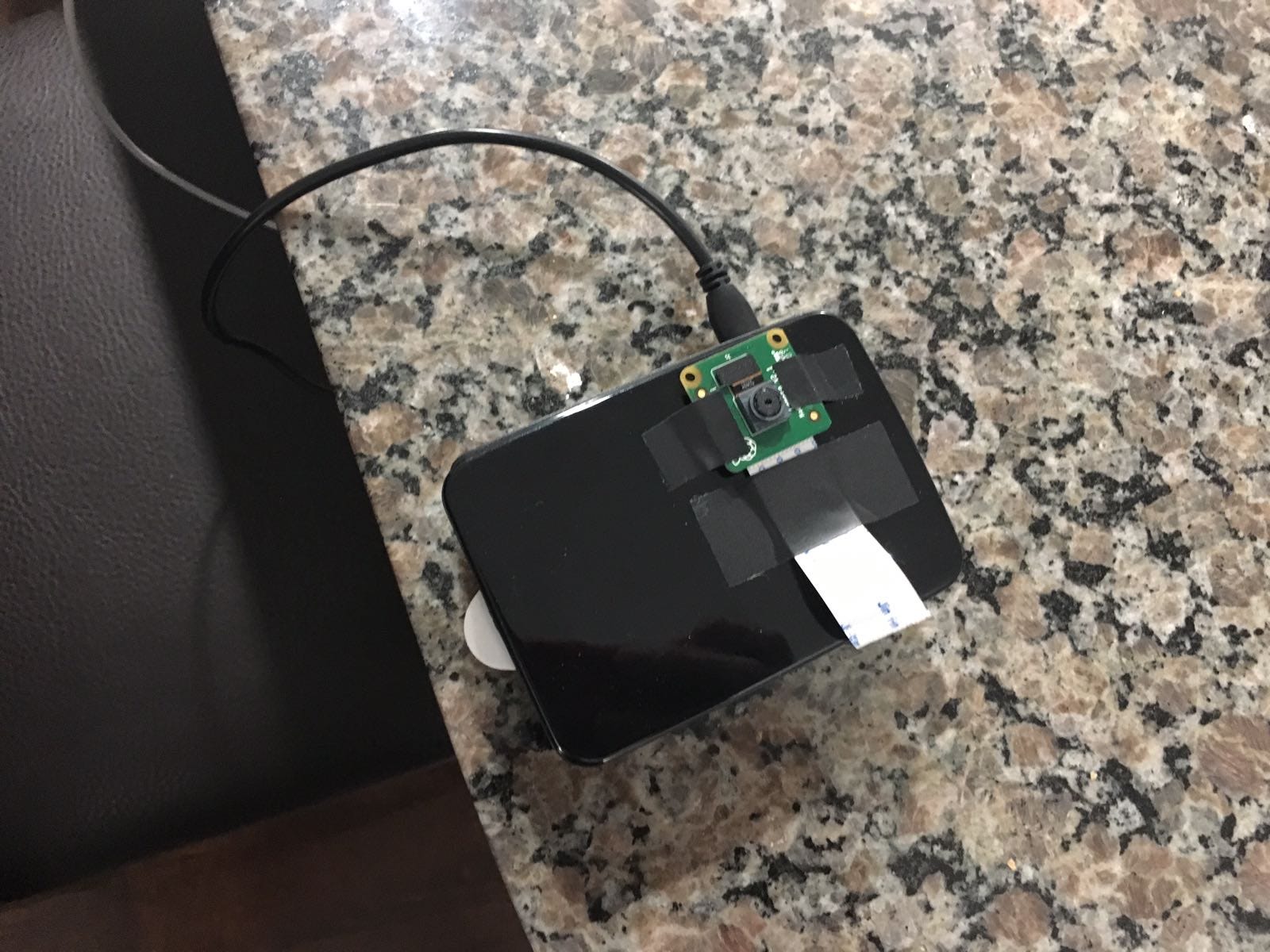

The device — Rpi3 + Camera
Screenshot of what I saw on my phone
Recursion :)

General thoughts and thanks:

I’m sure there are many other ways of doing this exercise. This is just the way I did it. This was a practical, step by step combination of my notes.

Here is an example of things I know so far that could be better:

  • I don’t have to set ENV variables every time I run a command. Once I had that command, that was all I ran. Ctrl+p in the terminal, was smooth.
  • I don’t like where the Picam.Camera.start_link call was made. I'm not sure where to put it. It works where it is at, but there must be a better way.

Special thanks to some folks from the Nerves community that spent some time helping me these last few days (in no particular order):

  • Connor Rigby — @ConnorRigby
  • Justin Schneck — @mobileoverlord
  • Jeff Smith — @electricshaman
  • Tim Mecklem — @tmecklem

Thanks for reading!

— PD

Edit: Thanks [Ryan](https://github.com/mendokusai) for spotting a typo -> should be streamer.ex` instead of streamer.exs`. Fixed! Thank you!
