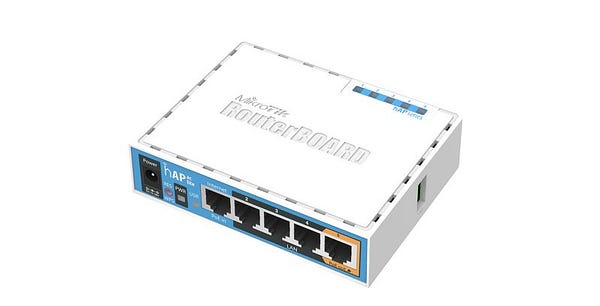

Routerboard “MikroTik”

hAP ac lite (rb952ui-5ac2nd)

สามารถกระจายสัญญาณได้ทั้ง 2.4GHz และ 5GHz พร้อมกันได้ ตัวอุปกรณ์เหมาะสำหรับบ้าน ร้านกาแฟ หรือจุดบริการลูกค้า มี RAM 64MB รองรับการทำงานอย่างเช่น Hotspot , Access point

Router Board hAP ac lite มี Fast Ethernet (10/100) 5 พอร์ท และ dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless

The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time.

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

We have two versions available — RB952Ui-5ac2nD (International) and RB952Ui-5ac2nD-US (USA). RB952Ui-5ac2nD-US (USA) is factory locked for 2412–2462MHz, 5170–5250MHz and 5725–5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD (International) supports 2412–2484MHz and 5150MHz — 5875MHz range.

Product specifications

Details

Product code RB952Ui-5ac2nD
CPU nominal frequency 650 MHz
CPU core count 1
Size of RAM 64 MB
10/100 Ethernet ports 5
Wireless chip model QCA9887
Wireless standards 802.11a/n/ac
Secondary wireless chip model QCA9531
Secondary wireless standards 802.11b/g/n
Number of USB ports 1
Power Jack1PoE out
YesSupported input voltage 10 V — 30 VPoE inYes
Dimensions 113 x 89 x 28mm
Operating System RouterOS
Tested ambient temperature -30 + 70 C
License level 4
Antenna gain DBI 2
CPU QCA9531
Max Power consumption 8W
USB slot type USB type A
Number of chains 1
Storage type FLASH
Storage size 16 MB
