Install Official VMware Tools on Arch Linux.

Ribo Mo
2 min readFeb 22, 2018

It’s painful to install VMware tools on Arch linux but hopefully this guide will make your life easier.

First the good people at https://github.com/rasa/vmware-tools-patches have already provided us with a simple way to install the tool.

Just:

$ git clone https://github.com/rasa/vmware-tools-patches.git
$ cd vmware-tools-patches
$ sudo ./patched-open-vm-tools.sh

Then you need to enable vmware-vmblock-fuse systemd service for the folder sharing function:

sudo pacman -S asp
asp checkout open-vm-tools
cd open-vmtools/repos/community-x86_64/
makepkg -s --asdeps
sudo cp vm* /usr/lib/systemd/system
sudo systemctl enable vmware-vmblock-fuse
sudo systemctl enable vmtoolsd

Then reboot your VM

systemctl reboot

Try it out if it works!

Bonus: If you want to add a share folder into your system

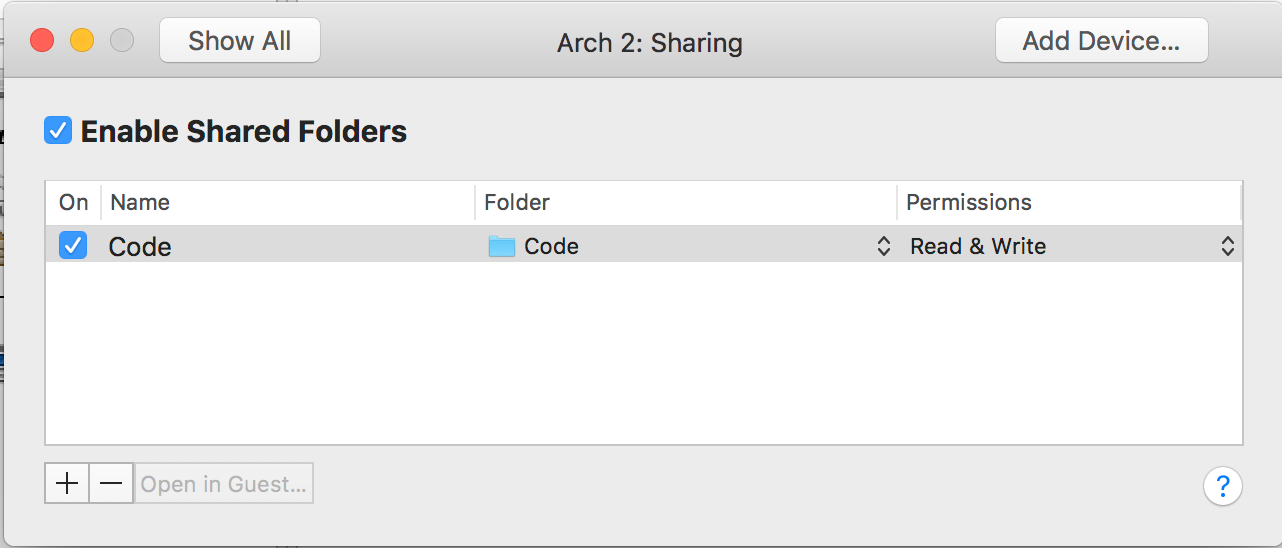

Open the Settings for the virtual machine, enable the Shared Folders feature and add a new folder into the software. Your setting menu will look like this:

Next you need to check if the folder is visable to the system entering:

vmware-hgfsclient

The command should show up any folder you shared to the system. Next we need to mound the folder to a location in your system.

We need to create and mount the folder using this command, <shared folders root directory> is the file path you wanna mount to and <shared_folder> is the folder name of your shared file.

mkdir <shared folders root directory>
sudo vmhgfs-fuse -o allow_other -o auto_unmount .host:/<shared_folder> <shared folders root directory>

Or if you want to auto mount the folder on boot up (start up) add a new line to the /etc/fstab file

.host:<shared_folder> <shared folders root directory> allow_other,uid=1000,gid=1000,auto_unmount,defaults 0 0

Then it will automaticaly remount on start up.

Reference: https://wiki.archlinux.org/index.php/VMware/Installing_Arch_as_a_guest#Shared_Folders_with_vmhgfs-fuse_utility

https://github.com/rasa/vmware-tools-patches

--

--
