How to setting up Liferay 6.2 CE Portal tomcat server

Major Configuration Changes

Posted by on October 4, 2015

(1) Download Liferay Portal 6.2 or greater (select tomcat bundled) ~281MB
reference : https://www.liferay.com/downloads/liferay-portal/available-releases

(2) Unzip the file

(3) Go to the bin folder (liferay-portal-6.2-ce-ga4 -> tomcat-7.0.42 -> bin)
I am using Windows 8.1 (actually I am not a fan of windows :) ) and my bin folder path is E:\LIFERAY\liferay-portal-6.2-ce-ga4\tomcat-7.0.42\bin

(4) To start the server ,
If you are on windows , Double click on startup.bat file or catalina.bat file
If you are on Linux On command prompt run startup.sh or catalina.sh
Hint : If you check startup file content you can find that it always points to the catalina file

(5) Configuration change : Changing the server memory in setenv.bat / setenv.sh file
set “CATALINA_OPTS=%CATALINA_OPTS% -Dfile.encoding=UTF8 -Djava.net.preferIPv4Stack=true -Dorg.apache.catalina.loader.WebappClassLoader.ENABLE_CLEAR_REFERENCES=false -Duser.timezone=GMT -Xmx1024m -XX:MaxPermSize=256m

(6) Configuration change : Initially Liferay comes with HyperSQL database , it is not used in the production environment. To change it ,
Go to the localhost folder (liferay-portal-6.2-ce-ga3 -> tomcat-7.0.42 -> conf -> Catalina -> localhost)
Create a file called “context.xml.default”.Include the following content. In this file you can include multiple db data sources.

Also create a file called “portal-ext.properties” in liferay HOME (in my machin it is E:\LIFERAY\liferay-portal-6.2-ce-ga4) folder.Include the following content.

jdbc.default.jndi.name=LiferayPool

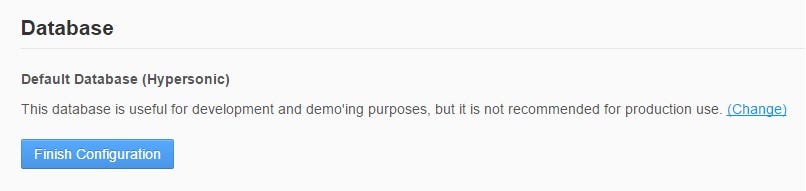

OR , this can be done when server first start up.See following screen shots.

(7) Configuration change : Changing the server running ports
Go to the conf folder and open the “server.xml” file. (In my machin it is E:\LIFERAY\liferay-portal-6.2-ce-ga4\tomcat-7.0.42\conf) In this file we can change the server running (http & https) ports.

<Connector port=”80" protocol=”HTTP/1.1" connectionTimeout=”20000" redirectPort=”443" URIEncoding=”UTF-8" />
<Connector port=”443" protocol=”HTTP/1.1" SSLEnabled=”true” maxThreads=”150" scheme=”https” secure=”true” clientAuth=”false” sslProtocol=”TLSv1" keystorePass=”any_pass” keystoreFile=”keystore_file_path” />
<Connector port=”443" protocol=”HTTP/1.1" SSLEnabled=”true” maxThreads=”150" scheme=”https” secure=”true” clientAuth=”false” sslProtocol=”TLSv1" keystorePass=”any_pass” keystoreFile=”keystore_file_path” />
<Connector port=”8009" protocol=”AJP/1.3" redirectPort=”443" URIEncoding=”UTF-8" />

Need more information about keystore file : https://docs.oracle.com/cd/E19636-01/819-1655/fapsf/index.html

(8) Other necessary configuration changes
To change the session time out period (minutes) , this configuration can be found in ROOT , WEB-INF folder. In my machine it is E:\LIFERAY\liferay-portal-6.2-ce-ga4\tomcat-7.0.42\webapps\ROOT\WEB-INF. Open the web.xml file and change the following value.

<session-config><session-timeout>20</session-timeout></session-config>

Disabling session persistence across Tomcat restarts ? Go to the conf folder.In my maching it is E:\LIFERAY\liferay-portal-6.2-ce-ga4\tomcat-7.0.42\conf. Open the “context.xml” file.Make the following change.

<Manager pathname=”” />

Some of other changes can be add portlet-ext.properties file in Liferay HOME folder.Following are some of changes.

Need more information about portlet-ext.properties file change?
References :
https://docs.liferay.com/portal/6.2/propertiesdoc/portal.properties.html
https://docs.liferay.com/portal/6.2/definitions/liferay-hook_6_2_0.dtd.html
https://docs.liferay.com/portal/6.1/propertiesdoc/portal.properties.html
