Tattu New product — 2305 2450KV Brushless Quadcopter Motor

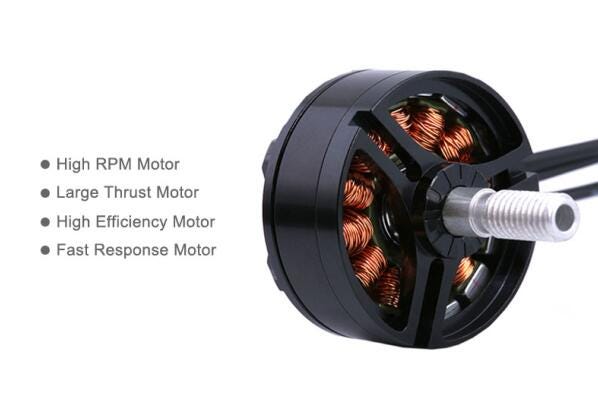

Tattu released a new FPV product — Tattu 2305 2450KV brushless Motor. It is a great and powerful motors that suitable for FPV racing drone. Each motor has been carefully balanced and tested in the factory. And Tattu motor will tested by many pilots. Meanwhile infuses the advantages of all the other motors in FPV quadcopter field.

The Tattu 2305 2450KV quadcopter motor RPM is 2450KV, 35A max burst current, 360W max continuous power and 85% max efficiency, it is very quick and has a fast response, and it is one of the best FPV racing motors around. Our motors are mainly suitable for 180–250 quadcopter frame, the compatible propeller sizes are 5040 / 5045 two-blade or three-blade propeller.

Specifications:

RMP: 2450KV
 Configuration: 12N14P
 Max Efficiency: 85%
 Voltage : 2–4S
 Insulation Class: A
 Insulation resistance: 100V 10M
 Internal Resistance: 51m?
 Continuous Current (A): 20A
 Max Continuous Current (A): 60S 28A
 Max Burst Current: <10S 35A
 Continuous Power (W): 280W
 Max Continuous Power (W): 60S 360W
 Stator Diameter: 23mm
 Stator Length: 5mm
 Motor Diameter: 28.9mm X 17.5mm
 Shaft Diameter: 4mm
 Motor Wire Length: 95mm
 Weight: 29.5g

More about details, check out: http://www.genstattu.com/ta-motor-2305-2450kv-4pcs.html

Source: http://www.genstattu.com/blog/tattu-new-product-2305-2450kv-brushless-quadcopter-motor/
