Solar powered microservers for a post-hurricane Maria Puerto Rico

Roberto Rosario
May 9, 2018 · 5 min read
Image for post
Image for post

As you have probably read already, less than a year ago Puerto Rico experienced one of the worst natural disasters in recorded history. The situation after hurricane Maria has been compounded by an already deficient energy infrastructure. Frequent blackouts are now a common occurrence of daily life.

Blackouts are not just annoying, but cause a series of problems impacting almost all aspects of modern life. Being a technology worker, blackouts directly impact my bottom line and my primary source of income.

After months in the dark, I took the plunge an built a small solar power system. To make use of solar energy it is very common to use a voltage inverter to boost the 12 volts DC produced by the solar panels and stored by the batteries to 120 volts AC which is what most electronic devices use. Using an inverter introduces some conversion losses in the system. In order to minimize these losses, I started converting as many devices as I could to work with 12 volts DC. This way they could be operated directly from the solar system batteries. It was time to start converting my tools of work too.

One of the systems I need for my daily work are computers and servers. I have some hosted on the cloud and others locally. Constant power outages mean a lot of the charge in my solar system batteries is being wasted keeping the servers and computers working. There had to be a better way to keep the equipment I needed running and optimize their electricity use.

Instead of a few larger computers, I decided to start scaling down the devices I used. More devices meant I could spread the services among them.

Single board computers or SBCs are all very common now with a big variety to choose from. These SBCs are usually powered by USB so they already work with DC current. One my favorite single board computers is the ODROID C2. The ODROID C2 is open hardware, is produced by a responsible company, it’s well documented and, it is very well supported. The ODROID C2 has a 64-bit quad-core ARM CPU, 2 GB of RAM, and support eMMC for storage. It is one of the most powerful SBCs in the market in its price range. With this in mind, I set out to convert some of my existing ODROID and SBCs to replace the common servers and computers I normally use.

Image for post
Image for post

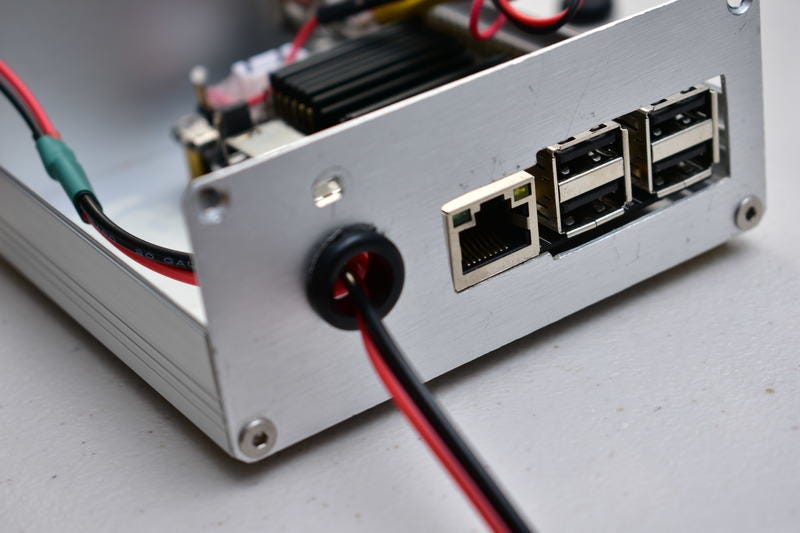

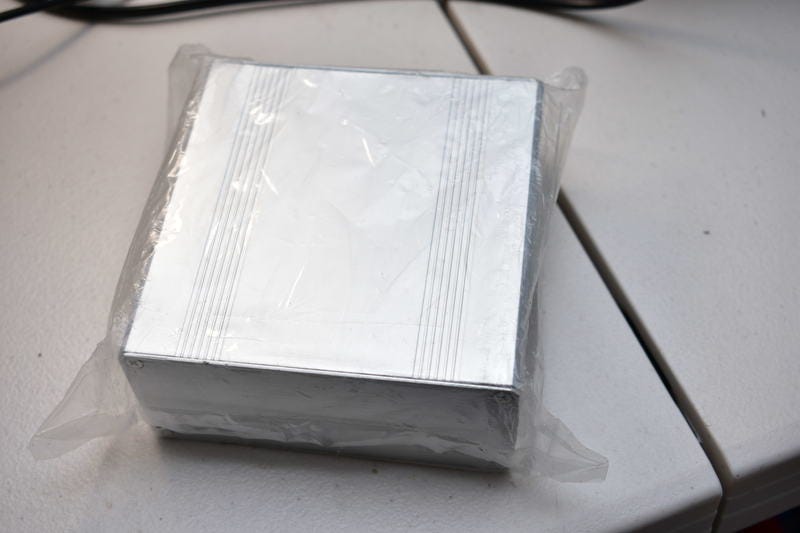

The common plastic and 3D printed enclosures for these SBCs are not enough to protect them and don’t leave any space for additional components. Aluminum enclosures are a much better choice.
Image for post
Image for post
ODROID C2 with power indicator and button installed. The switch is not connected to anything and left for future use (maybe via GPIO). The power indicator is soldered to heartbeat LED on the board.
Image for post
Image for post
Image for post
Image for post

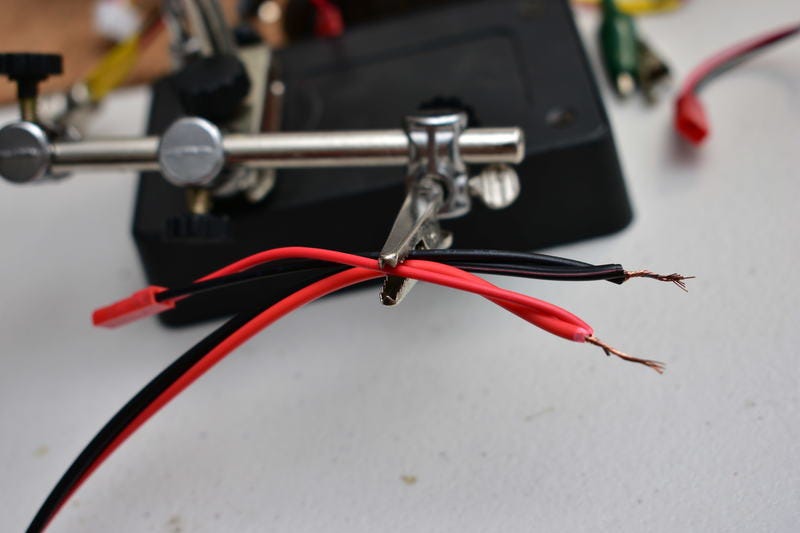

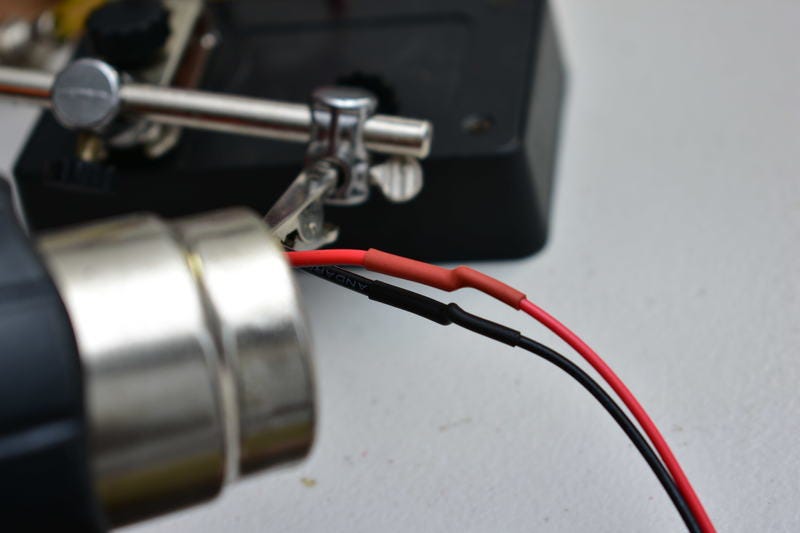

Power cable. The JST plug goes to the voltage converter inside the aluminum box. All cable bonds are protected with heat-shrink tubing.
Image for post
Image for post
Image for post
Image for post
The Anderson connector goes on the outside of the cable. I crimped then and added a bit of solder for best conductivity.
Image for post
Image for post
Image for post
Image for post
Testing for continuity. Some heat-shrink tubing to work as cable strain support.
Image for post
Image for post
Odroid mounted using brass standoffs. The residue is from double-sided tape from a previous attempt.
Image for post
Image for post
Image for post
Image for post
The serial console and power plugs were replaced.
Image for post
Image for post
Image for post
Image for post
Voltage converter mounted with double-sided tape. The converter takes the 12 volts from the solar system and reduces it to 5 volts. This particular converter can supply 3 amps continuously.
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
Image for post

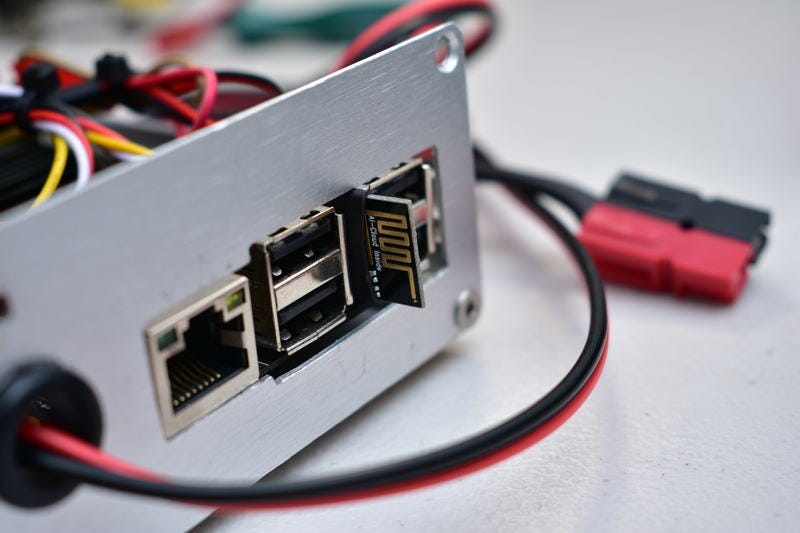

ESP8266 (ESP-01) programmed to work as a WiFi to serial console bridge. This will allow access to the console of the ODROID even if communications fail. Perfect for debugging and management.
Image for post
Image for post

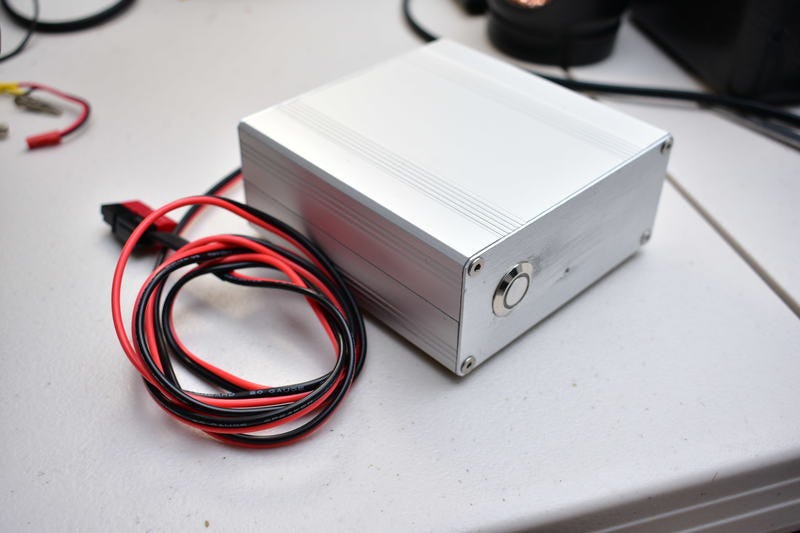

Box all closed up. The holes for the USB, network connector and the power button were cut by hand and there was some scuffing. This can be avoided using painters tape or with better tools like a CNC or a bench drill.
Image for post
Image for post
Image for post
Image for post
The ODROID C2 support eMMC storage and this one has a 16 GB card which is used for system files. For storage, an external SSD SATA hard drive is used with a SATA to USB adapter. The ODROID’s USB ports are USB 2. This means that the access to the storage will not the ultra fast but it is adequate for the work this box will perform.
Image for post
Image for post
Image for post
Image for post

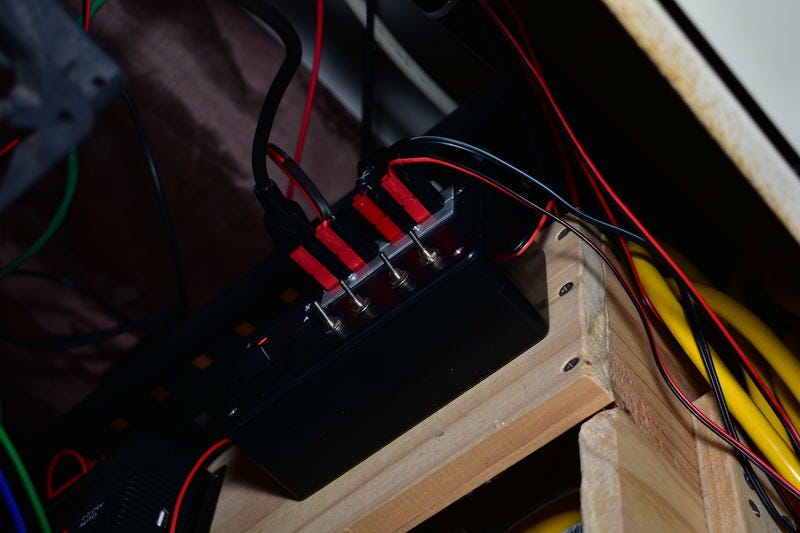

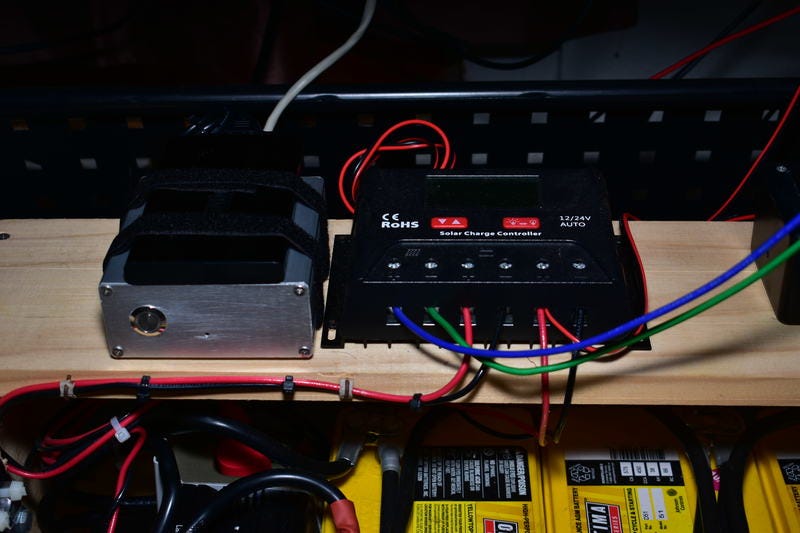

The microserver placed next to the solar system charge controller and connected to the Anderson power distribution box.
Image for post
Image for post
Mayan EDMS 3.0 beta 1 on a solar powered ODROID C2.
Image for post
Image for post
Pi-hole running the ODROID C2 for ad, malware and phishing blocking. Improves use of our limited connectivity port hurricane Maria.
Image for post
Image for post
Docker running the PostgreSQL container for the Mayan EDMS installation among others.

This microserver is running Mayan EDMS 3.0 beta, it is also working as a file server, a database server, a Docker host, a network firewall and intrusion detection. Because it is now solar powered I can have access to all these services 24 hours a day, 7 days a week. Since my network connection and WiFi router were already converted to be powered by the solar system, I can also access this server remotely any time of the day with no worries about it losing power.

Because my solar power system is configured to work using 12 volts, the microserver should work with any other 12 volt system, even with a car battery using a cigarette lighter adapter or a direct connection.

One last benefit of the solar-powered microserver is that in case of an emergency evacuation I can just unplug it and toss it on a bug-out bag and still have all our important documents and our work safe with us.

In this age of computers and servers competing to push the performance envelope, we sometimes forget that scaling up is not the only choice to improve how things get done.
