MicroPython จอแสดงผล ตอนที่ 2 (i2c OLED)

Sittipong Jansorn
Jul 22, 2017 · 2 min read

จอแสดงผล OLED เป็นจอขนาดเล็กกินพลังงานต่ำ เหมาะเอามาใช้งานสำหรับงานที่ต้องประหยัดพลังาน ก่อนอื่นต้องทำการโหลด ssd1306.py เป็นสคลิป driver สำหรับ OLED SSD1306 สำหรับสคลิป driver ssd1306.py จะใช้การแสดงผลผ่าน frame buffer ของ MicroPython โดยจะใช้รูปแบบตัวอักษรจากระบบเลย ไม่ต้องสร้างัวอักษรขึ้นมาใช้งาน

ทำการ upload ssd1306.py และตรวจสอบ

ampy -p COM11 put ssd1306.py
ampy -p COM11 ls

ssd1306.py

จากรูปเราพร้อมใช้งานสคลิปเรียบร้อยแล้วขั้นตอนก็จะเหมือนกับ i2c lcd

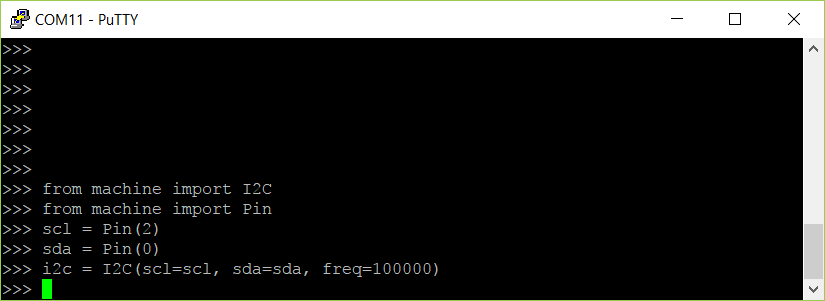

from machine import I2C

import module Pin

from machine import Pin

กำหนดขาที่ใช้เชื่อมต่อกับระบบบัส I2C โดยให้ SCL = GPIO2, SDA = GPIO0

scl = Pin(2)
sda = Pin(0)

สร้าง object I2C โดยใช้ชื่อตัวแปรเป็น i2c

i2c = I2C(scl=scl, sda=sda, freq=100000)

ทำการต่ออปกรณ์เข้ากับบอร์ดและทดสอบว่าใช้งานได้หรือไม โดยจะทำการแสกนอุปกร์ที่อยู่บนบัส

i2c.scan()

จะ return ค่าออกมาเป็น address ของอุปกรณ์ในรูปแบบของ array ในที่นี้ 60 = 0x3C เป็น address ของ OLED

import module SSD1306_I2C ที่อยู่ใน package ssd1306

from ssd1306 import SSD1306_I2C

ssd1306

สราง object SSD1306_I2C โดยใช้ชื่อตัวแปรเป็น oled

oled = SSD1306_I2C(128, 64, i2c)

oled

ตอนนี้ OLED ของเราพร้อมที่จะแสดงผลแล้ว

คำสั่งล้างหน้าจอ

oled.fill(0)

คำสั่งแสดงผลตัวอักษรที่ตำแหน่งจุด pixel X = 35, Y = 5

oled.text(‘ESP8266’, 35, 5)

คำสั่งแสดงผลตัวอักษรที่ตำแหน่งจุด pixel X = 20, Y = 20

oled.text(‘MicroPython’, 20, 20)

คำสั่งแสดงผลตัวอักษรที่ตำแหน่งจุด pixel X = 3, Y = 50

oled.text(‘TEMP: {0:.2f}’.format(25.5), 3, 50)

จะเห็นว่าคำสั่ง oled.text() จะไม่แสดงผลทันทีจนกว่าจะเรียก function ที่ชื่อว่า show()

คำสั่งให้จอแสดงผล

oled.show()

ลองเอาไปประยุกต์ใช้งานในการแสดงผลจาก sensor กันดู
