Noob’s Guide to building a Deep Learning / Cryptocurrency PC (#1): The Hardware
Among the buzzwords in the tech world of 2017, two tower above the rest: deep learning and cryptocurrencies. It seems that everyone wants to learn more about these things. And guess what — so do I! So much so that I’m building my own computer in order to facilitate that learning.
What follows are my notes-to-self as I build a computer to learn about deep learning and cryptocurrency mining. In this installment we’ll just discuss building the hardware. If you’d like to hear about configuring the OS, getting started with crypto mining, or getting started with deep learning algorithms, drop me your email below and I’ll keep you in the loop.
Some quick definitions, for those unfamiliar:
A cryptocurrency … is a digital asset designed to work as a medium of exchange using cryptography to secure the transactions and to control the creation of additional units of the currency. — Wikipedia
Machine learning is the subfield of computer science that, according to Arthur Samuel, gives “computers the ability to learn without being explicitly programmed.” — also Wikipedia
Deep learning … is part of a broader family of machine learning methods based on learning data representations, as opposed to task-specific algorithms. — Wikipedia
Why build a PC to learn this stuff? It’s important to note that you don’t have to. Your laptop is capable of running the same software, but the performance you‘ll get out of a dedicated GPU is miles beyond what your laptop’s CPU can deliver. You’ll spend more money replacing your worn-out laptop than you’ll make mining cryptocurrencies, and anything beyond basic deep learning training will take forever.
GPUs are specialized chips for processing data in parallel. Originally developed to power intensive graphics (like in video games), more recently their architecture has been discovered to be a perfect fit for the short, repetitive and parallelizable tasks at the heart of both machine learning and cryptocurrency mining.
You can rent GPUs in the cloud, for instance, with AWS. Unfortunately they’re expensive and it’s a much better deal to run things locally. (This will probably change in the future).
So it makes economic and temporal sense to run these things locally.
I haven’t built a computer from scratch in over 20 years. I bought a Mac in 2004 and haven’t looked back since. I was lucky enough to have a good friend with some experience who was able to guide me in the right direction.
Picking a GPU
The most important question: Which GPU to purchase?
Tim Dettmers has a fantastic in-depth article comparing a number of GPUs out on the market. Go read his article if you want a truly exhaustive look at the costs and benefits of available GPUs.
NVIDIA’s standard libraries made it very easy to establish the first deep learning libraries in CUDA, while there were no such powerful standard libraries for AMD’s OpenCL. Right now, there are just no good deep learning libraries for AMD cards — so NVIDIA it is.
I’d heard this sentiment from others. It seems that if you want to do machine learning, you’re best off going with NVIDIA.
I ended up picking a pair of GTX 970s, which was primarily a budget decision (this is a hobby, after all). There’s lots available on eBay.
The rest of the parts
A number of folks have written about their experiences building deep learning-capable machines, and they were invaluable for helping me figure out what parts to buy:
This is part one of our building a deep learning machine series. You can find the other posts here:medium.com
Register for the O'Reilly Artificial Intelligence Conference, September 17-20, 2017, in San Francisco. Yes, you can run…www.oreilly.com
As these articles point you, make sure to enter your components into pcpartpicker.com before purchasing, to ensure components work together. I failed to do this, and as you’ll read below, this necessitated a trip back to the Amazon store a second time.
Here’s what I bought (affiliate links):
- Motherboard: Gigabyte GA-Z170X
- CPU: Intel Core i5 6600K 3.50 GHz
- RAM: Corsair Vengeance 16GB
- PSU: EVGA SuperNova 750W
- Hard Drive: Samsung 960 1TB
- CPU Cooler: Cooler Master Hyper
- Case (first attempt): AeroCool Aero300
- Case (second attempt): Corsair Carbide Series 270R
- Wifi adapter: this exceptionally tiny wifi USB adapter came in handy (and continues to) as I struggle with ethernet issues
The PSU is the power supply that runs the whole rig.
There’s three types of PSUs: modular, non-modular and semi-modular. Modular PSUs have cables you can disconnect, whereas non-modulars have cables that are attached. Semi-modular PSUs usually have the CPU and motherboard cables attached and the rest pluggable.
I bought a modular 750W PSU. In my limited experience of one, modular PSUs need some additional clearance behind them to accommodate their cables. The original case I bought, AeroCool, lacked enough space behind the PSU to fit the cables, necessitating a second trip to the Amazon store. A visit to pcpartpicker.com would have alerted me beforehand. Lesson learned!
To determine what kind of wattage you need, add up all your parts’ wattage needs. Pay particular attention to the GPUs’ needs, and give yourself some extra breathing room. I’m not sure what happens if you run out of wattage but I would guess it sucks.
First step out of the box is to make sure the PSU turns on and power is being delivered. And in my case, all systems were go!
Here’s a great video I watched about installing a PSU, and if you happen to buy an EVGA PSU, here’s EVGA’s specific tutorial.
Motherboard & CPU
For machine and deep learning applications, the CPU is less important than the GPUs, who do most of the heavy lifting. You need a CPU that’ll accommodate the GPUs, and it should have as many cores as the GPUs.
For the motherboard, go with one that supports PCIe 3.0. If you’re planning to go up to 4 GPUs make sure your motherboard supports that (you’ll also probably want a stronger PSU and some serious cooling — I elected to use only 2 GPUs).

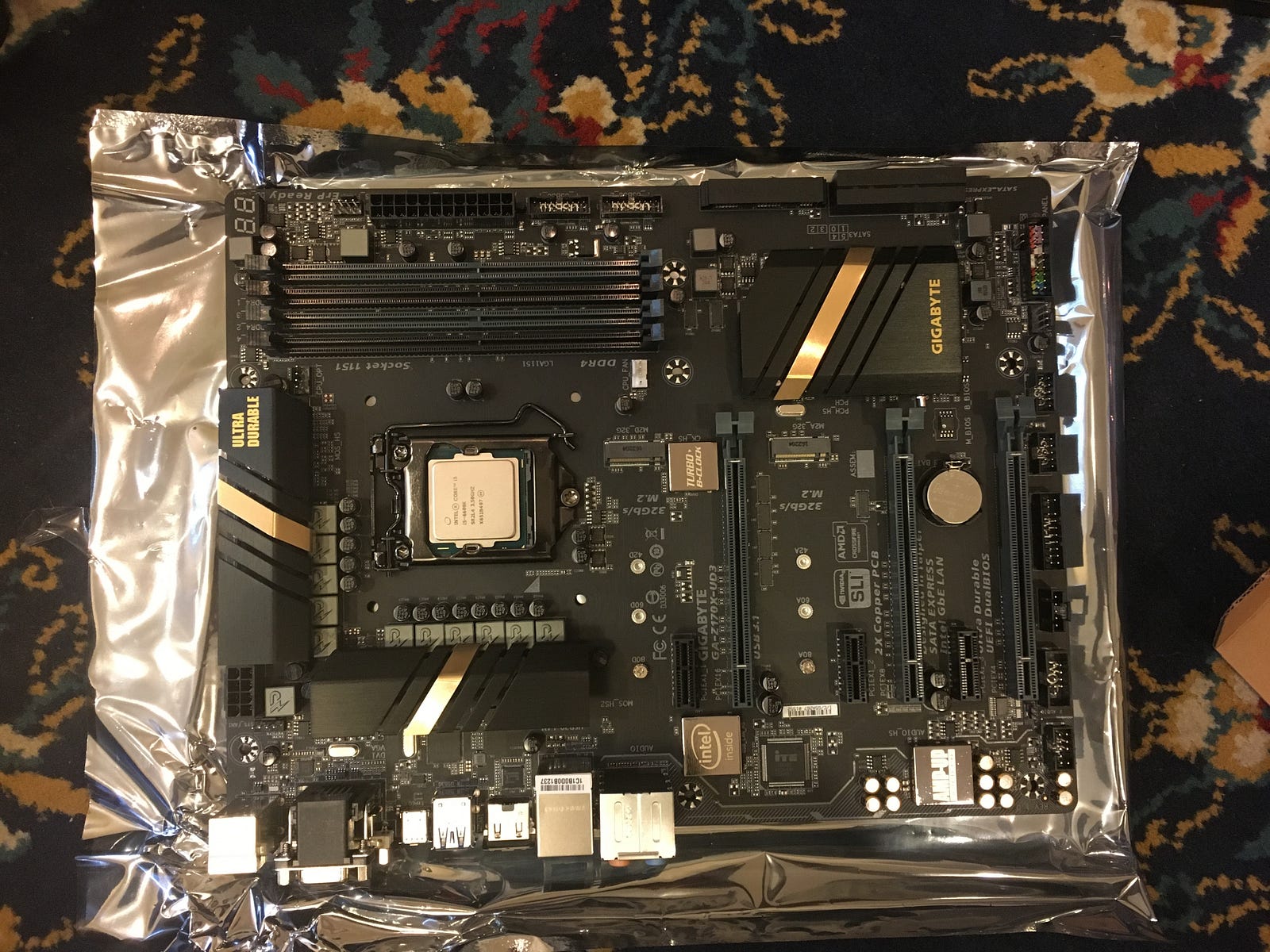

Here’s a photo of the motherboard:
The first step is to install the CPU. I followed this video on installing a CPU. I was surprised by how easy it is; the thing just clicks into place!
Side note: The eagle-eyed reader may observe me assembling this on a carpet. Don’t be me. Carpets cause static electricity and static electricity is bad for electronics. Soon after this photo was taken I quickly realized the error of my ways and migrated to a non-carpeted floor and became obsessive about touching metal objects for the remainder of the build out.
Not having done this in over 20 years, this was a completely new thing to me.
CPUs require a paste be applied in order to dispel heat. Here’s a video on applying thermal paste. The narrator’s pasting technique is 🔥.
The CPU Cooler sits on top of the CPU and sucks the heat out to be dispelled via a fan. It looks super cool, and it was fun to install too! Here’s the video I followed to install it.

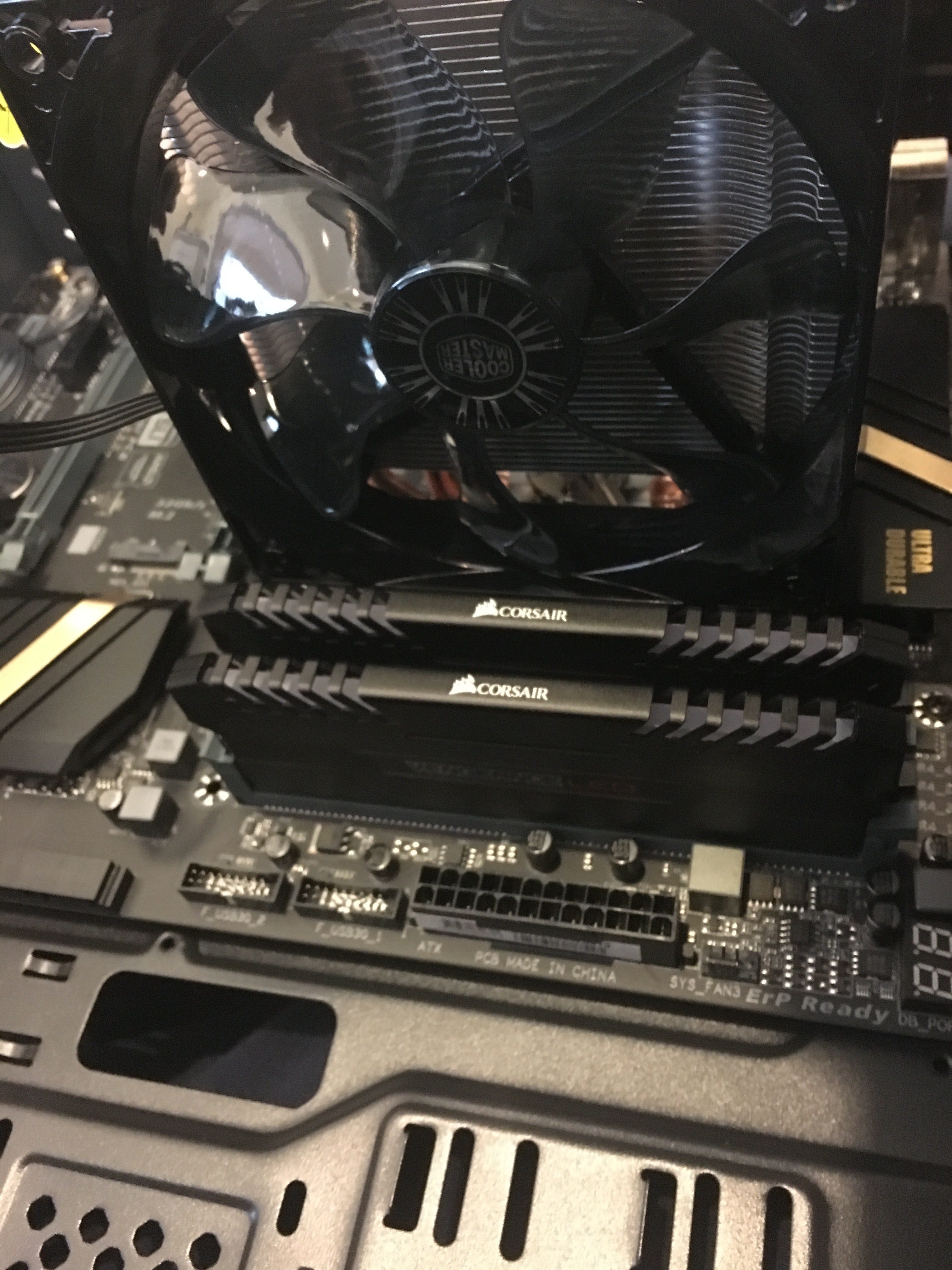

And here it is, looking so snazzy:
Ram is a cinch to install. Here’s a video that’ll show you how.
I bought an M.2 hard drive, which my limited experience indicates is the easiest hard drive to install (note: I did not attempt to install other types of hard drives). Here’s a video demonstrating how to install it. It basically snaps right onto the motherboard and you’re done.
Side note: I actually installed the GPUs before installing the hard drive, and had to remove those GPUs to get it in as the M.2 sits underneath them (at least, on this particular motherboard). So if you have an M.2, do this step before the GPUs.
Finally, here come the racehorses!
Here’s a video on installing GPUs. It’s pretty straightforward: you line the chips up with the PCI-e connectors, pop one of the tabs, and push (softly — you don’t want to force it) until the tab clicks back into place.
Here’s a before shot of the empty PCI slots:

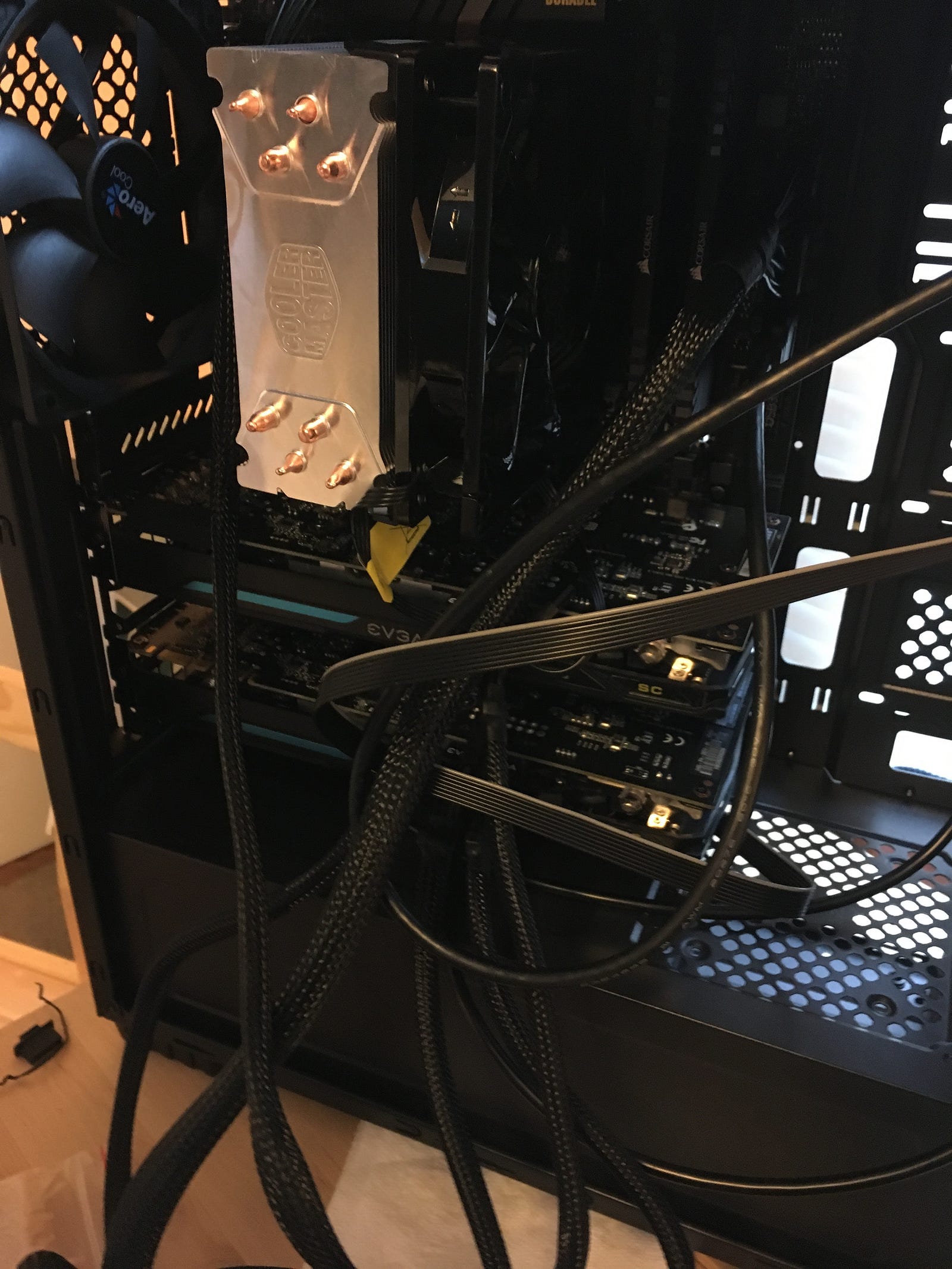

And with the GPUs installed:
Putting it in the case
The last step is to get the motherboard into the case and seal it up.
Here’s a video walking through how to install into a case. I suspect every case is different and you’re better off searching for your particular build, but c’est la vie. You’ll have to connect the case’s cables to the motherboard’s, and for that you will need to refer to the respective manuals for instructions.
With everything assembled, all that was left was to hit the power button on the PSU. I felt a little like Dr. Frankenstein hovering over his monster. Would the beast wake up?
I flipped the PSU. The machine did not turn on. I spent five minutes freaking out thinking I had fried some circuitry or installed something wrong.
I then realized the case also has an on switch. So I turned that on.
And the beast awoke!
At this point I had a functioning machine, and it was into the land of software (and a nice cold beer). I’ll save that for next time.
If you want to hear about my travails configuring the BIOS, installing Linux, and actually tackling the crypto mining and deep learning setups, drop your email below and I’ll let you know when I publish those.
