Beware the Blob!

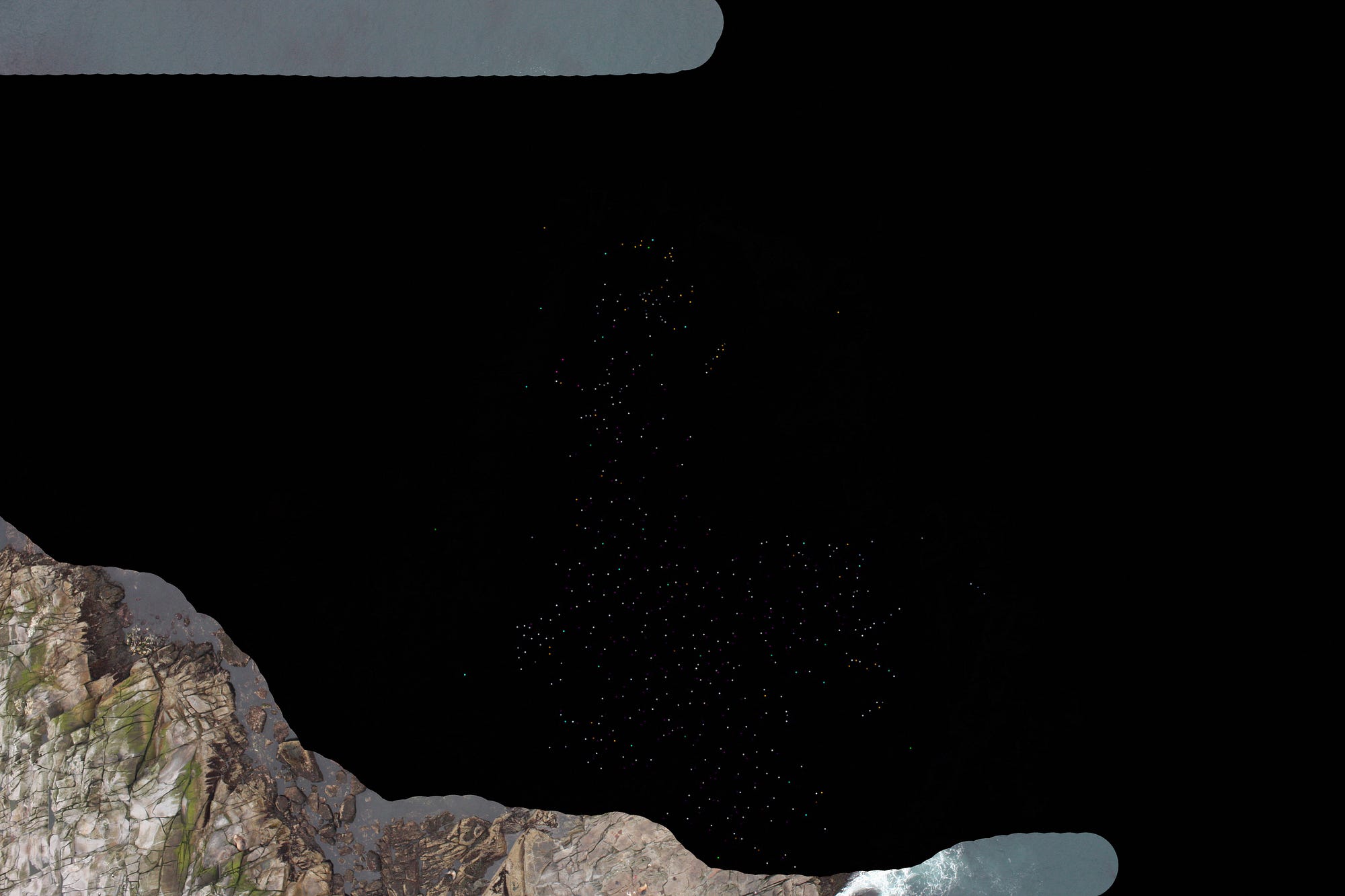

If you recall from the previous post, we were able to isolate the single pixels that labeled the sea lions in an image, as shown below.

Now, I want to find the coordinates of these pixels. To do this, I will use a technique called blob detection. A blob in an image is a region which contrasts sharply with the rest of the image — e.g. by contrasting intensities, different colors, or some other criterion. In the above image, there are two large blobs: one at the upper left-hand corner and the other covering most of the bottom of the image. The other blobs are the individual pixels representing the sea lions.

To simplify this process, I want to get rid of the two big blobs. First we’ll convert our images to grayscale. Then we’ll use these grayscale images to mask (or filter) out both big blobs using the following block of code:

`image_1 = cv2.imread("data-sets/TrainSmall2/TrainDotted/" + filename)image_2 = cv2.imread("data-sets/TrainSmall2/Train/" + filename)    # absolute difference between Train and TrainDottedimage_3 = image_diff(image_1,image_2)    # mask out blackened regions from TrainDottedmask_1 = cv2.cvtColor(image_1, cv2.COLOR_BGR2GRAY)mask_1[mask_1 < 20] = 0mask_1[mask_1 > 0] = 255    mask_2 = cv2.cvtColor(image_2, cv2.COLOR_BGR2GRAY)mask_2[mask_2 < 20] = 0mask_2[mask_2 > 0] = 255    image_4 = cv2.bitwise_or(image_3, image_3, mask=mask_1)image_5 = cv2.bitwise_or(image_4, image_4, mask=mask_2) `

The first two images are the corresponding pair of dotted and original images. The third image is the difference between them — i.e. the image shown above. Next we define two more images called `mask_1` and `mask_2`.

To create `mask_1`, we convert `image_1` to a grayscale image:

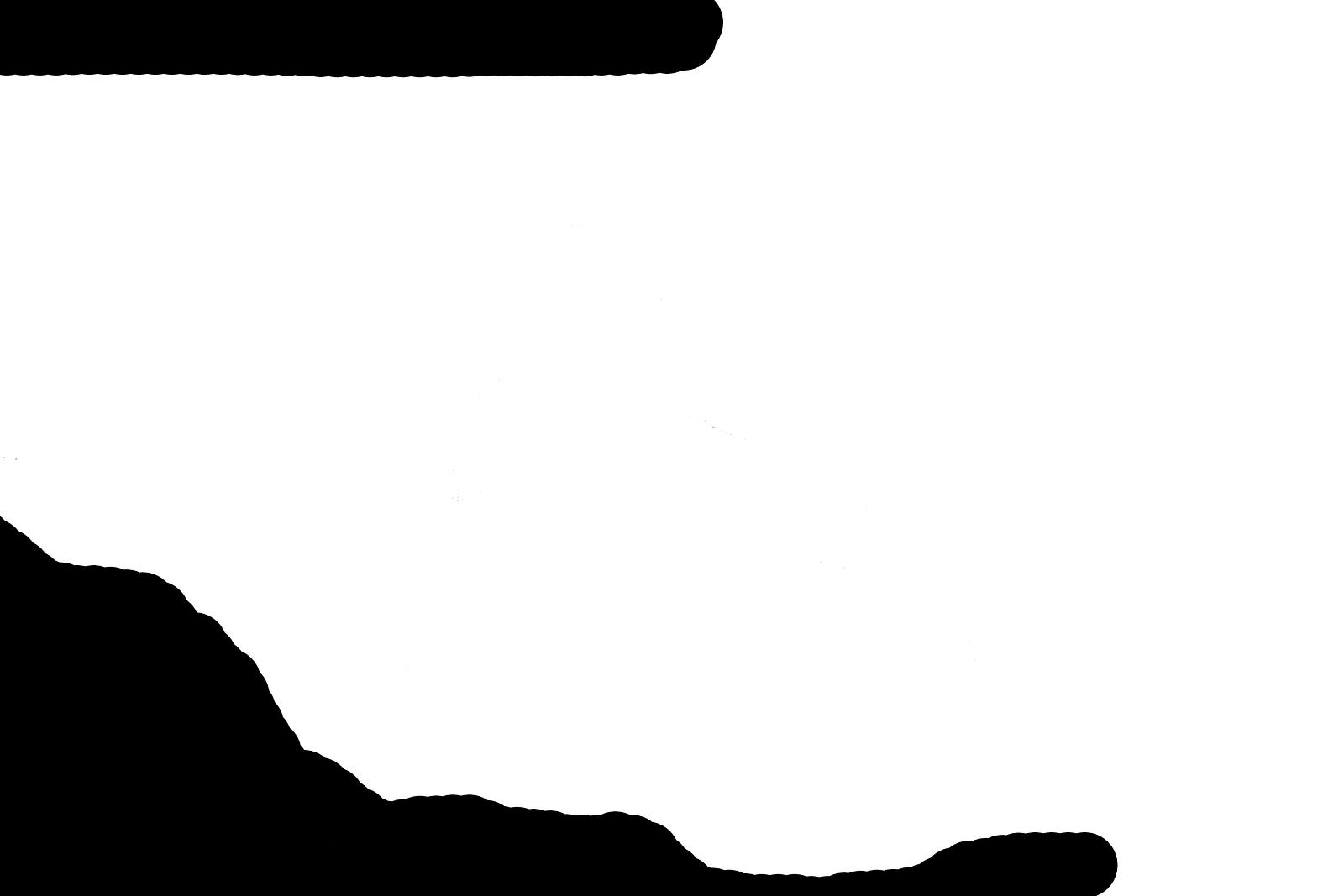

Recalling that a grayscale image is a 2-dimensional array of intensities (i.e. numbers), we then take `mask_1` and make all of its intensities either 0 (i.e. black) if the intensity is small or 255 if the intensity is not 0. The resulting mask is shown below:

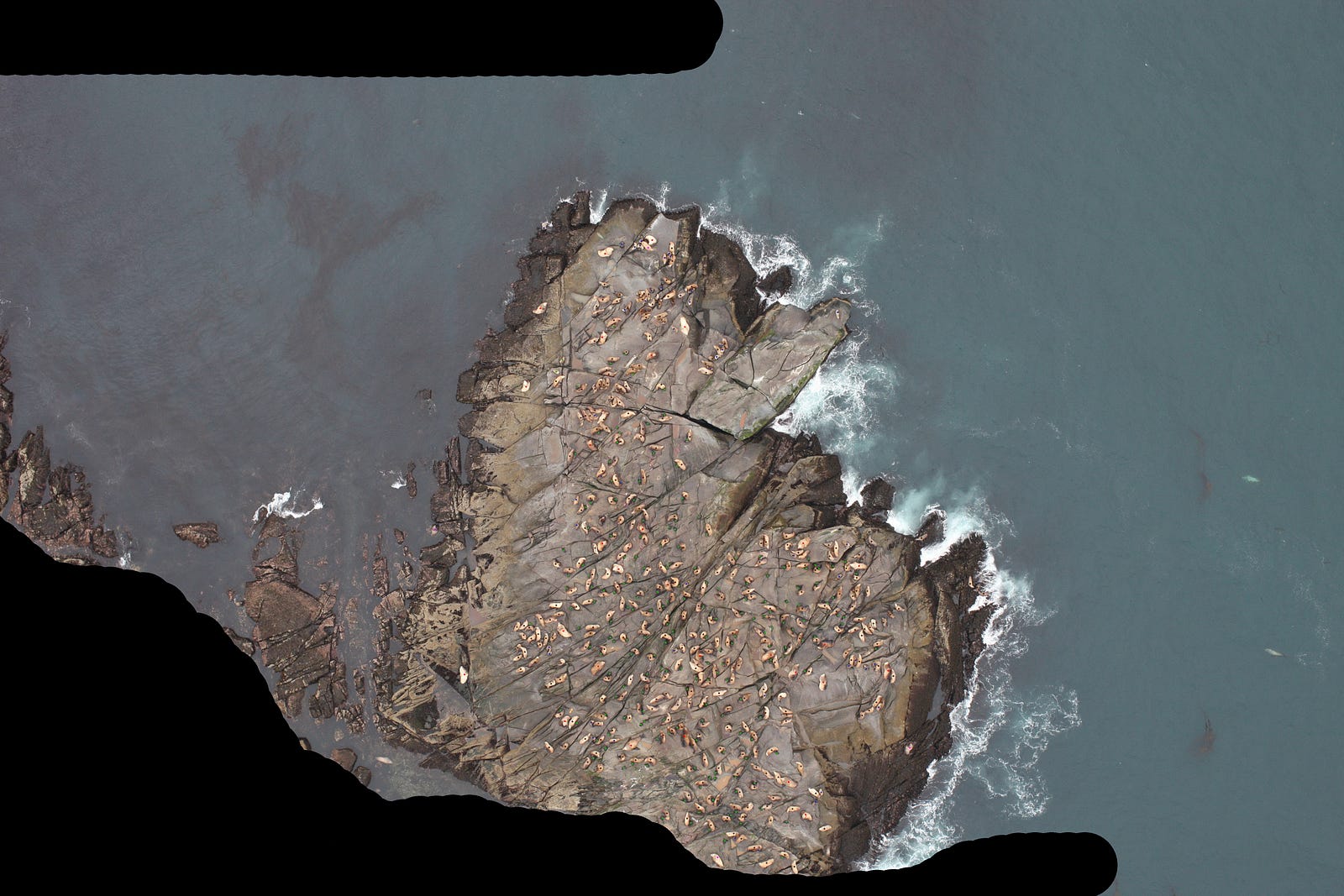

Finally, applying `mask_1` via the `bitwise_or` operator to `image_1` give us the desired result:

To find the coordinates of the pixels, we use the scikit-image library which has a method `blob_log()` that finds blobs on grayscale images. In the following block of code, we use `blob_log()` to find the coordinates of each pixel. Then we find the color of the pixel in the dotted image and depending on the color, we insert the coordinates into a data frame called `coordinates_df` which has columns for adult males, subadult males, adult females, juveniles, and pups.

`# convert to grayscale to be accepted by skimage.feature.blob_logimage_3 = cv2.cvtColor(image_3, cv2.COLOR_BGR2GRAY)# detect blobsblobs = skimage.feature.blob_log(image_3, min_sigma=3, max_sigma=4, num_sigma=1, threshold=0.02)      adult_males = []  subadult_males = []  pups = []  juveniles = []  adult_females = []     for blob in blobs:    # get the coordinates for each blob    y, x, s = blob    # get the color of the pixel from Train Dotted in the center of the blob    g,b,r = image_1[int(y)][int(x)][:]            # decision tree to pick the class of the blob by looking at the color in Train Dotted    if r > 200 and g < 50 and b < 50: # RED        adult_males.append((int(x),int(y)))        cv2.circle(image_circles, (int(x),int(y)), 20, (0,0,255), 10)     elif r > 200 and g > 200 and b < 50: # MAGENTA        subadult_males.append((int(x),int(y)))         cv2.circle(image_circles, (int(x),int(y)), 20, (250,10,250), 10)    elif r < 100 and g < 100 and 150 < b < 200: # GREEN        pups.append((int(x),int(y)))        cv2.circle(image_circles, (int(x),int(y)), 20, (20,180,35), 10)    elif r < 100 and  100 < g and b < 100: # BLUE        juveniles.append((int(x),int(y)))         cv2.circle(image_circles, (int(x),int(y)), 20, (180,60,30), 10)    elif r < 150 and g < 50 and b < 100:  # BROWN        adult_females.append((int(x),int(y)))        cv2.circle(image_circles, (int(x),int(y)), 20, (0,42,84), 10)                  # cv2.rectangle(cut, (int(x)-112,int(y)-112),(int(x)+112,int(y)+112), 0,-1)            coordinates_df["adult_males"][filename] = adult_malescoordinates_df["subadult_males"][filename] = subadult_malescoordinates_df["adult_females"][filename] = adult_femalescoordinates_df["juveniles"][filename] = juvenilescoordinates_df["pups"][filename] = pups`

Running the code on the above image (43.jpg) gives us

`adult_males  \43.jpg  [(3365, 3405), (3295, 3267), (2636, 3115), (28...                                              subadult_males  \43.jpg  [(2999, 3583), (3801, 3125), (1817, 2212), (27...                                               adult_females  \43.jpg  [(3319, 3622), (3203, 3606), (3097, 3504), (30...                                                   juveniles  \43.jpg  [(3168, 3552), (3152, 3542), (3408, 3351), (25...                                                        pups  43.jpg  [(3268, 3585), (3279, 3572), (3029, 3513), (29...`

Extract the Sea Lions

Now that we know the coordinates of where the sea lions are located, we extract images of the individual sea lions that will be used to train our classifier. In the following code block, we extract 64-by-64 sub-images from the image:

`x = []y = []`
`for filename in file_names:        image = cv2.imread("data-sets/TrainSmall2/Train/" + filename)    for lion_class in classes:        for coordinates in coordinates_df[lion_class][filename]:            thumb = image[coordinates-32:coordinates+32,coordinates-32:coordinates+32,:]            if np.shape(thumb) == (64, 64, 3):                x.append(thumb)                y.append(lion_class)x = np.array(x)y = np.array(y)`

Let’s look at the first 10 of each type of sea lion

We note that there are only four subadult males in the image.

Challenges and Next Steps

Notice that in the above that some thumbnails have more than one sea lion in it. I need to refine my extraction method.

The biggest challenge I’ve faced is how to deal with the data set. It is a 96 GB file. I cannot download this to my local machine (it would take too long and I don’t have the room for it on my crappy laptop). So, I have devoted a lot of time to learning how to work in the cloud. Nolan (my mentor) pointed me toward the website for Stanford University’s CS231N course. In particular, it has detailed tutorial on how to set up and work in a google cloud environment (gce). I’m still trying to figure out to pull Kaggle data sets onto my gce.

Once I have these issues sorted out, I’ll be ready to build a neural network that classifies the image files.
