Kaggle House Prices Prediction with Linear Regression and Gradient Boosting

This notebook achieved a score of 0.12 and within the top 25% in this Kaggle House Price competition

Rohan Paul
Oct 30, 2020 · 27 min read
Image for post
Image for post

My Kaggle Notebook Link is here

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import LabelEncoder, OneHotEncoder
from sklearn.compose import ColumnTransformer
from sklearn.linear_model import LinearRegression
from sklearn.linear_model import Ridge
from sklearn.linear_model import Lasso
from sklearn.ensemble import RandomForestRegressor
from sklearn.impute import SimpleImputer
from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split
from sklearn import metrics
from sklearn.metrics import mean_squared_log_error
from sklearn.metrics import mean_squared_error
from xgboost import XGBRegressor
import math

The evaluation criteria for this Kaggle Competition is RMSLE — “Submissions are evaluated on Root-Mean-Squared-Error (RMSE) between the logarithm of the predicted value and the logarithm of the observed sales price. (Taking logs means that errors in predicting expensive houses and cheap houses will affect the result equally.)”

The Root Mean Squared Log Error (RMSLE) can be defined using a slight modification on sklearn’s mean_squared_log_error function, which itself a modification on the familiar Mean Squared Error (MSE) metric.

def root_mean_squared_log_error(y_validations, y_predicted):
if len(y_predicted) != len(y_validations):
return 'error: mismatch in number of data points between x and y'
y_predict_modified = [math.log(i) for i in y_predicted]
y_validations_modified = [math.log(i) for i in y_validations]

return mean_squared_error(y_validations_modified, y_predict_modified, squared=False)
df_train = pd.read_csv('../input/house-prices-advanced-regression-techniques/train.csv')
df_test = pd.read_csv('../input/house-prices-advanced-regression-techniques/test.csv')
df_train.head()
png

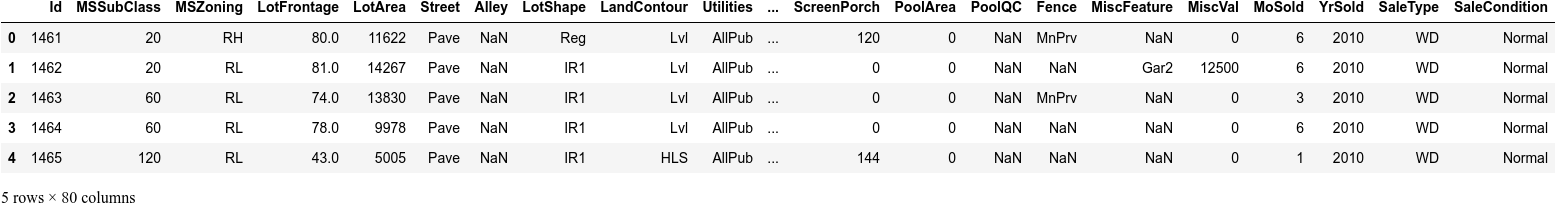

df_test.head()
png

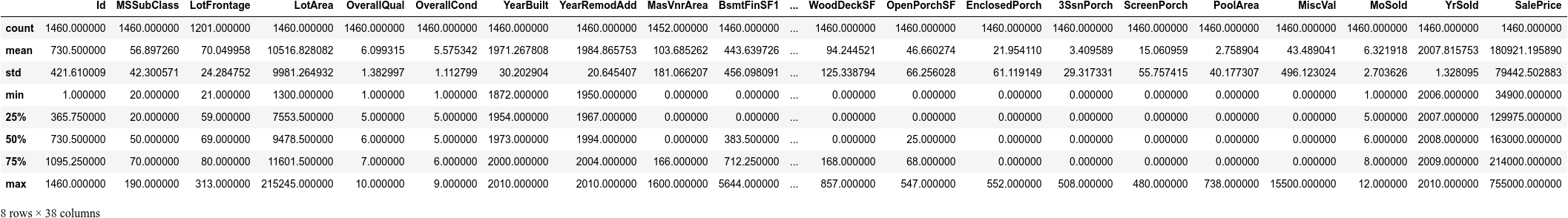

First, I am getting a basic description of the data, to look quickly at the overall data to get some simple, easy-to-understand information. This is just to get a basic feel for the data. Using describe() function to get various summary statistics that exclude NaN values.

df_train.describe()
png

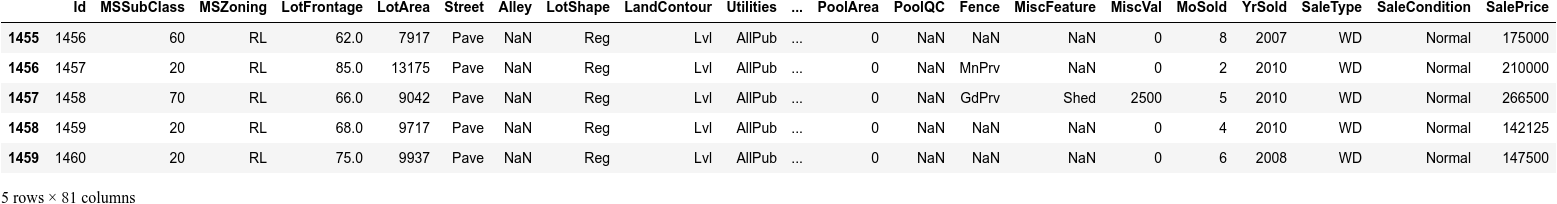

Now that I have got a general idea about your data set, it’s also a good idea to take a closer look at the data itself. With the help of the head() and tail() functions to check out the first and last lines of my DataFrame, respectively.

df_train.tail()
png
# Get the overall concise summary of the DataFrame
df_train.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 1460 entries, 0 to 1459
Data columns (total 81 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 Id 1460 non-null int64
1 MSSubClass 1460 non-null int64
2 MSZoning 1460 non-null object
3 LotFrontage 1201 non-null float64
4 LotArea 1460 non-null int64
5 Street 1460 non-null object
6 Alley 91 non-null object
7 LotShape 1460 non-null object
8 LandContour 1460 non-null object
9 Utilities 1460 non-null object
10 LotConfig 1460 non-null object
11 LandSlope 1460 non-null object
12 Neighborhood 1460 non-null object
13 Condition1 1460 non-null object
14 Condition2 1460 non-null object
15 BldgType 1460 non-null object
16 HouseStyle 1460 non-null object
17 OverallQual 1460 non-null int64
18 OverallCond 1460 non-null int64
19 YearBuilt 1460 non-null int64
20 YearRemodAdd 1460 non-null int64
21 RoofStyle 1460 non-null object
22 RoofMatl 1460 non-null object
23 Exterior1st 1460 non-null object
24 Exterior2nd 1460 non-null object
25 MasVnrType 1452 non-null object
26 MasVnrArea 1452 non-null float64
27 ExterQual 1460 non-null object
28 ExterCond 1460 non-null object
29 Foundation 1460 non-null object
30 BsmtQual 1423 non-null object
31 BsmtCond 1423 non-null object
32 BsmtExposure 1422 non-null object
33 BsmtFinType1 1423 non-null object
34 BsmtFinSF1 1460 non-null int64
35 BsmtFinType2 1422 non-null object
36 BsmtFinSF2 1460 non-null int64
37 BsmtUnfSF 1460 non-null int64
38 TotalBsmtSF 1460 non-null int64
39 Heating 1460 non-null object
40 HeatingQC 1460 non-null object
41 CentralAir 1460 non-null object
42 Electrical 1459 non-null object
43 1stFlrSF 1460 non-null int64
44 2ndFlrSF 1460 non-null int64
45 LowQualFinSF 1460 non-null int64
46 GrLivArea 1460 non-null int64
47 BsmtFullBath 1460 non-null int64
48 BsmtHalfBath 1460 non-null int64
49 FullBath 1460 non-null int64
50 HalfBath 1460 non-null int64
51 BedroomAbvGr 1460 non-null int64
52 KitchenAbvGr 1460 non-null int64
53 KitchenQual 1460 non-null object
54 TotRmsAbvGrd 1460 non-null int64
55 Functional 1460 non-null object
56 Fireplaces 1460 non-null int64
57 FireplaceQu 770 non-null object
58 GarageType 1379 non-null object
59 GarageYrBlt 1379 non-null float64
60 GarageFinish 1379 non-null object
61 GarageCars 1460 non-null int64
62 GarageArea 1460 non-null int64
63 GarageQual 1379 non-null object
64 GarageCond 1379 non-null object
65 PavedDrive 1460 non-null object
66 WoodDeckSF 1460 non-null int64
67 OpenPorchSF 1460 non-null int64
68 EnclosedPorch 1460 non-null int64
69 3SsnPorch 1460 non-null int64
70 ScreenPorch 1460 non-null int64
71 PoolArea 1460 non-null int64
72 PoolQC 7 non-null object
73 Fence 281 non-null object
74 MiscFeature 54 non-null object
75 MiscVal 1460 non-null int64
76 MoSold 1460 non-null int64
77 YrSold 1460 non-null int64
78 SaleType 1460 non-null object
79 SaleCondition 1460 non-null object
80 SalePrice 1460 non-null int64
dtypes: float64(3), int64(35), object(43)
memory usage: 924.0+ KB

Lets check what are the numerical features in the df_train dataset

numeric_features = df_train.select_dtypes(include=[np.number])
numeric_features.columns
Index(['Id', 'MSSubClass', 'LotFrontage', 'LotArea', 'OverallQual',
'OverallCond', 'YearBuilt', 'YearRemodAdd', 'MasVnrArea', 'BsmtFinSF1',
'BsmtFinSF2', 'BsmtUnfSF', 'TotalBsmtSF', '1stFlrSF', '2ndFlrSF',
'LowQualFinSF', 'GrLivArea', 'BsmtFullBath', 'BsmtHalfBath', 'FullBath',
'HalfBath', 'BedroomAbvGr', 'KitchenAbvGr', 'TotRmsAbvGrd',
'Fireplaces', 'GarageYrBlt', 'GarageCars', 'GarageArea', 'WoodDeckSF',
'OpenPorchSF', 'EnclosedPorch', '3SsnPorch', 'ScreenPorch', 'PoolArea',
'MiscVal', 'MoSold', 'YrSold', 'SalePrice'],
dtype='object')

numeric features head

numeric_features.head()
png

Now a general description of SalePrice

# Now, as we will be predicting 'SalePrice' lets see description of that column
df_train['SalePrice'].describe()
count 1460.000000
mean 180921.195890
std 79442.502883
min 34900.000000
25% 129975.000000
50% 163000.000000
75% 214000.000000
max 755000.000000
Name: SalePrice, dtype: float64

For a regression problem, the most important thing to do is to understand the distribution of your target. If a target ranges between 1 and 10, and after training our model we get a mean absolute error of 5, we can tell that the error is large in this context. However, the same error for a target that ranges between 500,000 and 1,000,000 is negligible.

  • If you have numeric type dataset and want to visualize in histogram
  • then the seaborn histogram will help you. For this seaborn distplot function responsible to plot it.
  • On y-axis give the numeric dataset
  • On x-axis gives bins. It means distribute given dataset in a particular range and show in bars
  • e.g. bins= 18 and bins = 40

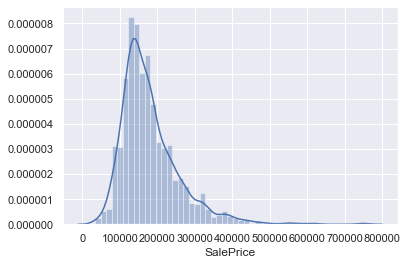

sns.distplot(df_train['SalePrice'])<matplotlib.axes._subplots.AxesSubplot at 0x7f832c513b50>
png

From the above distplot, the ‘SalePrice’ is dense between 100k and 250k, but there are larger outliers on the right side, i.e the expensive price range.

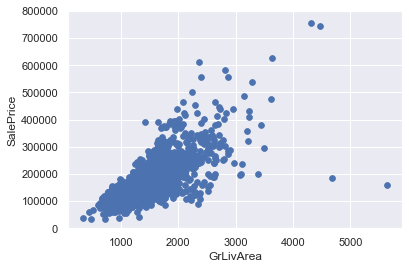

Now, let’s have a look at the greater living area (square feet) against the sale price:

# first wo quickly view all the column names in the data
# print(df_train.columns)
# for above I could also use - data.columns
# Checking - 'GrLivArea'
data = pd.concat([df_train['SalePrice'], df_train['GrLivArea']], axis=1)
data.plot.scatter(x='GrLivArea', y='SalePrice', ylim=(0, 800000), s=32)
'c' argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with 'x' & 'y'. Please use a 2-D array with a single row if you really want to specify the same RGB or RGBA value for all points.





<matplotlib.axes._subplots.AxesSubplot at 0x7f8316e54bd0>
png

Its generally expected that larger living area comes with higher price. This chart shows thats generally true. But there are some 2–3 “cheap” houses with large living area Now lets explore the “TotalBsmtSF” column — Total square feet of the basement area.

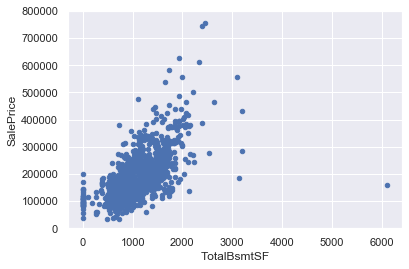

# Checking - 'TotalBsmtSF'
data = pd.concat([df_train['SalePrice'], df_train['TotalBsmtSF']], axis=1)
data.plot.scatter(x='TotalBsmtSF', y='SalePrice', ylim=(0, 800000))
'c' argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with 'x' & 'y'. Please use a 2-D array with a single row if you really want to specify the same RGB or RGBA value for all points.





<matplotlib.axes._subplots.AxesSubplot at 0x7f83170ed210>
png

We can see that basement area indeed may have good predictive power for the model.

Now lets check “OverallQual” — overall material and finish quality. This one may be more subjective feature.

year_feature = [feature for feature in numeric_features if 'Yr' in feature or 'Year' in feature]
year_feature
['YearBuilt', 'YearRemodAdd', 'GarageYrBlt', 'YrSold']# Checking - 'YearBuilt'

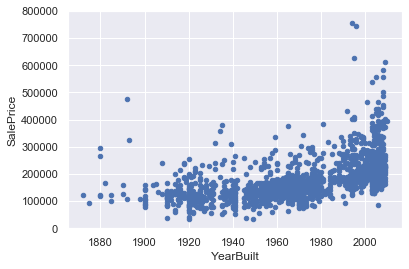

data = pd.concat([df_train['SalePrice'], df_train['YearBuilt']], axis=1)
data.plot.scatter(x = 'YearBuilt', y = 'SalePrice', ylim=(0, 800000))
'c' argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with 'x' & 'y'. Please use a 2-D array with a single row if you really want to specify the same RGB or RGBA value for all points.





<matplotlib.axes._subplots.AxesSubplot at 0x7f8317109410>
png
# Checking - 'YearBuilt'

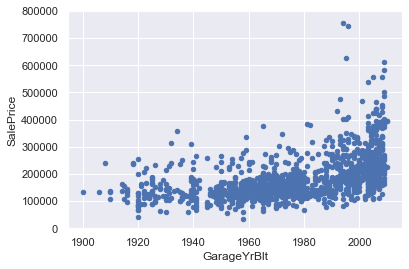

data = pd.concat([df_train['SalePrice'], df_train['GarageYrBlt']], axis=1)
data.plot.scatter(x = 'GarageYrBlt', y = 'SalePrice', ylim=(0, 800000))
'c' argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with 'x' & 'y'. Please use a 2-D array with a single row if you really want to specify the same RGB or RGBA value for all points.





<matplotlib.axes._subplots.AxesSubplot at 0x7f83172890d0>
png
# Checking - 'YearBuilt'
data = pd.concat([df_train['SalePrice'], df_train['YearRemodAdd']], axis=1)
data.plot.scatter(x = 'YearRemodAdd', y = 'SalePrice', ylim=(0, 800000))
'c' argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with 'x' & 'y'. Please use a 2-D array with a single row if you really want to specify the same RGB or RGBA value for all points.





<matplotlib.axes._subplots.AxesSubplot at 0x7f832c65d090>
png

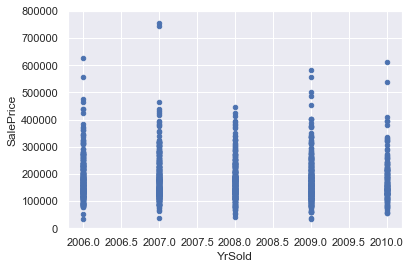

# Checking - 'YearBuilt'
data = pd.concat([df_train['SalePrice'], df_train['YrSold']], axis=1)
data.plot.scatter(x = 'YrSold', y = 'SalePrice', ylim=(0, 800000))
'c' argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with 'x' & 'y'. Please use a 2-D array with a single row if you really want to specify the same RGB or RGBA value for all points.





<matplotlib.axes._subplots.AxesSubplot at 0x7f832d333e90>
png

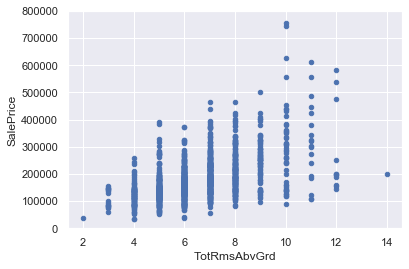

# Checking - TotRmsAbvGrd' i.e. total rooms above grade
data = pd.concat([df_train['SalePrice'], df_train['TotRmsAbvGrd']], axis=1)
data.plot.scatter(x = 'TotRmsAbvGrd', y = 'SalePrice', ylim=(0, 800000))
'c' argument looks like a single numeric RGB or RGBA sequence, which should be avoided as value-mapping will have precedence in case its length matches with 'x' & 'y'. Please use a 2-D array with a single row if you really want to specify the same RGB or RGBA value for all points.





<matplotlib.axes._subplots.AxesSubplot at 0x7f830b806050>
png

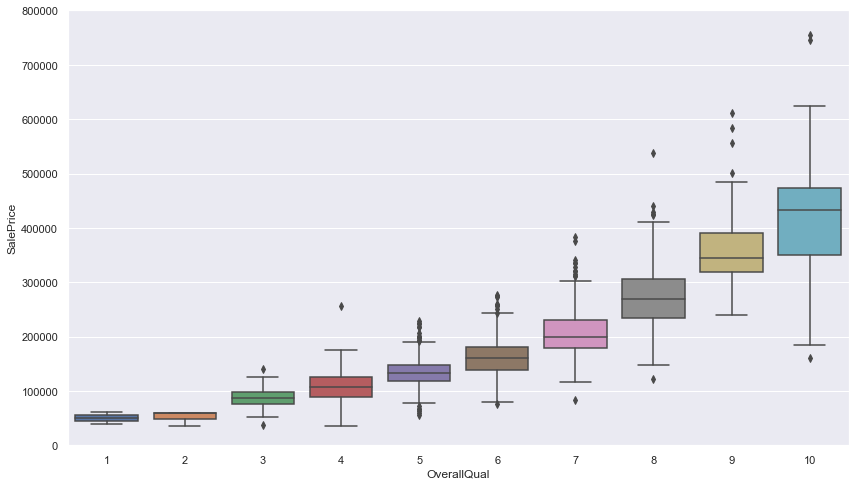

data = pd.concat([df_train['SalePrice'], df_train['OverallQual']], axis=1)
f, ax = plt.subplots(figsize=(14, 8))
fig = sns.boxplot(x='OverallQual', y='SalePrice', data=data)
fig.axis(ymin= 0, ymax=800000)
(-0.5, 9.5, 0, 800000)
png

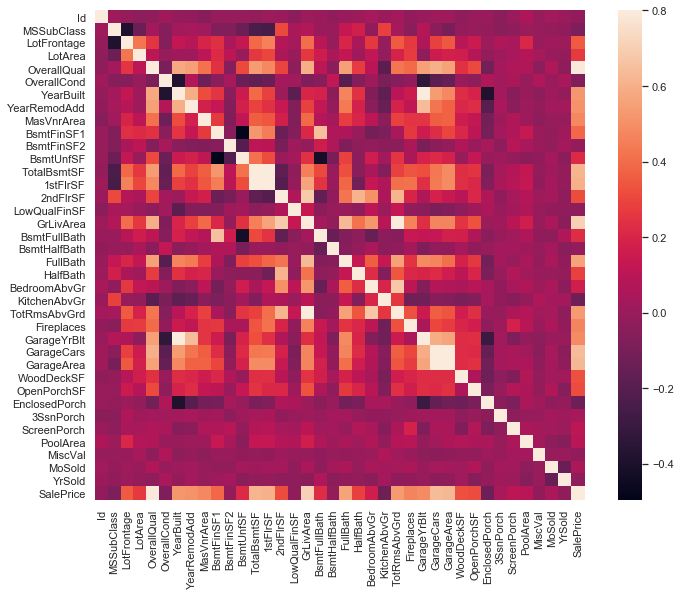

# Now lets view the top 8 correlated features with the sale price:
corr_mat = df_train.corr()
f, ax = plt.subplots(figsize=(12, 9))
sns.heatmap(corr_mat, vmax=0.8, square=True)
<matplotlib.axes._subplots.AxesSubplot at 0x7f830bbf9850>
png

Now a simple Feature Engineering — of finding out the top-most correlated columns with SalesPrice. Later while in our Model will use only these top-most important features to predict SalePrices.

Feature Engineering — Find out the most correlated columns with SalesPrice and use only those columns in modelNow the big beautiful scatter plot with a hell of lot of visual data in a single plot

top_correlations = df_train.corr()
top_feature_columns = top_correlations['SalePrice'][top_correlations['SalePrice'].values > 0.2].index.values
top_feature_columns
array(['LotFrontage', 'LotArea', 'OverallQual', 'YearBuilt',
'YearRemodAdd', 'MasVnrArea', 'BsmtFinSF1', 'BsmtUnfSF',
'TotalBsmtSF', '1stFlrSF', '2ndFlrSF', 'GrLivArea', 'BsmtFullBath',
'FullBath', 'HalfBath', 'TotRmsAbvGrd', 'Fireplaces',
'GarageYrBlt', 'GarageCars', 'GarageArea', 'WoodDeckSF',
'OpenPorchSF', 'SalePrice'], dtype=object)

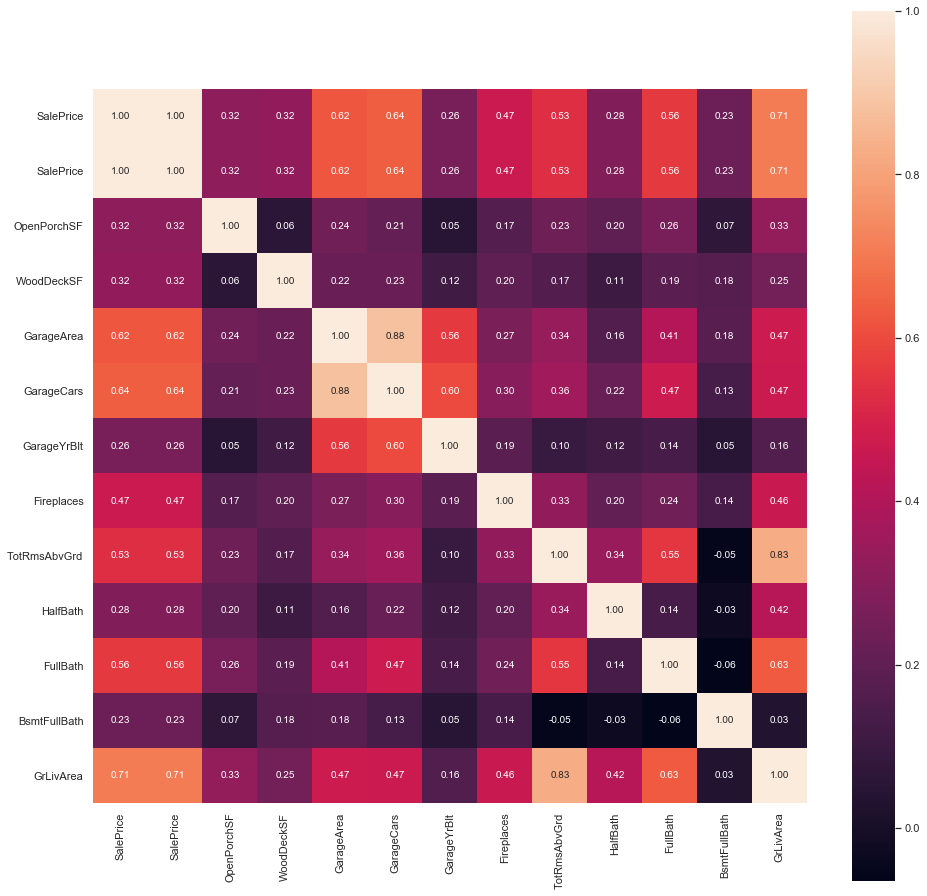

And now another heatmap with ONLY the top 12 correlated features And within the top 12 features I can see ‘GarageYrBlt’ included but, we know that this column has many empty fields. Hence I would like to fill them with zeros.

# Handling Missing Values for 19 features which have missing values mentioned above
df_train['GarageYrBlt'] = df_train['GarageYrBlt'].fillna(0)
# filling in missing GarageYrBuilt values with zeros.
# But this may not be the most logical approach - refer to this discussion below for mor perspective
# https://www.kaggle.com/c/house-prices-advanced-regression-techniques/discussion/60143

# similary fillingup na valuse for couple of other features
df_train['LotFrontage'] = df_train.groupby('Neighborhood')['LotFrontage'].transform(lambda x: x.fillna(x.median()))
df_train['MasVnrArea'] = df_train['MasVnrArea'].fillna(0)

heat_map_with_top_correlated_features = np.append(top_feature_columns[-12:], np.array(['SalePrice']))
pearson_correlation_coefficients = np.corrcoef(df_train[heat_map_with_top_correlated_features[::-1]].T)
plt.figure(figsize=(16,16))
sns.set(font_scale=1)
with sns.axes_style('white'):
sns.heatmap(pearson_correlation_coefficients, yticklabels=heat_map_with_top_correlated_features[::-1], xticklabels=heat_map_with_top_correlated_features[::-1], fmt='.2f', annot_kws={'size': 10}, annot=True, square=True, cmap=None)
png

Now lets glance over the above heatmap to understand some points just visualy looking at the correlation number

  • ‘OverallQual’, ‘GrLivArea’ and ‘TotalBsmtSF’ have strong correlation with ‘SalePrice’.
  • While ‘GarageCars’ and ‘GarageArea’ also have strong correlation, but they are mostly mutually dependent i.e. they are NOT linearly independent of each other, i.e. there is a high-multicollinearity (0.88 as we can see in the figure) between them. Because, the number of cars that fit into the garage is dependent of the garage area. Hence, we just need one of these variables in our analysis (we can decide to keep ‘GarageCars’ as its correlation with ‘SalePrice’ is higher).
  • Same mutual dependence applies to the two features ‘TotalBsmtSF’ and ‘1stFloor’ . We will take only ‘TotalBsmtSF’ in our feature-engineering.
  • AND ALSO ‘TotRmsAbvGrd’ and ‘GrLivArea’, and we will only take ‘GrLivArea’

So from the below array of top correlated features lets make our selection

Image for post
Image for post
sns.set()
cols = ['SalePrice', 'OverallQual', 'GrLivArea', 'GarageCars', 'TotalBsmtSF', 'YearBuilt', 'FullBath', 'OpenPorchSF',
'WoodDeckSF', '2ndFlrSF', 'YearRemodAdd', 'MasVnrArea', 'LotFrontage', 'LotArea']
sns.pairplot(df_train[cols], height=4)
plt.show()
png

Checking out missing data

total = df_train.isnull().sum().sort_values(ascending=False)
percent = (df_train.isnull().sum() / df_train.isnull().count()).sort_values(ascending=False)
missing_data = pd.concat([total, percent], axis=1, keys=['Total', 'Percent'])
missing_data.head(20)
png
Image for post
Image for post
Image for post
Image for post

Mean Squared Error (MSE) is the workhorse of basic loss functions. For calculating MSE, I take the difference between my y value predictions and the ground truth, square it, and average it out across the whole dataset.

As per the book Hands-On Machine Learning with Scikit-Learn & TensorFlow the formula for the Batch Gradient Descent method is:

Image for post
Image for post
Image for post
Image for post
Image for post
Image for post
def loss_func(y_predicted, y_actual):
squared_error = (y_predicted - y_actual) ** 2
sum_squared_error = squared_error.sum()
size = len(y_actual)
return 1/(2*size) * sum_squared_error
x = df_train['GrLivArea']
y = df_train['SalePrice']

x = (x - x.mean()) / x.std()
x = np.c_[np.ones(x.shape[0]), x]
x.shape
(1460, 2)

Now lets define our Hypothesis variable, meaning the one to be predicted, and here we are predicting ‘Sale Price’. And also the independent variable. Lets say first I want to make the independent variable as ‘GrLivArea’ which represents, “Above grade (ground) living area square feet”

x = df_train['GrLivArea']
y = df_train['SalePrice']

I will preprocess the data using the following formula for standardization

$x′=(x−μ) / σ$

The above formulae is called Z-score is one of the most popular methods to standardize data. It is equal to the original variable, minus its mean, divided by its standard deviation. Once the standardization is done, all the features will have a mean of zero, a standard deviation of one, and thus, the same scale. This process produces standard scores that represent the number of standard deviations above or below the mean that a specific observation falls. For instance, a standardized value of 2 indicates that the observation falls 2 standard deviations above the mean. This interpretation is true regardless of the type of variable that you standardize.

x = (x - x.mean()) / x.std()
print(x.shape)
# (1460, ) i.e. it will be an array like
# [0 1 2 3 4 5 6 7 8.... 1459]

x = np.c_[np.ones(x.shape[0]), x]
print(x.shape)
# (1460, 2)
(1460,)
(1460, 2)
# Now below I am defining a basic Linear regression function

class SimpleLinearRegression:

def get_predictions(self, X):
return np.dot(X, self._W)

def _get_gradient_descent_step(self, X, targets, learning_rate):
predictions = self.get_predictions(X)

error = predictions - targets
gradient = np.dot(X.T, error)/len(x)

# now update the W
self._W -= learning_rate * gradient


def fit(self, X, y, iterations_num=1000, learning_rate=0.01):
self._W = np.zeros(X.shape[1])

self._history_of_cost = []
self._w_history = [self._W]

for i in range(iterations_num):
predictions = self.get_predictions(X)
cost = loss_func(predictions, y)

self._history_of_cost.append(cost)

self._get_gradient_descent_step(x, y, learning_rate)

self._w_history.append(self._W.copy())

return self
house_price_linear_result = SimpleLinearRegression()
house_price_linear_result.fit(x, y, iterations_num=2000, learning_rate=0.01)
print(house_price_linear_result._W)
[180921.19555322 56294.90199925]# Now plot the Cost function
plt.title('Kaggle House Price Cost Function')
plt.xlabel('No of Iterations')
plt.ylabel('House Price Cost')
plt.plot(house_price_linear_result._history_of_cost)
plt.show()
png

Now do the same implementation with a case for Multivariate Linear Regression.

From our earlier heat-map of Pearson Correlation, we already know the top features that are correlated with ‘SalePrice’ which are

['SalePrice', 'OverallQual', 'GrLivArea', 'GarageCars', 'TotalBsmtSF', 'YearBuilt', 'FullBath', 'OpenPorchSF', 'WoodDeckSF', '2ndFlrSF', 'YearRemodAdd', 'MasVnrArea', 'LotFrontage', 'LotArea']

# We have already taken care of NA values for some the below features
x = df_train[['SalePrice', 'OverallQual', 'GrLivArea', 'GarageCars', 'TotalBsmtSF',
'YearBuilt', 'FullBath', 'OpenPorchSF', 'WoodDeckSF', '2ndFlrSF', 'YearRemodAdd',
'MasVnrArea', 'LotFrontage', 'LotArea']]

# just like before let's standardize our independent variable data
x = (x - x.mean()) / x.std()
x = np.c_[np.ones(x.shape[0]), x]

house_price_multi_variate_linear_result = SimpleLinearRegression()
house_price_multi_variate_linear_result.fit(x, y, iterations_num = 2000, learning_rate=0.01)

print(house_price_multi_variate_linear_result._W)
[ 1.80921196e+05 7.72536266e+04 1.08454562e+03 2.07745324e+03
1.40180565e+02 -4.95778419e+02 3.66954940e+02 -4.46204227e+02
-1.81061812e+01 7.38062886e+01 -1.05645911e+03 1.30486249e+02
9.71722069e+01 -1.28375674e+02 1.78862813e+02]

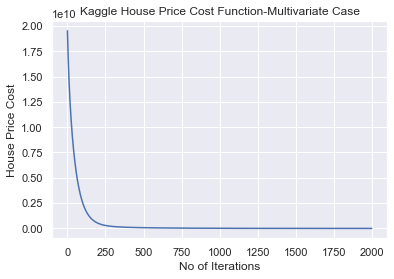

plt.title('Kaggle House Price Cost Function-Multivariate Case')
plt.xlabel('No of Iterations')
plt.ylabel('House Price Cost')
plt.plot(house_price_multi_variate_linear_result._history_of_cost)
plt.show()
png

Looks like our cost function is performing slightly better with Multivariate case.

Okay so that was our attempt at Multivariate Linear Regression and now we will implement the same with the Linear Regression function from sklearn.linear_model

Image for post
Image for post

And it can be mathematically proved that the formulae for β is below

Image for post
Image for post

And now the expression for alpha will be

Image for post
Image for post

First some data pre-procession.

train_target_label = df_train['SalePrice']
# labels are dependent variables whose values are to be predicted.
top_feature_columns_modified = ['OverallQual', 'GrLivArea', 'GarageCars', 'TotalBsmtSF', 'YearBuilt', 'FullBath', 'OpenPorchSF',
'WoodDeckSF', '2ndFlrSF', 'YearRemodAdd', 'MasVnrArea', 'LotFrontage', 'LotArea']

training_sample_df = df_train[top_feature_columns_modified]
test_sample_df = df_test[top_feature_columns_modified]

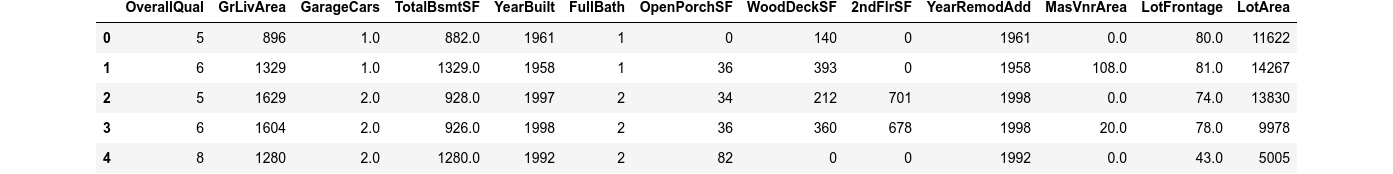

training_sample_df.head()
png

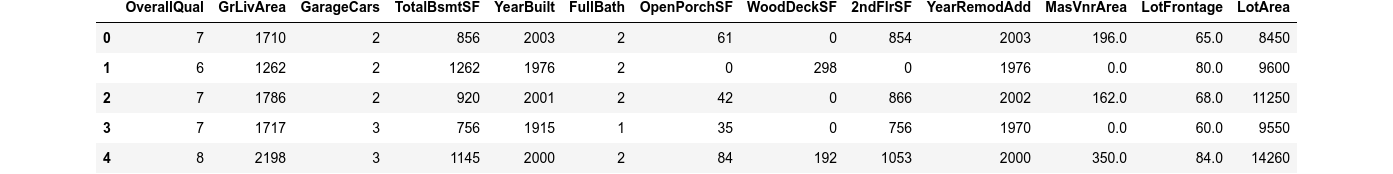

test_sample_df.head()
png

Do some data pre-processing by replacing all null values with median using scikit-learn’s Imputer class.

The strategy parameter is optional and takes a string, (default=”mean”)

If “mean”, then replace missing values using the mean along the axis. If “median”, then replace missing values using the median along the axis. If “most_frequent”, then replace missing using the most frequent value along the axis.

imputer = SimpleImputer(strategy = 'median')

# During fit() the imputer learns about the mean, median etc of the data,
# which is then applied to the missing values during transform().
imputer.fit(training_sample_df)
imputer.fit(test_sample_df)

# Note - sklearn.preprocessing.Imputer.fit_transform returns a new array, it doesn't alter the argument array.
training_sample_df = imputer.transform(training_sample_df)
test_sample_df = imputer.transform(test_sample_df)

Previously we standardized the data with manual plain-python implement

scaler = StandardScaler()

# Again, during fit() the imputer learns about the mean, median etc of the data,
# which is then applied to the missing values during transform().
scaler.fit(training_sample_df)
scaler.fit(test_sample_df)

training_sample_df = scaler.transform(training_sample_df)
test_sample_df = scaler.transform(test_sample_df)
# Syntax of train_test_split
# X_train_split, X_test_split, y_train, y_test = train_test_split(X, y, train_size=0.33, random_state=42)
X_train_split, X_test_split, y_train, y_test = train_test_split(training_sample_df, train_target_label, random_state=42, train_size = 0.8 )

X_train_split.shape
(1168, 13)X_test_split.shape(292, 13)training_sample_df.shape(1460, 13)test_sample_df.shape(1459, 13)

Now finally run a Linear Regression model. With Scikit-Learn it is extremely straight forward to implement linear regression models, as all you really need to do is import the LinearRegression class, instantiate it, and call the fit() method along with our training data. This is about as simple as it gets when using a machine learning library to train on your data.

model = LinearRegression()
# we have to fit this model to our data, in other words, we have to make it “learn” using our training data.
# The syntax of the fit function is just plain model.fit(X_train_split, Y_train)
model.fit(training_sample_df, train_target_label)
LinearRegression(copy_X=True, fit_intercept=True, n_jobs=None, normalize=False)

linear regression model basically finds the best value for the intercept and slope, which results in a line that best fits the data. To see the value of the intercept and slop calculated by the linear regression algorithm for our dataset, execute the following code.

For a single variable case, say e.g. a data set between ‘Exam final Score of a student’ and ‘Hour Studied’ — where the ‘Hour Studied’ is the independent Variable (i.e. X) . And say, for a single row of data (i.e a single data point from the whoel dataset) we find the coefficient of X to be 9.91. This means that for every one unit of change in hours studied, the change in the score is about 9.91%. Or in simpler words, if a student studies one hour more than they previously studied for an exam, they can expect to achieve an increase of 9.91% in the score achieved by the student previously.

print('Intercept is ', model.intercept_)

# For retrieving the slope (coefficient of x). This will be an array of values.
print("Slope i.e. coefficient of x is ", model.coef_)
Intercept is 177921.01851212673
Slope i.e. coefficient of x is [28196.91947993 26349.76648831 9645.4413169 7658.2055073
6637.47089276 -2965.55939821 768.02475758 4437.72171596
-4227.6251946 6888.80707764 5992.62389513 579.10402749
2935.94808718]

“R-squared” approach is shorthand for maximising the proportion of the variance in the dependent variable that is predicted from the model

Image for post
Image for post

Return the coefficient of determination R² of the prediction.

The coefficient R² is defined as (1 — u/v), where u is the residual sum of squares ((y_true — y_pred) ** 2).sum() and v is the total sum of squares ((y_true — y_true.mean()) ** 2).sum(). The best possible score is 1.0 and it can be negative (because the model can be arbitrarily worse). A constant model that always predicts the expected value of y, disregarding the input features, would get a R² score of 0.0.

# regression = model.fit(training_sample_df, train_target_label)
print("Regression score is", model.score(training_sample_df, train_target_label))
print('train_target_label is ', train_target_label)
Regression score is 0.7858973705366121
train_target_label is 0 208500
1 181500
2 223500
3 140000
4 250000
...
1455 175000
1456 210000
1457 266500
1458 142125
1459 147500
Name: SalePrice, Length: 1460, dtype: int64

Now that my model is trained with the training data set, I can now start testing the model with the testing dataset to Predict Sales Price from Test data set. The y_predict is a numpy array that contains all the predicted values for the input values in the X_test_split series.

The general syntax is for making predictions on the test data, I have to execute the following form of:

regressor = LinearRegression()
y_predition_from_model = regressor.predict(X_test_split)
y_predict = model.predict(X_test_split)rmse_simple_linear = np.sqrt(metrics.mean_squared_error(y_test, y_predict))
print('Root Mean Square Error is ', rmse_simple_linear)

# MSE_Log
rmse_log_simple_linear = np.sqrt(mean_squared_log_error(y_test, y_predict))
print('Root Mean Square Log Error is ', rmse_log_simple_linear)
Root Mean Square Error is 36992.39012928462
Root Mean Square Log Error is 0.26703294966342594
prediction_on_test_data = model.predict(test_sample_df)
# print("Regression score on test sample data is", model.score(test_sample_df, train_target_label ))
testID = df_test['Id']

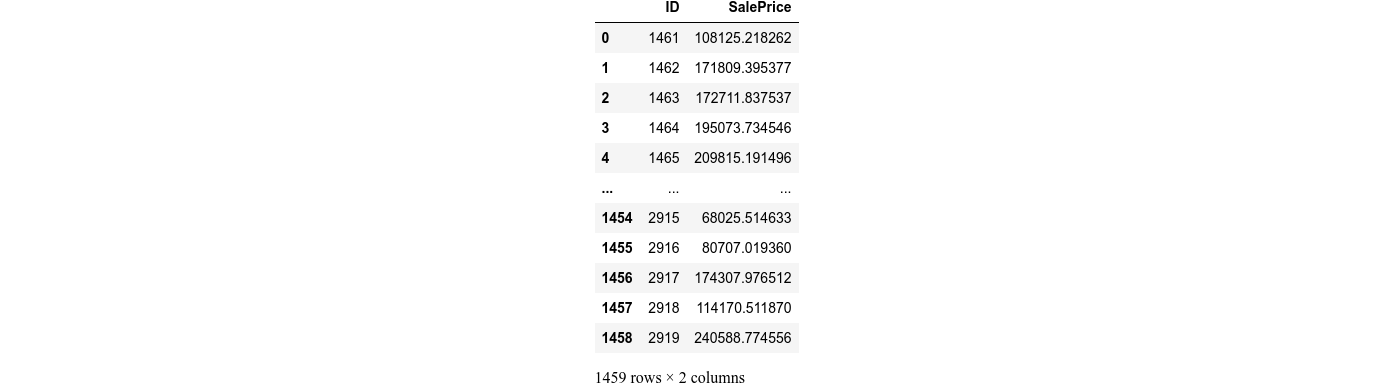

predict_submission = pd.DataFrame()
predict_submission['ID'] = testID
predict_submission['SalePrice'] = prediction_on_test_data
predict_submission
png

The difference between the two methods and that ridge regression shrinks the regression coefficients towards zero while the Lasso sets some of them to be zero and that’s why it’s in a way a subset selection procedure.

Ridge regression uses a quadratic penalty, and this is very small for small coefficients, giving almost no regularisation benefit from further reduction, which is why it typically fails to force any of them fully to zero

LASSO uses an absolute value penalty, so reducing a small coefficient to zero can give the same regularisation benefit as reducing a large coefficient by a small amount, making the approach frequently reduce the number of variables actively used in the final model.

Image for post
Image for post
model_ridge = Ridge(alpha=0.5)
model_ridge.fit(training_sample_df, train_target_label)
y_predict_ridge = model_ridge.predict(X_test_split)

mse_linear_ridge = np.sqrt(metrics.mean_squared_error(y_test, y_predict_ridge))
print('MSE of Linear Ridge is ', mse_linear_ridge)

# Log Error
mse_log_linear_ridge = np.sqrt(mean_squared_log_error(y_test, y_predict_ridge))
print('MSE Log of Linear Ridge is ', mse_log_linear_ridge)
MSE of Linear Ridge is 36992.54832288
MSE Log of Linear Ridge is 0.26682113387130174
model_lasso = Lasso(alpha=33)
model_lasso.fit(training_sample_df, train_target_label)
y_predict_lasso = model_lasso.predict(X_test_split)

mse_linear_lasso = np.sqrt(metrics.mean_squared_error(y_test, y_predict_lasso))
print('MSE of Lasso Regression is ', mse_linear_lasso)

# Log Error
mse_log_linear_lasso = np.sqrt(mean_squared_log_error(y_test, y_predict_lasso))
print('MSE Log of Lasso Regression is ', mse_log_linear_lasso)
MSE of Lasso Regression is 37002.420402536394
MSE Log of Lasso Regression is 0.2665108348893785

One big advantage of random forest is that it can be used for both classification and regression problems. We can also deal with regression tasks by using the algorithm’s regressor. You can also deal with regression tasks by using the algorithm’s regressor.

We can even make trees more random by additionally using random thresholds for each feature rather than searching for the best possible thresholds (like a normal decision tree does).

Random forest, consists of a large number of individual decision trees that operate as an ensemble. Each individual tree in the random forest spits out a class prediction and the class with the most votes becomes our model’s prediction (see figure below).

The low correlation between models (trees) is the key. Just like how investments with low correlations (like stocks and bonds) come together to form a portfolio that is greater than the sum of its parts, uncorrelated models can produce ensemble predictions that are more accurate than any of the individual predictions. The reason for this wonderful effect is that the trees protect each other from their individual errors (as long as they don’t constantly all err in the same direction).

One of the biggest problems in machine learning is overfitting, but most of the time this won’t happen thanks to the random forest classifier. If there are enough trees in the forest, the classifier won’t overfit the model.

The main limitation of random forest is that a large number of trees can make the algorithm too slow and ineffective for real-time predictions.

A great quality of the random forest algorithm is that it is very easy to measure the relative importance of each feature on the prediction. Sklearn provides a great tool for this that measures a feature’s importance by looking at how much the tree nodes that use that feature reduce impurity across all trees in the forest. It computes this score automatically for each feature after training and scales the results so the sum of all importance is equal to one.

  • It is a tree-structured classifier, where internal nodes represent the features of a dataset, branches represent the decision rules and each leaf node represents the outcome.
  • In a Decision tree, there are two nodes, which are the Decision Node and Leaf Node. Decision nodes are used to make any decision and have multiple branches, whereas Leaf nodes are the output of those decisions and do not contain any further branches.
  • The decisions or the test are performed on the basis of features of the given dataset.
Image for post
Image for post

Here is a good description from Wikipedia: ‘“In a decision tree each internal node represents a ‘test’ on an attribute (e.g. whether a coin flip comes up heads or tails), each branch represents the outcome of the test, and each leaf node represents a class label (decision taken after computing all attributes). A node that has no children is a leaf.’”

Further from Widipedia Decision Tree Learning — “A decision tree or a classification tree is a tree in which each internal (non-leaf) node is labeled with an input feature. The arcs coming from a node labeled with an input feature are labeled with each of the possible values of the target feature or the arc leads to a subordinate decision node on a different input feature. Each leaf of the tree is labeled with a class or a probability distribution over the classes, signifying that the data set has been classified by the tree into either a specific class, or into a particular probability distribution (which, if the decision tree is well-constructed, is skewed towards certain subsets of classes).”

Deeper trees reduces the bias; more trees reduces the variance.

The most important hyper-parameter is how many features to test for each split. The more useless features there are, the more features you should try.

Generally,

  • Number of trees: the bigger the better. One way to evaluate and know when to stop is to monitor our error rate while building your forest (or any other evaluation criteria you could use) and detect when it converges. Also, the number of test nodes in your trees is upper bounded by the number of objects, so if you have lots of variables and not so many training objects, larger forest will be highly recommended in order to increase the chances of evaluating all the descriptors at least once in your forest.

However, more trees also mean more computational cost and after a certain number of trees, the improvement is negligible. An article from Oshiro et al. (2012) pointed out that, based on their test with 29 data sets, after 128 of trees there is no significant improvement

  • Tree depth: To control how deep your trees are we can limit the maximum depth, limit the number of nodes, limit the number of objects required to split, stop splitting if the split does not sufficiently improves the fit,…). Most of the time, it is recommended to prune (limit the depth of) the trees if we are dealing with noisy data. Finally, we can use our fully developed trees to compute performance of shorter trees as these are a “subset” of the fully developed ones.

standard random forest algorithm grow the full decision tree without pruning. A single decision tree do need pruning in order to overcome over-fitting issue. However, in random forest, this issue is eliminated by random selecting the variables and the OOB(out of bag) action.

Tree correlation means that 2 trees are correlated in terms of predictor variable on which split is made. In bagging, OOB(out of bag) means that on average,we are able to use only 2/3rd of our dataset for building our tree and rest 1/3rd are not used. So we are trying to make prediction from OOB 1/3rd dataset.

RFR = RandomForestRegressor(max_depth=50)
RFR.fit(training_sample_df, train_target_label)

y_predict_random_forest = RFR.predict(X_test_split)

mse_random_forest = np.sqrt(metrics.mean_squared_error(y_test, y_predict_random_forest))
print('MSE Random Forest is ', mse_random_forest)

# Log Error
mse_log_random_forest = np.sqrt(mean_squared_log_error(y_test, y_predict_random_forest))
print('MSE Log Random Forest is ', mse_log_random_forest)
MSE Random Forest is 10994.239275654672
MSE Log Random Forest is 0.07018401834543612

Running the example above, fits the random forest ensemble model on the entire dataset and is then used to make a prediction on a new row of data. Randomness is used in the construction of the model. This means that each time the algorithm is run on the same data, it will produce a slightly different model.

In general, when using machine learning algorithms that have a stochastic learning algorithm, it is good practice to evaluate them by averaging their performance across multiple runs or repeats of cross-validation. When fitting a final model, it may be desirable to either increase the number of trees until the variance of the model is reduced across repeated evaluations, or to fit multiple final models and average their predictions.

# Y_test_predicted_for_submission = RFR.predict(df_test)
# Y_test_predicted_for_submission = RFR.predict(X_test_split)
Y_test_predicted_for_submission = RFR.predict(test_sample_df)

indexes = np.arange(df_test.shape[0]+2, 2*df_test.shape[0]+2)
print('Indexex ', indexes)

# output_for_submission = pd.DataFrame({'Id': test_sample_df.Id,
# 'SalePrice': Y_test_predicted_for_submission})

# output_for_submission = pd.DataFrame({'Id': indexes,
# 'SalePrice': Y_test_predicted_for_submission})

# output_for_submission = pd.DataFrame({'Id': df_test.Id,
# 'SalePrice': Y_test_predicted_for_submission})

# print(output_for_submission)

# *****************
# Below code is for our Initial Submission which generated a rank of
# 3100+ which is within top 68% - Not a very good result

testID = df_test['Id']
output_for_submission = pd.DataFrame()
output_for_submission['ID'] = testID
output_for_submission['SalePrice'] = Y_test_predicted_for_submission
output_for_submission.to_csv('submission.csv', index=False)
Indexex [1461 1462 1463 ... 2917 2918 2919]

As we saw, the above was my initial submission, but the score and ranking was not at all good, hence now I will implement some basic feature-engineering and the very powerful Gradient-Boosting model on the training data.

Let’s start

all_features_except_target = [i for i in df_train.columns if i not in ['SalePrice'] ]
features_X = df_train[all_features_except_target]
y = df_train['SalePrice']


X_feature_engineering = features_X.copy()

# To measure how recently the House was re-modified - calculate a column by subtracting YearBuilt from YearRemodAdd.
# The notes on the data says - YearRemodAdd: Remodel date (same as construction date if no remodeling or additions)
X_feature_engineering['years_since_update'] = X_feature_engineering['YearRemodAdd'] - X_feature_engineering['YearBuilt']
X_feature_engineering['garage_value'] = X_feature_engineering['YearBuilt'] * X_feature_engineering['GarageCars']

X_feature_engineering = X_feature_engineering.drop(columns=['GarageCars'])

feature_numerical_columns = [col_name for col_name in X_feature_engineering.columns if
X_feature_engineering[col_name].dtype in ['int64', 'float64']]

A note on Pandas dataframe.nunique() function — implemented here to get the categorical columns It return Series with number of distinct observations over requested axis. If we set the value of axis to be 0, then it finds the total number of unique observations over the index axis. If we set the value of axis to be 1, then it find the total number of unique observations over the column axis. It also provides the feature to exclude the NaN values from the count of unique numbers.

feature_categorical_cols = [col_name for col_name in X_feature_engineering.columns if
X_feature_engineering[col_name].nunique() < 50 and
X_feature_engineering[col_name].dtype in ['object', 'bool']]


feature_numerical_transformer = SimpleImputer(strategy='constant')

feature_categorical_transformer = Pipeline(steps=[
('imputer', SimpleImputer(strategy='most_frequent')),
('onehot', OneHotEncoder(handle_unknown='ignore'))
])

feature_preprocessor = ColumnTransformer(
transformers=[
('num', feature_numerical_transformer, feature_numerical_columns),
('cat', feature_categorical_transformer, feature_categorical_cols)
])

Source XGBoost (Extreme Gradient Boosting) belongs to a family of boosting algorithms and uses the gradient boosting (GBM) framework at its core. It is an optimized distributed gradient boosting library.

What is Boosting

Boosting is a sequential technique which works on the principle of an ensemble. How Boosting Algorithm Works? The basic principle behind the working of the boosting algorithm is to generate multiple weak learners and combine their predictions to form one strong rule. These weak rules are generated by applying base Machine Learning algorithms on different distributions of the data set. These algorithms generate weak rules for each iteration. After multiple iterations, the weak learners are combined to form a strong learner that will predict a more accurate outcome. Note that a weak learner is one which is slightly better than random guessing. For example, a decision tree whose predictions are slightly better than 50%.

Here’s how the algorithm works:

Step 1: The base algorithm reads the data and assigns equal weight to each sample observation.

Step 2: False predictions made by the base learner are identified. In the next iteration, these false predictions are assigned to the next base learner with a higher weightage on these incorrect predictions.

Step 3: Repeat step 2 until the algorithm can correctly classify the output.

Therefore, the main aim of Boosting is to focus more on miss-classified predictions.

There are three main ways through which boosting can be carried out:

  • Adaptive Boosting or AdaBoost
  • Gradient Boosting
  • XGBoost

Below we will be using XGBoost which is an advanced version of Gradient boosting method, it literally means eXtreme Gradient Boosting. XGBoost dominates structured or tabular datasets on classification and regression predictive modeling problems. The XGBoost library implements the gradient boosting decision tree algorithm.

Different from the traditional gradient descent technique, gradient enhancement helps to predict the optimal gradient of the additional model. This technique can reduce the output error at each iteration.

In practice what we do in order to build the learner is to:

  • Start with single root (contains all the training examples)
  • Iterate over all features and values per feature, and evaluate each possible split loss reduction:
  • gain = loss(father instances) — (loss(left branch)+loss(right branch))
  • The gain for the best split must be positive (and > min_split_gain parameter), otherwise we must stop growing the branch.

Normally it is impossible to enumerate all the possible tree structures q. A greedy algorithm that starts from a single leaf and iteratively adds branches to the tree is used instead. Assume that I_L and I_R are the instance sets of left and right nodes after the split. Then the loss reduction after the split is given by,

Image for post
Image for post
feature_model = XGBRegressor(base_score=0.5, booster='gbtree', colsample_bylevel=1,
colsample_bynode=1, colsample_bytree=0.6, gamma=0.0, gpu_id=-1,
importance_type='gain', interaction_constraints='',
learning_rate=0.02, max_delta_step=0, max_depth=4,
min_child_weight=0.0, monotone_constraints='()',
n_estimators=1250, n_jobs=0, num_parallel_tree=1, random_state=0,
reg_alpha=0, reg_lambda=1, scale_pos_weight=1, subsample=0.8,
tree_method='exact', validate_parameters=1, verbosity=None)

feature_classifier = Pipeline(steps=[('feature_preprocessor', feature_preprocessor),
('feature_model', feature_model)
])

feature_X_train, feature_X_valid, feature_y_train, feature_y_test = train_test_split(X_feature_engineering, y, random_state=0)

feature_classifier.fit(feature_X_train, feature_y_train, feature_model__verbose=False)
feature_predictions = feature_classifier.predict(feature_X_valid)

# Implementing our earlier custom defined function for RMSLE
# Root Mean Squared Log Error . This metric is used when the Target variable is converted into Log(Target).
print('RMSLE from custom-defined function', root_mean_squared_log_error(feature_y_test, feature_predictions))

# Implementing Scikit-learn function for RMSLE
print('RMSLE using scikit-learn function', mean_squared_log_error(feature_y_test, feature_predictions))

# So definitely the Custom defined function is giving me better MSE
X_test_original = pd.read_csv('../input/house-prices-advanced-regression-techniques/test.csv')

X_test_original['years_since_update'] = X_test_original['YearRemodAdd'] - X_feature_engineering['YearBuilt']
X_test_original['garage_value'] = X_test_original['YearBuilt'] * X_test_original['GarageCars']

X_test_original = X_test_original.drop(columns=['GarageCars'])

feature_classifier.fit(X_feature_engineering, y, feature_model__verbose=False)

model_predictions = feature_classifier.predict(X_test_original)
output = pd.DataFrame({'Id': X_test_original.Id,
'SalePrice': model_predictions})
output.to_csv('submission.csv', index=False)

And the above submission got me a score of 0.12 in Kaggle Public Leader board with a rank within the top 25%. See the Full Kaggle Notebook here

Image for post
Image for post
My Kaggle Ranking as shown in the Public Leaderboard

There is of course more room for improvement with more robust Feature Engineering and application of more ML model to improve the score and ranking.

Thanks for reading ..

Analytics Vidhya

Analytics Vidhya is a community of Analytics and Data…

Sign up for Analytics Vidhya News Bytes

By Analytics Vidhya

Latest news from Analytics Vidhya on our Hackathons and some of our best articles! Take a look

By signing up, you will create a Medium account if you don’t already have one. Review our Privacy Policy for more information about our privacy practices.

Check your inbox
Medium sent you an email at to complete your subscription.

Rohan Paul

Written by

DataScience | ML | 2x Kaggle Expert. Ex Fullstack Engineer and Ex International Financial Analyst. https://www.linkedin.com/in/rohan-paul-b27285129/

Analytics Vidhya

Analytics Vidhya is a community of Analytics and Data Science professionals. We are building the next-gen data science ecosystem https://www.analyticsvidhya.com

Rohan Paul

Written by

DataScience | ML | 2x Kaggle Expert. Ex Fullstack Engineer and Ex International Financial Analyst. https://www.linkedin.com/in/rohan-paul-b27285129/

Analytics Vidhya

Analytics Vidhya is a community of Analytics and Data Science professionals. We are building the next-gen data science ecosystem https://www.analyticsvidhya.com

Medium is an open platform where 170 million readers come to find insightful and dynamic thinking. Here, expert and undiscovered voices alike dive into the heart of any topic and bring new ideas to the surface. Learn more

Follow the writers, publications, and topics that matter to you, and you’ll see them on your homepage and in your inbox. Explore

If you have a story to tell, knowledge to share, or a perspective to offer — welcome home. It’s easy and free to post your thinking on any topic. Write on Medium

Get the Medium app

A button that says 'Download on the App Store', and if clicked it will lead you to the iOS App store
A button that says 'Get it on, Google Play', and if clicked it will lead you to the Google Play store
