Measure using ARKit (iOS 11)

Minhaz Panara
Aug 22, 2017 · 7 min read

Apple has announced ARKit in iOS 11 (beta).

Have a look, how we can measure using ARKit.

In this article, we will build a measuring app that would measure the length or width of objects.

Contents

We’ll see how ARKit will be useful to create an app that can be used in measurement. We’ll go through the demo project.

We’ll go through steps,

1. Identify prerequisites

2. Create project in XCode

3. Setup basic things

4. Setup focus object

5. Put object using hitTest

6. Measure


Let’s begin.

1. Identify Prerequisites

  1. Xcode 9 beta (download)
  2. An iOS device (iOS 11) of processors A9, A10. (i.e. iPhone-6S & above, iPad-2017 & above)

2. Create project in Xcode

  • Open Xcode app and choose a template
Image for post
Image for post
select “Single View App”
  • Set project details
Image for post
Image for post
set “product-name”, “organization-name”, “Language”. (we’ll create demo in Swift)

3. Setup basic things

Before setting up, remember.

  • ARKit is using ‘meter’ for length/width/height.

1. Add ‘ARSCNView’ to view and create IBOutlet.

Image for post
Image for post
drag and drop the “ARSCNView” to “ViewController” and attach to the outlet

2. Resolve the error by importing ARKit

Image for post
Image for post
Error
Image for post
Image for post
import ARKit

3. Setup scene & ARSCNViewDelegate

Image for post
Image for post
confirm your ViewController class to protocol “ARSCNViewDelegate”
Image for post
Image for post
setup scene with options.

4. Implement methods

Image for post
Image for post

5. Camera usage description string

Image for post
Image for post
Add usage description string in “info.plist”

6. Setup ARSession

Create world-tracking session with horizontal plane detection and run on with sesssion of “sceneView”.

Image for post
Image for post
Setup ARSession with WorldTracking Configuration

7. Run the project in your device.

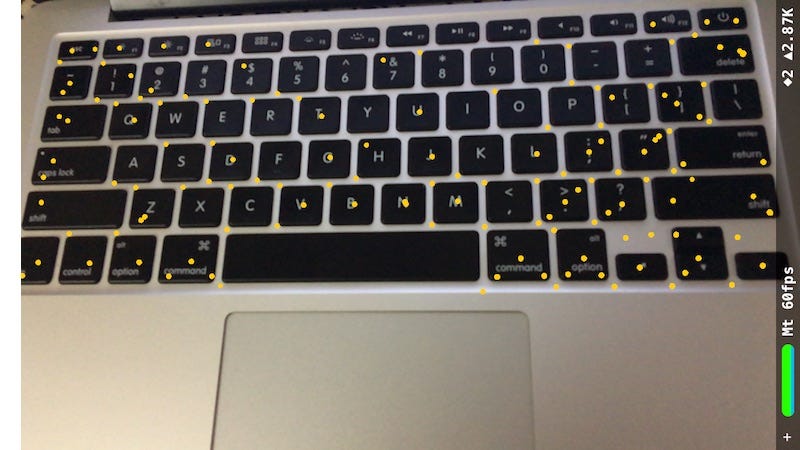

You should see feature points and the world-origin.

Image for post
Image for post
Feature points
Image for post
Image for post
World origin with axis (X,Y & Z)

8. Find ARPlaneAnchor.

ARKit will add new anchors when it has enough data points. We need some base planes to put our objects.

Add “grid” image, that will be placed on the plane. (download here)

Image for post
Image for post

9. Create new class “Plane” extending “SCNNode”.

Image for post
Image for post

Let’s add initialization code in,

init(anchor: ARPlaneAnchor) {}

Determine width, length from anchor’s extent.

Here, plane-height is 0.01 meter that means 1 cm.

Image for post
Image for post

Remember, ARKit uses ‘meter’ for length/width/height.

Here, we will create a box (and will consider it as a geometry). set chamferRadius zero for now.

Image for post
Image for post

Among 6 sides of the box, we will put the grid image at the bottom side of the box. The index of bottom side is 4 in array of sides. So all sides have transparent materials except 4th index.

Image for post
Image for post

Create new plane-node with box-geometry and set the position.

Image for post
Image for post

We are done with class initialization. Also you can see a function calling at bottom. We need to set texture accroding to the size of the plane.

Image for post
Image for post

We are done with the initialization of the “Plane” class.

10. Let’s add plane object, when new ‘anchor’ is detected and anchor-node is added.

Go to ‘ViewController’.

Image for post
Image for post

We’re done with the plane detection and adding our plane on it.

  • Now, run the project. You should see that grids are being added on detected planes.
Image for post
Image for post

Upto here, we’re able to catch feature points and anchors on those points. Also using those anchors we’re able to add our own plane-node. If you find anything not working, please feel free to drop message or comment in the box.


11. Let’s look how we can improve the plane detection.

Because when ARKit gives us a new anchor, we are creating a new plane object. But what if ARKit will detect the previously available plane but with more rich feature points. That means we should update the previous plane dimensions (width, length).

Where we will get callbacks of updation in anchor-node?

Here, in “ViewController”.

Image for post
Image for post

What should we do? How can we get previously added plane object?

Use dictionary,

Image for post
Image for post

Update code lines,

Image for post
Image for post

Add method in ‘Plane’ class to update plane,

Image for post
Image for post

Add code lines in ‘ViewController’, when anchor is updated.

Image for post
Image for post

Also, remove the plane when anchor is removed by ARKit.

Image for post
Image for post

So far, we have done basic setup. Let’s move on to the next step.


4. Setup focus view

Why we need this? It is for reference only. We’ll put a focus image at center of the view in storyboard. Set constraints for center.

Image for post
Image for post

Resource:

Image for post
Image for post

5. Put object using hitTest

We’re now ready to put object at focus-square’s position using hitTest.

Let’s add methods in ‘ViewController’.

  • hitTest will give the position on the existing plane that intersects with center of the screen.
Image for post
Image for post
  • Get ‘SCNVector3' from ‘transform’
Image for post
Image for post
  • create a node at position
Image for post
Image for post

How we use these functions?

Add button in storyboard and attach with action. [TouchUpInside]

Image for post
Image for post
  • In button action,
Image for post
Image for post

Now run the project. On clicking the button, the dot should be added.

Image for post
Image for post

And the final step!!!

6. Measure

  • Upto now we’re able to add dot-objects on the plane.
  • Now we need to draw a line between 2 points. (start & end).

Set start-point node in button action,

Image for post
Image for post

Current-position on plane will be our end-point.

  • Get current-position and draw line between two points.
Image for post
Image for post
  • Draw line between two vectors
Image for post
Image for post

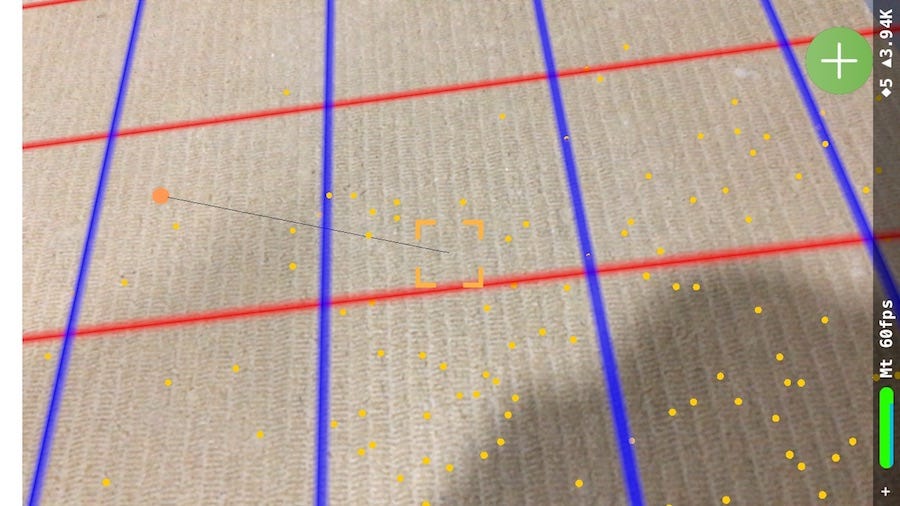

Now, when you press the button you’ll see line from drawn from start-node to your current-position (focus-square).

Image for post
Image for post

Let’s put label that will indicate distance between these two points.

  • Create UILabel to show distance.
Image for post
Image for post
  • Get distance string.
Image for post
Image for post
  • Distance between 2 points.
Image for post
Image for post
  • Conversions.
Image for post
Image for post

Measurements on screen,

Image for post
Image for post
Image for post
Image for post

Result video,

Download project from Github. Please feel free to ask questions.
