Heapify All The Things With Heap Sort
Someone once told me that everything important in computer science boils down to trees. Literally just trees. We can use them to build things, parse things, and interpret things (yes, there might be some foreshadowing happening here, don’t worry about it if it doesn’t make any sense to you just yet, because soon, it will!). And we can even use them to — you guessed it! — sort things.
Ah, sorting. We’ve done so much of it in the past few weeks, but we’re now nearing the end of our sorting adventures. However, it is impossible and unfair to talk about sorting without talking about a special kind of sorting that uses the newest data structure in our data structure tool belt.
We recently learned to love heaps, a special kind of binary tree that follows a strict set of rules, and are used to implement things like priority queues and background jobs. But these aren’t the only things that heaps are good for. It turns out that binary heaps are often used for no other purpose than efficient sorting. Many programs will rely on heap sort since it happens to be one of the most efficient ways to sort an array. And now that we know what a heap is, we can try to understand why it works so well when it comes to the problem of sorting!
Heapify all the things!
Before we dive into heap sort, let’s make sure that we have heaps straight in our heads. We might remember that a heap is really nothing more than a binary tree with some additional rules that it has to follow: first, it must always have a heap structure, where all the levels of the binary tree are filled up, from left to right, and second, it must either be ordered as a max heap or a min heap. For the purposes of heap sort, we’ll be dealing exclusively with max heaps, where every parent node (including the root) is greater than or equal to the value of its children nodes.
Okay, let’s get to answering the question of the hour: how do we sort using heaps? Well, in order to answer that question, we’ll need to understand what a heap sort algorithm is, first!
A heap sort algorithm is a sorting technique that leans on binary heap data structures. Because we know that heaps must always follow a specific order, we can leverage that property and use that to find the largest, maximum value element, and sequentially sort elements by selecting the root node of a heap, and adding it to the end of the array.
We already know that heap sort is an efficient way of sorting an unsorted array; but what does an array have to do with a heap? And how do we sort an array using a heap? Well, there are are three key steps to how this actually works in practice. We’ll look at these in more depth in a moment, but let’s take a high level glance at what these three steps are, first.
- To start, we have an unsorted array. The first step is to take that array and turn it into a heap; in our case, we’ll want to turn it into a max heap. So, we have to transform and build a max heap out of our unsorted array data. Usually, this is encapsulated by a single function, which might be named something like
- Once we have our array data in a max heap format, we can be sure that the largest value is at the root node of the heap. Remember that, even though the entire heap won’t be sorted, if we have built our max heap correctly and without any mistakes, every single parent node in our heap will be larger in value than its children. So, we’ll move the largest value — located at the root node — to the end of the heap by swapping it with the last element.
- Now, the largest item in the heap is located at the last node, which is great. We know that it is in its sorted position, so it can be removed from the heap completely. But, there’s still one more step: making sure that the new root node element is in the correct place! It’s highly unlikely that the item that we swapped into the root node position is in the right location, so we’ll move down the root node item down to its correct place, using a function that’s usually named something like
And that’s basically it! The algorithm continues to repeat these steps until the heap is down to just one single node. At that point, it knows that all the elements in the unsorted array are in their sorted positions, and that the last node remaining will end up being the first element in the sorted array.
Okay, I know I said that these are the only three steps to heap sort. But if these three steps seem confusing, don’t worry; they can be pretty complicated and difficult to understand until you see them play out in action. In fact, I think this algorithm makes much more sense with an illustrated example. Since heaps are a type of tree, it helps to visualize them, the same way we do with binary trees. So let’s do that right now!
Have you ever looked under heap sort’s hood?
Alright, it’s time for my absolute favorite part of learning heap sort: drawing it out! Hooray! In order to understand what’s going on under the heap sort hood, we’ll work with a small, unsorted dataset.
We’ll start off with an unsorted array with five elements that are super out of order:
[3, 19, 1, 14, 8, 7].
Remember that, since this is heap sort that we’re working with, we’re going to need to turn that array into a heap, to start.
In the illustration shown here, you can see that the array has been morphed into a tree — it’s not a heap just yet because it’s still not in any max or min heap order! We can see that this is the case because
3 isn’t the largest or smallest element, and yet, it is the root node at the moment. This is just a tree, with the elements from the array directly translated into a binary tree format.
But, since we need to deal with a max heap, we’ll need to transform our structure from a binary tree into a max heap. Notice how, in the max heap, the parent nodes are all larger than their children. Last week, we learned the algorithms that allow us to determine the child nodes from the index of an array; this week, we’re seeing them in action. Those algorithms are what we are using to transform this array into a tree, and then into a heap.
Okay, now we have an actual max heap. Great! Now for the actual work of sorting.

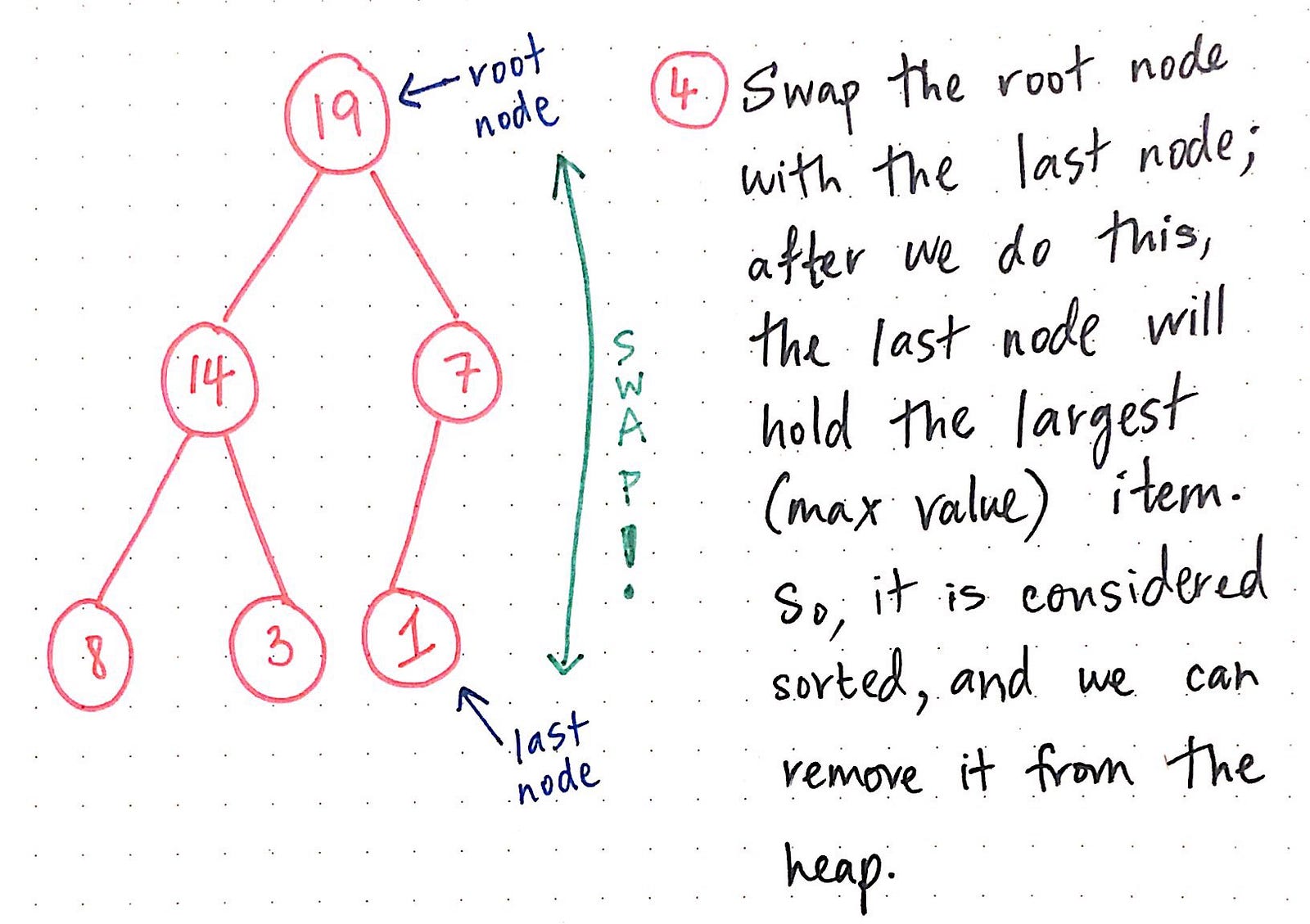

Since we know that the largest element is at the root node, we know that we’ll need to put it at the very end of the array, in the last available index spot. So, we’ll swap the root node with the last node. Once we make this swap, our last node will hold the largest, max value item.
Cool! Now we can see that
19, the largest element, which used to be the root node, is now at the last position in the array. And, since it is effectively “sorted” relative to the rest of the elements, we can remove it completely from the heap.
Now, the good news is that we have one less node in our heap to sort! The bad news? Our heap isn’t actually a heap anymore: it’s totally violating its heap order rule, since it’s not a max heap. Notice that
1 is the root node, but it’s definitely not larger than it’s two children nodes,
7. So, we’ll need to move it down to its correct place in the tree.
Let’s heapify this tree and make it a max heap again!
Awesome! In the illustration above, we can see that we first swapped
14, and then we swapped
8. Now, we’re back to a proper max heap. We can repeat the same steps we did when sorting the element
→ We’ll first swap the first and last nodes.
→ Then, we’ll heapify the tree until it’s a proper max heap again.
Let’s do that with our new root node, the element
14. Here’s what our next two steps would look like:
Rad! We swapped the first and last nodes, and then we removed the last node,
14, since it was in its sorted position. The only thing we had to do next was move the root node into its correct location, and heapify the element
3 until we were back at a max heap state.
We would continue doing this three more times. Eventually, we’d be left with just
1, the last node in the heap. At this point, the heap sort algorithm would be finished, and we’d know that
1 would be the first element in the array, and we’d know that the array was finally sorted.
Here’s a great visualization of the entire process we just walked through. Notice how, with each iterative sort, the largest unsorted element ends up in its correct place in the heap, and then in the array.
Heap sort: what is it good for?
When I was first reading about heap sort, something about the algorithm seemed oddly familiar to me. It was only after illustrating heap sort that I realized where my feeling of déjà vu was coming from: heap sort was almost exactly like selection sort! You might remember from earlier in the series that selection sort is a sorting algorithm that sorts through a list of unsorted items by iterating through a list of elements, finding the smallest one, and putting it aside into a sorted list. It continues to sort by finding the smallest unsorted element, and adding it to the sorted list.
Doesn’t that sound a whole lot like heap sort, but just reversed?
It turns out that heap sort is a lot like selection sort in its logic: both algorithms find either the smallest or largest element, “select” it out, and put that item in its correct location in the sorted list.
However, as similar as they are, heap sort is much better than selection sort in one massive way: its performance! Heap sort is basically a super-improved version of selection sort. Yes, it does find the largest element in an unsorted collection and orders it at the back of the list — however, it does all of this work so much faster than selection sort would!
Okay, so just how much faster is heap sort? And why is it faster?
heapify. We can see them in action in the version of
buildMaxHeap function does the work of actually creating the max heap. Notice that even this function calls out to
heapify, which does the work of moving one element at a time down to its correct location in the heap.
heapify function is pretty important, so let’s look at that. Notice that it is relying on the algorithms to determine the left and right child of a node, which we discussed last week when we first learned about heaps.
And last but not least, the
swap function, which we’ve seen before in other sorting algorithms, but is worth looking at quickly to remind ourselves what it does:

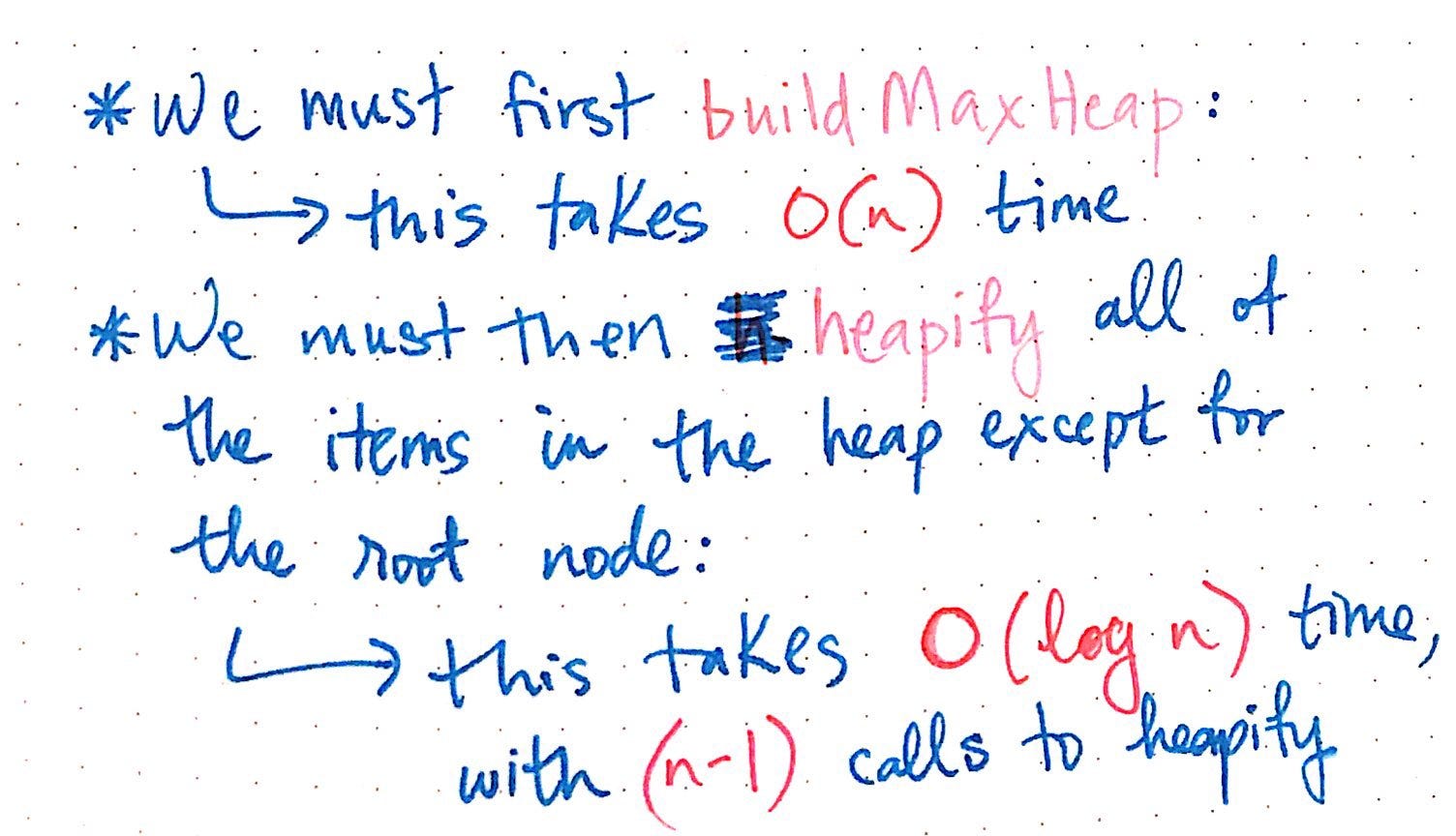

Okay, now that we’ve got some context for how these functions interact and invoke one another, let’s get back to our original question of how and why heap sort is so much more efficient than selection sort! If we look deeply at the code, we’ll notice two things: first, we must build the max heap once, passing in all of the elements of the array to it; second, we have to heapify all of the items in the heap again and again, with the exception of the first root node element.
These two observations are actually the key to the question of how and why heap sort is as fast as it is. Calling
buildMaxHeap takes O(n) time, since every single item must be added to the heap, and a larger amount of elements mean a larger heap. However, remember that we are dealing with a binary tree, and binary trees are logarithmic in nature. So, even though we have to call
heapify again and again, invoking this function is actually fairly fast, since it will run in logarithmic time, or O(log n).
The combination of these two time complexities is something we’ve already seen before! Heap sort runs in linearithmic time, or in Big O notation, O(n log n). So, even though heap sort seems so much like selection sort, it’s a lot faster! Selection sort runs in quadratic time, or O(n²), which is so much less efficient than linearithmic time.
Let’s quickly look at the other ways that heap sort compares to other sorting algorithms.
Heap sort transforms the array that pass to it as it sorts; unlike some sorting algorithms, it doesn’t create an entirely separate copy of the input data. This makes it an in-place sorting algorithm. Heap sort also doesn’t need external memory, and is an internal sorting algorithm. It runs iteratively (and is thus non-recursive), and compares two elements at a time when it swaps and calls the heapify function, making it a comparison sort algorithm.
However, because of the nature of heaps and the heapify function, if there are duplicate elements, we can’t rely on elements maintaining their order! So, heap sort is unstable; this is a major differentiator between merge sort and heap sort, which each rely on tree structures to perform so efficiently. However, merge sort wins in the battle of stability, whereas heap sort fails in this category.
Despite their differences, merge sort and heap sort can agree on one thing: without binary trees, they’d both be lost!
