Leveling Up One’s Parsing Game With ASTs
Before I started on this journey of trying to learn computer science, there were certain terms and phrases that made me want to run the other direction.
But instead of running, I feigned knowledge of it, nodding along in conversations, pretending like I knew what someone was referencing even though the truth was that I had no idea and had actually stopped listening entirely when I heard That Super Scary Computer Science Term™. Throughout the course of this series, I’ve managed to cover a lot of ground and many of those terms have actually become a whole lot less scary!
There is one big one, though, that I’ve been avoiding for awhile. Up until now, whenever I had heard this term, I felt paralyzed. It has come up in casual conversation at meet ups and sometimes in conference talks. Every single time, I think of machines spinning and computers spitting out strings of code that are indecipherable except that everyone else around me can actually decipher them so it’s actually just me who doesn’t know what’s going on (whoops how did this happen?!).
Perhaps I’m not the only one who has felt that way. But, I suppose I should tell you what this term actually is, right? Well, get ready, because I’m referring to ever-elusive and seemingly confusing abstract syntax tree, or AST for short. After many years of being intimidated, I’m excited to finally stop being afraid of this term and truly understand what on earth it is.
It’s time to face the root of the abstract syntax tree head on — and level up our parsing game!
From concrete to abstract
Every good quest starts with a solid foundation, and our mission to demystify this structure should begin in the exact same way: with a definition, of course!
An abstract syntax tree (usually just referred to as an AST) is really nothing more than a simplified, condensed version of a parse tree. In the context of compiler design, the term “AST” is used interchangeably with syntax tree.
We often think about syntax trees (and how they are constructed) in comparison to their parse tree counterparts, which we’re already pretty familiar with. We know that parse trees are tree data structures that contain the grammatical structure of our code; in other words, they contain all the syntactic information that appears in a code “sentence”, and is derived directly from the grammar of the programming language itself.
A abstract syntax tree, on the other hand, ignores a significant amount of the syntatic information that a parse tree would otherwise contain.
By contrast, an AST only contains the information related to analyzing the source text, and skips any other extra content that is used while parsing the text.
This distinction starts to make a whole lot more sense if we focus in on the “abstractness” of an AST.
We’ll recall that a parse tree is an illustrated, pictorial version of the grammatical structure of a sentence. In other words, we can say that a parse tree represents exactly what an expression, sentence, or text looks like. It’s basically a direct translation of the text itself; we take the sentence and turn every little piece of it — from the punctuation to the expressions to the tokens — into a tree data structure. It reveals the concrete syntax of a text, which is why it is also referred to as a concrete syntax tree, or CST. We use the term concrete to describe this structure because it’s a grammatical copy of our code, token by token, in tree format.
But what makes something concrete versus abstract? Well, an abstract syntax tree doesn’t show us exactly what an expression looks like, the way that a parse tree does.
Rather, an abstract syntax tree shows us the “important” bits — the things that we really care about, which give meaning to our code “sentence” itself. Syntax trees show us the significant pieces of an expression, or the abstracted syntax of our source text. Hence, in comparison to concrete syntax tress, these structures are are abstract representations of our code (and in some ways, less exact), which is exactly how they got their name.
Now that we understand the distinction between these two data structures and the different ways that they can represent our code, it’s worth asking the question: where does an abstract syntax tree fit into the compiler? First, let’s remind ourselves of everything that we know about the compilation process as we know it so far.
Let’s say we have a super short and sweet source text, which looks like this:
5 + (1 x 12).
We’ll recall that the first thing that happens in the compilation process is the scanning of the text, a job performed by the scanner, which results in the text being broken up into its smallest possible parts, which are called lexemes. This part will be language agnostic, and we’ll end up with the stripped-out version of our source text.
Next, these very lexemes are passed on to the lexer/tokenizer, which turns those small representations of our source text into tokens, which will be specific to our language. Our tokens will look something like this:
[5, +, (, 1, x, 12, )]. The joint effort of the scanner and the tokenizer make up the lexical analysis of compilation.
Then, once our input has been tokenized, its resulting tokens are is passed along to our parser, which then takes the source text and builds a parse tree out of it. The illustration below exemplifies what our tokenized code looks like, in parse tree format.
The work of turning tokens into a parse tree is also called parsing, and is known as the syntax analysis phase. The syntax analysis phase depends directly on the lexical analysis phase; thus, lexical analysis must always come first in the compilation process, because our compiler’s parser can only do its job once the tokenizer does it’s job!
We can think of the parts of the compiler as good friends, who all depend on each other to make sure that our code is correctly transformed from a text or file into a parse tree.
But back to our original question: where does the abstract syntax tree fit into this friend group? Well, in order to answer that question, it helps to understand the need for an AST in the first place.
Condensing one tree into another
Okay, so now we have two trees to keep straight in our heads. We already had a parse tree, and how there’s yet another data structure to learn! And apparently, this AST data structure is just a simplified parse tree. So, why do we need it? What even is the point of it?
Well, let’s take a look at our parse tree, shall we?
We already know that parse trees represent our program at its most distinct parts; indeed, this was why the scanner and the tokenizer have such important jobs of breaking down our expression into its smallest parts!
What does it mean to actually represent a program by its most distinct parts?
As it turns out, sometimes all of the distinct parts of a program actually aren’t all that useful to us all the time.
Let’s take a look at the illustration shown here, which represents our original expression,
5 + (1 x 12), in parse tree tree format. If we take a close look at this tree with a critical eye, we’ll see that there are a few instances where one node has exactly one child, which are also referred to as single-successor nodes, as they only have one child node stemming from them (or one “successor”).
In the case of our parse tree example, the single-successor nodes have a parent node of an
Exp, which have a single successor of some value, such as
12. However, the
Exp parent nodes here aren’t actually adding anything of value to us, are they? We can see that they contain token/terminal child nodes, but we don’t really care about the “expression” parent node; all we really want to know is what is the expression?
The parent node doesn’t give us any additional information at all once we’ve parsed our tree. Instead, what we’re really concerned with is the single child, single-successor node. Indeed, that is the node that gives us the important information, the part that is significant to us: the number and value itself! Considering the fact that these parent nodes are kind of unnecessary to us, it becomes obvious that this parse tree is a kind of verbose.
All of these single-successor nodes are pretty superfluous to us, and don’t help us at all. So, let’s get rid of them!

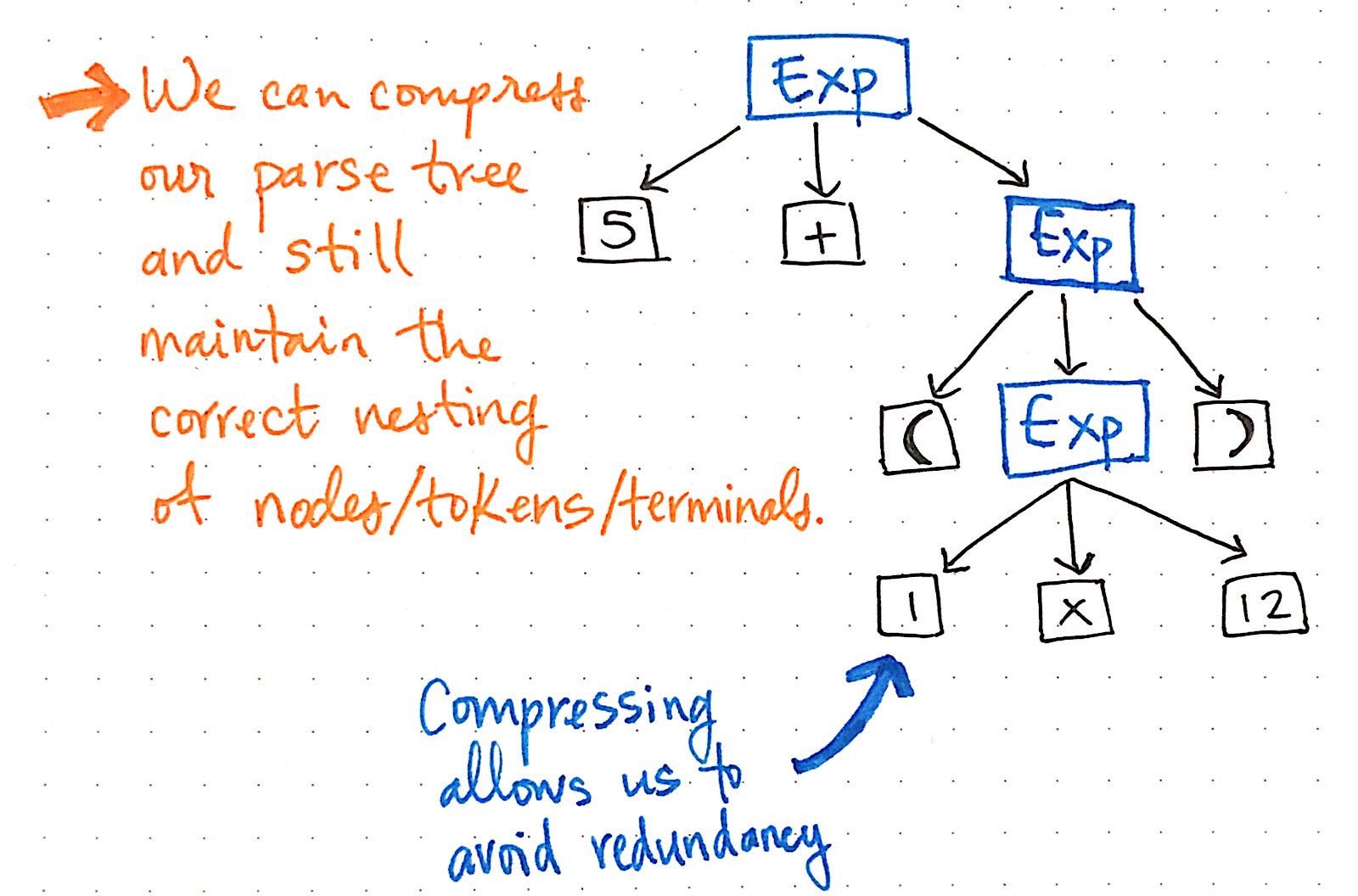

If we compress the single-successor nodes in our parse tree, we’ll end up with a more compressed version of the same exact structure. Looking at the illustration above, we’ll see that we’re still maintaining the exact same nesting as before, and our nodes/tokens/terminals are still appearing in the correct place within the tree. But, we’ve managed to slim it down a bit.
And we can trim some more of our tree, too. For example, if we look at our parse tree as it stands at the moment, we’ll see that there’s a mirror structure within it. The sub-expression of
(1 x 12) is nested within parentheses
(), which are tokens by their own right.
However, these parentheses don’t really help us once we’ve got our tree in place. We already know that
12 are arguments that will be passed to the multiplication
x operation, so the parentheses don’t tell us all that much at this point. In fact, we could compress our parse tree even further and get rid of these superfluous leaf nodes.
Once we compress and simplify our parse tree and get rid of the extraneous syntactic “dust”, we end up with a structure that looks visibly different at this point. That structure is, in fact, our new and much-anticipated friend: the abstract syntax tree.
The image above illustrates the exact same expression as our parse tree:
5 + (1 x 12). The difference is that it has abstracted away the expression from the concrete syntax. We don’t see any more of the parentheses
() in this tree, because they’re not necessary. Similarly, we don’t see non-terminals like
Exp, since we’ve already figured out what the “expression” is, and we are able to pull out the value that really matters to us — for example, the number
This is exactly the distinguishing factor between an AST and a CST. We know that an abstract syntax tree ignores a significant amount of the syntactic information that a parse tree contains, and skips “extra content” that is used in parsing. But now we can see exactly how that happens!
Now that we’ve condensed a parse tree of our own, we’ll be much better at picking up on some of the patterns that distinguish an AST from a CST.
There a few ways that an abstract syntax tree will visually-differ from a parse tree:
- An AST will never contain syntactic details, such as commas, parentheses, and semicolons (depending, of course, upon the language).
- An AST will have collapsed version of what would otherwise appear as single-successor nodes; it will never contain “chains” of nodes with a single child.
- Finally, any operator tokens (such as
/) will become internal (parent) nodes in the tree, rather than the leaves which terminate in a parse tree.
Visually, an AST will always appear more compact than a parse tree, since it is, by definition, a compressed version of a parse tree, with less syntactic detail.
It would stand to reason, then, that if an AST is a compacted version of a parse tree, we can only really create an abstract syntax tree if we have the things to build a parse tree to begin with!
This is, indeed, how the abstract syntax tree fits into the larger compilation process. An AST has a direct connection to the parse trees that we have already learned about, while simultaneously relying upon the lexer to do its job before an AST can ever be created.
The abstract syntax tree is created as the final result of the syntax analysis phase. The parser, which is front and center as the main “character” during syntax analysis, may or may not always generate a parse tree, or CST. Depending on the compiler itself, and how it was designed, the parser may directly go straight onto constructing a syntax tree, or AST. But the parser will always generate an AST as its output, no matter whether it creates a parse tree in between, or how many passes it might need to take in order to do so.
Anatomy of an AST
Now that we know that the abstract syntax tree is important (but not necessarily intimidating!), we can start to dissect it a tiny bit more. An interesting aspect about how the AST is constructed has to do with the nodes of this tree.
The image below exemplifies the anatomy of a single node within an abstract syntax tree.
We’ll notice that this node is similar to others that we’ve seen before in that it contains some data (a
token and its
value). However, it also contains some very specific pointers. Every node in an AST contains references to its next sibling node, as well as its first child node.

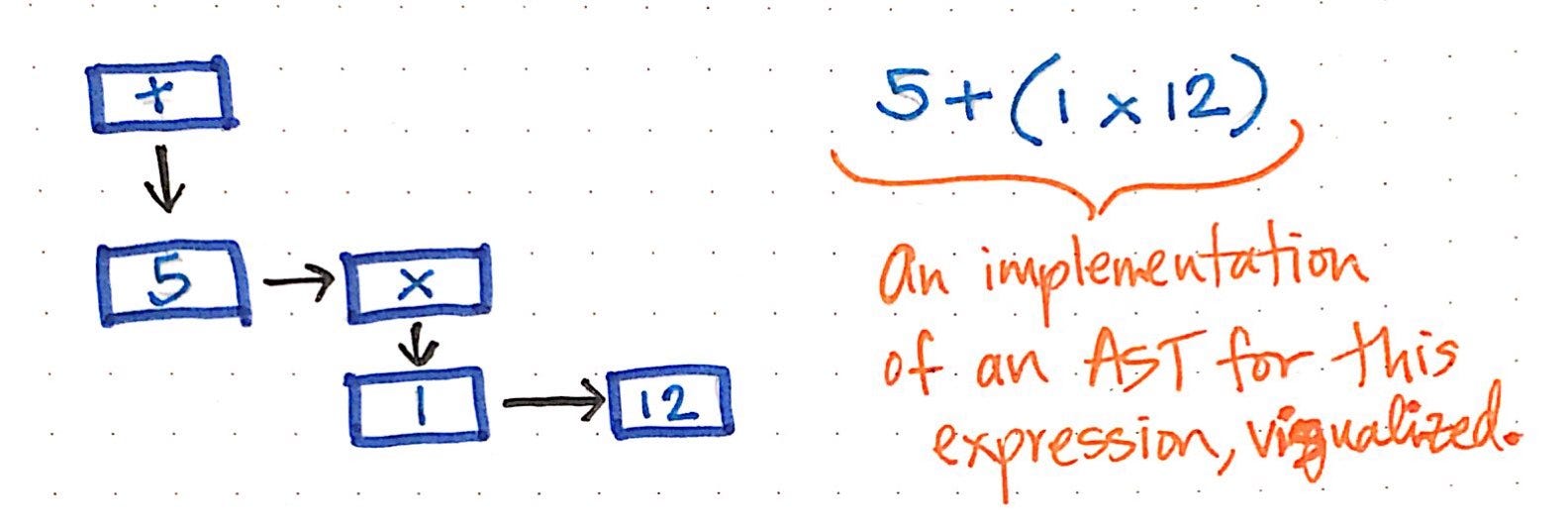

For example, our simple expression of
5 + (1 x 12) could be constructed into a visualized illustration of an AST, like the one below.
We can imagine that reading, traversing, or “interpreting” this AST might start from the bottom levels of the tree, working its way back up to build up a value or a return
result by the end.
It can also help to see a coded version of the output of a parser to help supplement our visualizations. We can lean on various tools and use preexisting parsers to see a quick example of what our expression might look like when run through a parser. Below is an example of our source text,
5 + (1 * 12), run through Esprima, an ECMAScript parser, and its resulting abstract syntax tree, followed by a list of its distinct tokens.
In this format, we can see the nesting of the tree if we look at the nested objects. We’ll notice that the values containing
12 are the
right children, respectively, of a parent operation,
*. We’ll also see that the multiplication operation (
*) makes up the right subtree of the entire expression itself, which is why it is nested within the larger
BinaryExpression object, under the key
"right". Similarly, the value of
5 is the single
"left" child of the larger
The most intriguing aspect of the abstract syntax tree is, however, the fact that even though they are so compact and clean, they aren’t always an easy data structure to try and construct. In fact, building an AST can be pretty complex, depending on the language that the parser is dealing with!
Most parsers will usually either construct a parse tree (CST) and then convert it to an AST format, because that can sometimes be easier — even though it means more steps, and generally speaking, more passes through the source text. Building a CST is actually pretty easy once the parser knows the grammar of the language it’s trying to parse. It doesn’t need to do any complicated work of figuring out if a token is “significant” or not; instead, it just takes exactly what its sees, in the specific order that it sees it, and spits it all out into a tree.
On the other hand, there are some parsers that will try to do all of this as a single-step process, jumping straight to constructing an abstract syntax tree.
Building an AST directly can be tricky, since the parser has to not only find the tokens and represent them correctly, but also decide which tokens matter to us, and which ones don’t.
In compiler design, the AST ends up being super important for more than one reason. Yes, it can be tricky to construct (and probably easy to mess up), but also, it’s the last and final result of the lexical and syntax analysis phases combined! The lexical and syntax analysis phases are often jointly called the analysis phase, or the front-end of the compiler.
We can think about the abstract syntax tree as the “final project” of the front-end of the compiler. It’s the most important part, because its the last thing that the front-end has to show for itself. The technical term for this is called the intermediate code representation or the IR, because it becomes the data structure that is ultimately used by the compiler to represent a source text.
An abstract syntax tree is the most common form of IR, but also, sometimes the most misunderstood. But now that we understand it a little bit better, we can start to change our perception of this scary structure! Hopefully, it’s a little bit less intimidating to us now.
