AWS — Deploying Vue.js With NodeJS Backend On Elastic Beanstalk

A step by step guide with an example project

Bhargav Bachina
Oct 1, 2020 · 8 min read
Photo by Shaah Shahidh on Unsplash

AWS provides more than 100 services and it’s very important to know which service you should select for your needs. If you want to deploy an application quickly without any worry about the underlying infrastructure, AWS Elastic Beanstalk is the answer. Elastic Beanstalk reduces management complexity without restricting choice or control. You simply upload your application, and Elastic Beanstalk automatically handles the details of capacity provisioning, load balancing, scaling, and application health monitoring.

In this post, we are going to deploy the Vue.js application with a nodejs environment. There are other technologies or environments that AWS supports such as Go, Java, NodeJS, .Net, etc.

Introduction

If you want to deploy an application without worrying about the underlying infrastructure, Elastic Beanstalk is the solution. When you build the app and upload the app in the form of the zip or war, Elastic Beanstalk would take care of provisioning underlying infrastructure such as a fleet of EC2 instances, auto calling groups, monitoring, etc.

The infrastructure provisioned by Elastic Beanstalk depends on the technology chosen while uploading your app. For example, we are going to deploy the Vue.js with NodeJS backend on Elastic Beanstalk so we need to choose the NodeJS environment. If you want to know more about Elastic Beanstalk here is the link.

Environment Setup

As you see in the above figure, we build our project and create a zip. Once we build the zip, we upload that zip on the Elastic Beanstalk environment. If you have a custom domain you can point that to the elastic beanstalk URL so that your app can be accessible to the public through that URL.

Example Project

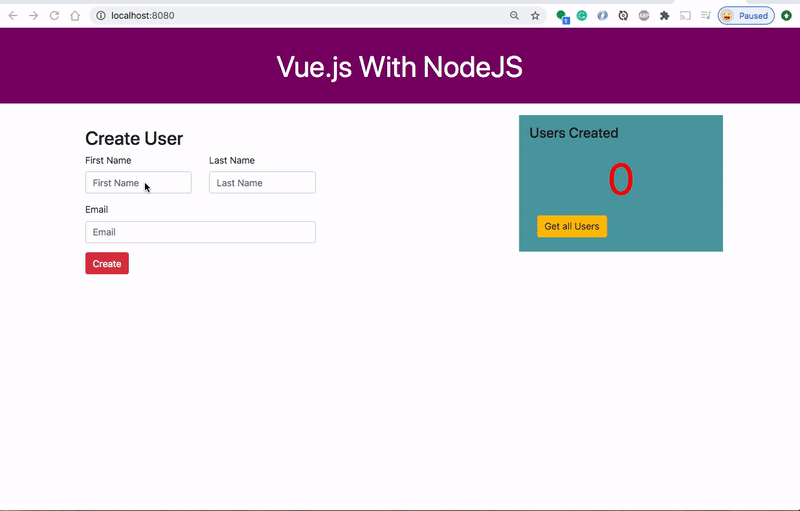

This is a simple project which demonstrates developing and running Vue application with NodeJS. We have a simple app in which we can add users, count, and display them at the side, and retrieve them whenever you want.

Example Project

If you want to practice your own here is a Github link to this project. You can clone it and run it on your machine as well.

// clone the project
git clone https://github.com/bbachi/vuejs-nodejs-eb.git
// strat the api
cd api
npm install
npm run dev
// start the react app
cd my-app
npm install
npm run serve

Prerequisites

  • If you are new to the Vue.js please go through the below link on how to develop and build the Vue.js project with NodeJS backend.

How To Develop and Build Vue.js App With NodeJS

  • AWS account setup: AWS offers a free tier for one year here is the link to set it up.
  • Once you set it up you have a root account. It’s not a best practice to use your root account to do any tasks instead you should create an IAM group that has permissions to deploy on Elastic Beanstalk and add a user to it and log in with that user.
  • Gulp for building the project and zip it.

Build the Project

Once you clone the above project and run it on your local machine, its time to build the project and get it ready for the deployment in the Elastic Beanstalk environment. We are using gulp to automate building the project and these are the following steps we should automate with a gulp.

  • Clean the directory if exists
  • Create a directory if not exists to put all the production build
  • Build a Vue code with Vue CLI Service build
  • Place the Vue code into the production directory
  • Build the server code with the webpack
  • Place the server code into the production directory
  • Finally, zip all the code.

Here is the file gulpfile.js in which we created tasks for all the above points.

gulpfile.js

All we need to run this command gulp at the root of the application and it creates the final zip file under the directory.

zip created under the prod-build directory

Deploy on Elastic Beanstalk

Once you have the zip file ready it’s time to deploy this zip file to the Elastic Beanstalk environment. First, we need to create an IAM user that has access and permissions to deploy on an Elastic Beanstalk environment.

I created an IAM user called and added to the group which has permission and

IAM user
IAM group

Let’s login to the AWS console with that IAM user and you can go to Elastic Beanstalk and create an application. Since it’s a nodejs project we have to choose a platform as Node.js and upload the zip archive that we have created in the above step.

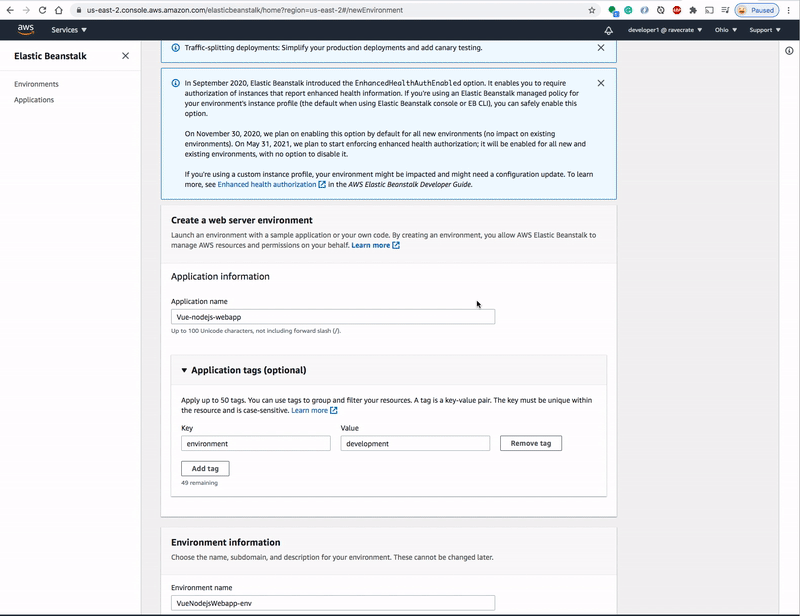

Creating an Environment

Once you click on the create application it will take a few minutes to set up the environment. Once it is deployed and if everything goes well you can see the following screen.

Successful Deployment

You can see the URL for this application on the top. Just copy that URL and hit it in the browser and you can see your app running on AWS.

Accessing your application through URL

Debugging and Update the Deployment

Debugging

When you deploy the application sometimes it might go wrong. Let’s how we can debug the deployment. First, if something goes wrong you can see the deployment environment as Degraded or pending

Health Degraded

If you can click on that you will be redirected to a details page with the status Pending. We can see what is the error here is the Creation of load balancer failed because there is no default VPC.

Environment Details

In this scenario, we caught the error on the details page itself. But, this is not the case all the time. We can request logs to go into more details about the application.

Logs

But for the error above, you can check there is a default VPC or not. if not you can go ahead and create one.

Default VPC

Update the deployment

Updating the deployment is very easy all you need to do is upload the new zip file with the version label so that you can go back to the versions later. For example, if something goes wrong and not working properly with the latest deployment you can always go back to a specific version.

Update and deploy

You can actually see the versions here and you can select and deploy a specific version.

Application Versions

Route 53

Amazon Route 53 is a highly available and scalable cloud Domain Name System (DNS) web service. You can explore more about this here.

If you have a domain you can map your elastic beanstalk environment to the recordset. For example, I have a domain already let’s map our environment like below.

Mapping an Elastic Beanstalk environment

Cleaning Up

You should clean up all the resources if you don’t want to incur any charges. When it comes to Elastic Beanstalk all you need to do is terminate the environment as you see in the following figure. It will take a few minutes to terminate.

Terminate the environment under the actions tab
Confirm Terminate

Once it is terminated it will remain for an hour.

Termination message

Things To Consider

I just want to mention some points here which anybody can encounter these and saves you a lot of time. You can always change these settings in the configuration section.

Zipping

When you are zipping all the files make sure you zip the files, not the entire folder. We tend to right-click on the folder and compress it but you should select all the files inside that folder and compress it.

Package.json

Make sure you have a package.json file in that archive. As soon as you upload the zip file elastic beanstalk unzips it and looks for the package.json to install any dependencies.

start command in the package.json

Make sure you have a start command in the package.json and it is pointing to the right file.

Express port

On the NodeJS server make sure you are listening on the port 8080. You can configure this port by using the PORT environment variable in the application code like this process.env.PORT. Check out this link for Configuring the proxy server

Summary

  • If you want to deploy an application quickly without any worry about the underlying infrastructure, AWS Elastic Beanstalk is the answer.
  • Elastic Beanstalk would take care of provisioning underlying infrastructures such as a fleet of EC2 instances, auto calling groups, monitoring, etc. when you upload the zip or war file.
  • Once you create an AWS account, do not use root credentials. It’s always best practice to create an IAM group with limited permissions and add a user to that group.
  • Use gulp to build the project and create a zip archive for the upload.
  • Choose an appropriate platform while uploading your zip archive. It will take a few minutes to set up the Elastic Beanstalk environment.
  • You can debug the environment if something goes wrong on the details page or you can request logs.
  • You can update and deploy the environment with version labels. You can deploy any version by selecting that specific label.
  • Cleaning up the resources is very easy all you need is to terminate the deployment.
  • You need to have package.json in the zip archive and make sure the nodeJS server listens on the port 8080 or you can configure the port using the environment variable PORT in the application code.

Conclusion

Elastic Beanstalk is the right solution if you want to deploy web apps quickly without worrying about any underlying infrastructure.
