augmented-ui — Cyberpunk-Inspired Web UI Made Easy

Augment your web application

Indrek Lasn
Sep 17, 2019 · 5 min read
Image for post
Image for post

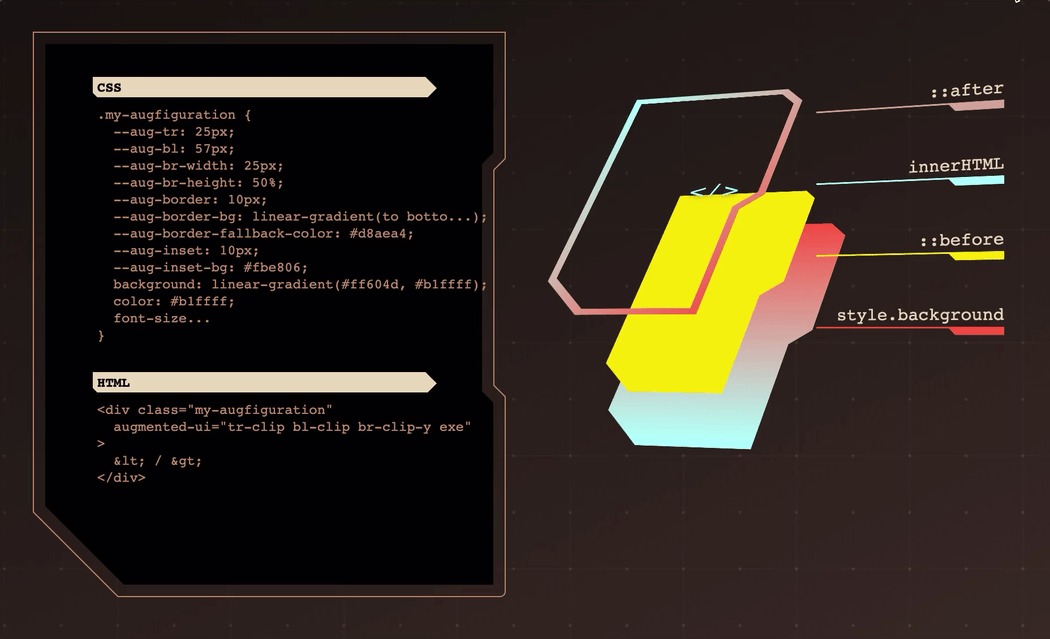

augmented-ui library

augmented-ui enables you to create a cyberpunk-inspired UI for any size element, on any web page or app, and all with very little effort. augmented-ui is free to use in any project.

Image for post
Image for post
The augmented-ui source code is available on Github

Getting Started With augmented-ui

NPM: $ npm install augmented-ui

Once you have installed the augmented-ui library, include the /node_modules/augmented-ui/augmented.css file once before any existing stylesheets.

CDN: Include it on your page before other stylesheets for small projects.
<link rel="stylesheet" type="text/css" href="https://unpkg.com/augmented-ui/augmented.css">

Voila! That’s all you need to do. augmented-ui is a pure CSS library — there’s no functionality included, just the pure styling included in the box.

augmented-ui Is All CSS

According to their website, augmented-ui includes the following:

• Futuristic, cyberpunk-inspired UI shaping for any element

• Add the “augmented-ui” attribute to equip the augs and a few CSS settings for each one to make it feel just right

Image for post
Image for post
augs definition

Examples

To use augmented-ui, let’s create a div element. Notice the augmented-ui property attached to the element. These are meant to define the styling for the element.

<div class=”demo” augmented-ui=”tl-clip br-clip exe”></div>

Let’s give the div height and add some padding.

Notice the CSS variables we’re using here. The variables are provided by the augmented-ui library and are the core way of styling elements.

We should see the following appear on the screen:

Image for post
Image for post

Pretty neat. Let’s add a gradient border. Add the following styles to the element.

--aug-border-bg: linear-gradient(red, transparent), linear-gradient(to right, blue, transparent), black;

Here’s what we should see:

Image for post
Image for post

As you can see, it’s simple to build augmented style components with the library. I’m a big fan of cyberpunk, so I’m naturally excited to see what you can build with the library.

Basics of augmented-ui

  • augmented-ui uses an attribute selector for all defaults and styling, which has the same weight as a class selector. See CSS Selector Specificity on MDN for more information.
    tl;dr: div { --aug-t: 50px; } uses a type selector and will not override the default — but .divclass { --aug-t: 50px; }would.
  • augs are the individual features/shapes assigned to a specific corner or edge. e.g., br-clip (bottom right clip)
  • Short designations for each position will be found on every aug and every aug property. There are eight positions:
  1. tl = top left corner
  2. t = top edge
  3. tr = top right corner
  4. r = right edge
  5. br = bottom right corner
  6. b = bottom edge
  7. bl = bottom left corner
  8. l = left edge
Image for post
Image for post
Augs available in augmented-ui
  • Augs are equipped to an element by putting them in the value of the augmented-ui attribute (<div augmented-ui=”br-clip exe”></div>)
  • An executable option is required in the value of the augmented-ui attribute and is what creates the actual clip-path polygons (for basics, only exe will be used)

The exe executable option does:

  1. Clipping of the element itself
  2. Creation and clipping of the border on the ::after pseudo element
  3. Creation and clipping of the inset on the ::before pseudo element

Without the exe property , augmented-ui may appear to do nothing.

Image for post
Image for post
Adjusting the size of equipped augs

Namespaced CSS varibables

According to their website:

• All custom properties begin with — aug-

• Selectors only use the augmented-ui attribute

Automatic fallbacks

According to their website, augmented-ui boasts the following features:

• Full support with v1.1.0+ has a global user reach of ~91%

• Great automatic fallback for older browsers (+ ~3.5% global reach)

Free to use

augmented-ui is under the BSD 2-Clause License and is free to use in any project.

Browser support

According to statistics on their website:

• As of Sept. 9, with v1.1.0, ~91% of global users experience the fully supported version according to data from caniuse.com

• Automatic -webkit-clip-path fallback brings full support as far back as Chrome 49–54, Safari 9.1+, iOS Safari 11+, Opera 36–41, Opera mobile 46+, UC Browser 12+, and Samsung Internet 5+

Image for post
Image for post
https://caniuse.com/#search=clip-path

Auto-creates elliptical border-radius

According to their website:

• On browsers without a clip-path option, and on older iOS versions with only partial support of custom properties, augmented-ui automatically constructs an elliptical border-radius for the element.

• The effective width and height of each corner aug is used to determine the border shape — producing a softer, almost melted, version of your augmented element

Here’s a full list of examples — go ahead and explore them. The examples give you a rough idea of how to apply classes for each style.

If you’re new to JavaScript and want to learn the language, I recommend starting with reading books combined with building things. Start with the “A Smarter Way to Learn JavaScript” book and here’s a list of fun apps to build.
