JavaScript Internals: Under The Hood of a Browser

How your code is executed inside a browser

Vlad Ostrenko
Jun 30, 2019 · 8 min read
Image for post
Image for post

Intro

Javascript is weird. Some people love it, others hate it. It has a lot of unique mechanisms which are not present and have no counterparts in other popular languages. Code execution order, for instance, which might be sometimes unintuitive, definitely stands out.

  • Browser runtime — concurrency models, event loops, and blocking and non-blocking code.

JavaScript Engine

The most popular JavaScript engine is V8 which is written in C++ and used by Chromium-based browsers such as Chrome, Opera, and even Edge.

Compilation

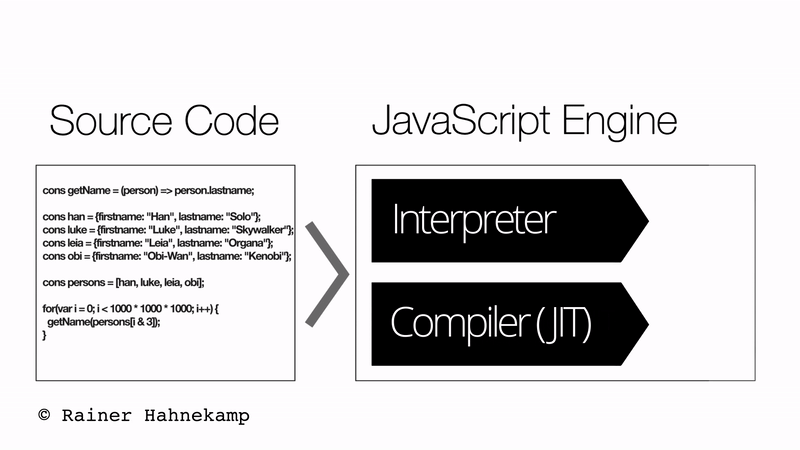

When your JavaScript file is loaded by the browser, V8's parser transforms it into an abstract syntax tree (AST). This tree is used by Ignition —an interpreter which produces bytecode. Bytecode is an abstraction of machine code able to be executed by compiling to non-optimized machine code. V8 executes it in the main thread while TurboFan, the optimizing compiler, makes some optimizations in another thread and produces optimized machine code.

Image for post
Image for post

Call Stack

JavaScript is a single-threaded programming language with a single call stack. It means that your code is executed synchronously. Whenever a function runs, it will run entirely before any other code runs.

  • argument parameters
  • return address
Image for post
Image for post

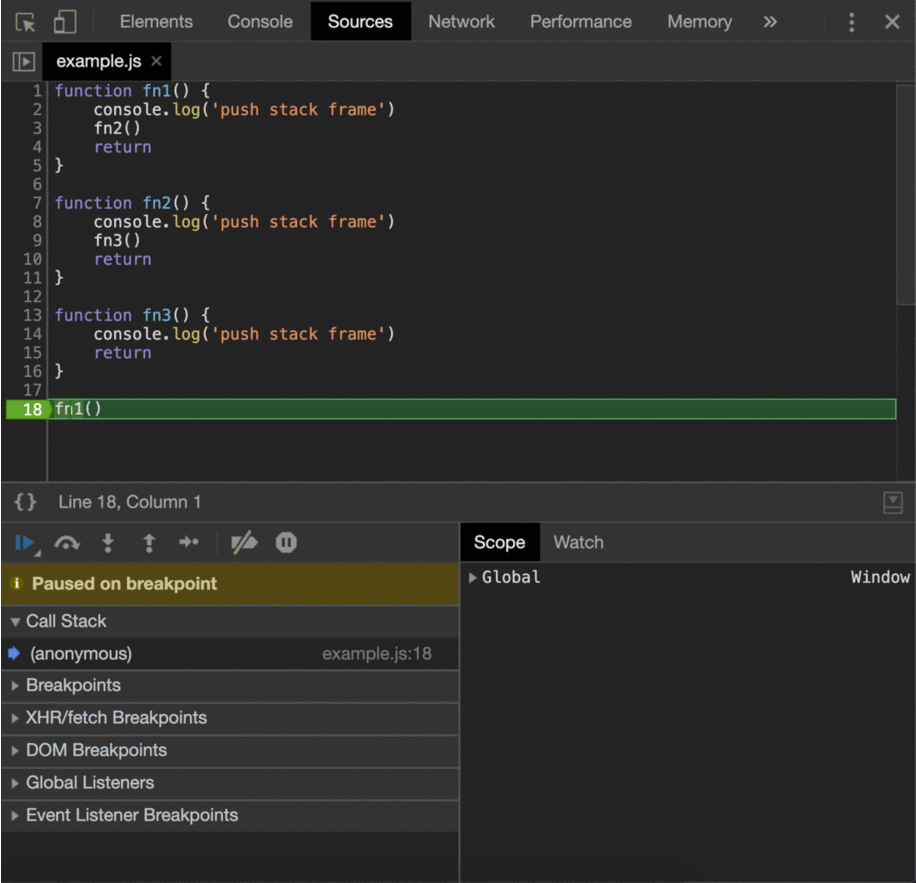

Call Stack in Chrome Dev Tools

Heap

Sometimes V8 doesn’t know at compile time how much memory an object variable will need. All the memory allocation for such data happens in the heap — unstructured region of memory. Objects on the heap live on after we exit the function that allocated the memory.

Image for post
Image for post
Heap snapshot in Chrome Dev Tools (2.2 MB for a blank page!)

Browser Runtime

So V8 can execute JavaScript according to the standard, synchronously, using a single call stack. But there is not much we can do with it. We need to render the UI. We need to handle user interactions with the UI. Moreover, we need to handle user interactions while making network requests. But how do we achieve concurrency when all our code is synchronous? It’s possible thanks to the browser engine.

Image for post
Image for post

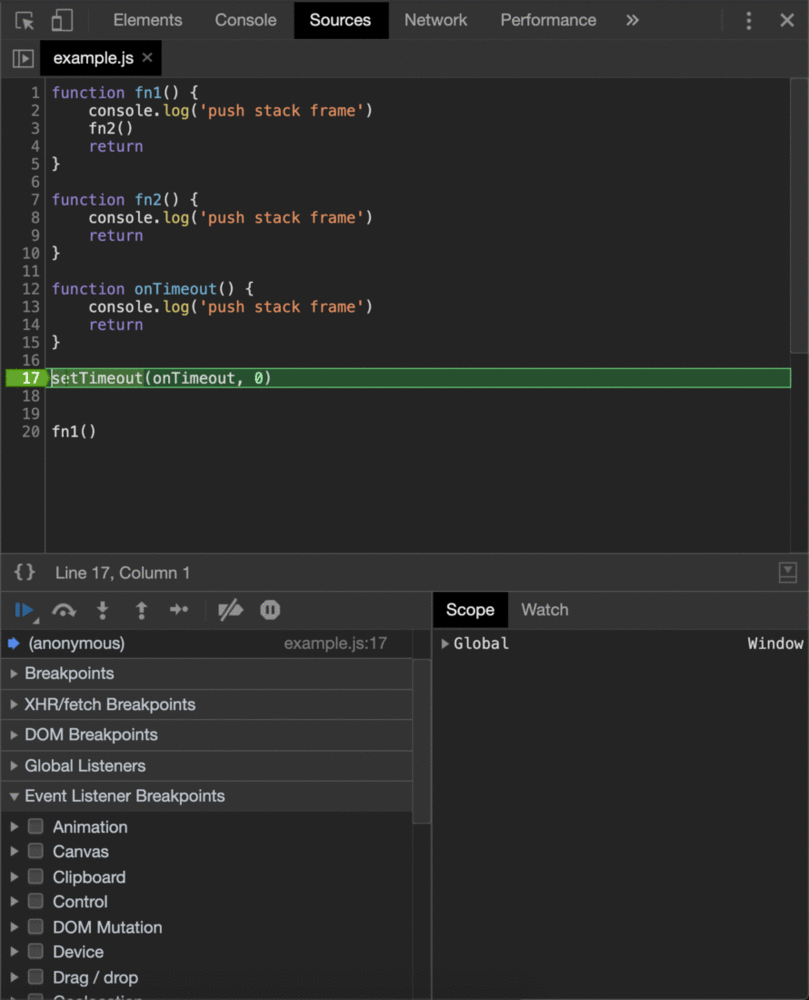

Call Stack with timeout in Chrome Dev Tools

Concurrency

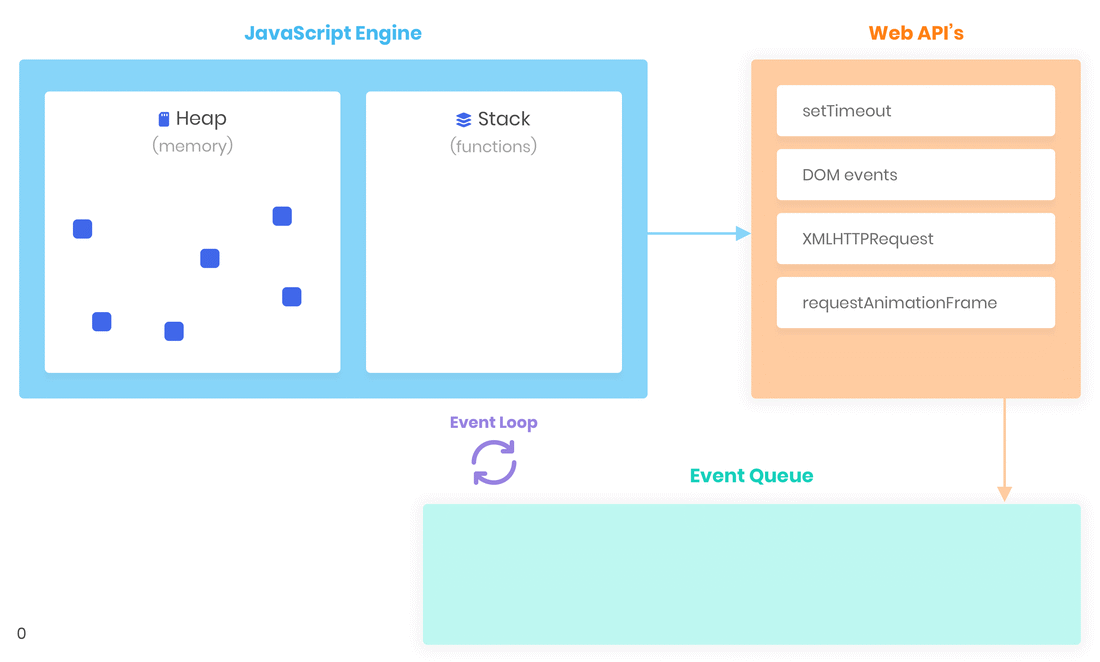

Right after the setTimeout function is executed — the browser engine places setTimeout’s callback function into an event table. It’s a data structure which maps registered callbacks to events, in our case onTimeout function to timeout event.

const fn1 = () => console.log('fn1')
const fn2 = () => console.log('fn2')
const callback = () => console.log('timeout')
fn1()
setTimeout(callback, 1000)
fn2()
// output:
// fn1
// fn2
// timeout
Image for post
Image for post

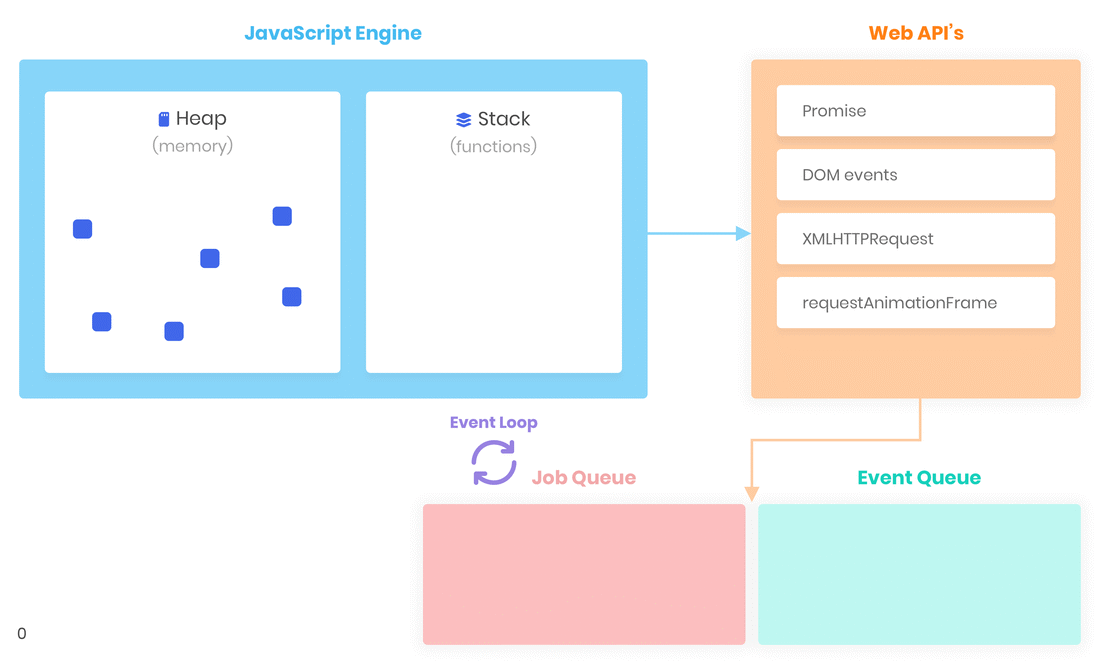

const fn1 = () => console.log('fn1')
const fn2 = () => console.log('fn2')
const onTimeout = () => console.log('timeout')
const onResolve1 = () => console.log('resolved1')
const onResolve2 = () => console.log('resolved2')
fn1()
setTimeout(onTimeout, 0)
Promise.resolve()
.then(onResolve1)
.then(onResolve2)
fn2()// output:
// fn1
// fn2
// resolved1
// resolved2
// timeout
Image for post
Image for post

Blocking vs Non-Blocking

In simple terms, all the JavaScript code is considered blocking. While V8 is busy with processing stack frames — the browser is stuck. The UI of your app is blocked. The user won’t be able to click, navigate, or scroll. Responses from your network requests won’t be processed until V8 finishes its work.

const fn1 = () => console.log('fn1')
const onResolve = () => console.log('resolved')
const parseImage = () => { /* long running parsing algorithm */ }
fn1()
Promise.resolve().then(onResolve) // or any other Web API async fn
parseImage()
Image for post
Image for post

Outro

Understanding what the JavaScript environment is composed of is crucial for every developer who wants to be able to solve complex tasks. Now we know how asynchronous JavaScript works, the role of the call stack, event loop, event queue and job queue in its concurrency model.
